ESPurna-H, A Compact Open Source Hardware Wireless Power Wall Switch

ESPurna-H, A Compact Open Source Hardware Wireless Power Wall Switch

Controlling your AC loads using wireless power switch is not a new concept. Several commercial products from several vendors can be found on the market such as Xiaomi’s Mi Smart Socket Plug, SAMSUNG’s SmartThings Power Outlet and Sonoff Pow WiFi Switch from ITEAD.

Using ESP8266 makes the building of a customized WiFi power switch more affordable especially if you start with Sonoff Pow WiFi Switch design and you use a special Arduino C firmware called ESPurna developed by Xose (tinkerman) which is an open source firmware for ESP8266 based wireless switches such as Sonoff POW and many others.

After Xose has built the software ــ ESPurna, he decided to build his own smart switch board to meet his special needs. ESPurna-H electronic design is very similar to Sonoff POW’s one; it uses ESP12 module as a controller and as WiFi transceiver.

ESPurna-H

AC power monitoring is done using HLW8012 IC which is also present in Sonoff POW. This IC monitors both voltage and current of the AC power, and output RMS voltage, current and active power encoded as a 50% duty cycle square wave where the frequency is proportional to the magnitude. I should mention that ESPurna supports interfacing with HLW8012. In addition AC load is enabled/disabled by using a 10A relay.

ESPurna-H uses HLK-PM01 AC-DC step-down power supply module. The 100-240 VAC input range so the board can be used anywhere in the world and the good performance made Xeos select this module.

HLK-PM01
HLK-PM01

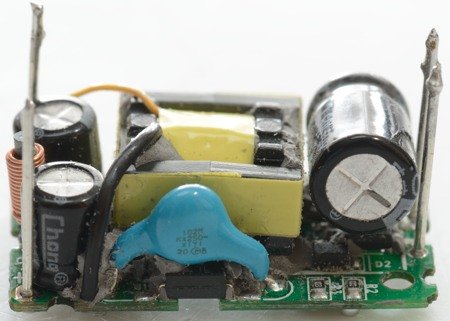

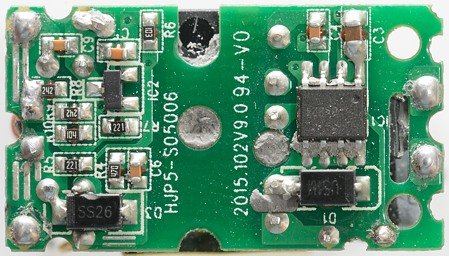

HLK-PM01 Inside (Image Source ــ lygte-info.dk )
HLK-PM01 Inside (Image Source ــ lygte-info.dk )
HLK-PM01 Inside (Image Source ــ lygte-info.dk )
HLK-PM01 Inside (Image Source ــ lygte-info.dk )

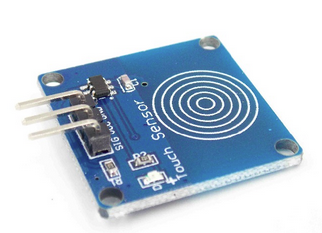

ESPurna-H has another option to enable/disable the relay using a capacitive touch switch using TTP223 module.

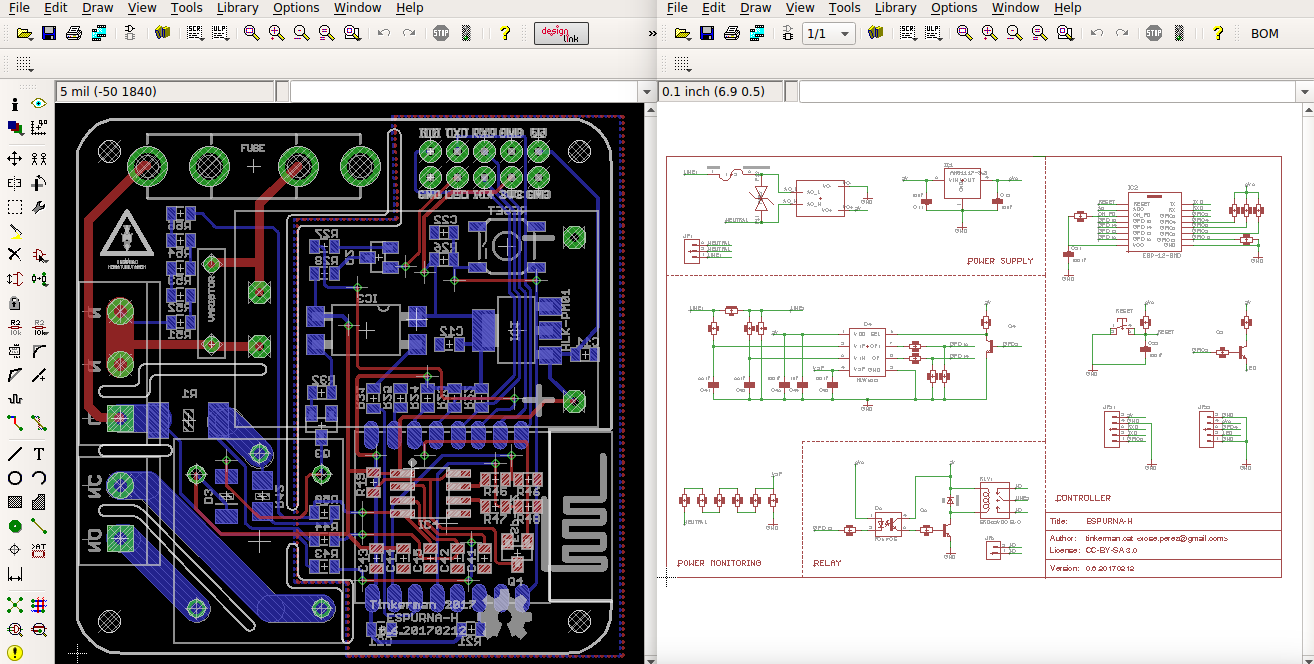

Xose designed the board with Eagle CAD and released the schematics, PCB layout and other hardware design files on Github.

Source: cnx-software
