In order to make learning and using electronics accessible to all, Digilent Inc., an electrical engineering products company, had created a new powerful and affordable tool for  beginners and enthusiasts. ‘OpenScope’ is an instrumentation device that empowers makers, hobbyists, engineers, and new learners to design and debug their most innovative products.

OpenScope is a portable multi-function programmable instrumentation module, that connects with computer through WiFi or USB to allow acquiring, analysing, visualising, and controlling signals from circuits, sensors, and other electronic devices. It can also be programmed to work as a standalone development board, like Arduino and Raspberry Pi, with high-speed precision analog and digital I/O.

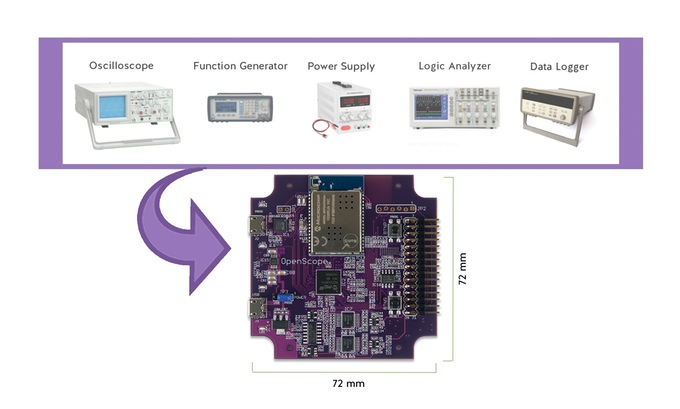

WaveForms Live is a free, open-source, JavaScript-based software that runs in a browser. It comes with OpenScope and is used for configuring it to work as an oscilloscope, a function generator, a logic analyzer, a power supply, or a data logger.

OpenScope can be used to make real time monitoring and troubleshooting projects, to build long-term capturing and calculating IoT devices, and also to gain a deeper understanding of electronics through visualizing what’s happening inside of the circuit.

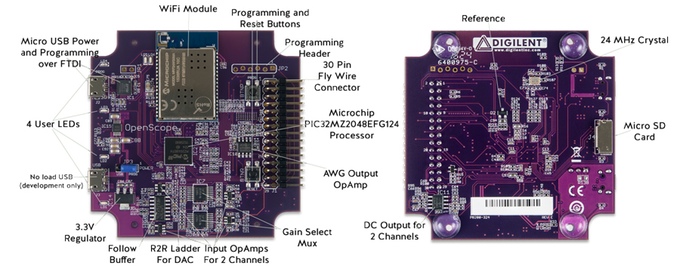

The core of OpenScope is the Microchip PIC32MZ Processor, a 32-bit MCU based on the MIPS processor, clocked at 200MHz with 2 MB flash memory and up to 512KB high-speed SRAM. It is placed on OpenScope’s top face with a WiFi module, MicroUSB port for power and programming, programming headers, 30 pins, two input channels, gain select multiplexers, with led and buttons.



OpenScope Features:

  • 2 12-bit scope channels at 2 MHz bandwidth and 6.25 MS/sec sampling rate.
  • 1 MHz function generator output with 10 MS/sec update rate.
  • 10 programmable digital I/O pins .
  • Up to 50 mA ±4 volts programmable power supply.
  • On-Board WiFi
  • Reprogrammable through Arduino IDE and Microchip MPLabX

$14,000 has been reached since launching the Kickstarter campaign yesterday. You can reserve your own OpenScope for $80 and also an optional 3D printed case is available for $25. According to the project timeline, early shipping will begins in April 2017.
