BO.Duino – ATmega328 Arduino Compatible board

IMG_0114

BO.Duino

Description

BO.Duino is an Arduino compatible board based on ATmega328 ATMEL’s mcu. This board features many peripherals usually externally connected on a breadboard or prototyping board such as sensors, SD card etc. Peripherals included are:

  • A real-time clock
  • AT24 series external memory chip
  • MicroSD card adaptor (SPI)
  • RGB LED
  • A potentiometer on analog input
  • Connector for DS18b20  or DHt11  series sensors

The board should be configured as Arduino Duemilanova on Arduino IDE. A jumper is used to select the FT232 chip output level. Also the board’s power supply is selected manually. The FT232RL enables you to programm a new firmware or change the bootloader without the need of extrernal programmer .

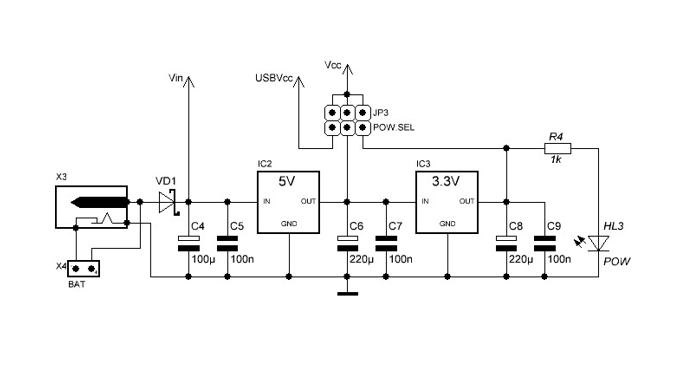

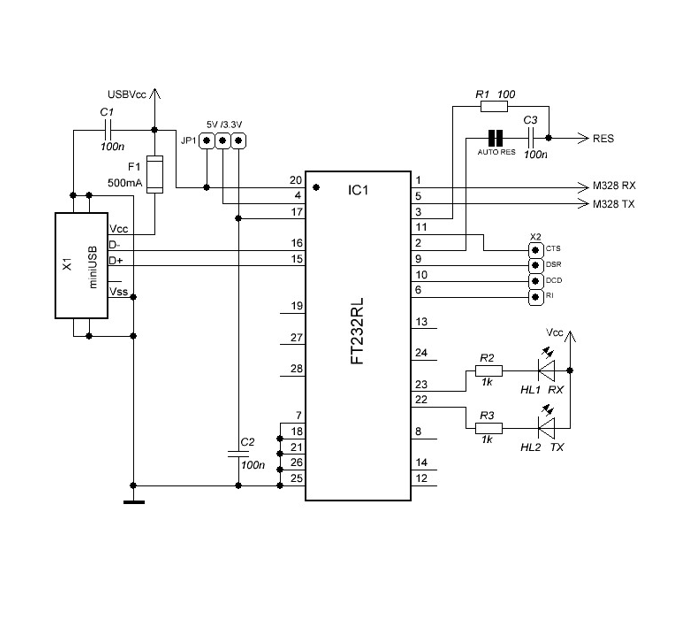

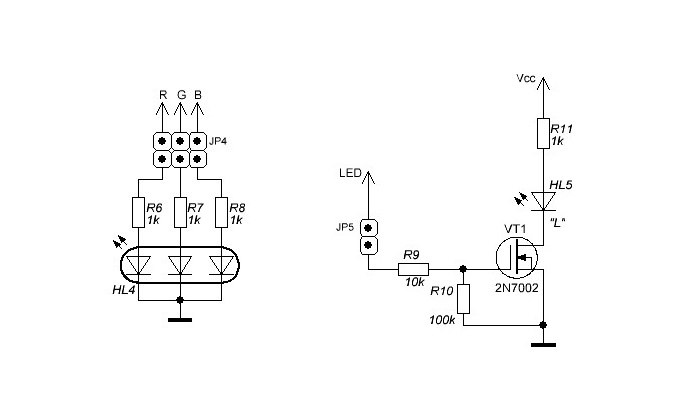

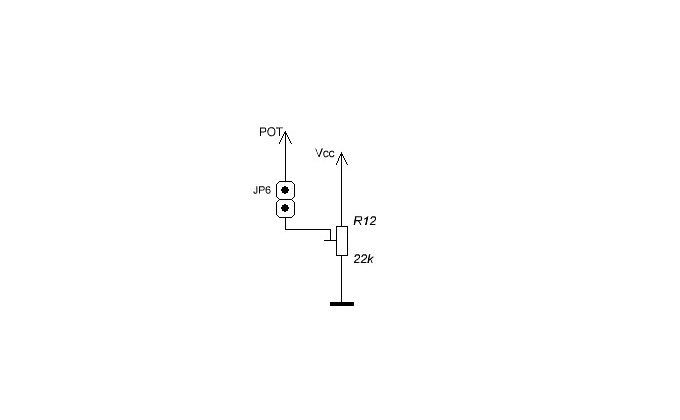

Schematic

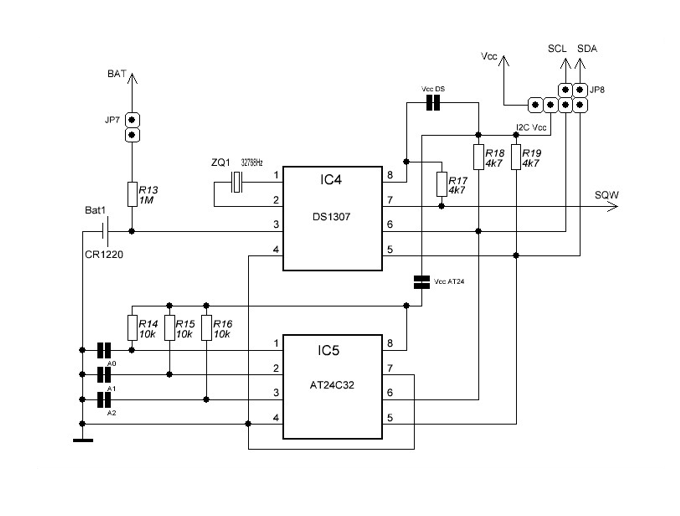

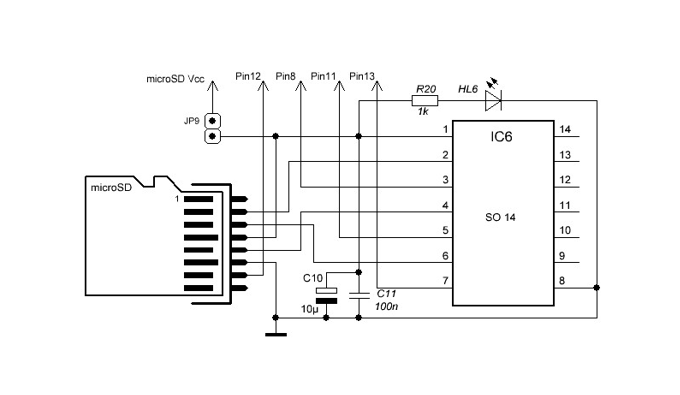

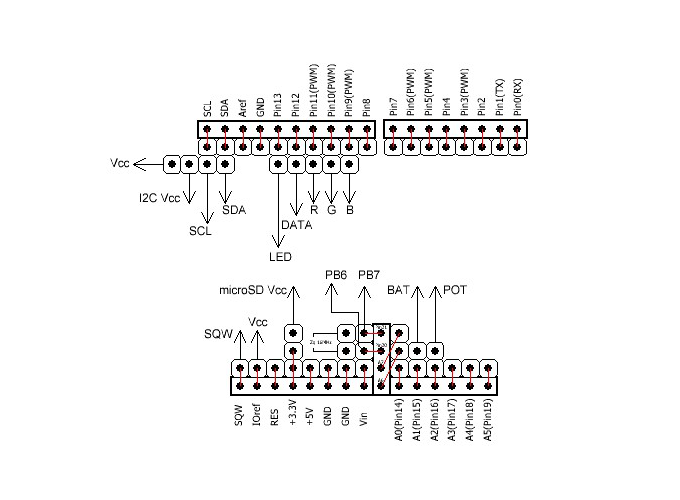

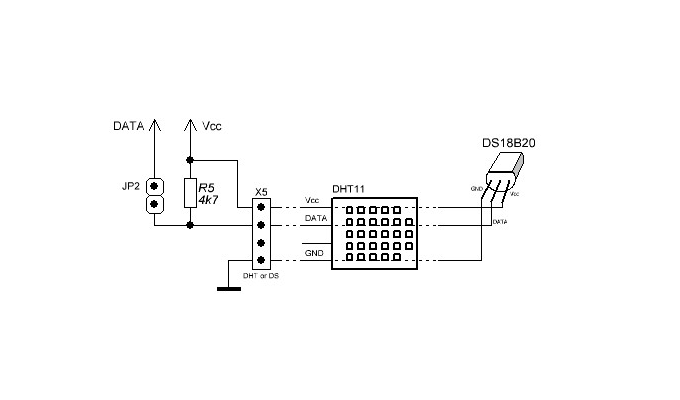

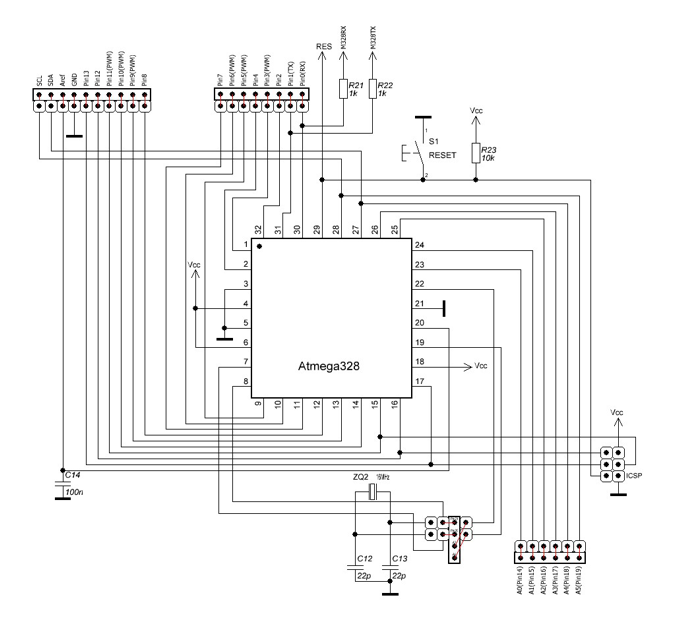

schematic_1_th

schematic_2

schematic_3

schematic_4

schematic_5

schematic_6

schematic_7

schematic_8

schematic_9

Photos

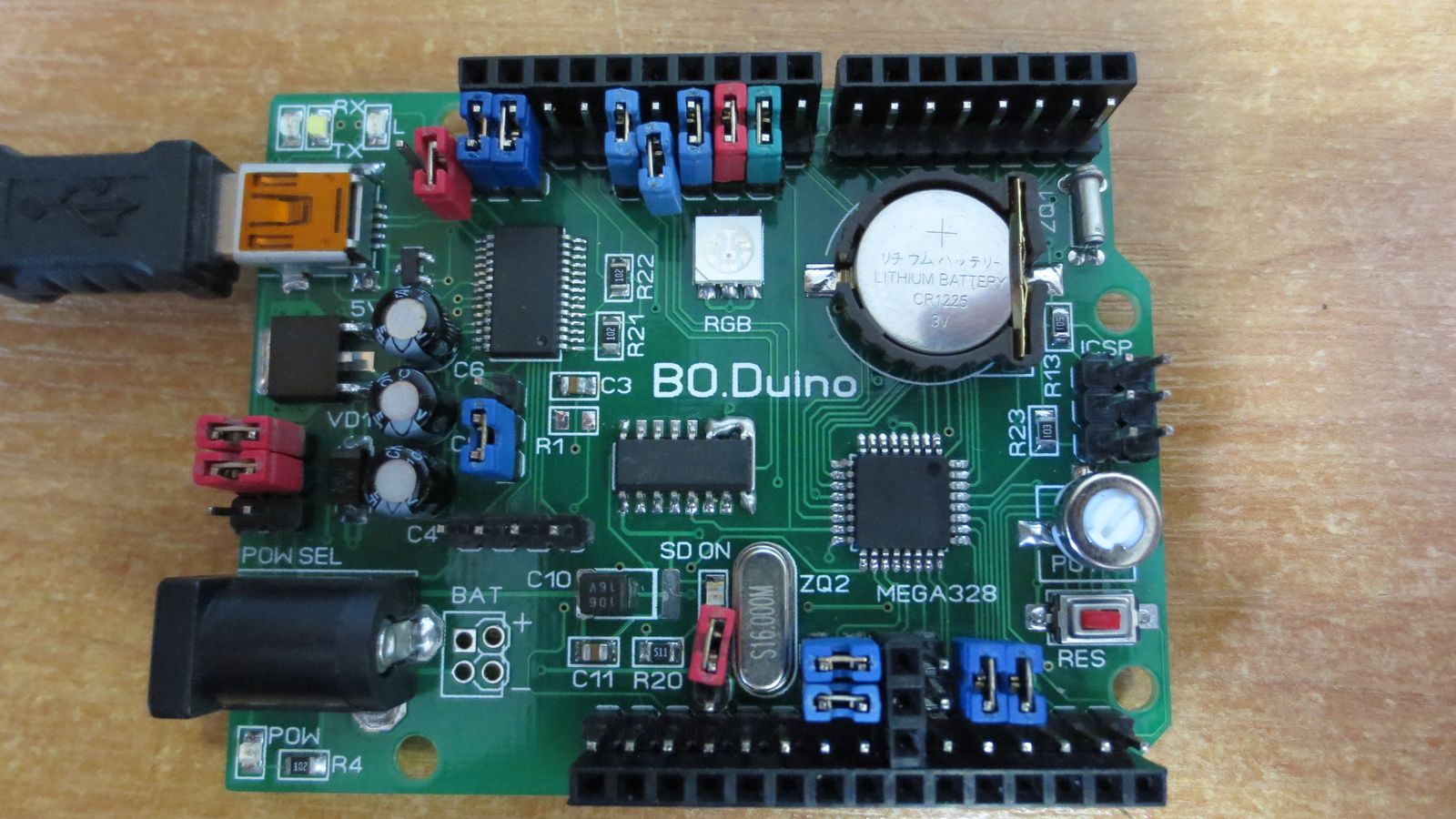

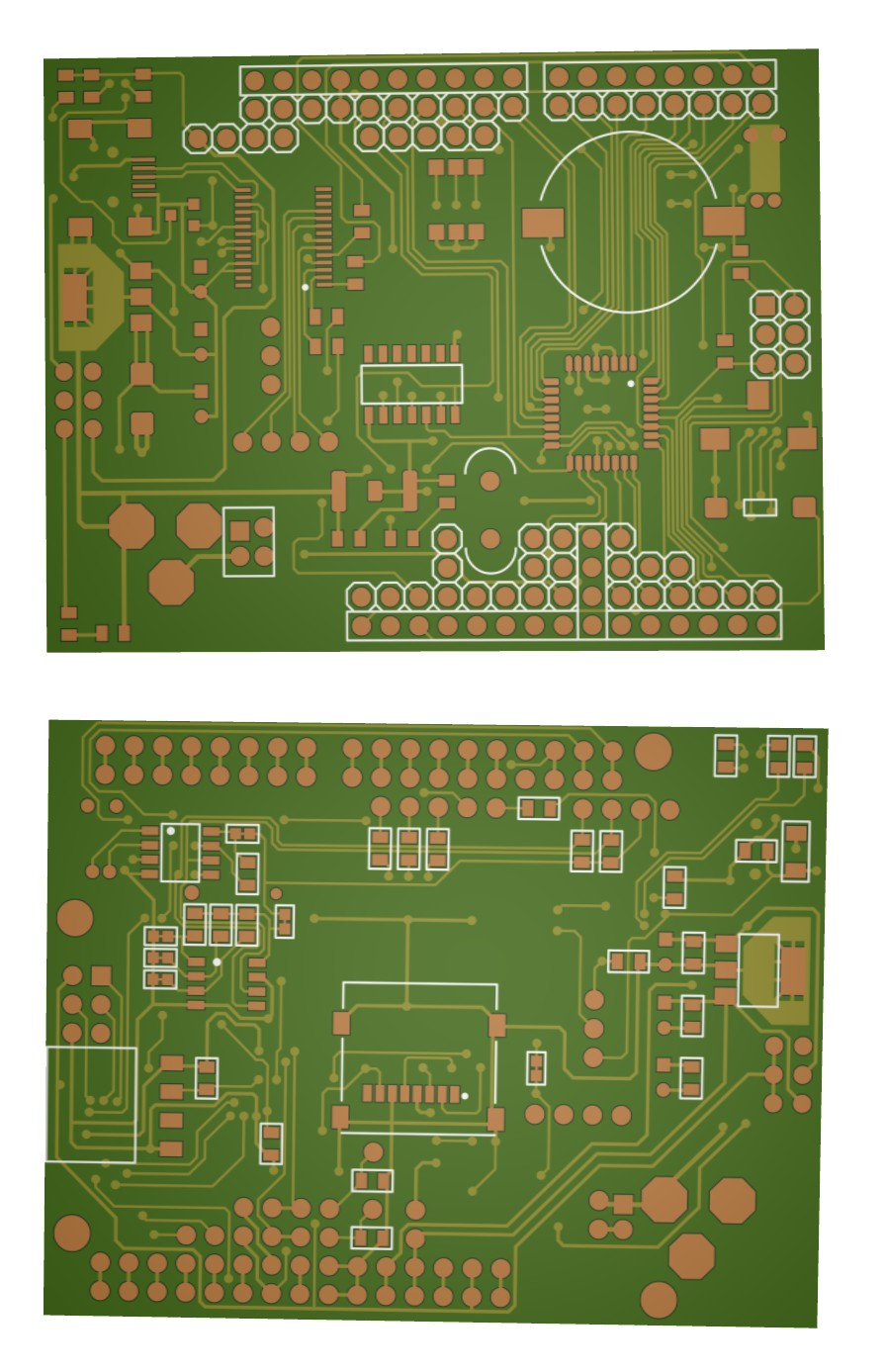

3D_PCB

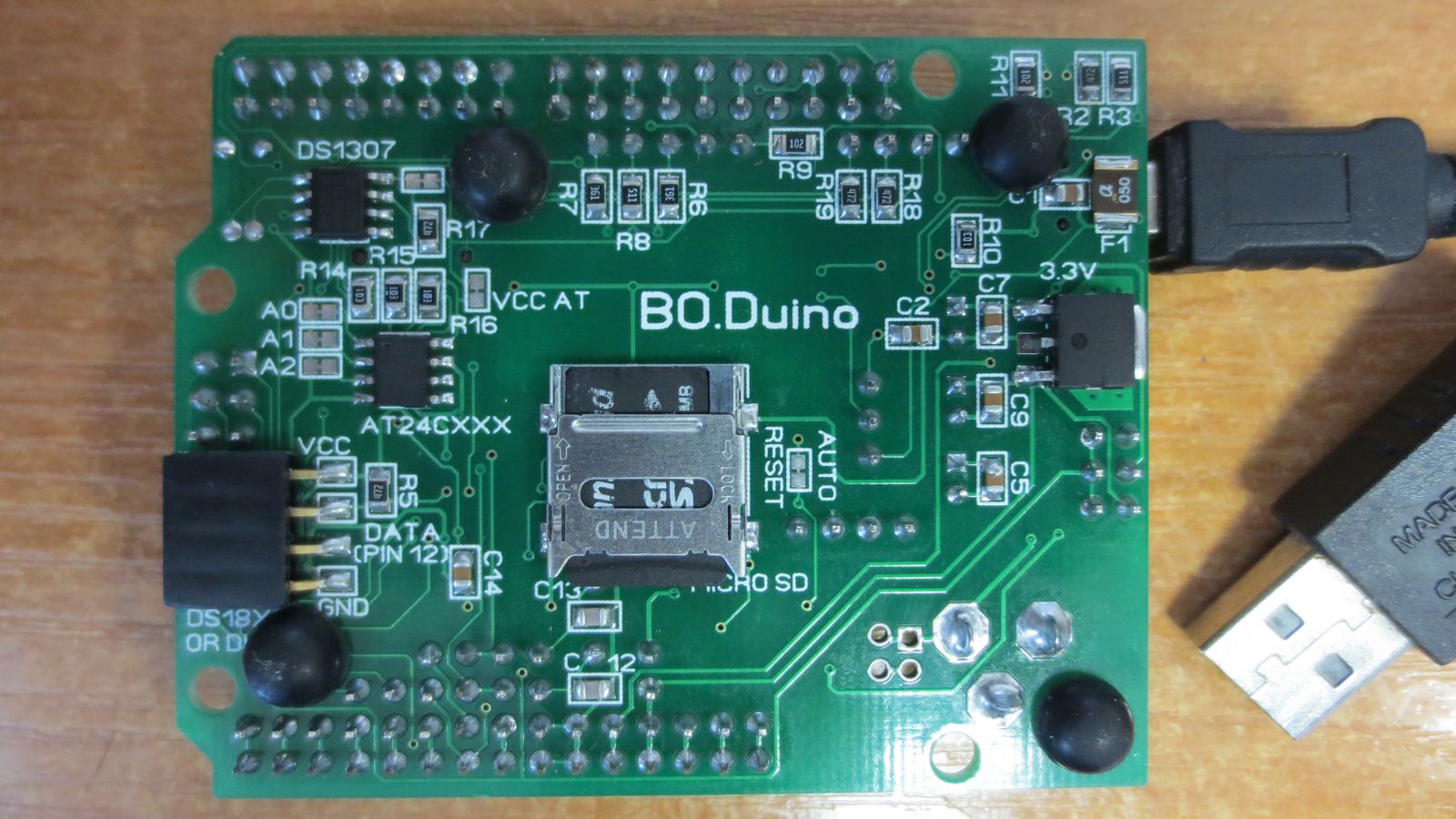

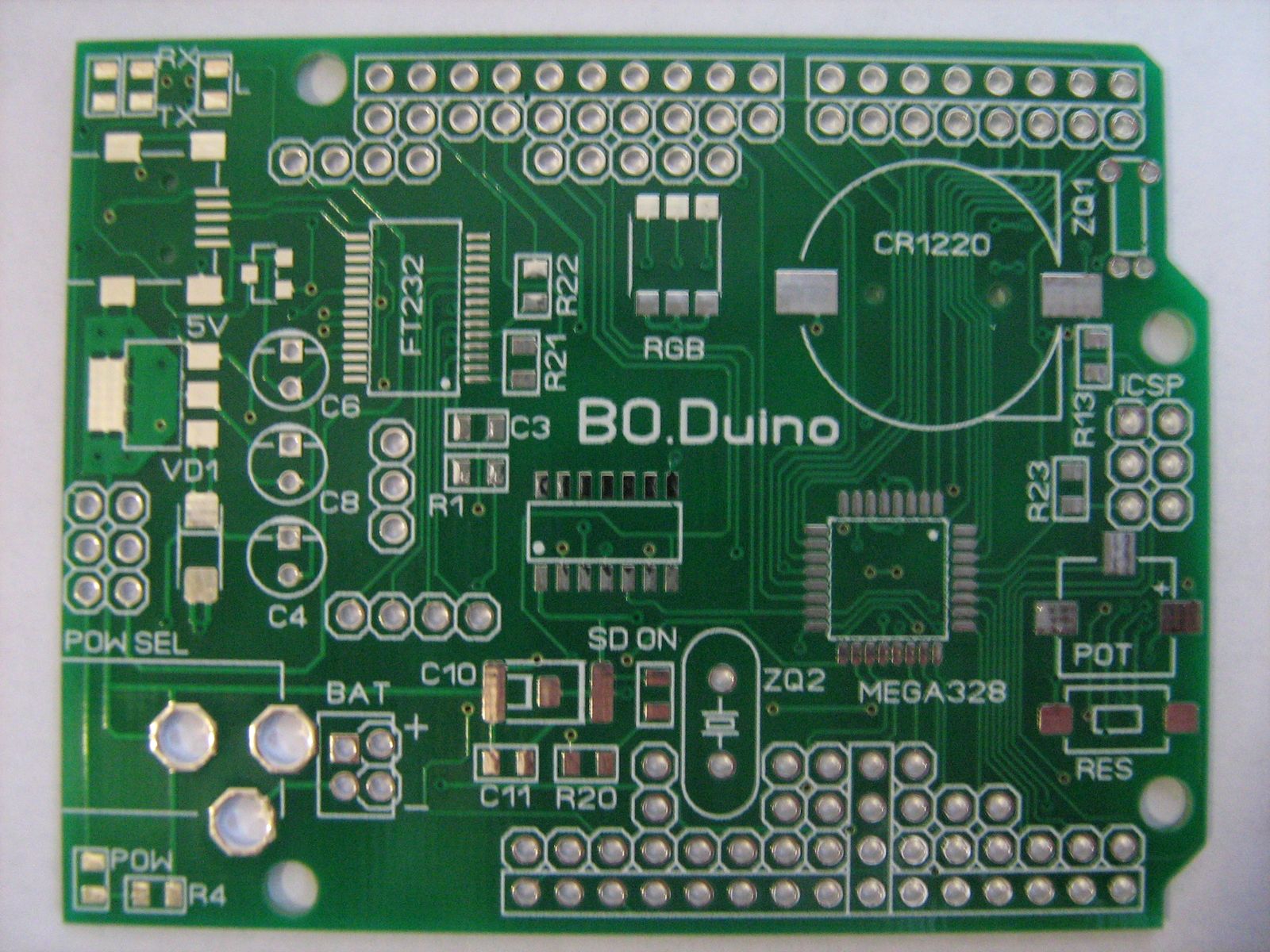

IMG_0650

IMG_0117

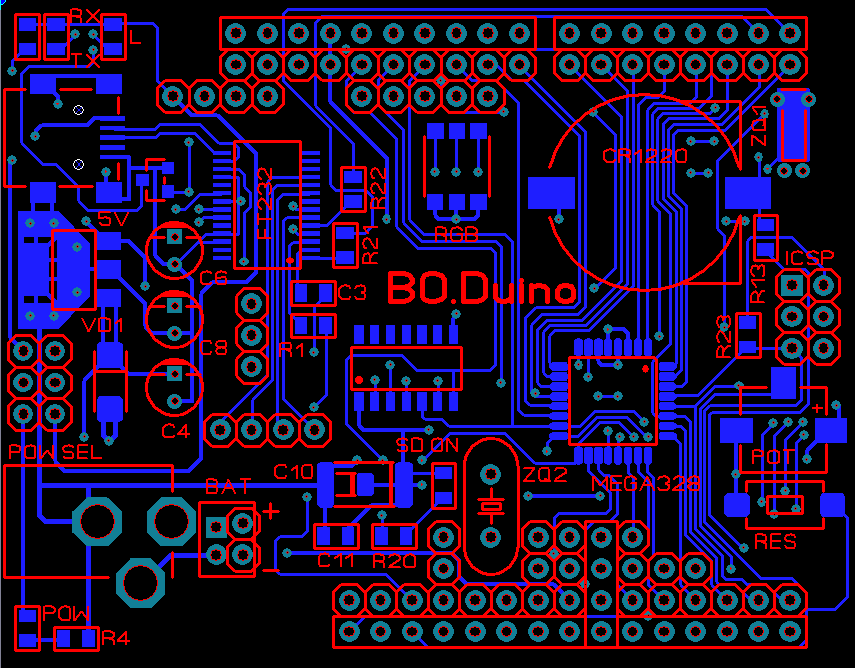

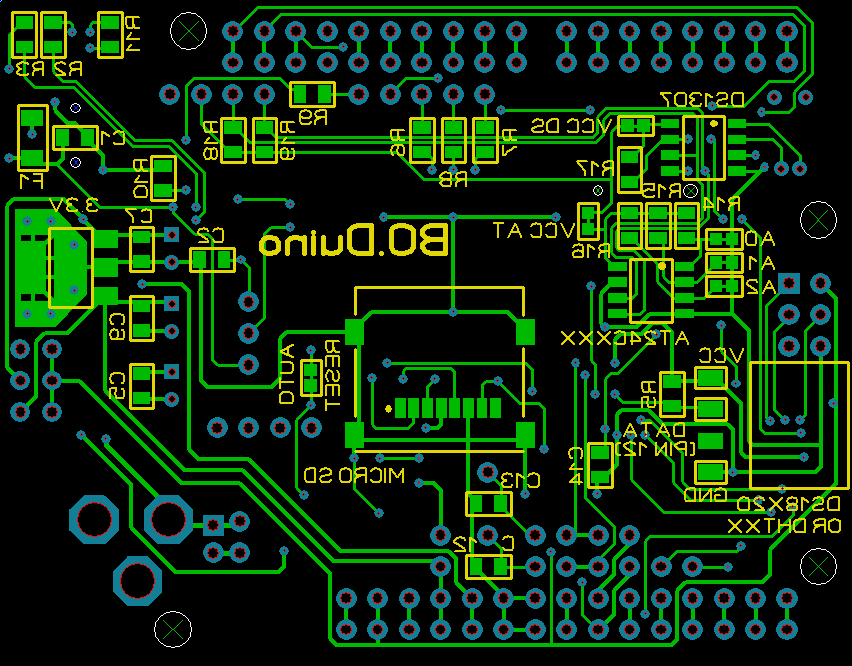

PCB
