PowerPlant, A Personal Power Assistant

Imagine you won’t need electricity mains wherever you are outside! PowerPlant by Nuuq is trying to solve this issue by providing its charging mains-alike power bank. PowerPlant is light enough to be convenient to carry, suitable for you backpack and is TSA approved. Also, it is powerful enough to charge loads of device with its 95 Watts power output.

Check this video to know more about PowerPlant:

Power on the go!

Fortunately, PowerPlant includes a universal plug input, a replaceable battery, plus an inner temperature protection. In addition, it will provide you with easy read via its LCD plus fast charging. Furthermore, it has many competitive advantages compared to similar products.

To summarize, below are the full specifications of PowerPlant:

  • Universal plug for 2 & 3 pin plugs (ideal for USA, UK, Europe and Australia)
  • Output 19v/1.58A 5v 2.4A
  • Output: AC 100 – 240v/95W (max)
  • Modified Sine Wave Inverter
  • Replaceable 20100mAh lithium-Ion battery
  • 2 x 2.4A 5v fastcharge USB ports
  • 1 x USB-C
  • 1 x 19 Volt fast charge charging port
  • LCD display with battery charge, temperature, AC, DC and In/Out display
  • IP4 Splash-proof water resistance

PowerPlant is now live on a crowdfunding campaign on Indiegogo. Amazingly, it has achieved 500% of its goal and still has 11 days to go. Finally, PowePlant is available for $150, you can check the campaign for more details.

ChargEST, A Travel Adapter To Charge Your Devices

When you travel, it’s a bit frustrating to fill your luggage with lots of chargers, cables, and adapters to fit your charging needs. In addition to the space it takes which makes it harder to bring every kind of charger you may need.

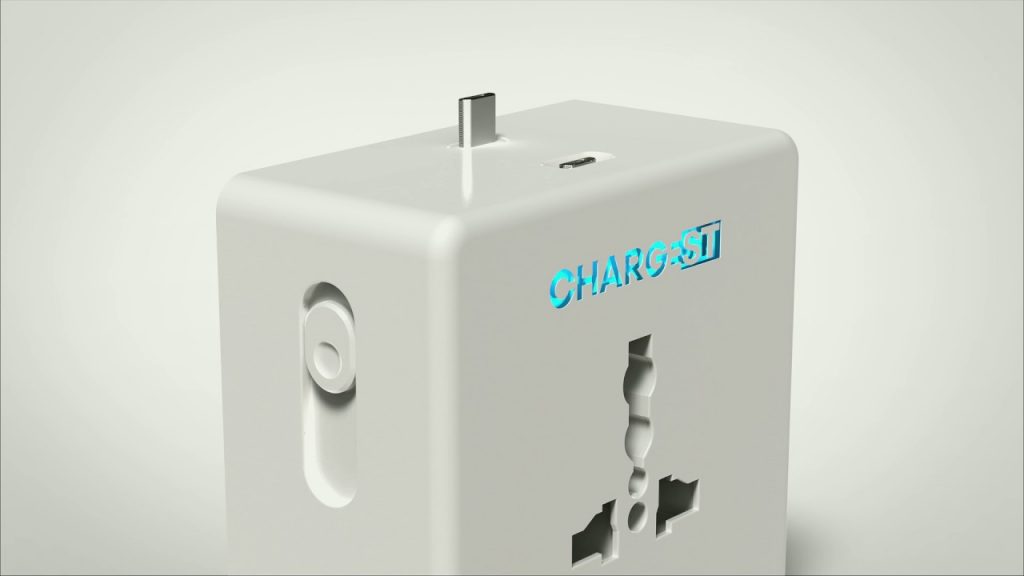

ChargEST is designed to become your charging companion anywhere in the world you might be, so you can power up all your devices with a single accessory. It is compatible with USA, UK, Europe, Australia and 150 other outlet and plug standards, that charges cable-less up to two mobile devices with its fast-charging integrated pins and any other devices with the three USB ports.

The ChargEST is a small 8x8x4 cm portable device that fits in your pocket. It is built using high-quality materials and has three fast-charging USB ports, GoGreen on/off button, two height adjustable MicroUSB pins, and USB-C and Lightning plug extensions. You can charge up to six devices at the same time with 6.3A total charging power.

Safety comes as a top priority for ChargEST. Equipped with child-proof design and protection for overheating, short-circuit, voltage variation, and overcharging, you can be assured of having a safe charging experience every single time.

In addition to the ChargEST adapter, there are another two versions: ChargEST Bank, and ChargEST Double. The Bank provides you with extra 6300mA battery for your ChargEST to stay charged wherever you are on the go. It can fully-charge your iPhone or Android smartphone up to 3 times and also has an additional USB outlet to charge any other device.

ChargEST Double is the same of the original ChargEST but with an extra socket to connect other devices.

Six days left for the Indiegogo campaign with a goal of $20,000. However, they raised around $200k till now.

Using A Bench Power Supply To Charge Lithium Ion Batteries

David Jones has another useful video tutorial about how to safely charge Lithium Ion and Lithium Polymer batteries with a bench power supply. The purpose of this tutorial is to learn how to use your lab power supply to charge your Lithium Ion battery when you don’t have a special charger circuit to do so.

NCR18650BBattery

He used NCR18650B in his tutorial, a 3.6V 3400mAh Lithium Ion battery from Panasonic.
David warned us that charging this type of battery is quite dangerous if we didn’t do it in the correct way. Even with the presence of protection circuit in Lithium Ion battery.

LiionProtec

You can find the charging diagram in NCR18650B battery datasheet.

NCR18650BChargingdiag

According to the datasheet, the charging current is 1625mA and the charging voltage is 4.2V. Charging consists of two stages, first one is the constant current stage where you must supply a 1625mA constant current and when the battery voltage reaches 4.20V, the second stage starts, which is the constant voltage stage. In this stage, the current will naturally drop down, and the cutoff is typically about 10% of charging current so it’s about 170mA.
This tutorial applies to all Lithium Ion and Lithium Polymer batteries not only NCR18650B.

LiIonBatteries

You can perform this 2-stage charging using your power supply, but it must supports CC(Constant Current) and CV(Constant Voltage) modes. You can read the following Q&A in electronics.stackexchange to learn what constant current and voltage modes mean. You can build a power supply with CC and CV modes for yourself if you don’t have a budget to buy a ready made one.

David’s Power Supply Setting With 4.2V CV and 1700mA CC
David’s Power Supply Setting With 4.2V CV and 1700mA CC
The Battery Charges in The First CC Stage Sinking 1698mA
The Battery Charges in The First CC Stage Sinking 1698mA

David said that using this type of float charging/trickle charging is not recommended, because it will build-up or plate the metallic parts inside the battery. So It’s better to use dedicated ICs designed for the float charging.

David mentioned in his video that a complete tutorial is available for whom who want to know in details how to charge lithium ion battery.



60V-input battery charger; Pb-acid & Li-ion charge algorithms up to 20A

160901edne-linear4013
LTC4013 is a highly integrated, high voltage multi-chemistry synchronous step-down battery charger controller. With a wide input voltage range that spans up to 60V, the LTC4013 uses temperature-compensated 3- and 4-stage charge algorithms to efficiently charge 12V and 24V lead-acid batteries. By Graham Prophet @ edn-europe.com

Alternatively, the LTC4013 will charge a multicell Lithium-based battery stack with float voltages near to the input supply. Mode pins define the float voltage and charge algorithm. Charge current is precision regulated to ±5% and programmable with a single resistor up to 20A (depending on the selection of external components). The LTC4013 features user-adjustable maximum power point tracking (MPPT) circuitry that enables simple power optimization in the case of power-limited sources such as solar panels. The MPPT open-circuit method corrects for panel temperature changes without the inconvenience of adding a solar panel temperature sensor. Applications include portable medical instruments, monitoring equipment, battery backup systems, industrial handhelds, industrial lighting, military equipment, ruggedized notebooks/tablet computers, plus remote powered communication and telemetry systems.

60V-input battery charger; Pb-acid & Li-ion charge algorithms up to 20A – [Link]

Battery-charging considerations for low-power applications [PDF]

battery_charging

By Tahar Allag:

The wearable and personal-electronics industries are booming. Devices in this market vary wildly by application and use. These multifunction devices are designed to help people in their daily activities and make their lives comfortable. They can be found in different shapes, colors, sizes, and safety measures. They may differ significantly from each other, but they all have one thing in common—the need for a battery and a battery charger. These portable devices are typically powered by batteries installed internal to the device, which must be charged efficiently and quickly on a regular basis. The user’s charging experience also needs to meet the requirement of safety, comfort, and convenience.

Battery-charging considerations for low-power applications [PDF] – [Link]

Wireless Transmitter System

This wireless project is a power transmission system, it works on the principle of magnetic induction. This Wireless Charging system works as the digital switched mode power supply with the transformer, which is separated into two parts: The transformer primary coil is on the transmitter, working as the transmitter coil, and the transformer secondary coil is on the receiver side as the receiver coil. This system works based on magnetic induction, the better coupling between the transmitter coil and receiver coil gain, the better system efficiency. So the receiver coil should be closely and center aligned with the transmitter coil as possible. After the receiver coil receives the power from the transmitter coil by magnetic field, it regulates the received voltage to power the load, and send its operational information to transmitter according to specific protocol by the communication link. Then the system can achieve the closed-loop control, and power the load stably and wirelessly. (more…)
