IoT Projects Is Now Easier With Bolt IoT Platform

Internet of Things (IoT) is one of the most important technologies these days. It became an essential component of many hardware projects core. And in order to make it easier for developers, Bolt IoT platform appeared as a complete solution for IoT projects.

Bolt is a combination of hardware and cloud service that allow users control their devices and collect data in safe and secure methods. It also can give actionable insights using machine learning algorithms with just some few clicks.

The platform consists of three main components, Bolt hardware module, Bolt cloud, and analytics. The hardware module is a WiFi chip with a built-in 80 MHz 32-bit RISC CPU that operates at 3.3v. It also works as an interface for a set of sensors and actuators through GPIO and UART pins to collect data and react with it.

Bolt Hardware

The next part is Bolt cloud which used mainly for configuring, monitoring, and controlling connected devices. It is a visual interface enables users to setup hardware and prepare the system easily and quickly. In addition, there is a code editor to write and edit codes for the hardware. The special feature is that you can reprogram the system remotely!

Finally, the analysis and monitoring unit provide visualized insights based on machine learning algorithms. The collected data are stored securely on the cloud, and the reports are presented as graphs, charts, or any customized visualization.

Bolt IoT Platform Features

  • A Wifi or a GSM chip
    An easy interface to quickly connect your hardware to cloud over GPIO, UART, and ADC. Also, connects to MODBUS, I2C, and SPI with an additional converter.
  • Robust Communication
    Bolt is equipped with industry standard protocols to ensure a Secure and fast communication of your device data with cloud.
  • Security
    Bolt has built-in safeguards to secure all user data from unwanted third party intrusions and hacks.
  • Machine Learning
    Deploy machine learning algorithms with just a few clicks to detect anomalies as well as predict sensor values.
  • Alerts
    Utilize Bolt’s quick alert system providing invaluable information sent directly to your phone or Email. You can config the contact details and set the threshold.
  • Mobile App Ready
    Customize and control your devices through Mobile apps. Bolt gives you full freedom to design your own mobile app centered around your requirements to monitor and control.
  • Global Infrastructure and Easy Scalability
    Bolt lets you scale from prototype to millions of devices in just a few weeks time.
  • Over the air updates
    Simultaneously program or update all your Bolt powered IoT devices wherever they are. Bolt offers you unparalleled scalability and elasticity to help your business grow.

The scope of applications that may benefit from using Bolt is very wide, including environmental applications, smart cities, electricity management, and much more. Bolt is available for ordering in two packages, the first is for developers and the other is for enterprises. Developers option contains one Bolt unit with three free months of cloud services, and its cost is about $75.

At last, Bolt makers are launching a Kickstarter campaign on the 3rd of November 2017. If you are interested and want to know more about this platform, take a look at the official website and read this detailed features document. Update 6-11-2017 – They achieved the goal of $10,000 USD funding in just 5 hours from launch!

Lightweight GSM Mobile With Arduino UNO and Nextion Display

Avishek Hardin at Arduino Project Hub designed a lightweight mobile using a GSM module, an Arduino UNO, and a Nextion touch screen display. The lightweight mobile has the following features:

  • Make calls
  • Receive calls
  • Send SMS
  • Receive SMS
  • Delete SMS

In this project, he uses a GSM SIM900A module to establish the cellular communication. The GSM SIM900A is an all-in-one cellular module that lets you add voice, SMS, and data to embedded projects. It works on frequencies 900/1800MHz and uses the RS232 standard to communicate with MCUs. Baud rate of this module is adjustable from 9600 to 115200 through specific AT Commands.

This GSM mobile features a Nextion touch display to take input from the user and visualize the GUI. Its easy-to-use configuration software (Nextion Editor) allows you to design your own interfaces using GUI commands. All GUI data is stored in Nextion display instead of the master MCU. Thus, lots of program space in MCUs can be saved efficiently and it makes the development procedure effortless. The Nextion displays communicate with microcontrollers over UART which is supported by a wide range of MCUs.

Required Parts

Required pats for this project
Required parts for this project

Required Tools

Connection

Connect the Nextion display and the GSM module with your Arduino using following instructions:

  • Nextion +5V to Arduino VDD_5v.
  • Nextion RX to Arduino pin 11
  • Nextion Tx to Arduino pin 10
  • Nextion GND to Arduino GND_0v.
  • GSM Rx to Arduino pin 1
  • GSM TX to Arduino pin 0
  • GSM GND to Arduino GND_0v.
Wiring Diagram
Wiring Diagram of Arduino-based GSM mobile

Program The Nextion Display

First of all, you need to design an HMI file using Nextion Editor. This editor allows you to design the interfaces using plug-and-play components like text, button, progress bar, pictures, gauge, checkbox, radio box, and much more. You can set codes and properties for each of these components later.

Design GUI using Nextion Editor
Design GUI using Nextion Editor

In this project, 8 different pages are used to design the GUI. All the icons used are easily available on the internet. Icons are resized and modified using an open source tool paint.net. Touch events like press and release are also covered when components are touched. More information on Nextion display commands can be found on this wiki page.

Designing dial pad using Nextion Editor
Designing dial pad using Nextion Editor

Steps To Upload

  • Load the .HMI file into the editor. Link to the Github repository is here.
  • Compile the .HMI file (just under the menu bar).
  • Go to File > Open build folder > Copy the .tft file > Paste into SD card. Note: make sure the SD card is formatted to FAT32.
  • Once copied, insert the SD card into the Nextion display and then turn the power on.
  • Wait for the .tft to upload.
  • Power off the Nextion, securely remove the SD card and then again power on the display.
  • Now you should see your new interfaces on the Nextion Display.

Program The Arduino

The Arduino is the brain of this project. It takes input from the Nextion display, sends commands to GSM module to create the cellular connection, and shows information on the display. This project does not use any Nextion library due to lack of documentations and difficulties to understand. Moving on without using libraries seems tough but it is really not.

The code can be found on the Github repositorySimply download it and upload to the Arduino board using the Arduino IDE. If you are using some other board than Arduino UNO, then don’t forget to select that specific board in Arduino IDE before uploading.

Editing the Arduino sketch
Editing the Arduino sketch
compile and upload the sketch using Arduino IDE
compile and upload the sketch using Arduino IDE

Open the Serial Monitor, you should see the AT command log for each event triggered from the Nextion Display.

Serial Monitor shows the AT command log
Serial Monitor shows the AT command log

Important Note

By default, the GSM module has an SMS buffer size of 20. Unfortunately, this Arduino-based mobile cannot display all the 20 messages at once on the Nextion display as it gives a buffer overflow while compiling the Nextion code. Hence, the Nextion display is programmed to show maximum 10 messages at once. If 10 or more SMS are present on the GSM buffer, the Low memory warning icon will be displayed on the Nextion display.

SMS log showing received messages on Nextion display
SMS log showing received messages on Nextion display

Video

Watch the demonstration video to understand how this Arduino-based lightweight GSMmobile works.



Stay Connected While Travelling Without Fees With VoxEra

Mobile Roaming allows you to stay connected wherever you are and receive calls and SMSs, but with very expensive cost. So if you don’t have enough budget, you will lose your incoming calls till you are back from a travel.

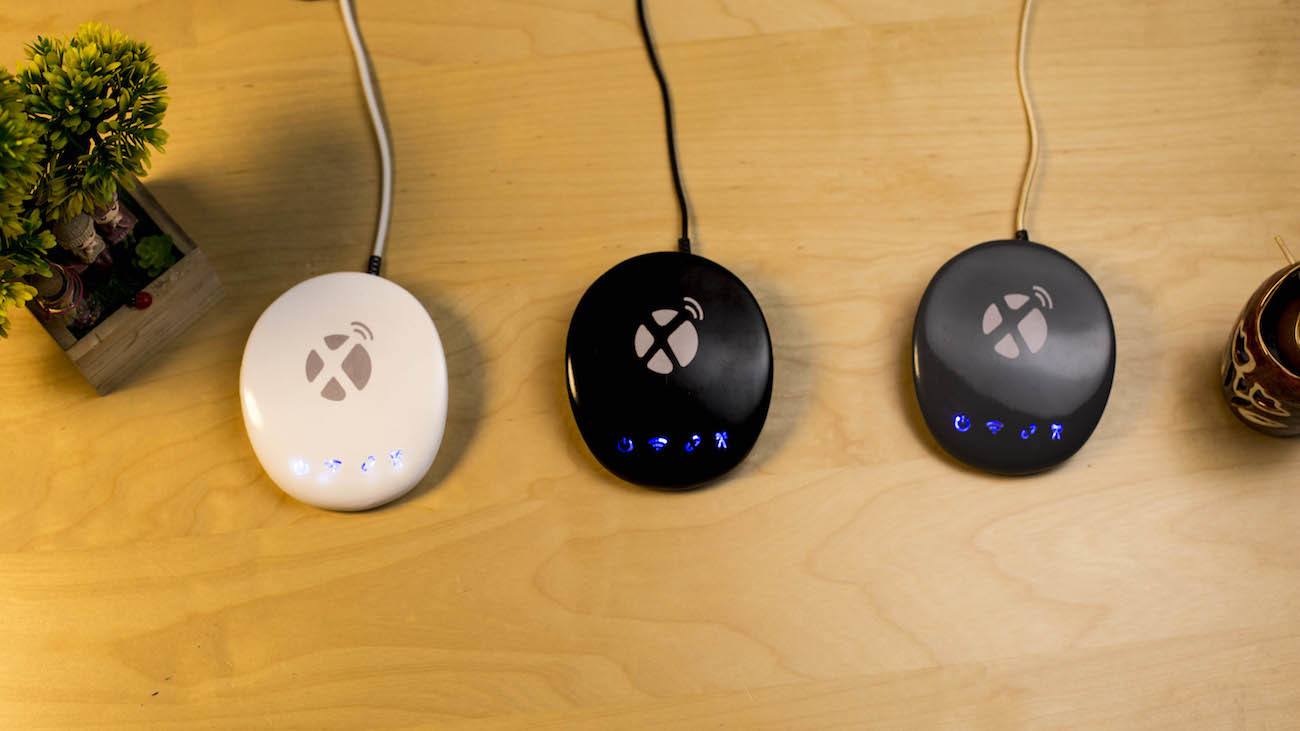

A team of innovators from Egypt had developed a new device called “VoxEra” that enables you to stay connected when travelling without using roaming service. Simply, all you have to do is to put your SIM card into VoxEra and connect it to the internet, install VoxEra App into your smartphone and enjoy calling and texting with a high quality connection.

Compared with other similar products, VoxEra uses a standard GSM network instead of VoIP service, which mean that other people don’t have to install any application to connect with them. It will also use your own SIM card with the same mobile number and will give you more options forward to record incoming calls when you are offline.

Think of VoxEra as a message converter; when you receive a call, VoxEra receives a GSM call and then converts it into a VoIP call. Then, it sends that converted message to the Cloud through the Internet. In the same way, while making a call, VoxEra sends a message through the Cloud. When the device receives the message, it converts it into a GSM call, at which point, it is delivered to the number you’ve dialed.

The voice roaming killer is now live on Kickstarter and has already reached a $28K fund! Super early bird edition is still available for $79. After the campaign, the device will be available for $119 with free shipping worldwide.

PingPong IoT Development Board – Connecting Hardware to the Cloud

Germany-based Round Solutions developed the PingPong, a powerful and flexible hardware platform for IoT and machine-to-machine (M2M) applications. The PingPong can be used for both wired and wireless connections. The modular hardware design can integrate custom-specific applications and communication standards into a single solution platform that has a very small form factor.

The basic hardware platform of PingPong has a 32-bit 200MHz Microchip PIC32MZ microcontroller unit (MCU) running C/C++ code. It supports RTOS or Real Time Operating System which is available as Open Source Software so that developers can adapt their applications individually and bring them to market more swiftly. The base board of PingPong has following features:

  •  A high-speed cellular module
  • A component for high-precision Global Navigation Satellite System (GNSS)
  • An Internet connectivity module
  • USB
  • CAN-Bus and many other components

    PingPong - The IoT Development Board RTOS 3G Version
    PingPong – The IoT Development Board RTOS 3G Version

One amazing feature is, the high-speed cellular module and the numerous interfaces can be controlled over the cloud. So, you don’t have to keep it wired all the time in order to control all those modules.

Technical Information:

Having an area of 85×52 mm², the PingPong is really tiny in size compared to its features. It has a booming 4 MB flash memory which is perfect for IoT purpose. PingPong beats other IoT modules with the wireless technologies it possesses – 2G, 3G, Galileo E1, GLONASS, and GPS. Supported bands(MHz) for cellular communication are 1800, 1900, 2100, 850, and 900. It communicates with other MCUs over I²C protocol which is widely used by almost all types of MCUs.

The greatest strength of PingPong is its expandability. The developer can overcome all the limitations of PingPong by adding a variety of expansion cards to the PingPong platform. Some examples of expansion cards are, wireless local area network (WLAN), Bluetooth, input/output (I/0), Iridium satellite communications, ISM/RF, SigFox, near-field communication (NFC), radio-frequency identification (RFID), and camera connectivity.

Applications:

  • Send and receive data: Pingpong offers different possibilities for sending and receiving data. Whether it’s wired over Ethernet or on the go with built-in GSM/GPRS module, PingPong does its job of exchanging data continuously.
  • Remote control: The PingPong can be used to control processes remotely via its outputs. Using the digital output with a relay can either enable or disable the power supply of an application.
  • Positioning: With its built-in GNSS and GPS module, the PingPong can also be used to determine position, motion, speed and acceleration.
  • Telemetry: The PingPong can be connected to a wide variety of sensors to process digital and analog measurements. Thus, for example, temperature values collected from a temperature sensor can be transferred via analog input to the PingPong.

And there are much more applications. From hobby projects to industrial development, sensor data collection to the smart home project – anywhere you can use this versatile board.

PingPong supports numerous expansion cards
PingPong supports numerous expansion cards

Important Links:

To learn more on this amazing IoT board, watch these three videos:


Conclusion:

The PingPong is a surprisingly powerful IoT module. It’s a developer’s dream. Having all these features in one package is truly outstanding. The feature of adding expansion cards makes it even stronger.

You can purchase your own PingPong from roundsolutions.com at €199.00. It may seem to be a bit overpriced, but it’s really not. Just consider the features you are getting in a single package and you’ll realize it.
