4 Digit 7 Segment Display Shield For Arduino Nano

4 Digit Multiplexed display shield for Arduino Nano with on board 2 tactile switches and LM35 temperature sensor. This shield helps you to develop many projects that require 4 digit display. For example a thermometer can be made using on board LM35 sensor.  7 Seven segment multiplexed display is a tiny board and has been designed around Common cathode 4 digit Display. Display has 12 Pins. The board is provided with current limiting resistors on all LED segments and 4 NPN Transistors to drive 4 digits. This tiny board directly seats on Arduino Nano.  Nano analog pin A0 connected to LM35 sensor, A1 and A2 connected to Switch 1 and switch 2 with pull down resistors. Digital pin D2-D8 connected to displays segment A-F, Digital pin D9 connected to DP of display, D10-D12 pins are associated to Digit 1-4 common cathode.

Features

  • Supply 5V DC
  • 4 Digit 0.3 Inch Common Cathode 7 segment display
  • On board 2 Tact switch
  • On Board Female Connector to install LM35 Temperature sensor

4 Digit 7 Segment Display Shield For Arduino Nano – [Link]

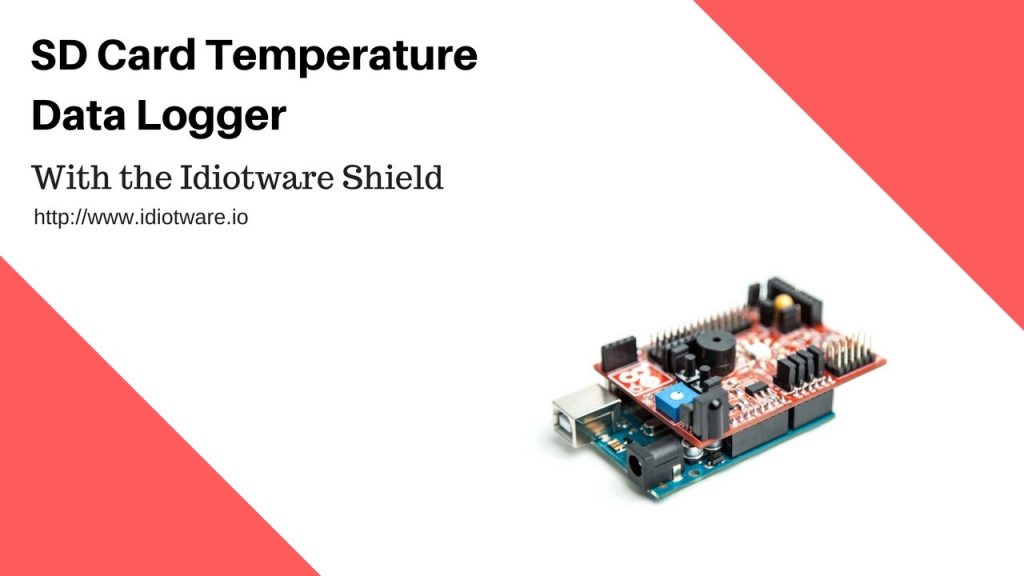

IdIoTware SD Card Temperature Logger

In this tutorial at hackster.io you will learn how to log data from LM35 temperature sensor values to an SD card and store it as CSV file.

In order to build this project you need the following parts:

  1. Arduino UNO
  2. idIoTware Shield
  3. USB-A to B Cable
  4. SD Card (up to 8GB)
  5. 2x Generic Jumper (0.1″)



The Idiotware Shield is a learning platform that offers both novices and advanced Arduino users
the opportunity to bring hundreds of projects to life quickly. it offers a large variety of wireless communication options, input sensors, outputs, storage and device extensibility.



The idIoTware shield has a built in lm35 sensor that has a sensitivity of 10mV / oC, that means according to this equation: Temperature ( oC) = Vout * (100 oC/V)

That if Vout is 0.5V , then, Temperature = 50 oC. However, this built-in sensor gives a higher analog voltage on pin A0 if a higher temperature was applied.

To set up the IdIoTware shield you need to connect  LM35 sensor to SEL0 3 pin header by using a jumper. The SD card should be connected to D6 and SD pin header, thus we need antoher jumper to enable it.
By uploading this code to your Arduino, you will create a CSV file with every one minute for 15 minutes. The temperature will be logged to the file thanks to the SdFat library used. You can edit the rate and duration as you prefer.

/*
 The circuit:
 * LM35 sensor on analog pin A3
 * SD card attached to SPI bus as follows:
 ** MOSI - pin 11
 ** MISO - pin 12
 ** CLK - pin 13
 ** CS - pin 4
 */

#include <SPI.h>
#include <SdFat.h>
SdFat sd;
const uint8_t chipSelect = 6;

//const int chipSelect = 4;   //cs pin of SD card shield
int tempPin = A3;      // LM 35 is connected to A3 pin.
int buzzerPin = A2;    // buzzer is connected to A2 pin

File dataFile;   // the logging file
char filename[] = "Temp000.CSV";
float tempInCelcius;
float tempInFarenheit;
unsigned long time=0;
int samplingTime = 10;  //this variable is interval(in Seconds) at which you want to log the data to SD card.
int duration = 15;     //this variable is duration(in Minutes) which is the total time for which you want to log data.


void setup()
    {
      // Open serial communications and wait for port to open:
      Serial.begin(9600);
      while (!Serial)
          {
            ; // wait for serial port to connect. Needed for native USB port only
          }

      Serial.print("Initializing SD card...");

     // see if the card is present and can be initialized:
     if (!sd.begin(chipSelect))
        { sd.initErrorHalt();
          Serial.println("Card failed, or not present");
          // don't do anything more:
          return;
        }
     Serial.println("card initialized.");

     // create a new file
     for(unsigned int i = 0; i < 1000; i++)
        {
          filename[4] = i/100 + '0';
          filename[5] = ((i%100)/10) + '0';
          filename[6] = i%10 + '0';
          if(! sd.exists(filename))
            {
              // only open a new file if it doesn't exist
              dataFile = sd.open(filename, FILE_WRITE);
              break;  // leave the loop!
            }
        }

      if(! dataFile)
        { //alert user
          Serial.println("couldnt create file");
          int alertAlarm1[] = { 1000,1000,1000,1000,1000,1000,1000,1000,1000,1000,
                           1000,1000,1000,1000,1000,1000,1000,1000,1000,1000,};
          int noteDurations[] = { 5,5,5,5,5,5,5,5,5,5,5,
                                  5,5,5,5,5,5,5,5,5,5,5 };
          for (int thisNote = 0; thisNote < 20; thisNote++)
             {
               // Duration = 1 second / note type
               // e.g. quarter note = 1000 / 4, eighth note = 1000/8, etc.
               int noteDuration = 2500 / noteDurations[thisNote];
               tone(A2,alertAlarm1[thisNote], noteDuration);
               //pause for the note's duration plus 100 ms:
               delay(noteDuration + 100);
             }
        }

     Serial.print("Logging to: ");
     Serial.println(filename);

     dataFile = sd.open(filename, FILE_WRITE);
     // if the file is available, write to it:
     if (dataFile)
       {
         dataFile.print("Logging Temperature for ");
         dataFile.print(duration);
         dataFile.print(" minutes at interval of ");
         dataFile.print(samplingTime);
         dataFile.println(" seconds.");

         dataFile.close();
       }
      // check availble space on SD Card
      uint32_t freeKB = sd.vol()->freeClusterCount();
      freeKB *= sd.vol()->blocksPerCluster()/2;
      Serial.print("Free space KB: ");
      Serial.println(freeKB);
      uint32_t freeMB= freeKB/1024;
      Serial.print("Free space in MB: ");
      Serial.println(freeMB);

      if(freeKB <= 500)
        {
          Serial.println("LOW SPACE!!!");
          int alertAlarm2[] = { 1000,1000,1000,1000,1000,1000,1000,1000,1000,1000,1000,1000,1000,1000,1000,
                               1000,1000,1000,1000,1000,1000,1000,1000,1000,1000,1000,1000,1000,1000,1000};
          int noteDurations[] = { 15,15,15,15,15,15,15,15,15,15,15,15,15,15,15,
                                  15,15,15,15,15,15,15,15,15,15,15,15,15,15,15  };
          for (int thisNote = 0; thisNote < 20; thisNote++)
             {
               // Duration = 1 second / note type
               // e.g. quarter note = 1000 / 4, eighth note = 1000/8, etc.
               int noteDuration = 2500 / noteDurations[thisNote];
               tone(A2,alertAlarm2[thisNote], noteDuration);
               //pause for the note's duration plus 50 ms:
               delay(noteDuration + 50);
             }
        }
     duration *= 60;   //convert durartion in minutes to seconds
   }

void loop()
    {
      dataSamples();    // here we are logging data at interval of 1 minute for 15 mintutes, i.e, 15 samples.
                            // if you want to save data for 2 hours then simply multiply 2 by 60 which will give
                            // you value of 120 minutes then use 120 as second parameter.
    }

// this method will log data to SD card at particular interval and for paricular duration
int dataSamples()
   {
     // here we are logging data at interval of 1 minute for 15 mintutes, i.e, 15 samples.
     // if you want to save data for 2 hours then simply multiply 2 by 60 which will give
     // you value of 120 minutes then change the varible duration to 120.

      tempInCelcius = ( 5.0 * analogRead(tempPin) * 100.0) / 1024.0;

      // uncomment following line to get temperature values in Farehniet
      //tempInFarenheit = ((tempC*9)/5) + 32;            //convert celcius to farenheit

      unsigned long  elapsedTime = millis()/1000;   // this variable will keep track of elapsed time
      while(((millis()/1000)-elapsedTime) < 1);    // this loop will do nothing until a second has passed
      time++;                                       //increment time after each second.

      if((duration >= time) && (time % samplingTime == 0))
        {
          LogToSDcard();  //Log to SD using commands under void LogToSD()
          // print to the serial port too:
          Serial.print("Temperature: ");
          Serial.print(tempInCelcius);
          Serial.print(char(176));
          Serial.println("C");
        }

   }

void LogToSDcard()
   {
     // open the file. note that only one file can be open at a time,
     // so you have to close this one before opening another.
     dataFile = sd.open(filename, FILE_WRITE);
     // if the file is available, write to it:
     if (dataFile)
       {
         dataFile.print(tempInCelcius);
         dataFile.println("°C");
         dataFile.println(",");
         dataFile.close();

     // to print temperature values in Farehniet uncomment following code.

      /*  dataFile.print(tempInFarenheit);
         dataFile.print("°C");
         dataFile.println(",");
         dataFile.close();   */
       }

      //if the file isn't open, pop up an error:
     else
        {
          Serial.println("error opening datalog.txt");
          delay(2000);
        }
   }


As soon you get the CSV file copied from the SD card, you can visualize the data in graphs.

This video by IdIoTware team demonstrates how to build this project in details, check it out:

You can check the project’s page for more information and detailed tutorial.



Heat Activated Cooling Fan Controller

002

Heat activated cooling fan controller is a simple project which operates a brushless fan when the temperature in a particular area goes above a set point, when temperature return normal, fan automatically turns off. The project is built using LM358 Op-amp and LM35 temperature Sensor. Project requires 12V DC supply and can drive 12V Fan. This project is useful in application like Heat sink temperature controller, PC, heat sensitive equipment, Power supply, Audio Amplifiers, Battery chargers, Oven etc
