TP4056 3V3 Load Share Upgrade

A lot of project are battery powered and some of them need dual battery links. Robert on hackaday.io had shared his new project that shed light on this issue. He built an load sharing addon board with the ability to charge the battery while the project is operating.

Many Chinese charger boards are out there based on TP4056, but these boards don’t have the load sharing or voltage regulator features.

Load sharing means that you can power your circuit in two ways, from battery and from Vcc if a charger is connected. Once the charger is connected the battery will start charging and the load will be powered directly from Vcc. Robert added this feature to a recent design and also he added voltage regulation by using MCP1252.

The Components needed to build this project:

  • 1x  MCP1252-33X50/MS Power: Management IC / Switching Regulators
  • 1x  FDN304P: Discrete Semiconductors / Diode-Transistor Modules
  • 1x  SGL1-40-DIO: Schottky diode
  • 2x  100k 1206 resistor
  • 3x  10uF 1206 capacitor X7R
  • 1x  2.2uF 0805 capacitor X7R
  • 1x  ON/OFF switch (optional)
  • 2x  2 pin pcb connector
  • 1x  PCB from OSHpark

This schematic was inspired by multiple designs and modified by Robert.

“The advantage of MCP1252 is automatic buck/boost feature, it will maintain the regulated output voltage whether the input voltage is above or below the output voltage (2.1 to 5.0 V input range) so it is ideal for the lithium battery voltage. If you read the datasheet for the MCP1252-33X50I/MS there is clearly specified what type of MLCC capacitor should be used.”

The maximum output current of this board is 120mA and the output voltage is 3.3 V. It may sound not that suitable for your projects if you want to power an ESP8266, but still you can build your own board with different components to achieve the outputs you need. For example, by using MCP1253, which is identical to MCP1252, you will get  higher switching frequency (1MHz). Robert’s plan is to use this board with CO2 sensor (about 30 mA) and other low power sensors, some MCU and LCD, which can be powered using 120 mA.

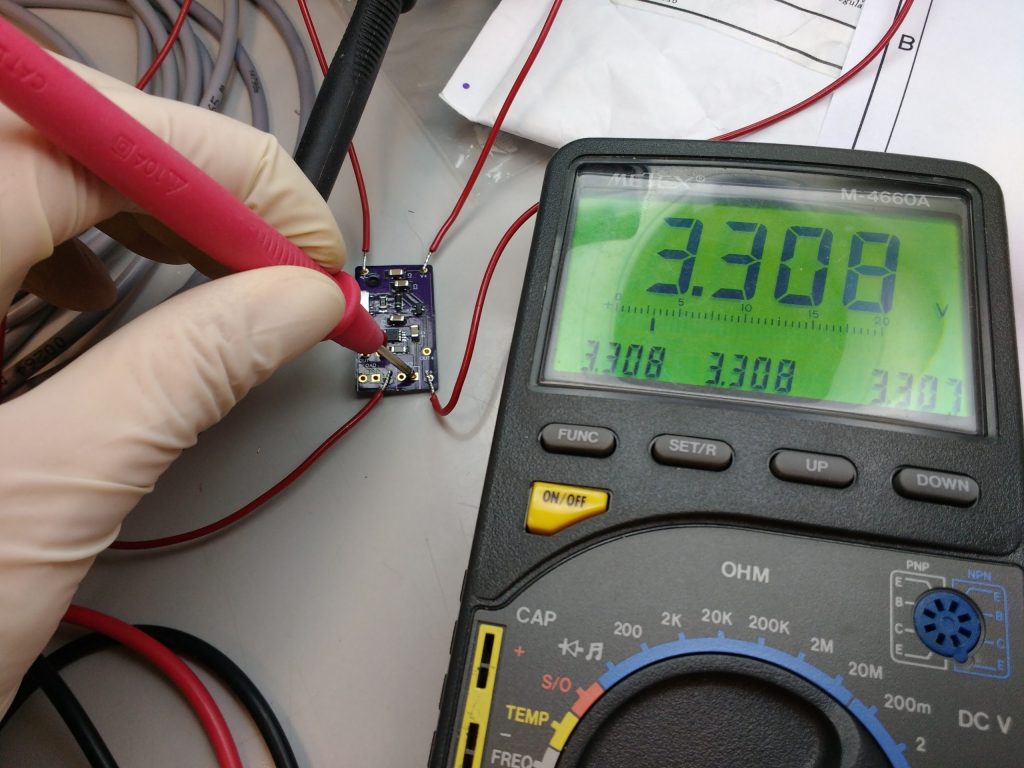

Some measurements will be done to test the functionality of this board. To keep updated with the news of this project, you can follow the project on hackaday.io. You can also check other projects by Robert here.

They’re ‘Not’ JUST Capacitors

James Lewis from Kemet has made a presentation to address some of misconceptions about capacitors like how you should de-rate capacitors.
James said that de-rating depends on the chemistry and configuration of a particularly capacitor.  So he started by asking a question: Should capacitors be de-rated 50%? And the answer was not a simple true or false. It was: it depends…

James talked about the typical construction of Multilayer Ceramic Capacitor(MLCC), Aluminum Electrolytic(wet one), Tantalum, Polymer Electrolytic and Supercapacitors.

James talked about the Temperature Coefficients diagram for various types of Ceramic Capacitor like: YV, Z5U, X5R, X7R, U2J and C0G [Ceramic Capacitor].

Temperature Coefficients diagramWe can see that MLCC capacitance ranges, and Coefficients depend on type.

Another key point was about capacitance change vs DC bias in MLCC. It’s about the role of package size in capacitance lose over DC bias. He compared 10nf and 6.3v rated 1206 package capacitor with same one in 0805 package. Results showed that the 1206 one lost 2% of capacity, while the 0805 lost 50% at 6V. James said that the 0805 package is thinner than the 1206 one, so we need to put more layers into the design to get more capacity. So thinner package leads to worse coefficients.

He pointed out that the capacitance of Wet Aluminum Capacitors is affected on shelves, and he explained how to reform/self-heal them.

James also explained why it’s safer to use Polymer Electrolytic rather than using Tantalum Capacitors, and why Polymer Electrolytic when fails, it fails safely.

TantalumsHe ended his presentation up by talking about Supercapacitors, and he made a walkthrough the tools Kemet provides:
KEMET Catalog App for Mobile Devices
Capacitor Simulator K-SIM
KEMET Engineering Center (capacitor technical content)

[Presentation Slides]
