LT8362 – Low IQ Boost/SEPIC/Inverting Converter with 2A, 60V Switch

The LT8362 is a current mode, 2MHz step-up DC/DC converter with an internal 2A, 60V switch. It operates from an input voltage range of 2.8V to 60V, suitable for applications with input sources ranging from a single-cell Li-Ion battery to automotive and industrial inputs. The LT8362 can be configured as either a boost, SEPIC or an inverting converter. Its switching frequency can be programmed between 300kHz and 2MHz, enabling designers to minimize external component sizes and avoid critical frequency bands, such as AM radio. Furthermore, it offers over 90% efficiency while switching at 2MHz. Burst Mode operation reduces quiescent current to only 9μA while keeping output ripple below 15mVP-P. The combination of a 3mm x 3mm DFN or high voltage MSOP-16E package and tiny externals ensures a highly compact footprint while minimizing solution cost.

LT8362 – Low IQ Boost/SEPIC/Inverting Converter with 2A, 60V Switch – [Link]

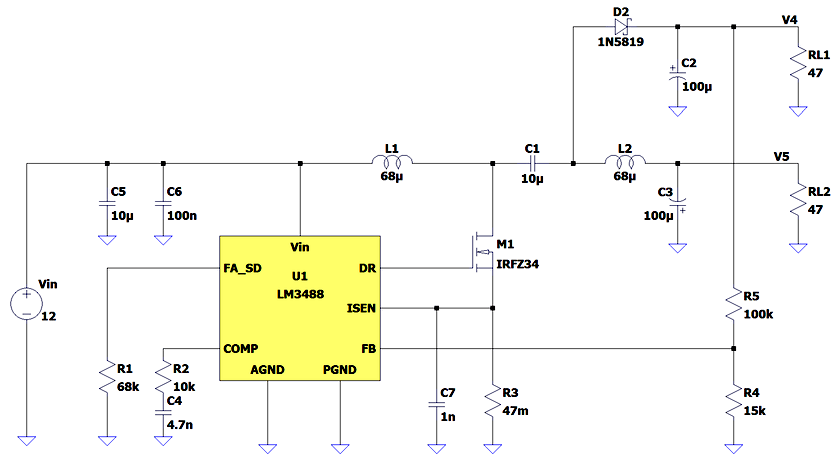

SEPIC/Ćuk converter sprouts second output

by Gheorghe Plasoianu @ edn.com

Many applications require positive and negative supply voltages, with only one voltage requiring tight regulation. This Design Idea describes a dual-output, hybrid SEPICĆuk converter whose positive output voltage can be lesser or greater than the input voltage. The unregulated negative output is a mirrored replica of the positive output.

SEPIC/Ćuk converter sprouts second output – [Link]

Regulator offers independent outputs

1474473440-umodule

Susan Nordyk @ edn.com writes:

Housed in a 15×9×2.42-mm over-molded BGA package, the LTM8049 µModule dual-output DC/DC converter from Linear Technology is configurable for a combination of SEPIC and/or inverting operation by simply grounding the appropriate output rail. All that is needed to complete the design are input and output capacitors and a few resistors—a total of 7 components compared to approximately 30 components for a comparable discrete design.

Regulator offers independent outputs – [Link]

$14.5 All-Purpose Switched-Mode Power Supply

Switching technology devices and integrated circuits are growing fast providing solutions that obtain power for different kind of circuits and devices, and they are proposed in different variations. A useful little known kind which is suitable for mixed supply systems is called SEPIC,single-ended primary-inductor converter.

Torpedo is a switched-mode power supply with a SEPIC configuration which is produced by Open Electronics, an open source solutions producer and the brainchild of Futura Group Srl. It supports three different wide-range voltage sources, battery, USB, and external source from 3 to 20 volts with up to 1 A output current and integrated LiPo battery cell charger.

Torpedo Board
Torpedo Board

Torpedo comes with these features:

  • Triple power source, that is to say: the USB, the battery and an external one
  • Wide range of values as for the input voltage: from 3 to 20 volts
  • Minimum output current of 500mA, with the possibility to reach 1A and more, via an external source
  • High efficiency, above 70% and possibly above 80-90%
  • Single-cell LiPo battery charger incorporated
  • A transition from battery power to another source that is without interruptions
  • 5 V output with high stability, having a low ripple and when varying the load.

Torpedo’s circuit structure can be functionally divided into three different parts; Input Stage, Battery Charger, and SEPIC Converter.

At first, the Input Stage is composed of two diodes and a MOSFET transistor. This set forms a power source selector by allowing the highest voltage power source to pass through Vin pin and prevent it from going to another input having a lower voltage.

Torpedo Circuit Diagram
Torpedo Circuit Diagram

The Battery Charger is based on the MCP73831-2 integrated circuit, that is envisaged for charging single-cell LiPo batteries having a voltage of 4.2 volts. It comes with a red LED indicating the statues of charging, and a two-resistor bridge giving two different output current, 100mA and 500mA.

The SEPIC Converter in general is a DC/DC converter which control its output to be greater than, less than, or equal to that at its input. In Torpedo circuit, the SEPIC integrated circuit contains 1.2Mhz oscillator with variable duty cycle, a low-RDSON MOSFET, and a feedback circuit. This combination provides constant 5V output voltage from variant input voltage between 2.5V to 20V.

Torpedo is available for $14.5 from Open Electronics store, and its technical details are reachable here.

LT8335 – Converter minimizes quiescent current

lt8335col_1

Outfitted with a 2-A, 28-V power switch, the LT8335 2-MHz step-up DC/DC converter from Linear Technology operates from an input of 3 V to 25 V, suitable for applications with input sources ranging from a single-cell lithium-ion battery to automotive inputs.

The LT®8335 is a current mode DC/DC converter capable of generating either positive or negative output voltages using a single feedback pin. It can be configured as a boost, SEPIC or inverting converter consuming as low as 6μA of quiescent current. Low ripple Burst Mode operation maintains high efficiency down to very low output currents while keeping the output ripple below 15mV in a typical application. The internally compensated current mode architecture results in stable operation over a wide range of input and output voltages. Integrated soft-start and frequency foldback functions are included to control inductor current during start-up. The 2MHz operation combined with the small 8-lead DFN package, enables low cost, area efficient solutions.

LT8335 – Converter minimizes quiescent current – [Link]

LT8335 – Low IQ Boost/SEPIC/ Inverting Converter with 2A, 28V Switch

lt8335col_1
LT8335 is a current mode, 2 MHz step-up DC/DC converter with an internal 2A, 28V switch. It operates from an input voltage range of 3V to 25V, suitable for applications with input sources ranging from a single-cell Li-Ion to automotive inputs.

The LT8335 can be configured as either a boost, SEPIC or an inverting converter. It uses a fixed 2 MHz switching frequency, enabling designers to minimize external component sizes and avoid critical frequency bands, such as AM radio. Burst Mode operation reduces quiescent current to 6 µA while keeping output ripple below 15 mVP-P. The combination of a 3 x 2 mm DFN package and tiny externals ensures a very compact footprint while minimizing cost.

LT8335 – Low IQ Boost/SEPIC/ Inverting Converter with 2A, 28V Switch – [Link]

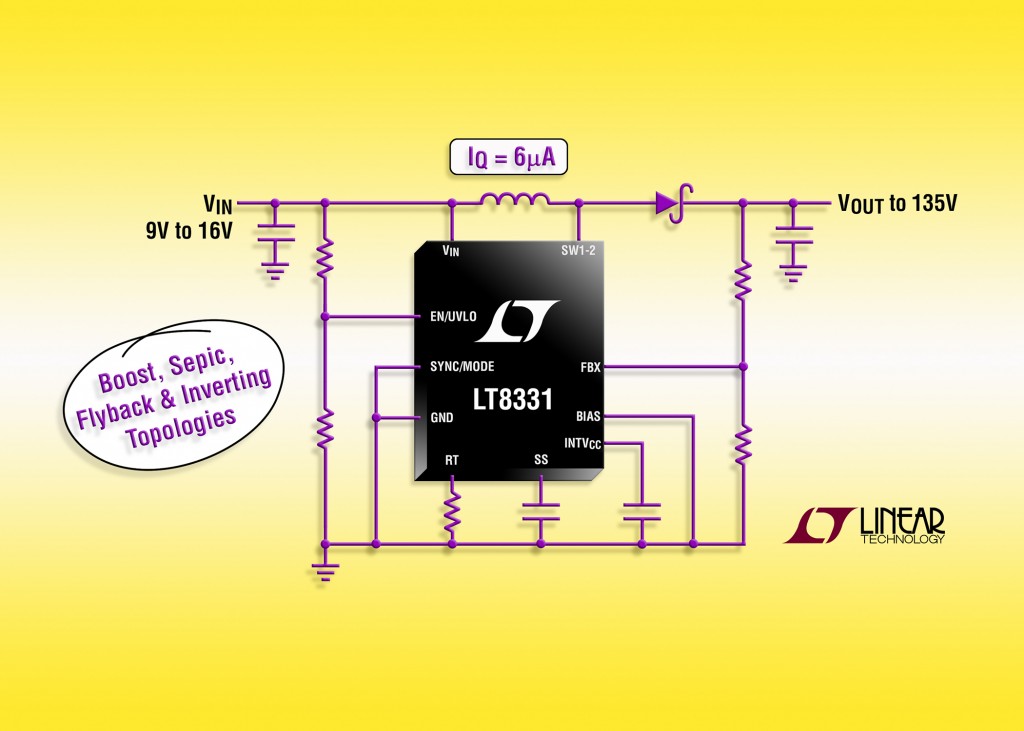

LT8331 – Low IQ Boost/SEPIC/ Flyback/Inverting Converter

8331

Linear Technology Corporation announces the LT8331, a current mode step-up DC/DC converter with an internal 500mA, 140V switch. It operates from an input voltage range of 4.5V to 100V, making it suitable for use with a wide range of input sources found in industrial, transportation and avionic applications. The LT8331 can be configured as either a boost, SEPIC, flyback or inverting converter. Its switching frequency is programmable from 100kHz to 500kHz, enabling designers to minimize external component sizes.  Burst Mode® operation reduces quiescent current to only 6µA while keeping output ripple below 20mVP-P. The combination of a high voltage MSOP-16E package and tiny externals ensures a very compact footprint while minimizing solution cost.

LT8331 – Low IQ Boost/SEPIC/ Flyback/Inverting Converter – [Link]

LT8331- Low IQ Boost/SEPIC/ Flyback/Inverting Converter

8331

The LT8331 is a current mode step-­up DC/DC converter with an internal 500mA, 140V switch. It operates from an input voltage range of 4.5V to 100V, making it suitable for use with a wide range of input sources found in industrial, transportation and avionic applications. The LT8331 can be configured as either a boost, SEPIC, flyback or inverting converter. Its switching frequency is programmable from 100kHz to 500kHz, enabling designers to minimize external component sizes. Burst Mode operation reduces quiescent current to only 6µA while keeping output ripple below 20mV. The combination of a high voltage MSOP­-16E package and tiny externals ensures a very compact footprint while minimizing solution cost.

LT8331 – Low IQ Boost/SEPIC/ Flyback/Inverting Converter – [Link]

500mA, 140V Boost/SEPIC/Flyback/Inverting DC/DC Converter with IQ= 6uA



8331

Linear Technology Corporation announces the LT8331, a current mode step-up DC/DC converter with an internal 500mA, 140V switch. It operates from an input voltage range of 4.5V to 100V, making it suitable for use with a wide range of input sources found in industrial, transportation and avionic applications. The LT8331 can be configured as either a boost, SEPIC, flyback or inverting converter. Its switching frequency is programmable from 100kHz to 500kHz, enabling designers to minimize external component sizes. Burst Mode® operation reduces quiescent current to only 6µA while keeping output ripple below 20mVP-P. The combination of a high voltage MSOP-16E package and tiny externals ensures a very compact footprint while minimizing solution cost.

500mA, 140V Boost/SEPIC/Flyback/Inverting  DC/DC Converter with IQ= 6uA – [Link]



1A, 2 MHz, 60V boost/SEPIC/inverting DC/DC converter, 6µA Iq

8330

by Graham Prophet:

LT8330 is a current mode, 2 MHz step-up DC/DC converter with an internal 1A, 60V switch. It operates from an input voltage range of 3V to 40V, making it suitable for applications with input sources ranging from a single-cell Li-Ion to automotive inputs.

The device can be configured as either a boost, SEPIC or an inverting converter. It uses a fixed 2 MHz switching frequency, enabling designers to minimise external component sizes and avoid critical frequency bands, such as AM radio. Burst Mode operation reduces quiescent current to 6 µA while keeping output ripple below 15 mVP-P. The combination of a 3 x 2 mm DFN or TSOT-23 package and tiny externals ensures a very compact footprint while minimising overall cost.

1A, 2 MHz, 60V boost/SEPIC/inverting DC/DC converter, 6µA Iq – [Link]
