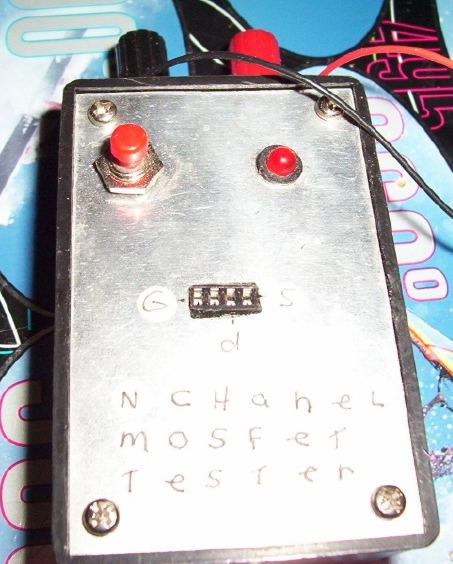

mixos Posted April 7, 2004 Report Share Posted April 7, 2004 This simple mosfet tester ill email you what it looks like as a unit simple and effective if you have any trouble seeing it let me know ill redo a highlighted version. by Steven Quote Link to comment Share on other sites More sharing options...
steven Posted September 14, 2004 Report Share Posted September 14, 2004 :) the picture of this mofet testor, is very neat. i used a large intergrated circuit socket and cut out 3 sections to use as a mosfet socket, to plug the mosfet into, before testing it, i sent one of these simple n channel mosfet tester to a friend of mine and he took it in to show some coleages of his. they had a really exspensive n channel mosfet tester but for the size and super cheap price it costs to biuld mine. they were imppressed. Quote Link to comment Share on other sites More sharing options...
surajbarkale Posted September 16, 2004 Report Share Posted September 16, 2004 Is this ckt ok? (It's a shame Eagle dosen't has a Push to Off switch symbol :'( ) Quote Link to comment Share on other sites More sharing options...
steven Posted September 16, 2004 Report Share Posted September 16, 2004 :)suraj ive did hundreads of circuit redraws to, but with circuit maker Quote Link to comment Share on other sites More sharing options...
steven Posted December 28, 2005 Report Share Posted December 28, 2005 here is the printed circuit version of the simple n channel mosfet tester and it will even test the large irfp460 mosfets to with ease Quote Link to comment Share on other sites More sharing options...
steven Posted December 28, 2005 Report Share Posted December 28, 2005 :) Quote Link to comment Share on other sites More sharing options...
steven Posted December 28, 2005 Report Share Posted December 28, 2005 :)be carefull when selecting the 1m resister here as they look like a 10m resister unless you look at it under a bright light to see the colour band properly as the blue band in a 10m resister looks almost like the green band in the 1m resister Quote Link to comment Share on other sites More sharing options...
steven Posted January 16, 2006 Report Share Posted January 16, 2006 to speed up the n channel mosfet testing, change the electro to a 2.2uf 100 volts electro Quote Link to comment Share on other sites More sharing options...
ZAP101 Posted February 19, 2006 Report Share Posted February 19, 2006 Hey Mixos,Thanks...Gonna build this! :P 8) :D Quote Link to comment Share on other sites More sharing options...
steven Posted February 19, 2006 Report Share Posted February 19, 2006 :)zapp101 i emailed this to mixos and he put it up for me Quote Link to comment Share on other sites More sharing options...
ZAP101 Posted February 19, 2006 Report Share Posted February 19, 2006 OK then, thanks to Steve Mike :D Quote Link to comment Share on other sites More sharing options...
steven Posted February 19, 2006 Report Share Posted February 19, 2006 :)any time im biulding printed circuits versions of all my testing gear so ill be very well eqiuped Quote Link to comment Share on other sites More sharing options...
