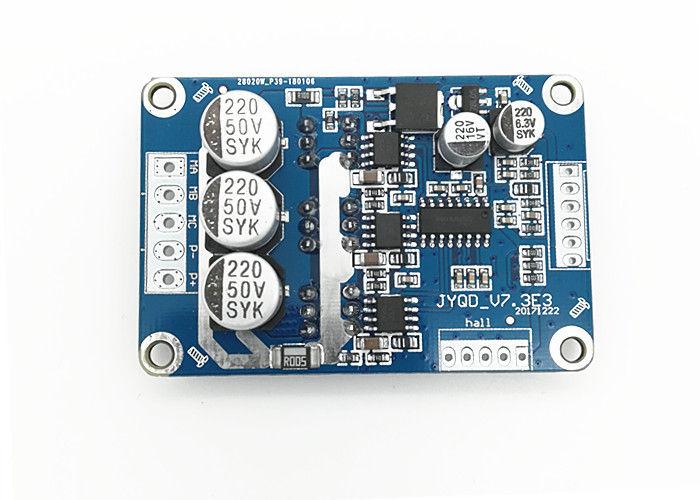

Daniel.Karasani Posted January 11, 2020 Report Share Posted January 11, 2020 (edited) Has someone the new datasheet from the JYQD_V7.3E3 motordriver (24V) (that one with the hall sensor pads on the side and not the regular one that it is aligned) DC-12-V-36-V-15A-500W-Senza-Spazzola-Del-Motore-Sala-BLDC-Bordo-di-Driver.jpg_640x640q70.jpg_.webp Edited January 12, 2020 by Daniel.Karasani Wrong name of the component Quote Link to comment Share on other sites More sharing options...
HarryA Posted January 12, 2020 Report Share Posted January 12, 2020 Searching for: JYQD-V7.3E3 on Yahoo will give you a few hits. Not _7V good luck Quote Link to comment Share on other sites More sharing options...
Daniel.Karasani Posted January 12, 2020 Author Report Share Posted January 12, 2020 7 hours ago, HarryA said: Searching for: JYQD-V7.3E3 on Yahoo will give you a few hits. Not _7V good luck Oh sorry, of course I meant the JYQD V7.3e3 and not the 7V that doesn't exist. But I still only find the old version. I would need the dimensions of the pads or the distance from them to the edge to create the circuit board. Do you have any suggestions? Kind regards, Daniel Quote Link to comment Share on other sites More sharing options...
HarryA Posted January 12, 2020 Report Share Posted January 12, 2020 By pads do you mean the pads (marked hall) on the lower right of the board? If so knowing any dimension on the board, like a component, one can find other dimensions using a tool like photoshop or the poor man's version THE GIMP. Also knowing the board is 63x42.5x17 mm (L*W*H) one could scale it off the screen. this thing will not go away delete yourself ! Also there is a manual in English here but the link is broken - you may request one perhaps. http://www.brushless-dcmotor.com/sale-11954921-jyqd-v7-3e3-3-phase-brushless-dc-motor-driver-15a-current-pwm-speed-control.html Quote Link to comment Share on other sites More sharing options...
Daniel.Karasani Posted January 13, 2020 Author Report Share Posted January 13, 2020 Do you think that it is enough to know the size of the board due to the slight distortion (width and length) and what about the accuracy? Sincerely yours, Daniel Quote Link to comment Share on other sites More sharing options...
HarryA Posted January 13, 2020 Report Share Posted January 13, 2020 You can download the data sheet from here but it contains little useful information and the diagram is not the correct one. http://www.bldcmotor-driver.com/sale-11494096-500w-brushless-dc-motor-driver-hall-effect-24-volt-dc-motor-speed-controller.html the link is near the bottom of the page. One could buy a board? Quote Link to comment Share on other sites More sharing options...
Daniel.Karasani Posted January 13, 2020 Author Report Share Posted January 13, 2020 Okay, thank you! Quote Link to comment Share on other sites More sharing options...
