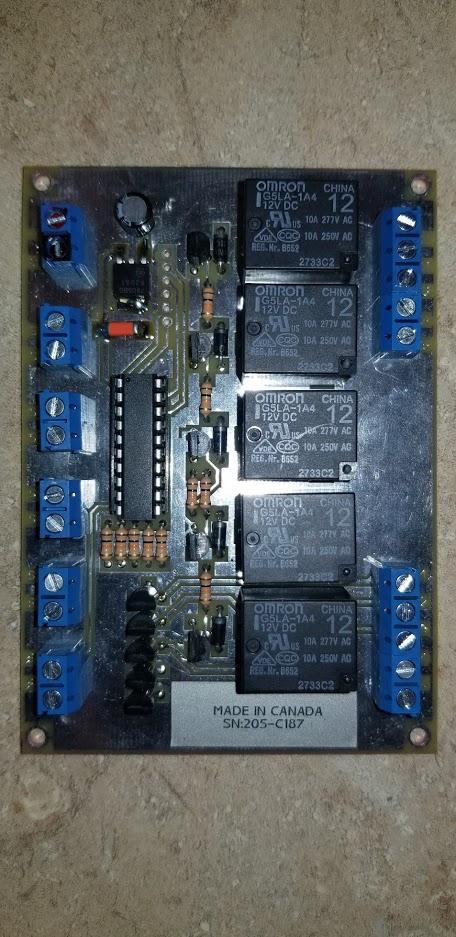

Tomass Posted July 6, 2021 Report Share Posted July 6, 2021 Hello, I am trying to wire up a latching switch circuit board and I need assistance. Here is a picture of the board that I am using. I just need to understand the schematics which is way over my head. I am attaching the momentary switch (in the picture) through the board to another matching switch The switch is a 4 pole momentary switch as you will see if the pictures attached. Thank you in advance for the consideration on helping. Quote Link to comment Share on other sites More sharing options...
HarryA Posted July 8, 2021 Report Share Posted July 8, 2021 The 5 relays on the board are single pole - single throw. You wish to expand the number of contacts with you switch? What type are the switches? You mention schematics? Where does the latching come in? Quote Link to comment Share on other sites More sharing options...

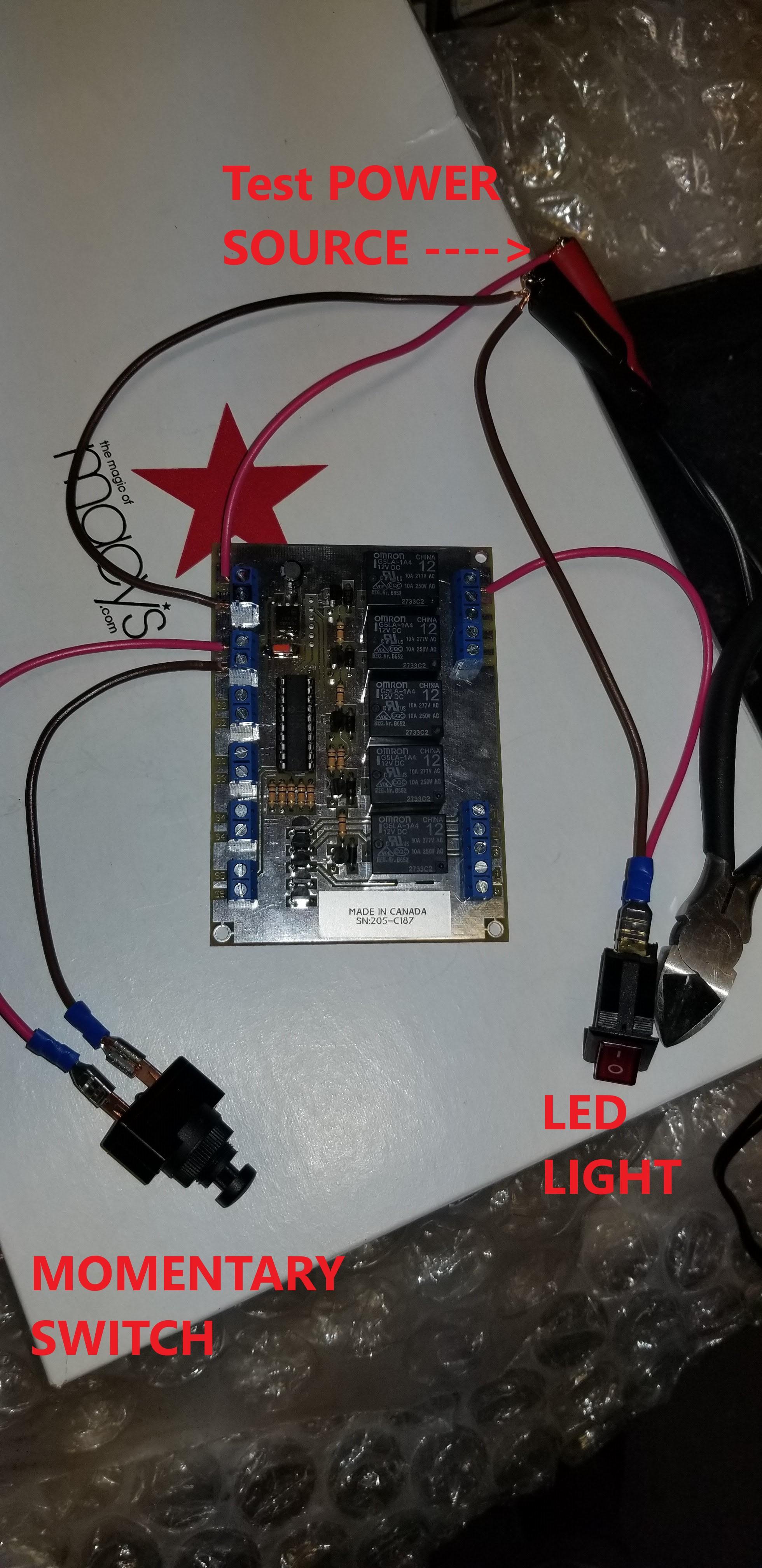

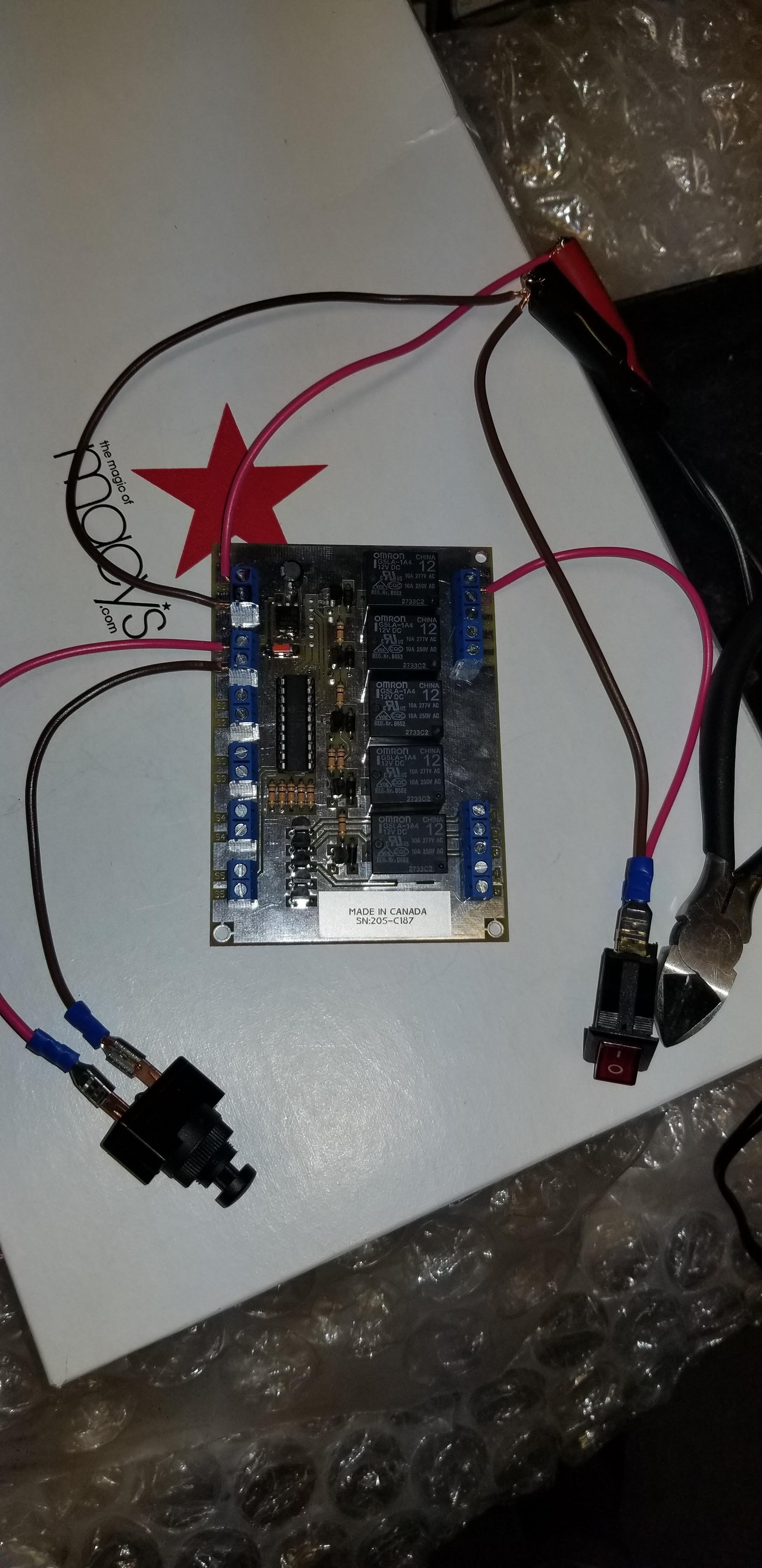

Tomass Posted July 10, 2021 Author Report Share Posted July 10, 2021 Thank you for the reply. I am trying to connect the "4 pole switch" to this board like the sample picture attached. in the example picture, I have a "2 pole" momentary switch hooked up through the board and have a led light on the other side to confirm connectivity of the latching board. With this exact set up, I push the momentary switch and the other led lights up and stays on until I hit the momentary switch again. When I try to connect the 4 pole however, i cannot get it to work so I am definitely not connecting it correctly. That is where the confusion lies and I have been stuck. Quote Link to comment Share on other sites More sharing options...
HarryA Posted July 11, 2021 Report Share Posted July 11, 2021 Do you have a number/ID for the 4 pole switch? Quote Link to comment Share on other sites More sharing options...

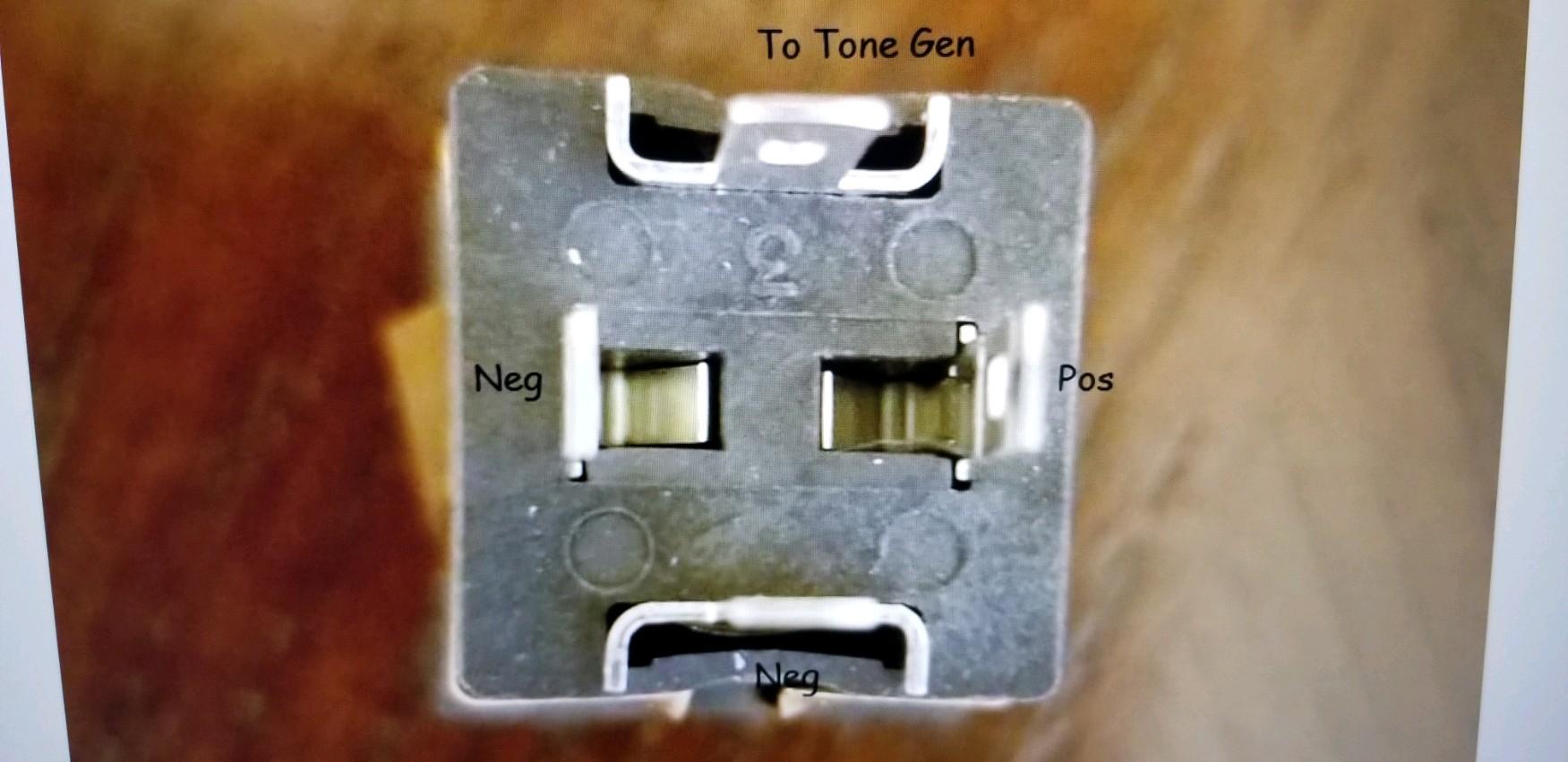

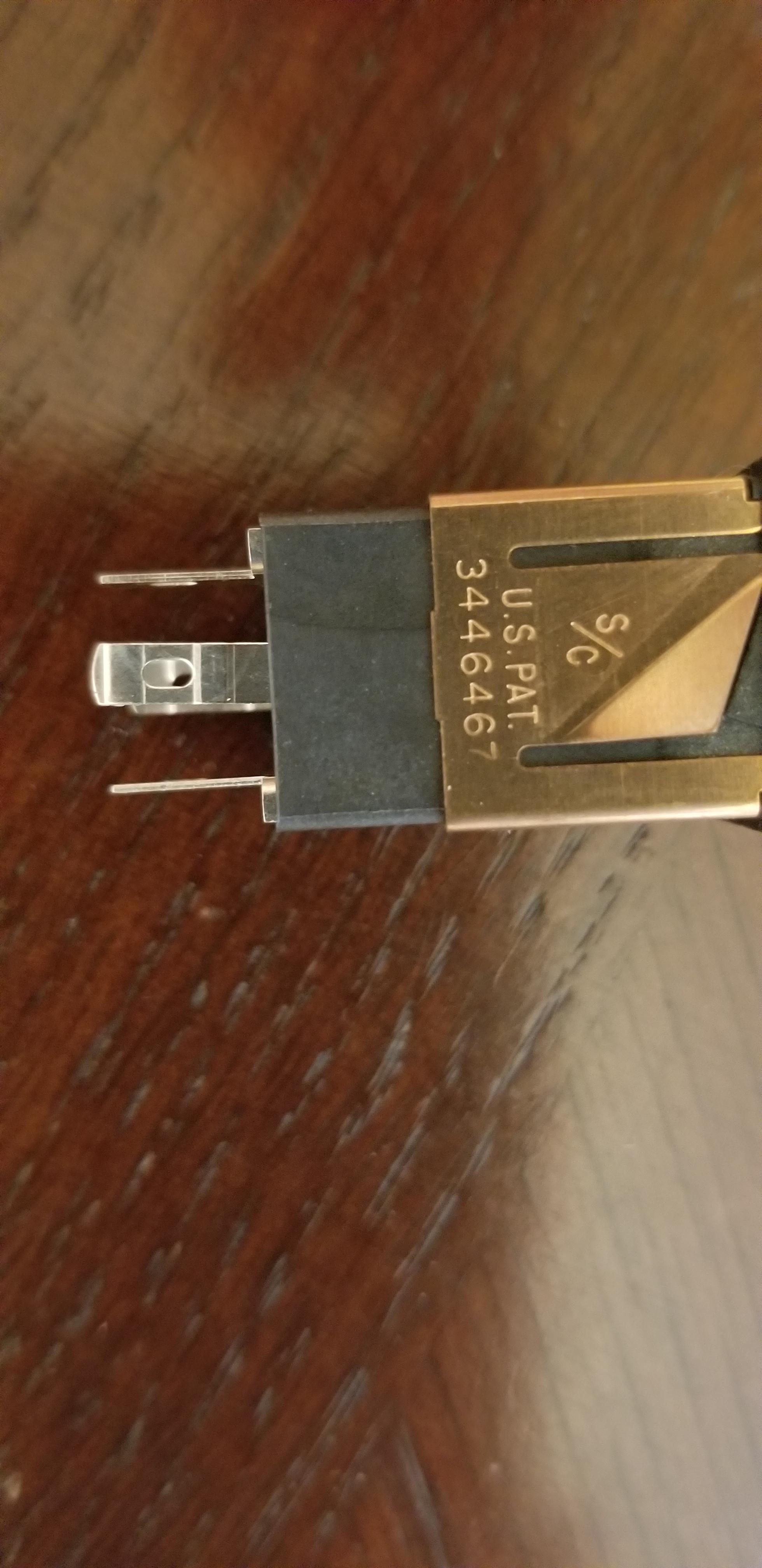

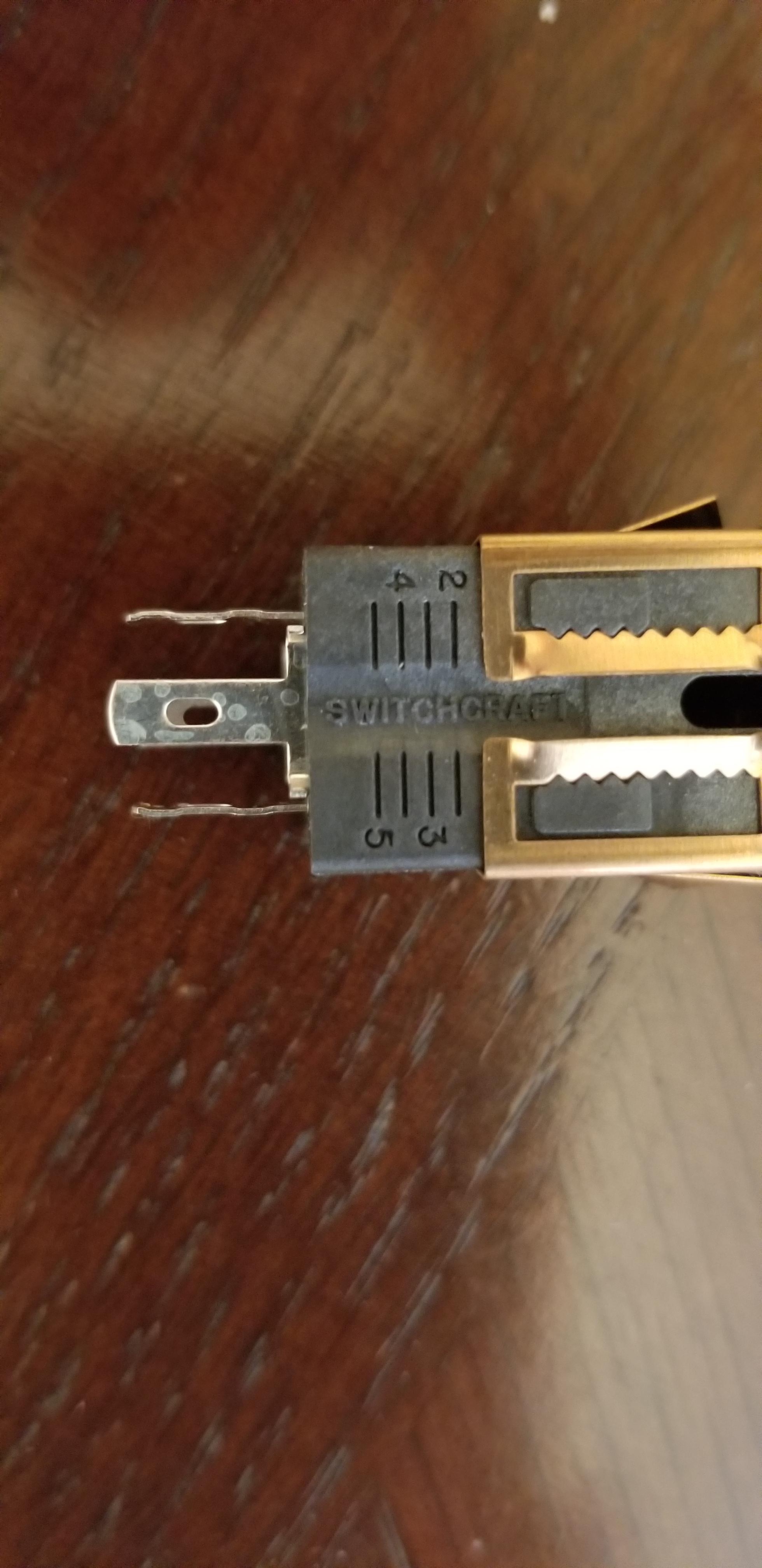

Tomass Posted July 12, 2021 Author Report Share Posted July 12, 2021 no, i don't think so. This is the only information that I can make out on the switches. maybe it will help you? Quote Link to comment Share on other sites More sharing options...
HarryA Posted July 12, 2021 Report Share Posted July 12, 2021 So you have a double pole single throw switch. There are two sets of contacts in the switch. Two of the connectors connects to one set of contacts and the other pair of connectors connect to the other set of contacts. You need to know which pair of connectors connects to each set of contacts. I believe. Quote Link to comment Share on other sites More sharing options...
Tomass Posted July 12, 2021 Author Report Share Posted July 12, 2021 ok not too sure if I tried that yet. I may have knowing how much time has been spent on problem solving. I will give that another shot tomorrow and will see what transpires. stand by. 🙂 Quote Link to comment Share on other sites More sharing options...
