Electronically curious Posted March 19 Report Share Posted March 19 I'm currently prototyping the device using the breadboard and I replaced the AP8072 IC with RTS0072. While testing it, the speaker only produces nosie and when trying to speak into the microphone, it doesn't work. I rechecked the wiring and the components but they're all in good condition and correct. I currently needed assistance with it and will appreciate it if you could provide some assistance with it. Thank you. Quote Link to comment Share on other sites More sharing options...
HarryA Posted March 20 Report Share Posted March 20 Without a schematic of your circuit and a closeup photo of your circuit it is not possible to help you. Quote Link to comment Share on other sites More sharing options...
Electronically curious Posted March 20 Author Report Share Posted March 20 Hi there, thank you for replying and willing to assist me. I will provide the schematic of the circuit and a closeup photo of my prototype as soon as I get back. I will also upload the list of components I used to prototype the device. The circuit is based on a voice changer project which can be found in this link: Voice Changer - Electronics-Lab.com Quote Link to comment Share on other sites More sharing options...
admin Posted March 21 Report Share Posted March 21 Can you confirm that the MIC polarity is correct? Also, check that you have adjusted the potentiometers to a low setting, while set them to a high level may saturate the amplifier. Quote Link to comment Share on other sites More sharing options...

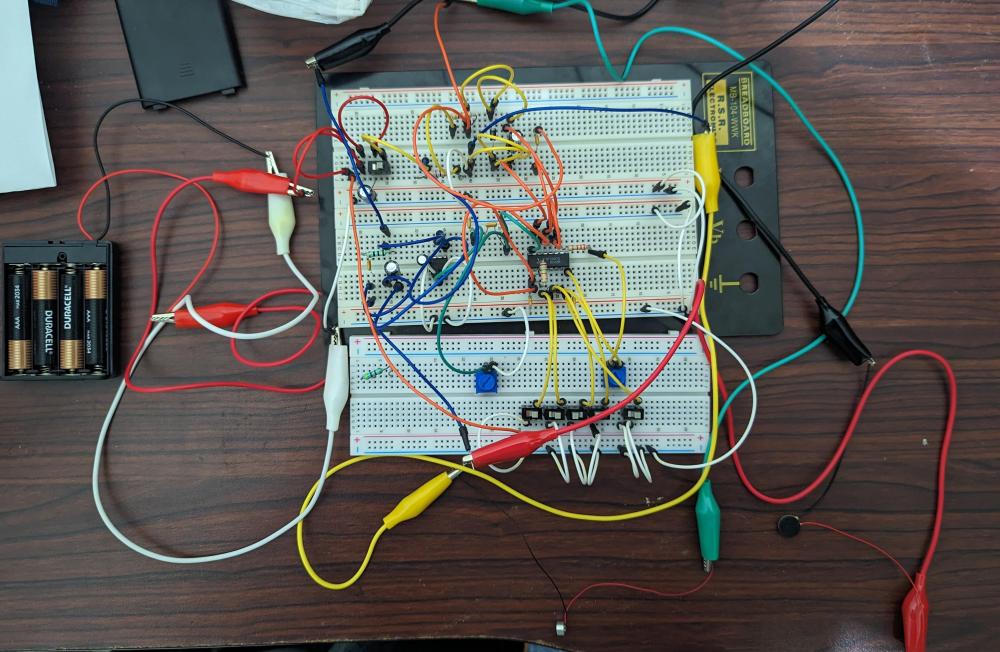

Electronically curious Posted March 21 Author Report Share Posted March 21 Hi there, thank you for replying. I had switched the polarity of the MIC and they still don't work either way. I also had adjusted the potentiometers to a low setting unless I connect it wrong. I took a photo of my prototype and hopefully you could see it well and also my BOM.Bill of Material (BOM).pdf Quote Link to comment Share on other sites More sharing options...

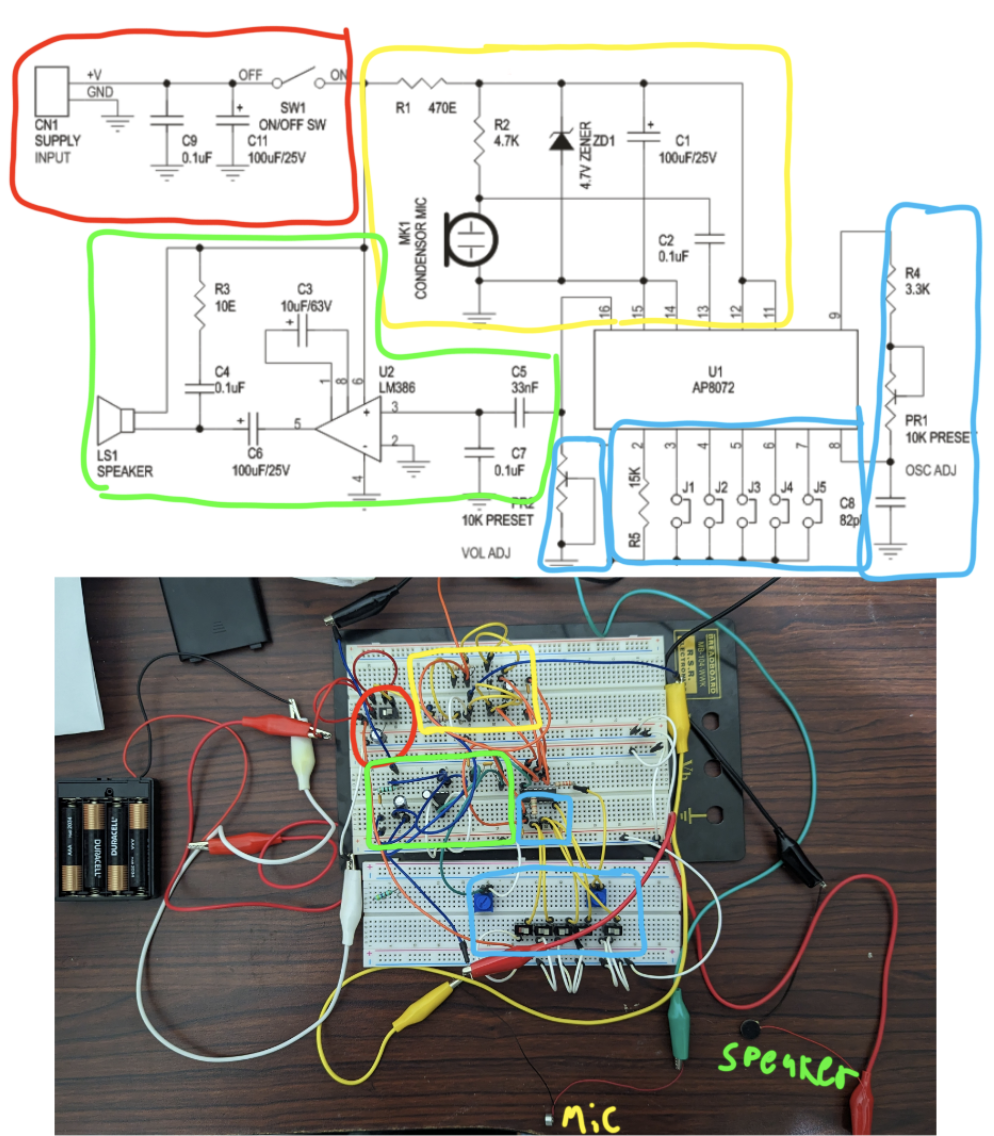

Electronically curious Posted March 21 Author Report Share Posted March 21 A photo of the schematic and my prototype. Quote Link to comment Share on other sites More sharing options...
HarryA Posted March 21 Report Share Posted March 21 I looked at your photo in photoshop where I could enlarge it, looks okay from what I can see of it. Check the voltage at the speaker and pin 6 of the LM386 for the 6 volts. Also check the voltages at the mic. and pins 11 & 12 at the RTS0072 for the 4.7 volts off the Zener diode. It is best to check voltages at the IC pins if you can. Also you could in similar manner check the ground connections with the meter. Could be a bad RS0072 ? Quote Link to comment Share on other sites More sharing options...
Electronically curious Posted March 22 Author Report Share Posted March 22 Okay thank you. I got back and I measured them. Speaker: 6.136V Pin 6 of LM386: 6.169V Mic: 1.585V Pin 11 & 12 of the RTS0072: 1.693V Pin 1, 2, 8, and 9 of the RTS0072: 0.797V Ground connections: Around 0.000V I can see that there's something wrong around the yellow area but I'm not sure why. Are you able to assist me with it? Quote Link to comment Share on other sites More sharing options...
HarryA Posted March 22 Report Share Posted March 22 The 1.69 volts at pins 11 & 12 suggest the Zener diode is in the wrong orientation. The 1.69 volts is the forward voltage not the reverse voltage of 4.7 volts you are looking for. If not try popping out the RTS0072 and recheck the voltage, perhaps it is shorted. Quote Link to comment Share on other sites More sharing options...
Rajsbom Posted March 22 Report Share Posted March 22 HI, Voltage @ Pin 11 and 12 should be 4.5V, if not then check If zener diode is shorted or installed reverse, or IC is shorted. Quote Link to comment Share on other sites More sharing options...
Electronically curious Posted March 23 Author Report Share Posted March 23 Thank you all for the assistances. Yep, I had fixed the problem with the Zener diode and now the voltages at the pin 11 &12 are now 3.793 v but the device still doesn't function as intended. Is the voltage still too low? Quote Link to comment Share on other sites More sharing options...
HarryA Posted March 23 Report Share Posted March 23 I would work on the voltage first. Although the specs, say 3.0V ∼ 5.0V for the RTS0072 ,there must be problem somewhere. The condenser mic. should not be drawing any current, try disconnecting it then recheck the voltage. Pop out the RTS0072 also. Specs. for the chip are here (see the second circuit which is like the one you are using): https://www.experimentalistsanonymous.com/diy/Datasheets/RTS0072.pdf Quote Link to comment Share on other sites More sharing options...
Electronically curious Posted March 23 Author Report Share Posted March 23 Okay, I had check the condenser mic and it's not drawing any current since the Zener diode voltage remained the same if I take out the mic and put it back. But I do notice that if I took out the RTS0072 chip. The voltage increased a bit but when I put it back, it decreases. Quote Link to comment Share on other sites More sharing options...
Electronically curious Posted March 23 Author Report Share Posted March 23 Okay, I had check the condenser mic and it's not drawing any current since the Zener diode voltage remained the same if I take out the mic and put it back. But I do notice that if I took out the RTS0072 chip. The voltage increased a bit but when I put it back, it decreases. Unless it's supposed to do that. I also noticed that if I touched some of the jumper wires, the speaker produces different tones. Quote Link to comment Share on other sites More sharing options...
HarryA Posted March 24 Report Share Posted March 24 In circuit 2 for the RTS0072 note they have an RC sub-circuit at pins 1 and 2, I would try that. Also note at pin 16 there is a resistor Rb to prevent pin 16 being pulled to ground. Perhaps required? Note it uses a 4.3 volt Zener; it must work okay with that voltage. Quote Link to comment Share on other sites More sharing options...
Electronically curious Posted March 25 Author Report Share Posted March 25 Yeah, I tried that and nope. The speaker just produce nosie and the mic doesn't work. Quote Link to comment Share on other sites More sharing options...
