Capacitance Meter diagram question

Gualdhar

Feb 27, 2010
2
Joined
Feb 27, 2010
Messages
2
Sorry for a possibly newbie question, but I'm trying to build the Capacitance Meter listed at http://www.electronics-lab.com/projects/test/006/index.html and I'm wondering about the symbol for the 47k, 470, and one of the 10k resistors.  It has a resistor with something that looks like maybe a feedback loop? I can't tell what it is or how to build it, and could use some assistance.

Thanks in advance.



Hero999

Oct 28, 2007
2,433
Joined
Oct 28, 2007
Messages
2,433
They're potentiometers (variable resistors) which are used to calibrate the meter.



Alex Tsekenis

Nov 29, 2009
299
Joined
Nov 29, 2009
Messages
299

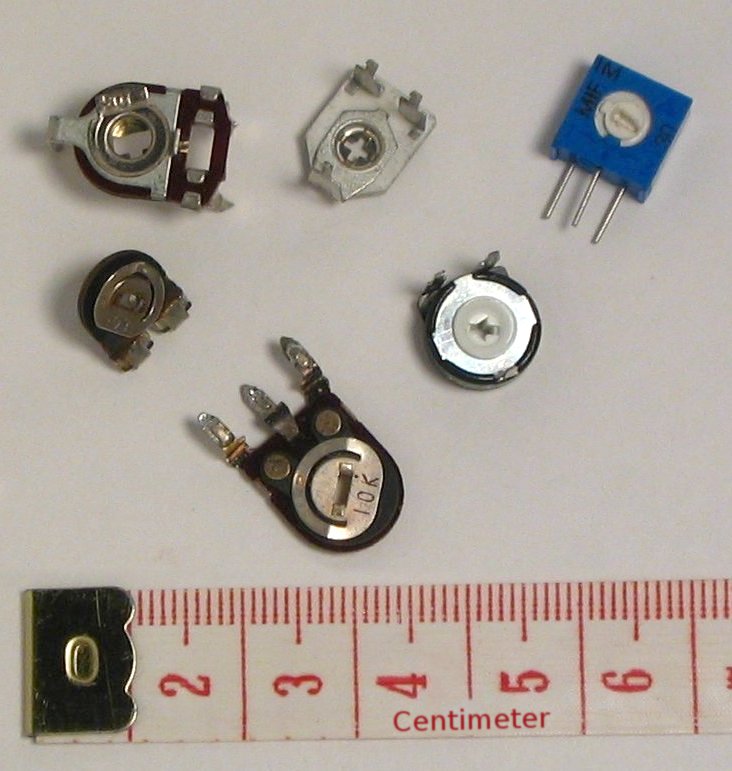

Adding on Hero's post, they look like this:




The second type is probably what you are looking for for your capacitance meter.

You can buy them very cheaply at your local electronics shop.
