What is impedance [SIZE=14pt](circuitspedia.com)[/SIZE]
Impedance (Z) is similar to Resistance (R) . Impedance and Resistance both oppose the current in circuit. Both are almost the same thing , But resistance related to DC Circuit. Resistance oppose the steady electric current in DC circuit. Resistance remains same (constant) at any different frequency range.
Impedance is related with AC circuit. Impedance vary according to changing the frequency, this is not constant at different frequency range. Impedance also includes reactance (Inductive and capacitive property of the circuit).
Reactance - Reactance is the Resistance produced to AC Currents by Inductors and Capacitors only. This is a measure of the type of opposition to AC electricity due to capacitance or inductance.
The impedance is denoted by Z and unit of it is Ohm (Ω).
If the level of ohm is higher then level impedance is also higher.
Impedance = Resistance + Reactance (Either inductive or Capacitive or both)
In DC circuit, Impedance is effective Resistance of the circuit.
Z= R
In AC circuits, it possesses both magnitude and phase, unlike resistance, which has only magnitude.
In the case of capacitor, When the frequency increased then the resistance (Impedance ) of capacitor decreases. In Inductor this is just opposite, When we increase the frequency range then Impedance increase in inductor.
Impedance

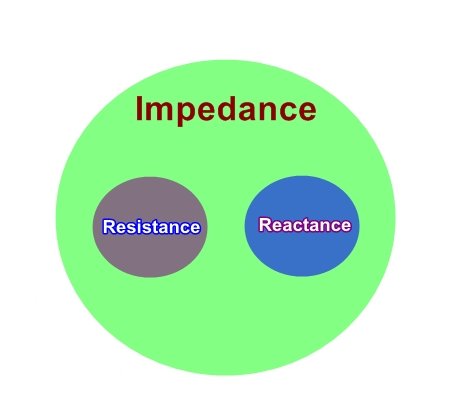

Impedance is defined as combination of resistance and reactance.
As we cannot assume any circuit with DC Current without Resistance , We cannot assume a circuit with AC current without Impedance.
Resistive Power- Energy burns by resistive power to Heat goes through that system ,
In Reactive Power- the energy goes to Antennas, Speaker, transmission line, cable etc represents how much energy to be stored and propagates. Not burn to heat ie Impedance.
Resistance
If there is Only Resistor is connected with Load in any circuit then is called Resistor.
• Reactance
If any circuit there is Only inductor or capacitor connected with load. Then the value of v/I is called reactance.
In Reactance There are 2 cases
(1) If inductor in connected then in this case reactance is called inductive reactance,
and its value in scalar form XL = ѡL, and in vector form XL=JѡL Where ѡ=2Πf. Here If frequency is increased then the value of wL is also increased.
(2) If Capacitor is connected then the Reactance is called Capacitive Reactance and it is denoted by (scalar form) Xc =
In vector form
Where
If frequency (f) is increased then value of Xc is decreased. ie ω inversly proportional to 2Πf.
[SIZE=12pt]♦ Impedance – If Any circuit consist Resistance -Inductor. Or Resistance - Capacitor, Or Resistance-inductor-Capacitor[/SIZE]. Then the value of v/I is called Impedance.
It is denoted by
In vector form Z= R+jωL
Impedance
And In vector form impedance
Impedance
In vector form

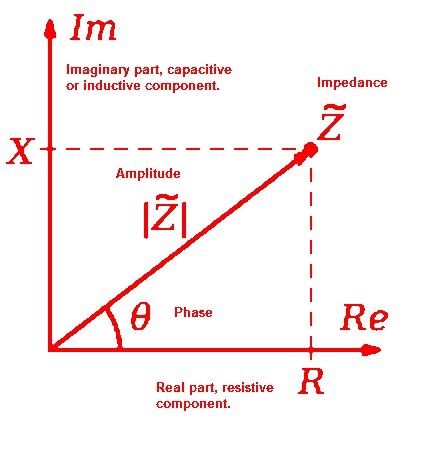

[SIZE=12pt]Phasor Diagram of Impedance[/SIZE]
[SIZE=12pt]
[/SIZE]
Unit
[SIZE=14pt]What is impedance .pdf[/SIZE]
also read
What is 555 timer
What is NOT Gate Logic
What is impedance [SIZE=14pt](circuitspedia.com)[/SIZE]
Impedance (Z) is similar to Resistance (R) . Impedance and Resistance both oppose the current in circuit. Both are almost the same thing , But resistance related to DC Circuit. Resistance oppose the steady electric current in DC circuit. Resistance remains same (constant) at any different frequency range.
Impedance is related with AC circuit. Impedance vary according to changing the frequency, this is not constant at different frequency range. Impedance also includes reactance (Inductive and capacitive property of the circuit).
Reactance - Reactance is the Resistance produced to AC Currents by Inductors and Capacitors only. This is a measure of the type of opposition to AC electricity due to capacitance or inductance.
The impedance is denoted by Z and unit of it is Ohm (Ω).
If the level of ohm is higher then level impedance is also higher.
Impedance = Resistance + Reactance (Either inductive or Capacitive or both)
In DC circuit, Impedance is effective Resistance of the circuit.
Z= R
In AC circuits, it possesses both magnitude and phase, unlike resistance, which has only magnitude.
In the case of capacitor, When the frequency increased then the resistance (Impedance ) of capacitor decreases. In Inductor this is just opposite, When we increase the frequency range then Impedance increase in inductor.
Impedance
Impedance is defined as combination of resistance and reactance.
As we cannot assume any circuit with DC Current without Resistance , We cannot assume a circuit with AC current without Impedance.
Resistive Power- Energy burns by resistive power to Heat goes through that system ,
In Reactive Power- the energy goes to Antennas, Speaker, transmission line, cable etc represents how much energy to be stored and propagates. Not burn to heat ie Impedance.
Resistance
• Reactance
In Reactance There are 2 cases
(1) If inductor in connected then in this case reactance is called inductive reactance,
and its value in scalar form XL = ѡL, and in vector form XL=JѡL Where ѡ=2Πf. Here If frequency is increased then the value of wL is also increased.
(2) If Capacitor is connected then the Reactance is called Capacitive Reactance and it is denoted by (scalar form) Xc =
In vector form
[SIZE=12pt]♦ Impedance – If Any circuit consist Resistance -Inductor. Or Resistance - Capacitor, Or Resistance-inductor-Capacitor[/SIZE]. Then the value of v/I is called Impedance.
It is denoted by
- [SIZE=12pt]If Resistor(R) and Inductor(L) connected –[/SIZE]The value of Impedance (scaler form)
In vector form Z= R+jωL
- If Resistor (R) and Capacitor(C) connected - Then
Impedance
And In vector form impedance
- If Resistor (R) , Inductor (L) capacitor (C) Connected - Then
Impedance
In vector form
[SIZE=12pt]Phasor Diagram of Impedance[/SIZE]
[SIZE=12pt]
[/SIZE]Unit
- Impedance - Ω
- Reactance - Ω
- Resistance - Ω
[SIZE=14pt]What is impedance .pdf[/SIZE]
also read
What is 555 timer
What is NOT Gate Logic
