Universal OPAMP Board for SMD MSOP8 Package

  • Rajkumar Sharma
  • 51 Views
  • easy
  • Tested
  • SKU: EL116771
  • Quote Now

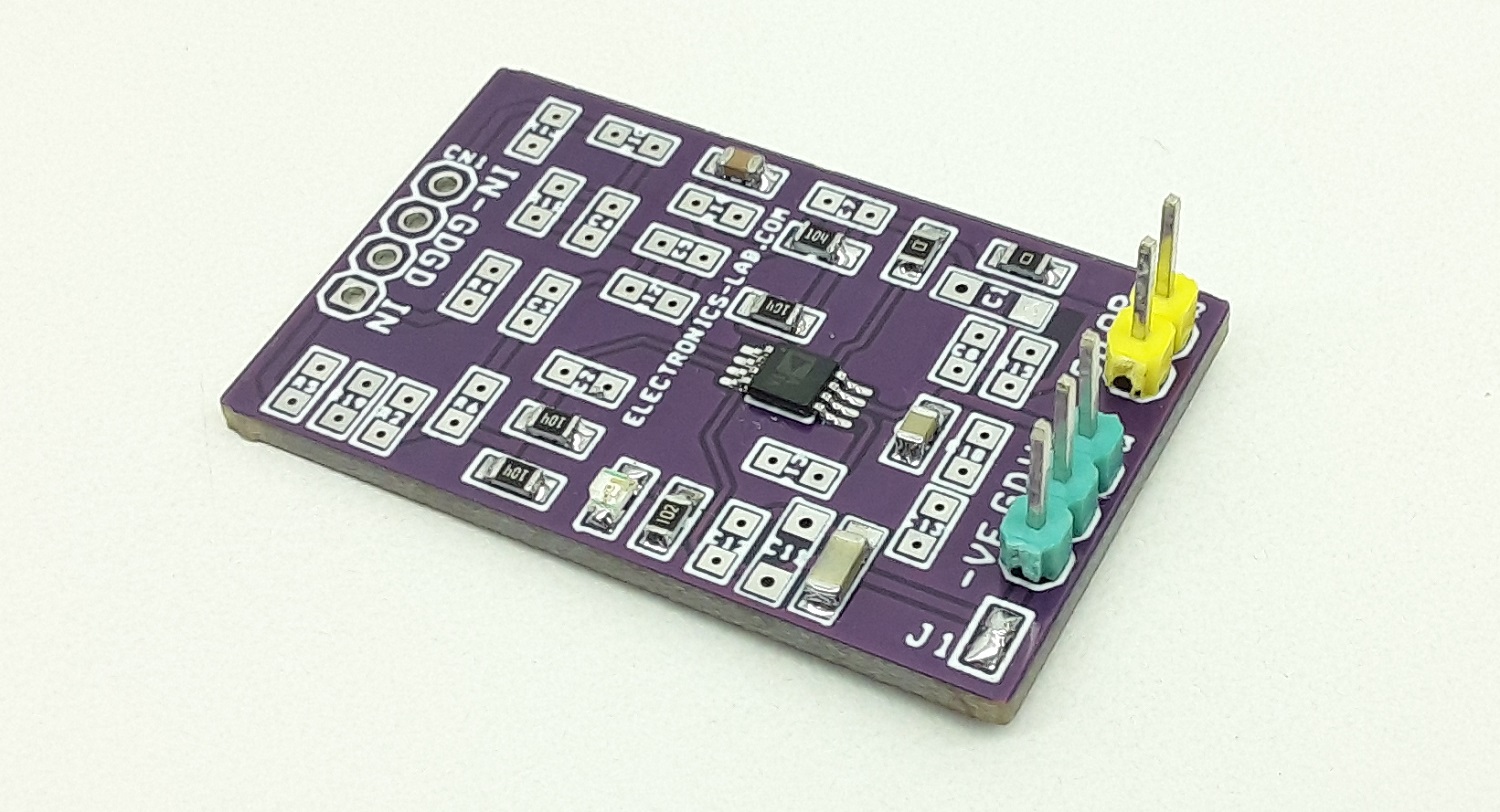

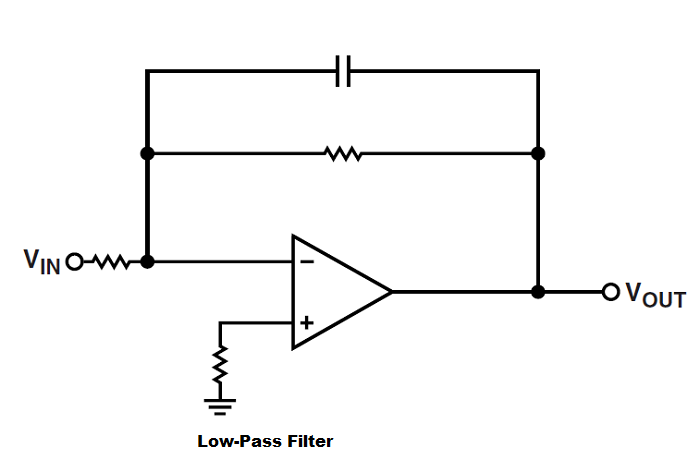

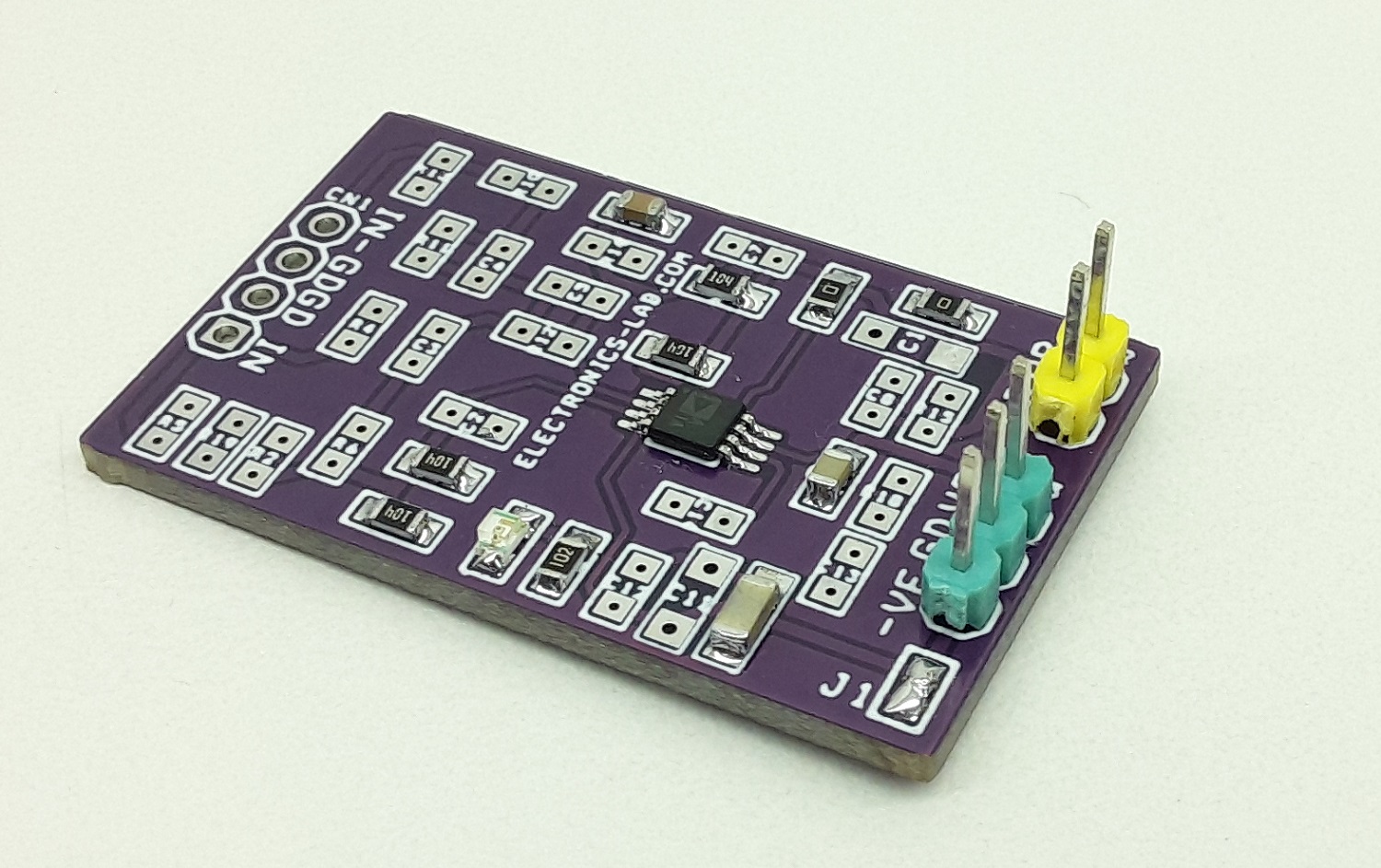

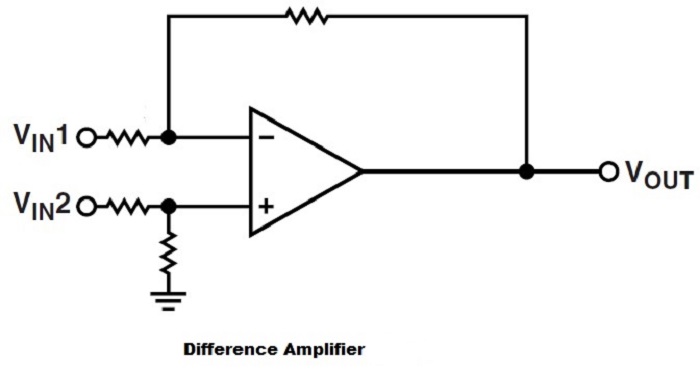

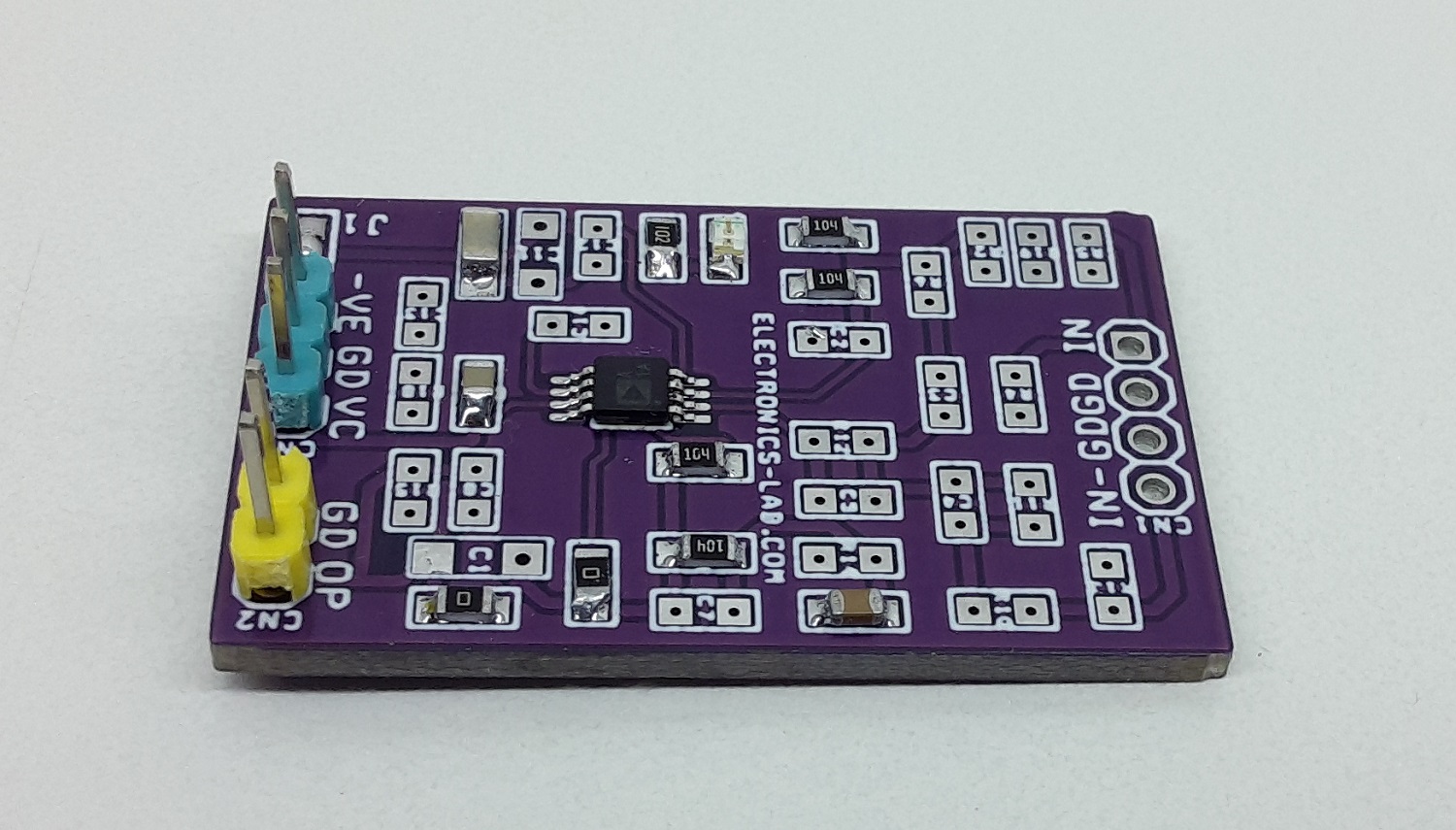

This is easy to build and very useful project for hobbyists and students to learn and create OPAMP-based projects. The project accommodates a single OPAMP in the MSOP8 package. The project provides the user with multiple choices and extensive flexibility for different applications circuits and configurations. It provides the user with many combinations for various circuit types including active filters, differential amplifiers, and external frequency compensation circuits. A few examples of application circuits are given below. OP777 op-amp is the right choice to use or any other MSOP8 op-amp with the same pin configuration as OP777 can be used. It supports dual supply or single supply, Jumper J1 is provided to use this board with a single supply, D1 is the power LED.

Note: Refer to example circuit to test the board, it is a bistable multivibrator, with a single supply and Jumper J1 closed.

Credits: All example schematics are from Analog Devices application notes.

Features

  • Single or Dual Supply User-defined (Jumper)
  • 4 Pin Male Header Connector for inputs
  • 3 Pin Male Header for Supply input (Single or Dual)
  • Jumper J1 Close for single Supply, Open for Dual Supply
  • LED D1 Power LED
  • Any MSOP8 Op-Amp Can be used (Pin configuration compatible OP777)
  • PCB Dimensions 37.31 x 23.50 mm

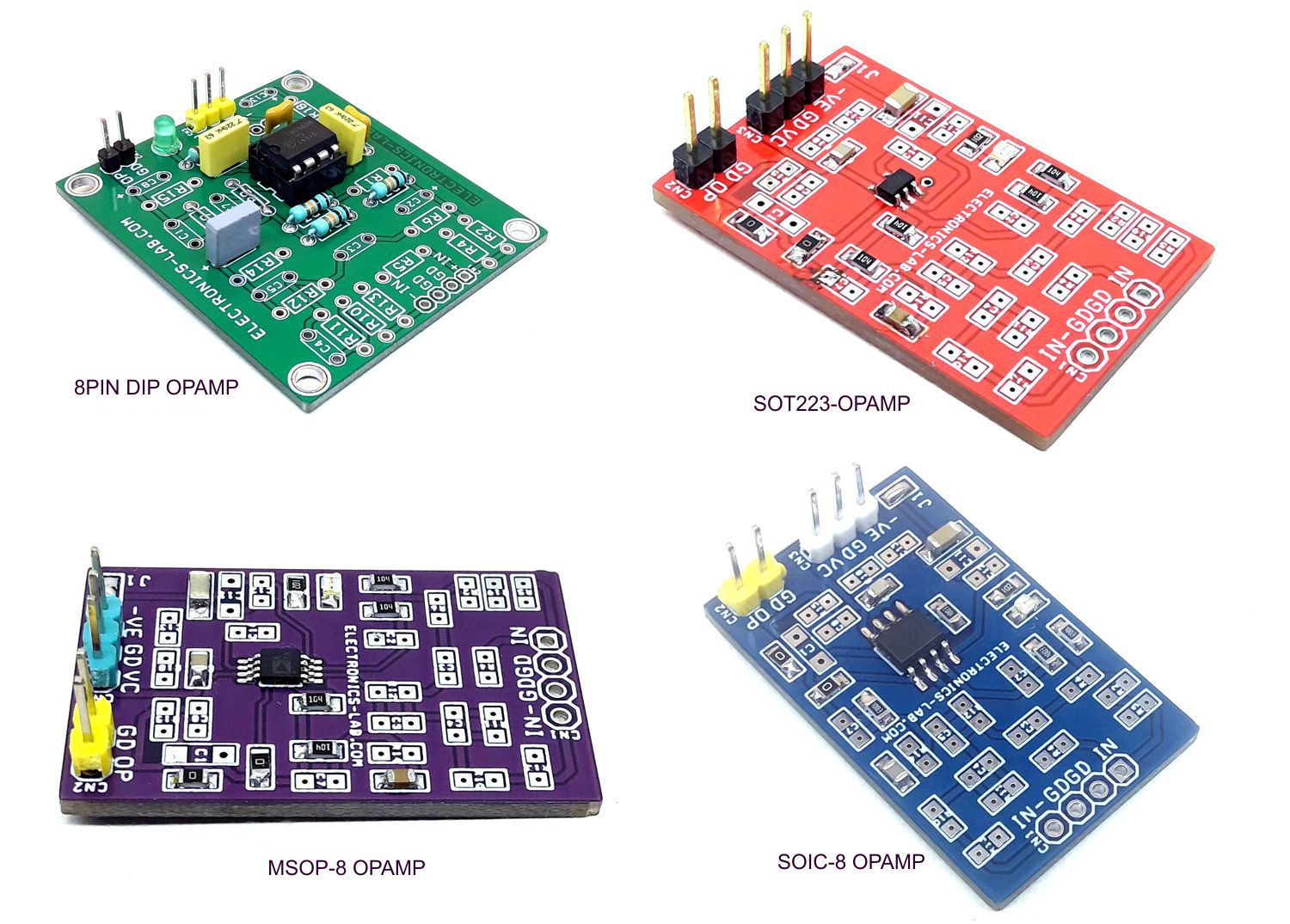

Similar Universal OPAMP boards

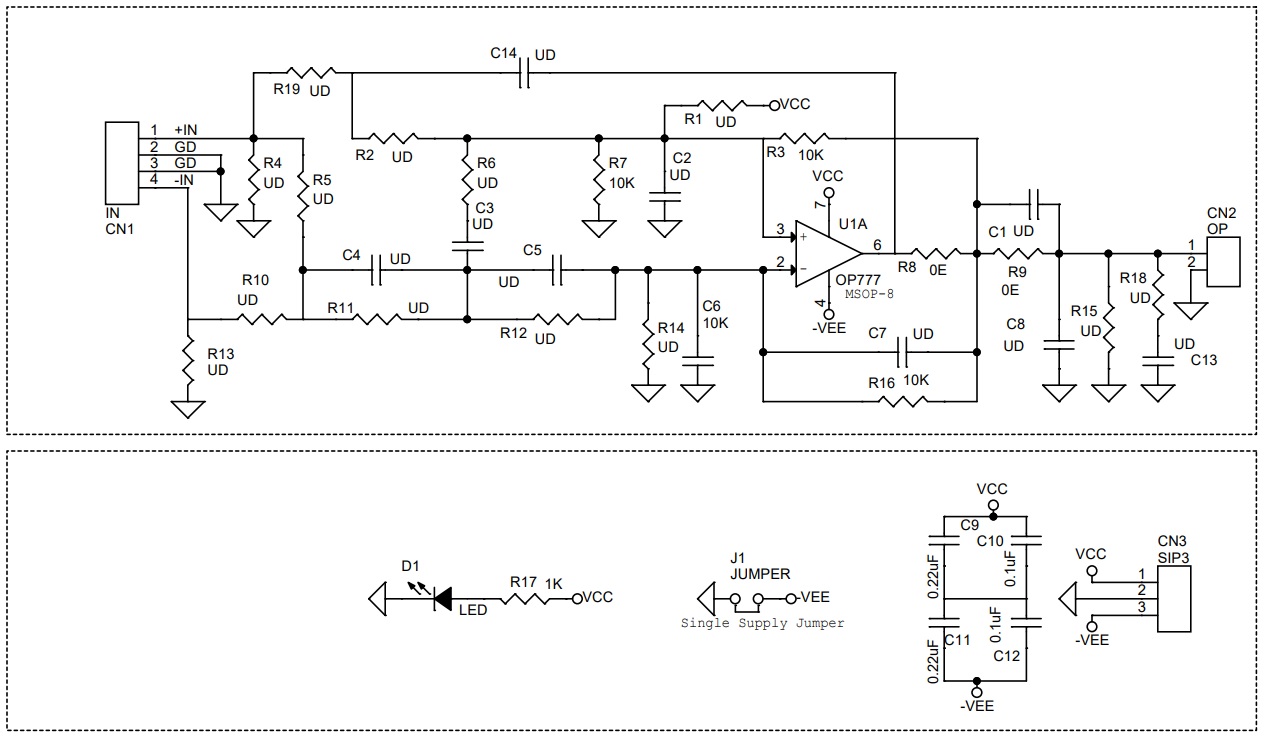

Schematic

Example Application

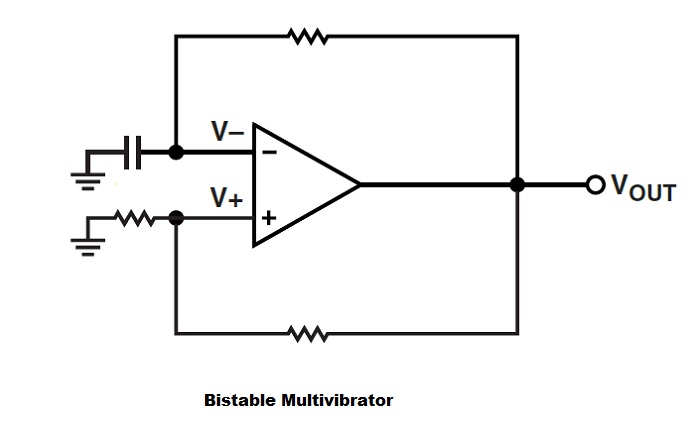

5Khz Bistable Multivibrator Example Schematic

Parts List

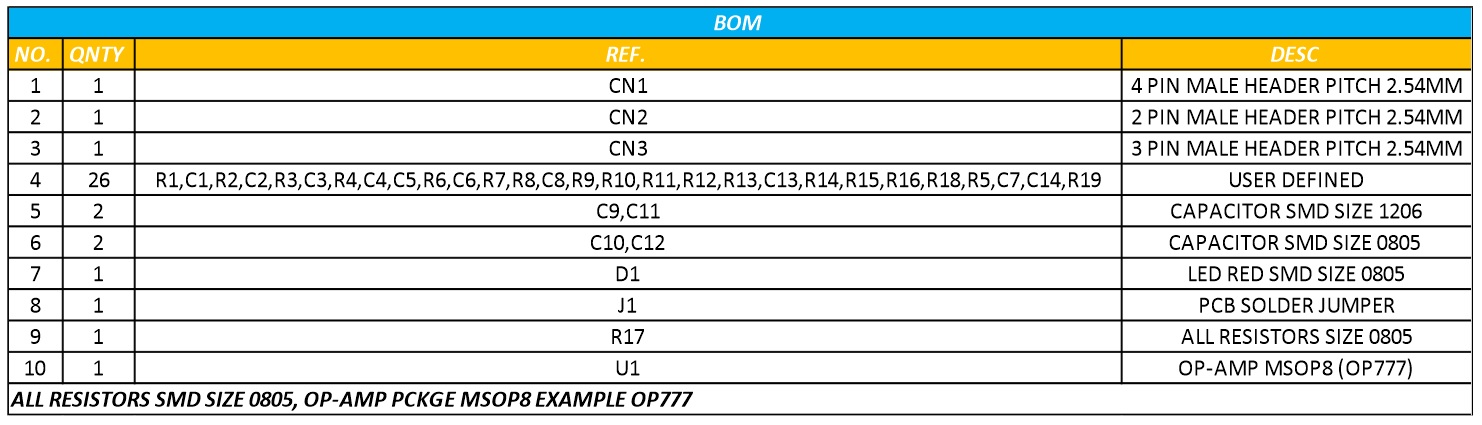

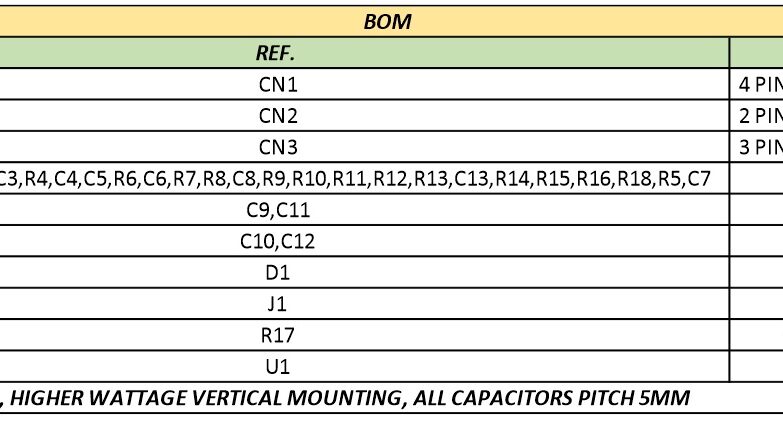

NO.QNTYREF.DESC
11CN14 PIN MALE HEADER PITCH 2.54MM
21CN22 PIN MALE HEADER PITCH 2.54MM
31CN33 PIN MALE HEADER PITCH 2.54MM
426R1,C1,R2,C2,R3,C3,USER DEFINED
,R4,C4,C5,R6,C6,R7,USER DEFINED
R8,C8,R9,R10,R11,R12,USER DEFINED
R13,C13,R14,R15,R16,USER DEFINED
R18,R5,C7,C14,R19,USER DEFINED
52C9,C11CAPACITOR SMD SIZE 1206
62C10,C12CAPACITOR SMD SIZE 0805
71D1LED RED SMD SIZE 0805
81J1PCB SOLDER JUMPER
91R17ALL RESISTORS SIZE 0805
101U1OP-AMP MSOP8 (OP777)
RESISTORS SMD SIZE 0805PCKGE MSOP8EXAMPLE OP777

Example Application Parts List

   BISTABLE MULTIVIBRATOR

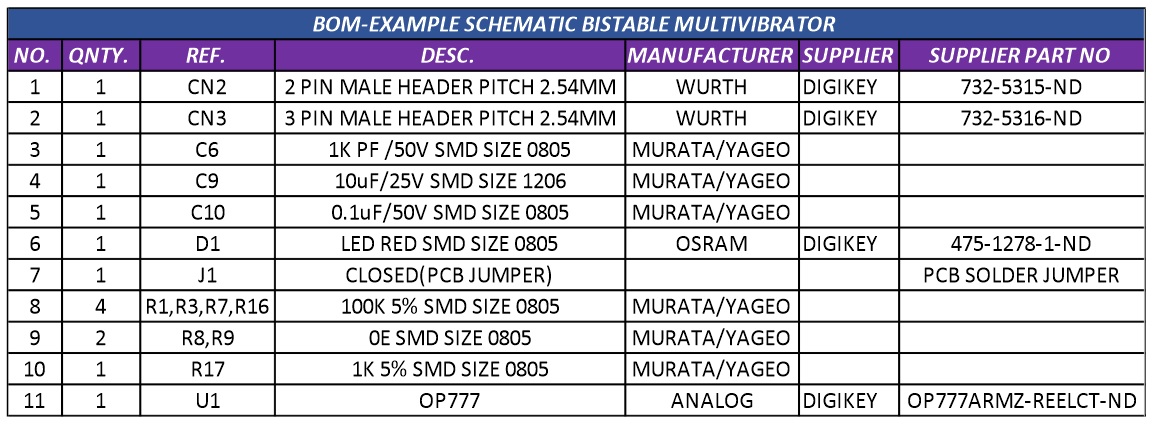

NO.QNTY.REF.DESC.MANUFACTURERSUPPLIERPART NO
11CN22 PIN MALE HEADER PITCH 2.54MMWURTHDIGIKEY732-5315-ND
21CN33 PIN MALE HEADER PITCH 2.54MMWURTHDIGIKEY732-5316-ND
31C61K PF /50V SMD SIZE 0805MURATA/YAGEO
41C910uF/25V SMD SIZE 1206MURATA/YAGEO
51C100.1uF/50V SMD SIZE 0805MURATA/YAGEO
61D1LED RED SMD SIZE 0805OSRAMDIGIKEY475-1278-1-ND
71J1CLOSED(PCB JUMPER)PCB SOLDER JUMPER
84R1,R3,R7,R16100K 5% SMD SIZE 0805MURATA/YAGEO
92R8,R90E SMD SIZE 0805MURATA/YAGEO
101R171K 5% SMD SIZE 0805MURATA/YAGEO
111U1OP777ANALOGDIGIKEYOP777ARMZ-REELCT-ND

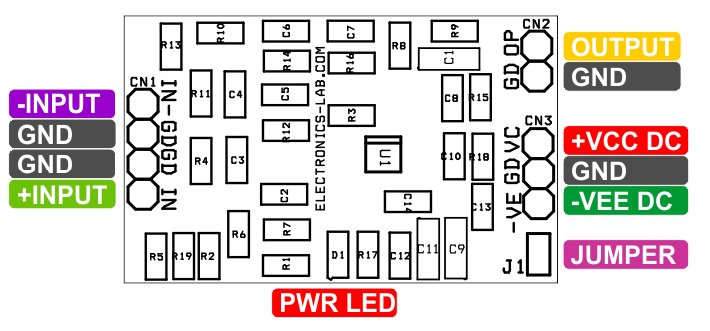

Connections

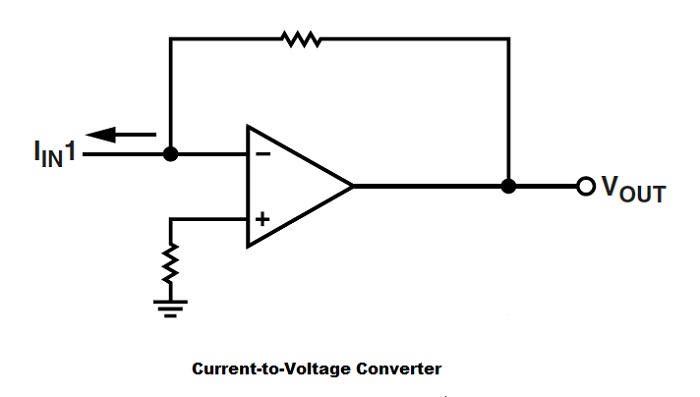

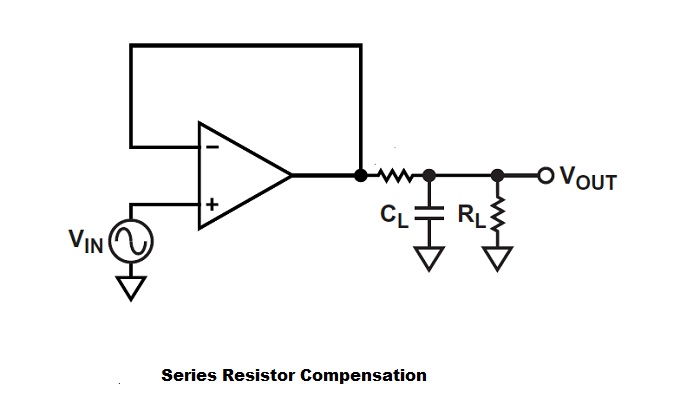

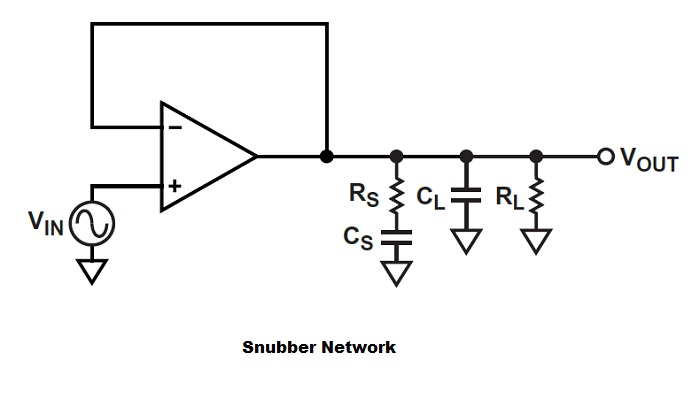

Example OPAMP Circuits



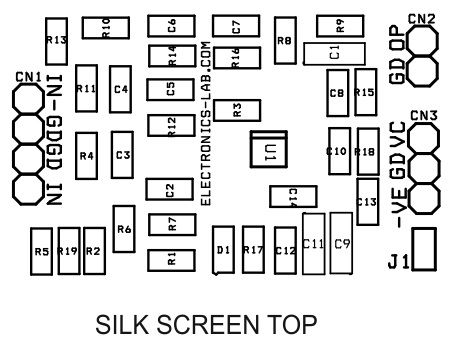

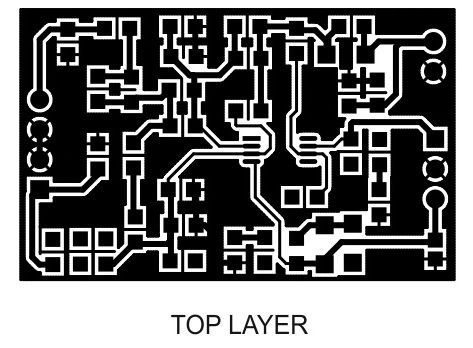

Gerber View

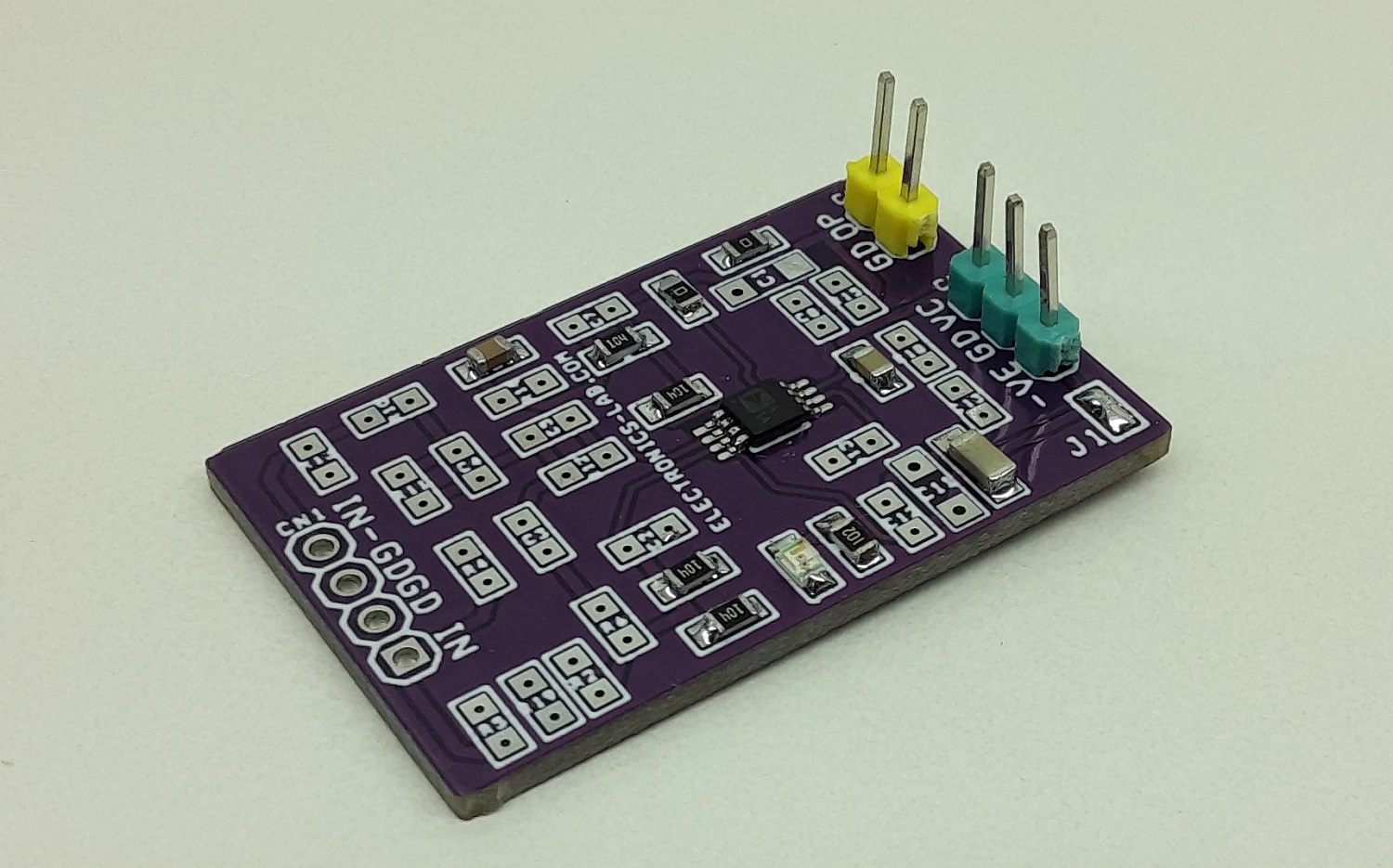

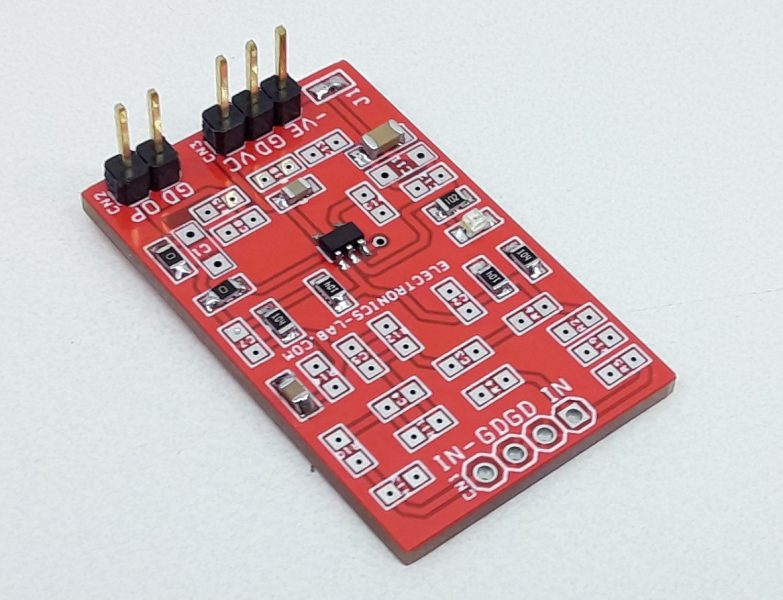

Photos

Video

OP777 Datasheet

OP777_727_747

PCB
