Universal Op-Amp Board for SMD SOIC-8 Package

  • Rajkumar Sharma
  • 597
    Views
  • easy
  • Tested

This is easy to build and very useful project for hobbyists and students to learn and create OPAMP-based projects. The project accommodates a single op-amp in a SOIC-8 package. The project provides the user with multiple choices and extensive flexibility for different applications circuits and configurations. It provides the user with many combinations for various circuit types including active filters, differential amplifiers, external frequency compensation circuits etc. A few examples of application circuits are given below. LM358 op-amp is the right choice to use but any SOIC8 OPAMP with the same pin configuration can be used. It supports dual supply or single supply, Jumper J1 is provided to use this board with a single supply, D1 is the power LED.

Note: Refer to example circuit to test the board, it is a bistable multivibrator, with single supply Jumper J1 closed.

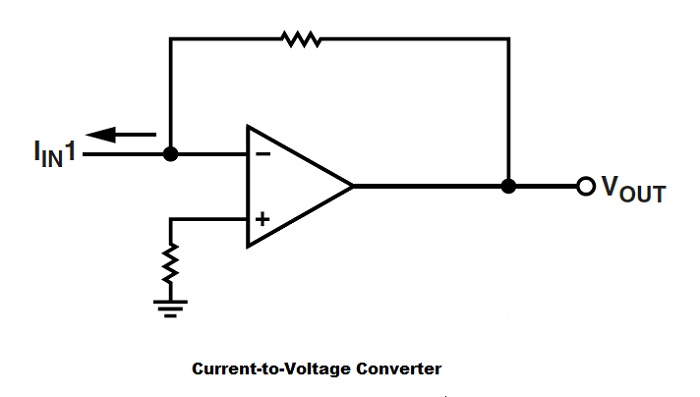

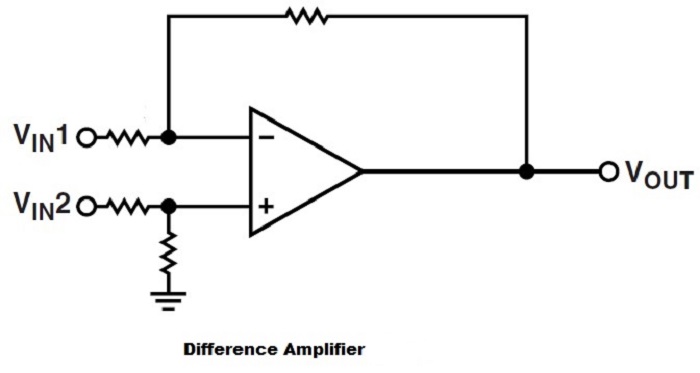

Credits: All example schematics are from Analog Devices application notes.

Features

  • Single or Dual Supply is User-defined (Jumper)
  • 4 Pin Male Header Connector for inputs
  • 3 Pin Male Header for Supply input (Single or Dual)
  • Jumper J1 Close for single Supply, Open for Dual Supply
  • LED D1 Power LED
  • Any SOIC-8 Op-Amp Can be used Pin configuration – LM358

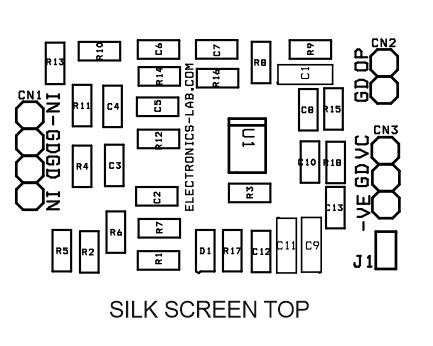

  • PCB Dimensions 37.31 x 23.50 mm

Other Universal OPAMP boards:

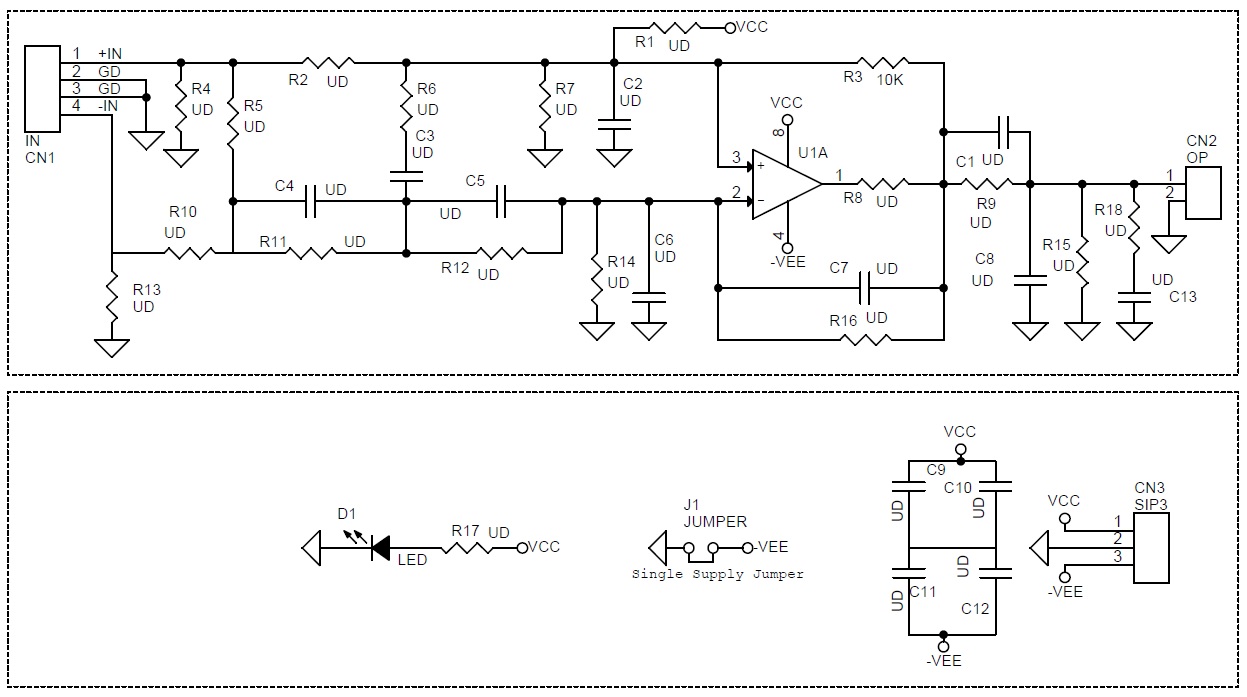

Main Schematic

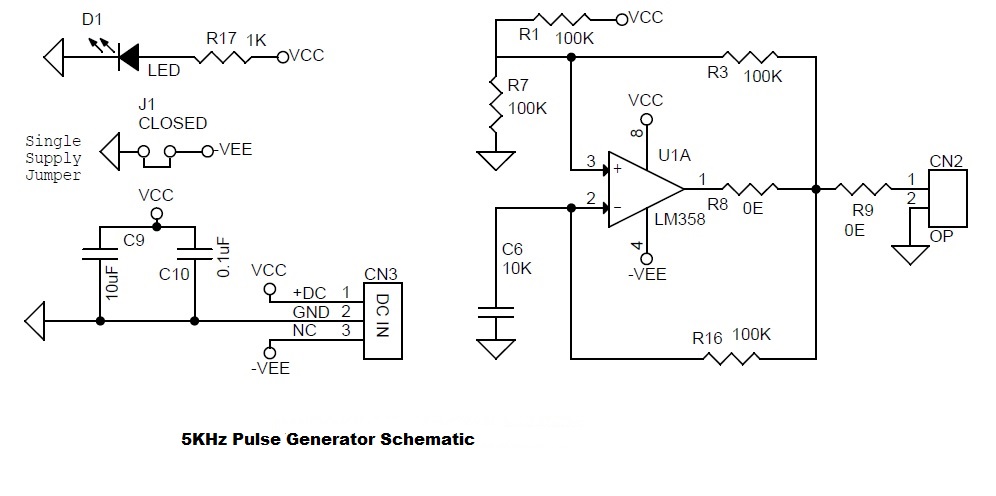

5Khz Pulse Generator Schematic

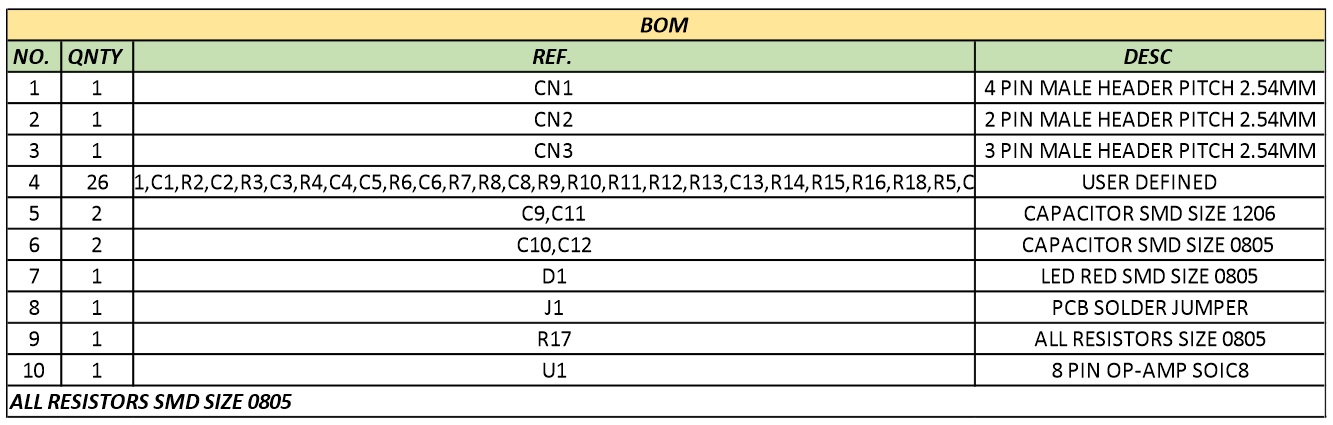

Main Parts List

NO.QNTYREF.DESC
11CN14 PIN MALE HEADER PITCH 2.54MM
21CN22 PIN MALE HEADER PITCH 2.54MM
31CN33 PIN MALE HEADER PITCH 2.54MM
45R1,C1,R2,C2,R3USER DEFINED
6C3,R4,C4,C5,R6,C6USER DEFINED
6R7,R8,C8,R9,R10,R11USER DEFINED
5R12,R13,C13,R14,R15USER DEFINED
4R16,R18,R5,C7USER DEFINED
52C9,C11CAPACITOR SMD SIZE 1206
62C10,C12CAPACITOR SMD SIZE 0805
71D1LED RED SMD SIZE 0805
81J1PCB SOLDER JUMPER
91R17ALL RESISTORS SIZE 0805
101U18 PIN OP-AMP SOIC8
ALL RESISTORS SMD SIZE 0805

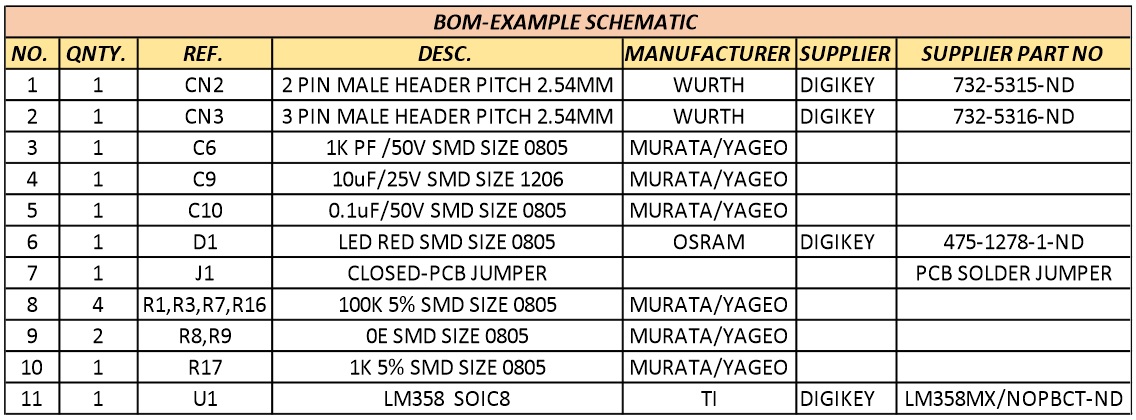

5Khz Pulse Generator Parts List

NO.QNTY.REF.DESC.MANUFACTURERSUPPLIERSUPPLIER PART NO
11CN22 PIN MALE HEADER PITCH 2.54MMWURTHDIGIKEY732-5315-ND
21CN33 PIN MALE HEADER PITCH 2.54MMWURTHDIGIKEY732-5316-ND
31C61K PF /50V SMD SIZE 0805MURATA/YAGEO
41C910uF/25V SMD SIZE 1206MURATA/YAGEO
51C100.1uF/50V SMD SIZE 0805MURATA/YAGEO
61D1LED RED SMD SIZE 0805OSRAMDIGIKEY475-1278-1-ND
71J1CLOSED-PCB JUMPERPCB SOLDER JUMPER
84R1,R3,R7,R16100K 5% SMD SIZE 0805MURATA/YAGEO
92R8,R90E SMD SIZE 0805MURATA/YAGEO
101R171K 5% SMD SIZE 0805MURATA/YAGEO
111U1LM358 SOIC8TIDIGIKEYLM358MX/NOPBCT-ND

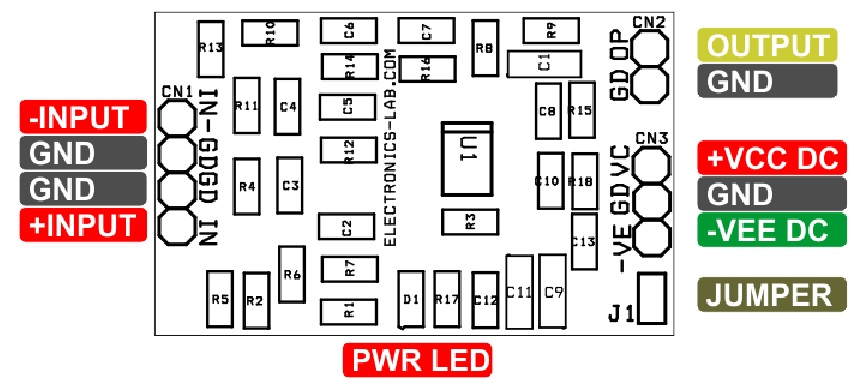

Connections

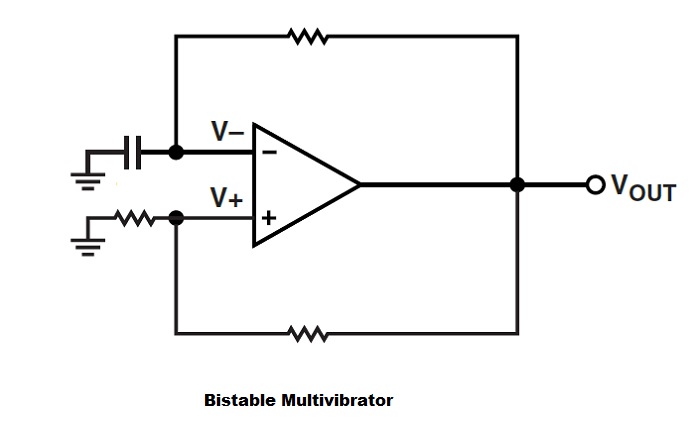

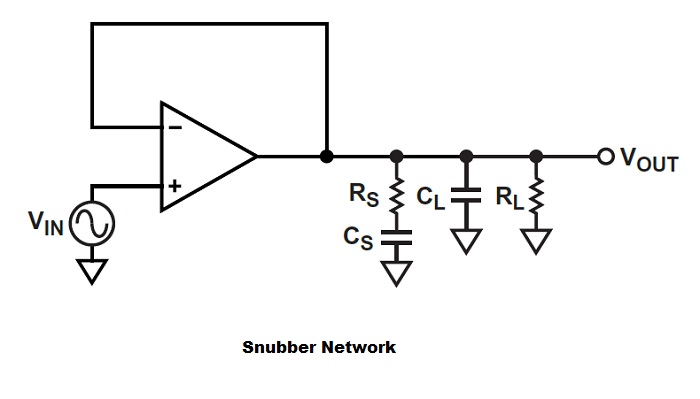

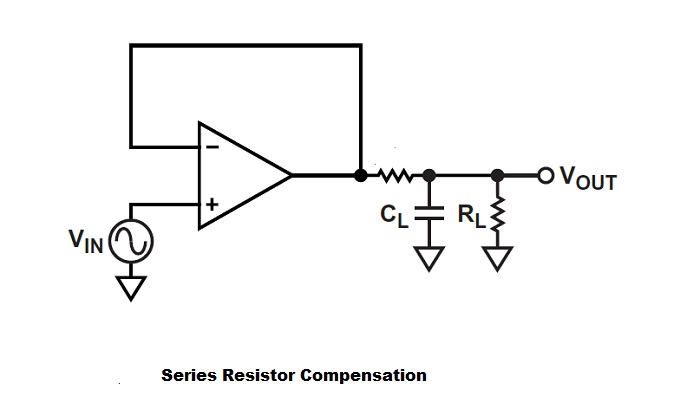

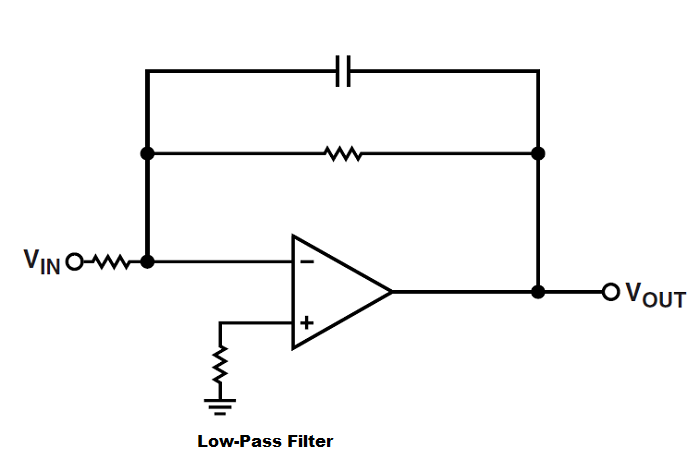

Example OPAMP Circuits

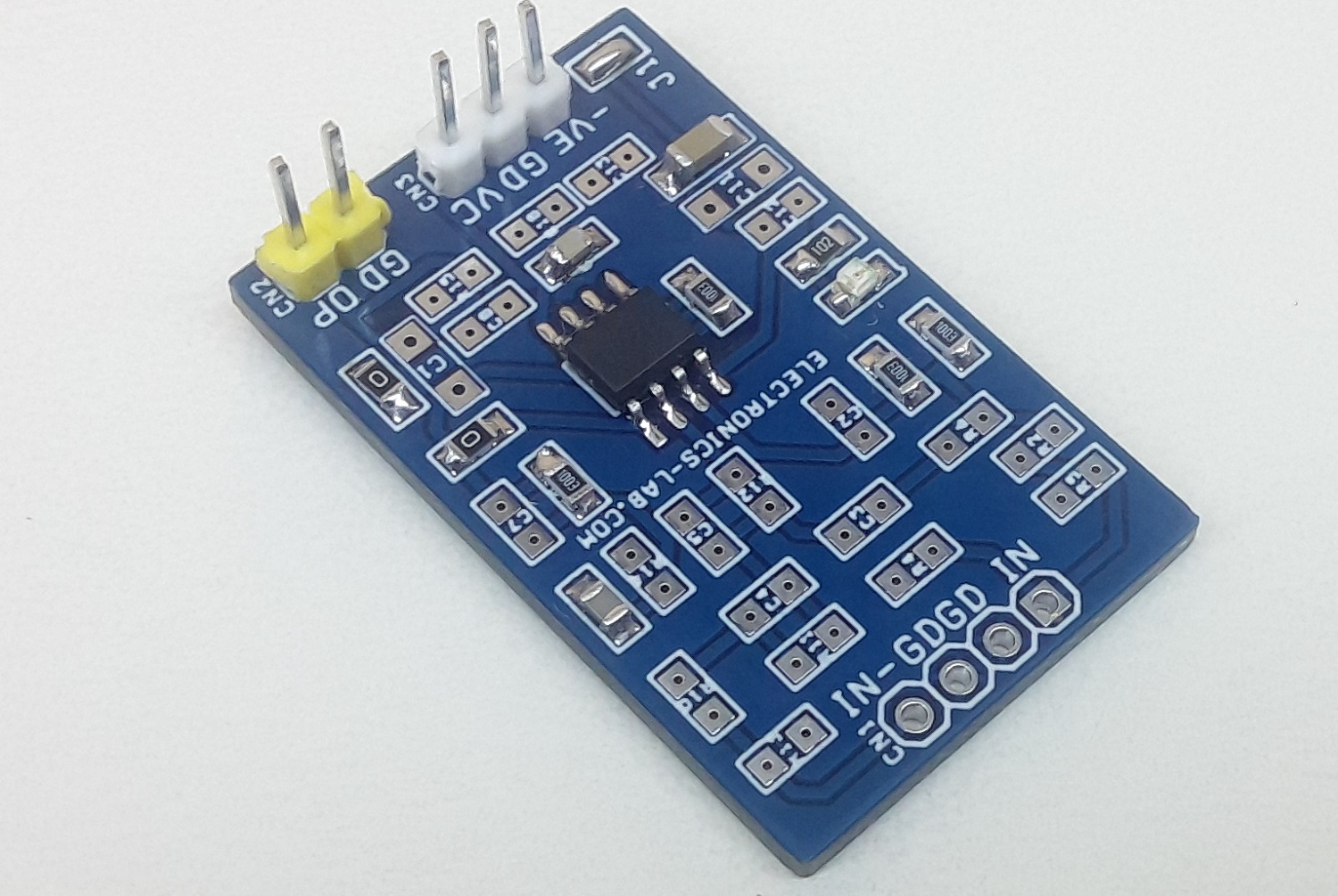

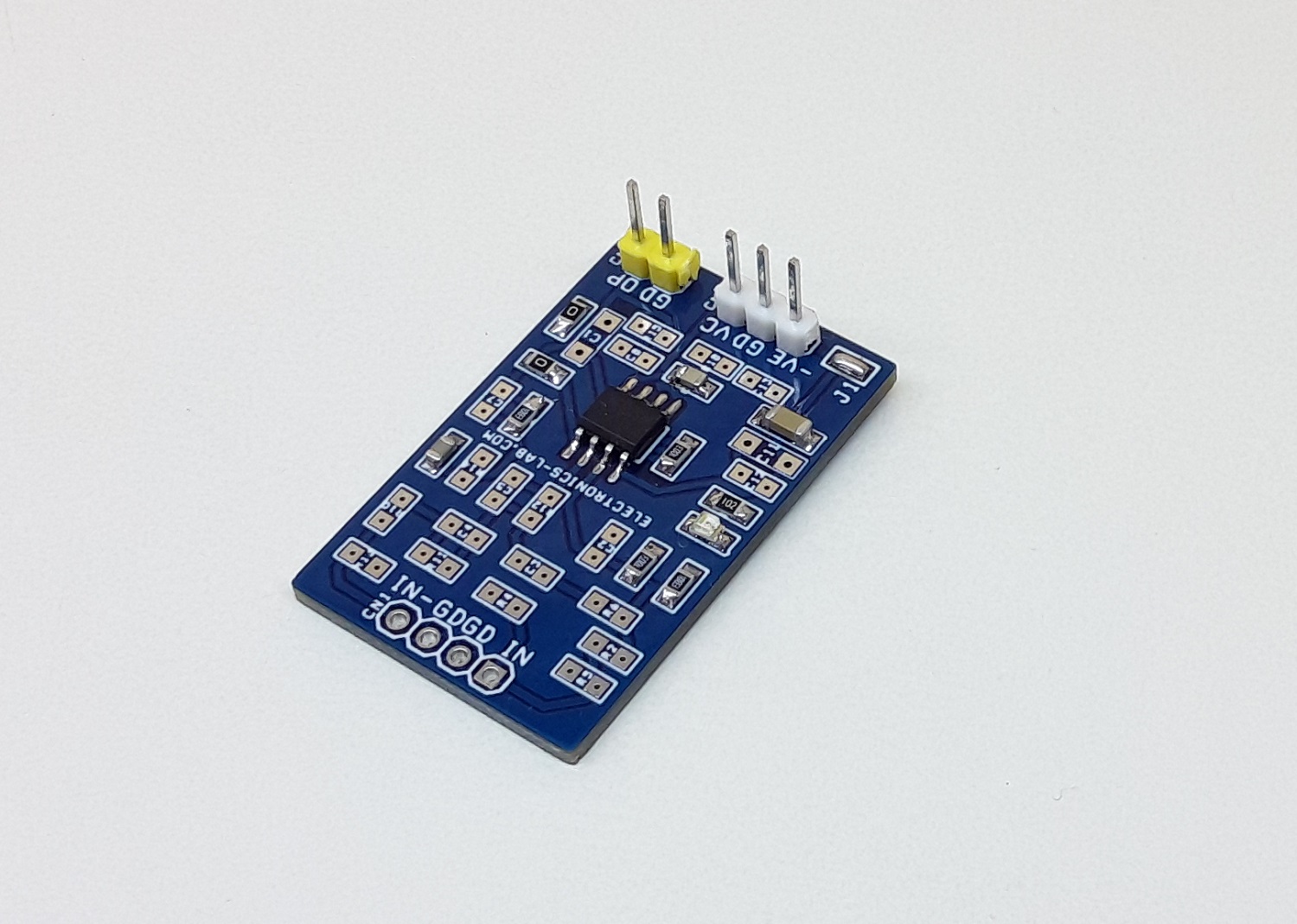

Photos

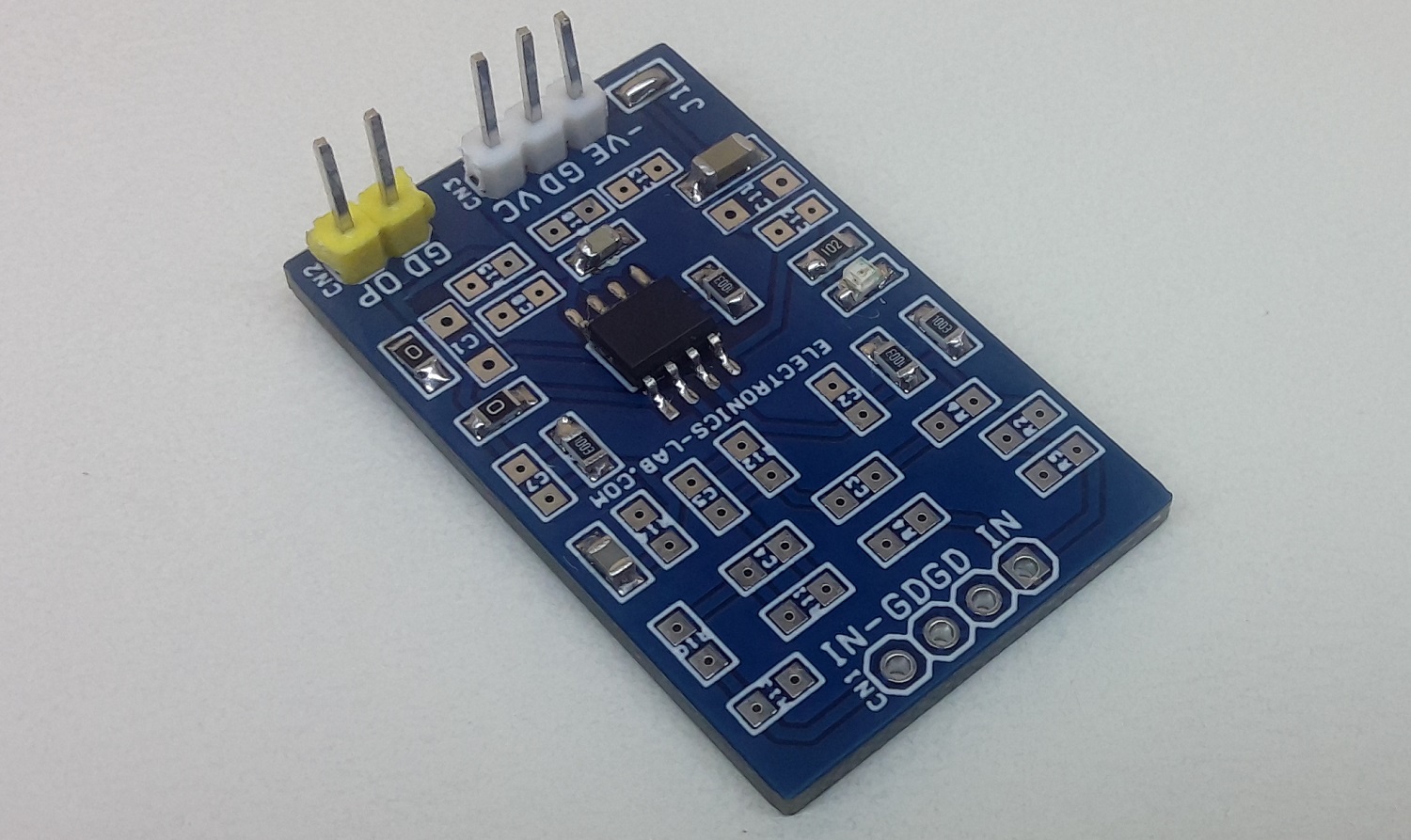

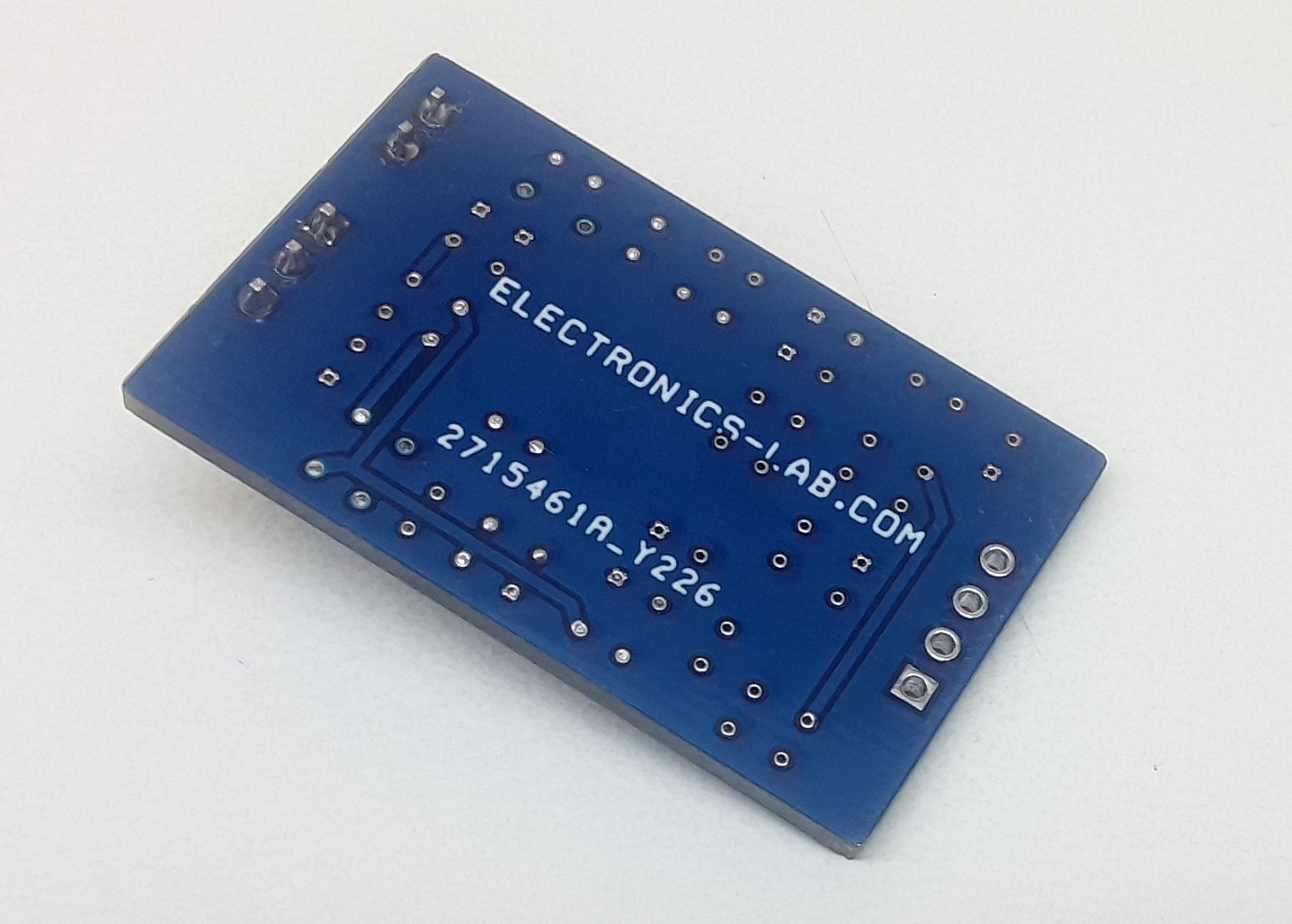

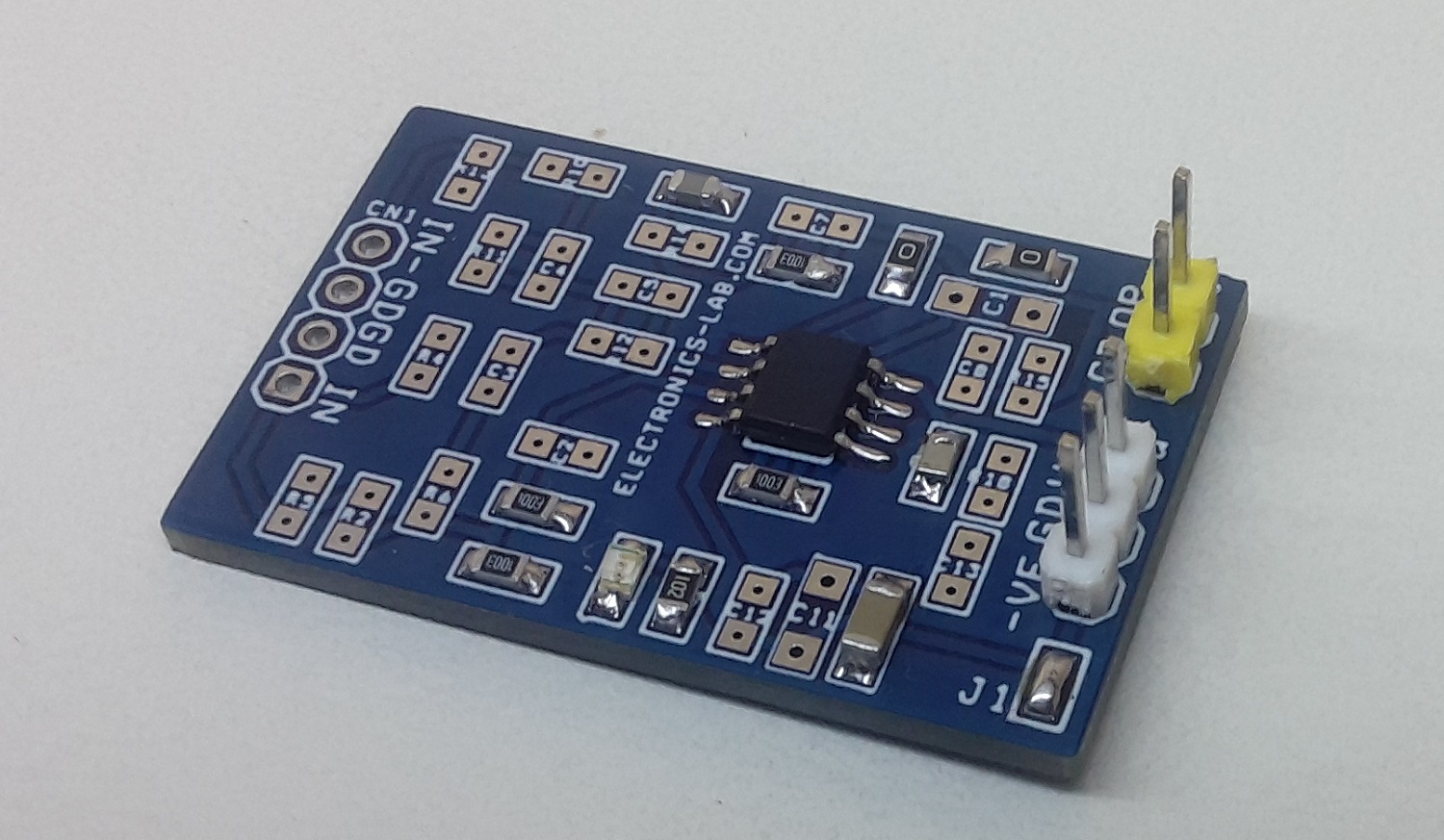

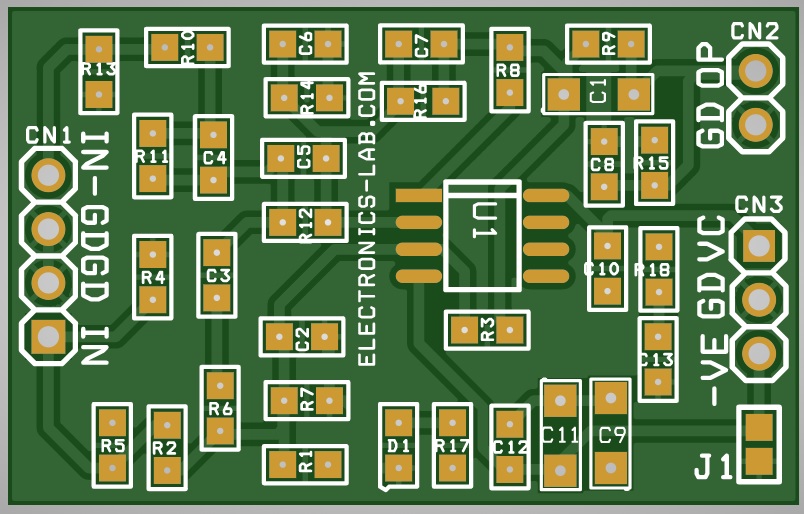

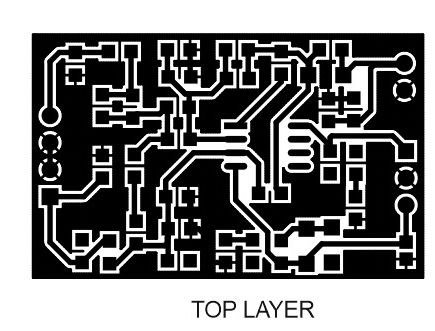

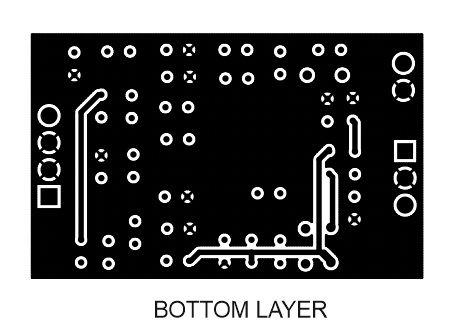

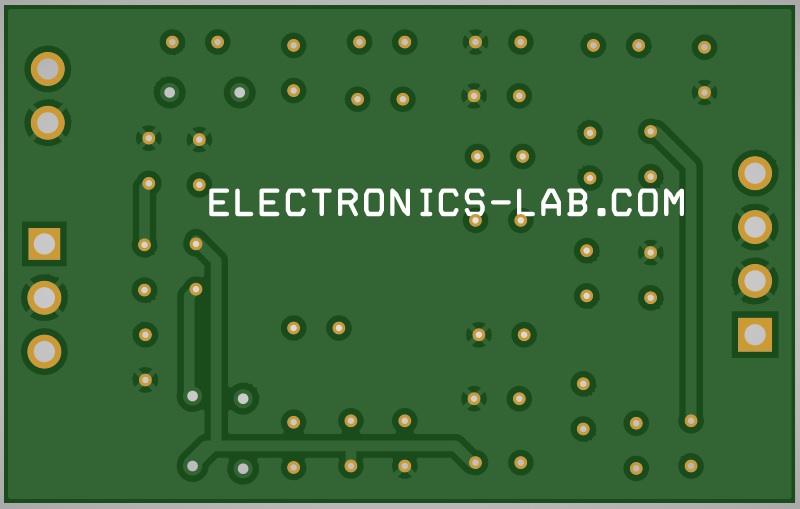

Gerber View

Video

LM358 Datasheet
