Pulse generator

  • Rajkumar Sharma
  • 18640
    Views
  • easy
  • Tested

D009

Description

Pulse Generator project will generate a frequency in up to 180 KHz which can form a good test gear project.  This project is based on the classic 555 timer IC.

Specifications

  • Input : 5-12 VDC Max @ 40 mA
  • Provides Square Waves
  • Range : Jumper selectable and preset tunable range of 1 Hz to 180 KHz
  • Power-On LED indicator
  • Berg connector for easy connection
  • Four mounting holes of 3.2 mm each
  • PCB dimensions 47 mm x 40 mm

Jumpers

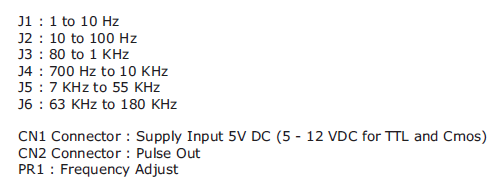

jumper_settings

Schematic

D009 SCH

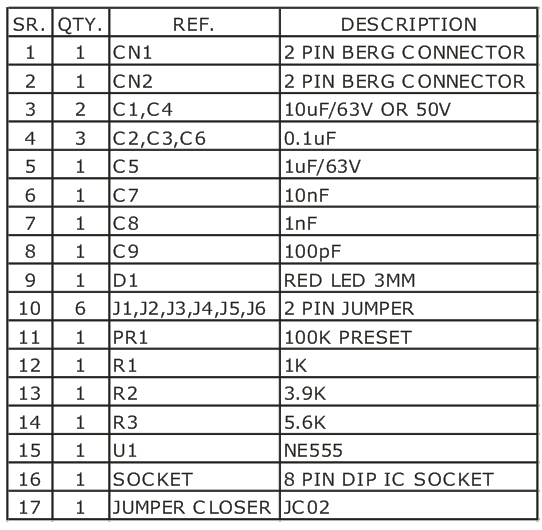

Parts

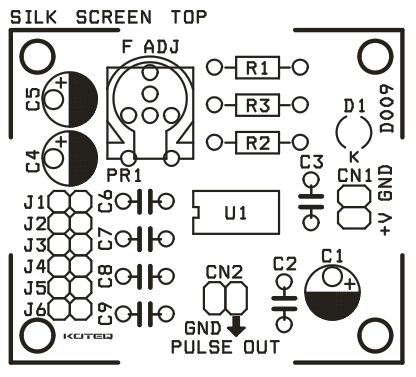

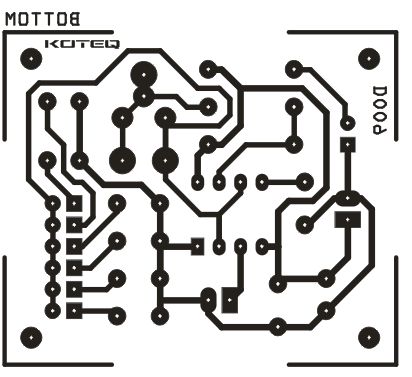

PCB
