24V to 36V @ 2A DC-DC step-up Converter using LM2588

  • Rajkumar Sharma
  • 449
    Views
  • easy
  • Tested

This is another DC-DC boost converter that provides 36V DC output from 24V DC input with load current up-to 2A. The board is very small. Switch-mode converter is based on LM2588 IC from Texas Instruments. The LM2588 regulator integrated circuit specifically designed for fly-back, step-up (Boost) , and forward converter. Board has minimum components, screw terminal provided for input & outputs.

Features

  • Supply Input 24V DC (18-36V Possible)
  • Output 36V
  • Load Current Up to 2Amps

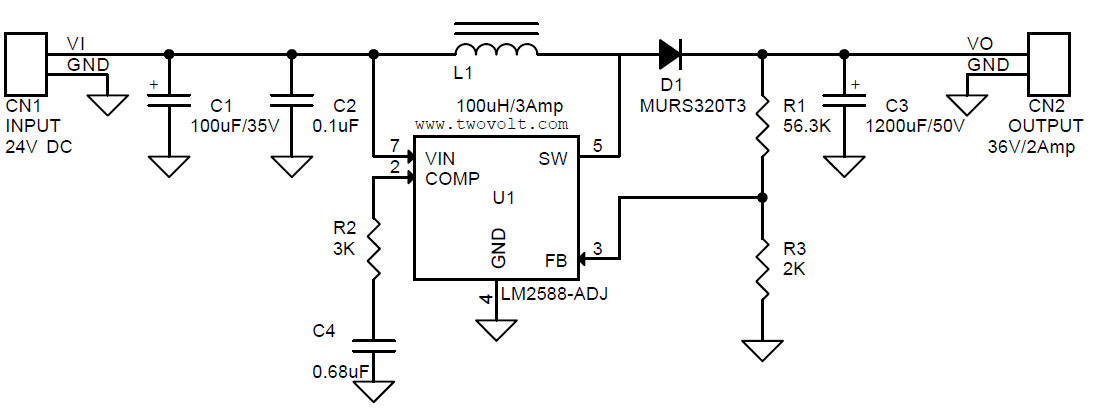

Schematic

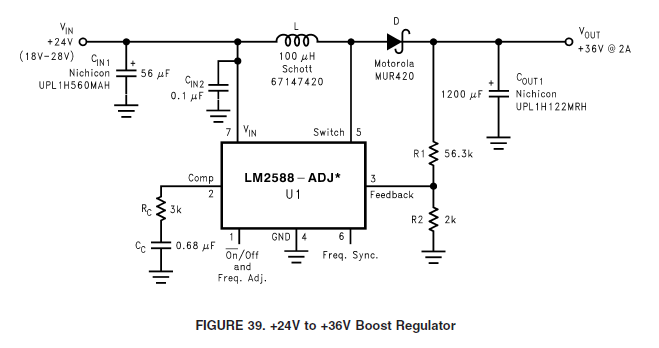

Reference design

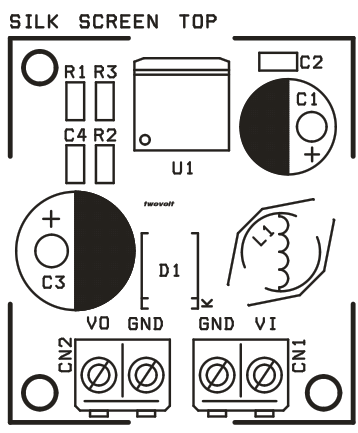

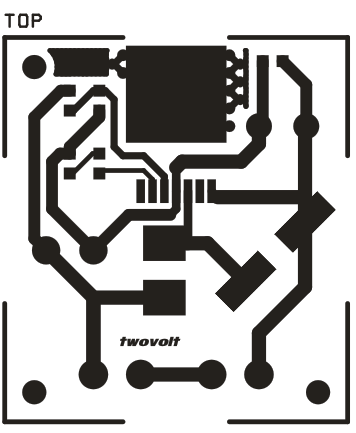

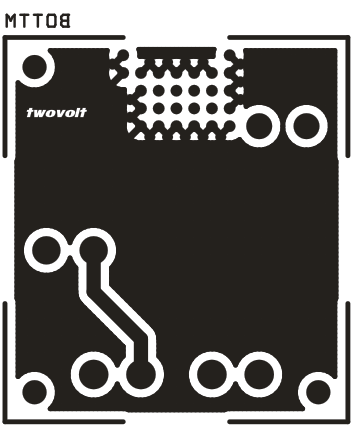

PCB
