6 Digit Serial Display Driver with CAT4016

  • Rajkumar Sharma
  • 5931
    Views
  • moderate
  • Tested

6 Digit serial display project has been designed around CAT4016 IC from ON semi.  The CAT4016 is a 16 channel constant current driver for LED billboard and other general display applications. LED channel currents are programmed together via an external RSET resistor. Low output voltage operation on the LED channels as low as 0.4 V (for 2 to 100 mA LED current) allows for more power efficient designs.

A high-speed 4-wire serial interface of up to 25 MHz clock frequency controls each individual channel using a shift register and latch configuration. A serial output data pin (SOUT) allows multiple devices to be cascaded and programmed via one serial interface. The device also includes a blanking control pin (BLANK) that can be used to disable all channels independently of the interface.

Thermal shutdown protection is incorporated in the device to disable the LED outputs if the die temperature exceeds a set limit.

Features

  • 6 Digit 1 inch 7Segment Display
  • Supply Input 3V to 5.5V
  • Serial interface up to 25 MHz clock frequency
  • LED current 20mA (Range from 2 mA to 100)
  • LED current set by external RSET resistor
  • 300 mV LED dropout at 30 mA
  • Thermal shutdown protection
  • R1,R2,R3 Current Set Resistors



LED Current Set Formula

LED Current = 50X1.2/Rset ,

Rset = R1, R2, R3



CN1 : Connector

PIN1 : 3V TO 5.5V (VCC)

PIN2 : SIN (DI) Serial Data Input

PIN3 : CLK (CL) Serial Clock Input

PIN4 : Latch (LT) Latch Data Input

PIN5 : Blank (BK) LED Channel enable disable input

PIN6 : GND



CN2 : Serial Data Output

PIN1 : 3V TO 5.5V (VCC)

PIN2 : Sout (Do) Serial Data output

PIN3 : CLK (CL) Serial Clock output

PIN4 : Latch (LT) Latch Data output

PIN5 : Blank (BK) LED Channel enable disable

PIN6 : GND



Schematic

6-Digit-Serial-Display-Driver-CAT4016-SCHEMATIC

Parts List

6-Digit-Serial-Display-Driver-CAT4016-BOM

Photos

6-Digit-Serial-Display-Driver-CAT4016-C096A-500x500

6-Digit-Serial-Display-Driver-CAT4016-C096C-500x500

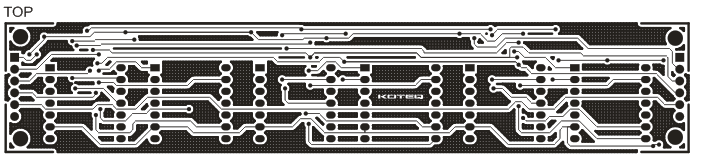

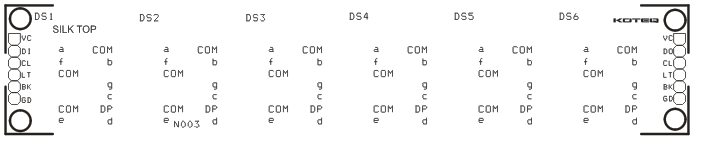

PCB
