Description

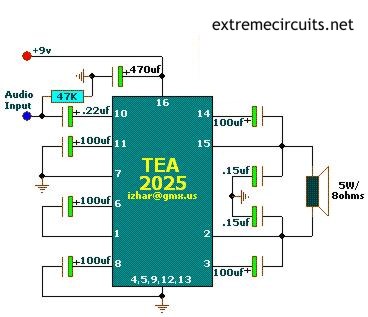

Above circuits are based on TEA2025 is a monolithic integrated audio amplifier in a 16-pin plastic dual in line package manufactured by UTC .Circuit has an Internal Thermal Protector. It is designed for portable cassette players and radios. You can also use it as your PC Audio Amplifier. A few external components required to build this circuit. Use 9v transformer to play the circuit. But not more than DC12v. Because it can damage the amplifier IC. So build n Enjoy.

Stereo per channel
VCC=9V;RL=4Ω/3W
VCC=9V;RL=8Ω/2W

Bridge Application
VCC=9V;RL=8Ω/5W
VCC=9V;RL=4Ω/8W

Specifications

Supply Voltage min = DC3v @ 500mA
Supply Voltage max = DC12v @ 500mA
Supply Voltage recommended = DC9v @500mA



Comments

  • Ariel fuentebella

    Is there a substitution for tea2025

    3 years ago
    • Electronics Lab

      It seems that TEA2025 is obsolete, but you can still find it online and on ebay. It seems there is not substitution available.

      3 years ago
