gortmagnussen Posted December 26, 2005 Report Share Posted December 26, 2005 I am looking for pinouts / datasheet for a (SANYO ?) STK789 - It is a thick-film voltage regulator (switching)Thanks Quote Link to comment Share on other sites More sharing options...
hotwaterwizard Posted December 27, 2005 Report Share Posted December 27, 2005 Tuff one I looked for hours. Here is as close as I could get.STK780.pdfSTK795.pdf Quote Link to comment Share on other sites More sharing options...
gortmagnussen Posted December 27, 2005 Author Report Share Posted December 27, 2005 Thanks for the info, close, but no cigar.....I shall persevere ...... The unit has a 16 pin isolated base package,and thus far I have had no luck tracking down any information, other that to guess that it was of Sanyomanufacture...... Quote Link to comment Share on other sites More sharing options...
ante Posted December 30, 2005 Report Share Posted December 30, 2005 Hi Mr.Magnussen,Where is this “STK789” used, maybe you could get a service manual for the device in question? Quote Link to comment Share on other sites More sharing options...

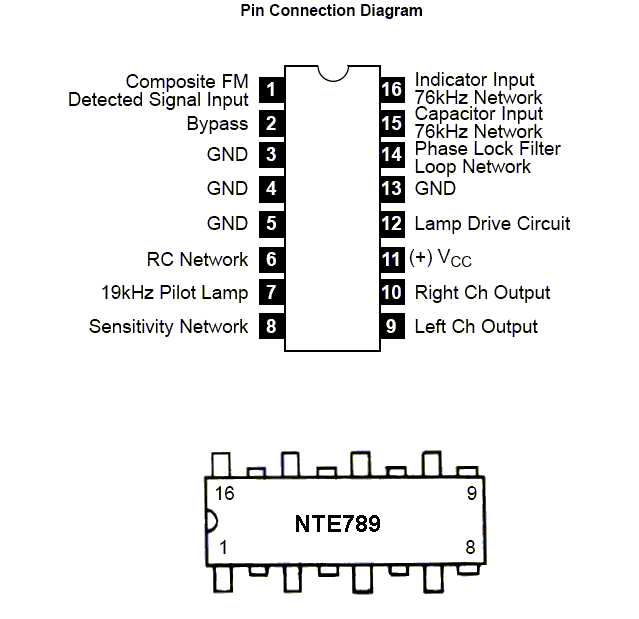

hotwaterwizard Posted December 31, 2005 Report Share Posted December 31, 2005 How about NTE789 I was told it was a Cross Referance.CLICK HERE FOR THE DATASHEETNTE789.pdf Quote Link to comment Share on other sites More sharing options...
