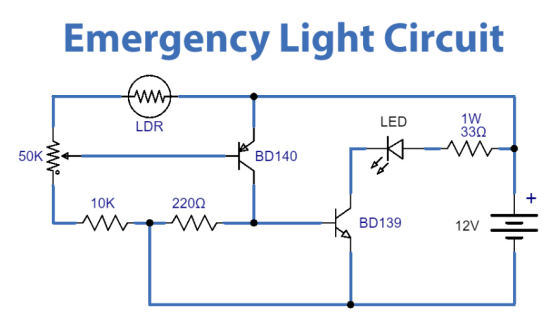

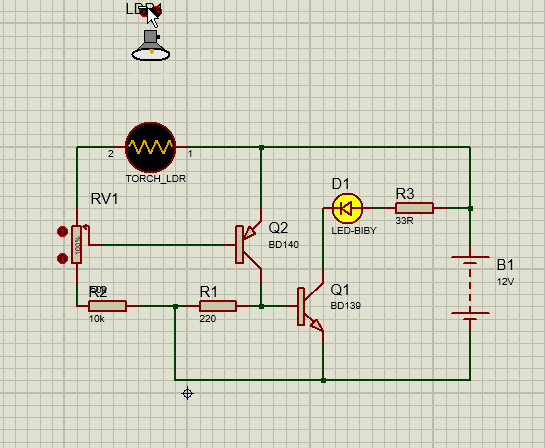

crystallin Posted April 14 Report Share Posted April 14 What is LDR?? What is LDR (Light Dependent Resistor) as the name states is a special type of resistor that works on the photoconductivity principle means that resistance changes according to the intensity of light. Its resistance decreases with an increase in the intensity of light. It is often used as a light sensor, light meter, Automatic street light, and in areas where we need to have light sensitivity. It is also called a Light Sensor. LDR are usually available in 5mm, 8mm, 12mm, and 25mm dimensions. LED Emergency Light Circuit with LDR (Light Dependent Resistor) LED emergency lights energize when lighting is insufficient or mains power cuts. Earlier, fluorescent lights were used to build such circuits. But it turns out that the use of LEDs can provide adequate lighting for a longer period of time before the battery completely dies. In this project, we will build a simple LED emergency light circuit using LDR. Photoresistors or photoresistors are components that are sensitive to light. It is basically a photocell that works on the principle of light guiding. This passive component is basically a resistor whose resistance value decreases as the light intensity decreases. It's not uncommon for an LDR or photoresistor to have a resistance value of a few megaohms in the dark, then drop to a few hundred ohms in bright light. Hardware Components: You will need the following parts to build this project. 1. Test Board 2. Cable 3. 12V DC 4. Resistor(33ohms) 5. Pot(50k) 6. Low-density lipoprotein 7. BD139npn (datasheet) 8. Bd140npn (datasheet) 9. 5mmLED BD139 NPN A Bipolar NPN transistor like BD139 is available in the SOT-32 plastic package. This kind of transistor is used in different electronic circuits because of less cost and high collector current. This transistor can drive upto 1.5A loads like motors, high-power LEDs, relays, etc. BD140 PNP The BD140 is a medium-power bipolar junction PNP transistor mainly used for audio amplifiers and drivers utilizing complementary or quasi-complementary circuits. It is made up of silicon and comes in the TO-126 package. The PNP types are BD136 and BD140, and the complementary NPN types are BD135 and BD139. The BD140 can handle current up to 1.5A so that it can drive loads up to 1.5A in electronic circuits like high-power LEDs, relays, motors, etc. The BD140 also has a high collector-emitter and collector-base voltage of 80 V. Its minimum saturation voltage is -0.5V. Moreover, the collector dissipation of BD140 is around 12.5 W hence it is ideal to be used in audio amplifier circuits. Description This circuit will turn on a 1 W LED when there is no light on the LDR face. Circuit operation depends on the change of LDR (Light Dependent Resistor) resistance. After completing the circuit, when the LDR is exposed to a sufficient amount of light, its resistance decreases. This then causes the voltage at the base of the PNP transistor to also drop. When the LDR is exposed to a dark environment, its resistance increases, causing the voltage at the base of the PNP transistor to also increase. This voltage acts as a control signal for the BD139 NPN transistor, which triggers the output LED connected to a 33Ω 1W resistor. The control signal at the bottom of the PNP transistor can be tuned using a 50K potentiometer. Application Used as an emergency backup for security systems and industrial sites. It can be used as an emergency light in both home and office settings. It can be used in study rooms and workplaces to avoid sudden power outages. Quote Link to comment Share on other sites More sharing options...
loribennms Posted April 18 Report Share Posted April 18 On 4/14/2023 at 3:33 PM, crystallin said: What is LDR?? What is LDR (Light Dependent Resistor) as the name states is a special type of resistor that works on the photoconductivity principle means that resistance changes according to the intensity of light. Its resistance decreases with an increase in the intensity of light. It is often used as a light sensor, light meter, Automatic street light, and in areas where we need to have light sensitivity. It is also called a Light Sensor. LDR are usually available in 5mm, 8mm, 12mm, and 25mm dimensions. LED Emergency Light Circuit with LDR (Light Dependent Resistor) LED emergency lights energize when lighting is insufficient or mains power cuts. Earlier, fluorescent lights were used to build such circuits. But it turns out that the use of LEDs can provide adequate lighting for a longer period of time before the battery completely dies. In this project, we will build a simple LED emergency light circuit using LDR. Photoresistors or photoresistors are components that are sensitive to light. It is basically a photocell that works on the principle of light guiding. This passive component is basically a resistor whose resistance value decreases as the light intensity decreases. It's not uncommon for an LDR or photoresistor to have a resistance value of a few megaohms in the dark, then drop to a few hundred ohms in bright light. Hardware Components: You will need the following parts to build this project. 1. Test Board 2. Cable 3. 12V DC 4. Resistor(33ohms) 5. Pot(50k) 6. Low-density lipoprotein 7. BD139npn (datasheet) 8. Bd140npn (datasheet) 9. 5mmLED BD139 NPN A Bipolar NPN transistor like BD139 is available in the SOT-32 plastic package. This kind of transistor is used in different electronic circuits because of less cost and high collector current. This transistor can drive upto 1.5A loads like motors, high-power LEDs, relays, etc. BD140 PNP The BD140 is a medium-power bipolar junction PNP transistor mainly used for audio amplifiers and drivers utilizing complementary or quasi-complementary circuits. It is made up of silicon and comes in the TO-126 package. The PNP types are BD136 and BD140, and the complementary NPN types are BD135 and BD139. The BD140 can handle current up to 1.5A so that it can drive loads up to 1.5A in electronic circuits like high-power LEDs, relays, motors, etc. The BD140 also has a high collector-emitter and collector-base voltage of 80 V. Its minimum saturation voltage is -0.5V. Moreover, the collector dissipation of BD140 is around 12.5 W hence it is ideal to be used in audio amplifier circuits. Description This circuit will turn on a 1 W LED when there is no light on the LDR face. Circuit operation depends on the change of LDR (Light Dependent Resistor) resistance. After completing the circuit, when the LDR is exposed to a sufficient amount of light, its resistance decreases. This then causes the voltage at the base of the PNP transistor to also drop. When the LDR is exposed to a dark environment, its resistance increases, causing the voltage at the base of the PNP transistor to also increase. This voltage acts as a control signal for the BD139 NPN transistor gaming ini, which triggers the output LED connected to a 33Ω 1W resistor. The control signal at the bottom of the PNP transistor can be tuned using a 50K potentiometer. Application Used as an emergency backup for security systems and industrial sites. It can be used as an emergency light in both home and office settings. It can be used in study rooms and workplaces to avoid sudden power outages. In summary, LDR stands for Light Dependent Resistor, which is a special type of resistor that changes its resistance based on the intensity of light. It is often used as a light sensor or meter and can be used in various applications such as automatic street lights, emergency lights, and security systems. In the LED emergency light circuit, the LDR is used to control the output LED connected to a BD139 NPN transistor and a 33Ω 1W resistor. The circuit turns on the LED when there is no light on the LDR face and can be used as an emergency backup for security systems and industrial sites, as well as in home and office settings to avoid sudden power outages. Quote Link to comment Share on other sites More sharing options...
bidrohini Posted May 21 Report Share Posted May 21 Very simple but useful project. I was just wondering, have you made any PCB of this project? You can make a prototype by yourself or get it printed from: https://www.pcbway.com Quote Link to comment Share on other sites More sharing options...
