hello,
the resistor should be connected as the top drawing.
the voltage measured then will say something about the loss in the coil resistance
bertus
That should increase the output voltage of the coil, since the magnetic flux change will be greater as a magnet passes the coil. Somewhere on line I read that generator efficiency varied as the inverse fourth power of the air gap; but the coil involved was a pancake type in a different magnetic circuit configuration, so that figure may not apply to your coil design.and could this change if I get the coils closer the the magnets?

so what are the 15.6 and 180 for?That should increase the output voltage of the coil, since the magnetic flux change will be greater as a magnet passes the coil. Somewhere on line I read that generator efficiency varied as the inverse fourth power of the air gap; but the coil involved was a pancake type in a different magnetic circuit configuration, so that figure may not apply to your coil design.

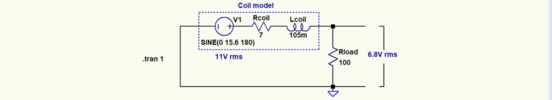

This is how I'm simulating your coil:
View attachment 62745
Somewhere on line I read that generator efficiency varied as the inverse fourth power of the air gap
I was working on the basis that each pole, whether N or S, produces both a +ve peak and a -ve peak in the coil signal because the coil's bolt diameter is much less than the magnet diameter and there were gaps between poles. That means one signal cycle per magnet, making the signal frequency 600/60 x 18 = 180Hz. If you have access to an oscilloscope you could verify if that is correct.surely the frequency is 600rpm / 60 for rev/sec =10 times by norths =9 10* 9 = 90Hz
Doesn't matter. If the original gap, in whatever units, is reduced by a factor of 2 the efficiency would increase by a factor of 2^4 = 16. Well, that's the theory anywayis this meters or cm?
No. Methinks you'd need a lot moreis your estimate still 5 coils minimum?
