Analog to Digital Converter module

  • Rajkumar Sharma
  • 15280
    Views
  • moderate
  • Tested

A2 D PIC 2

This simple A2D (Analog to Digital) Converter Board can log upto 8 channel of analog signal with 8 bit resolution.  This board uses the  ADC0808 chip from National Semiconductor.

  • Two standard box type header connector for easy connection of the board to various development boards or project
  • Separate box header for Data and Control signal for the ADC
  • Screw terminal connector for easy connection of Analog signal input or sensor connection to the board
  • +5 VDC and Gnd connection available for sourcing supply for your sensor or add-on interface or signal conditioner board
  • Onboard oscillator source for the analog to digital converter
  • Four mounting holes 3.2 mm each
  • PCB dimensions 54 mm x 63 mm

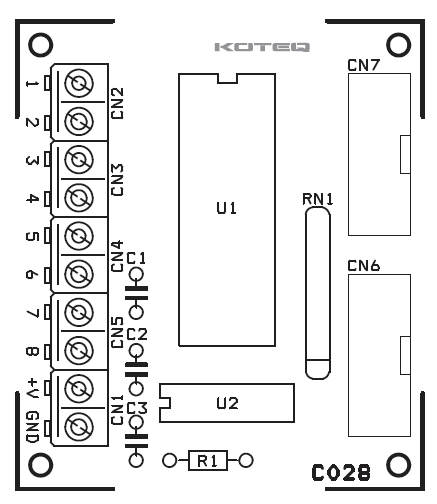

Schematic

schematic

Parts List

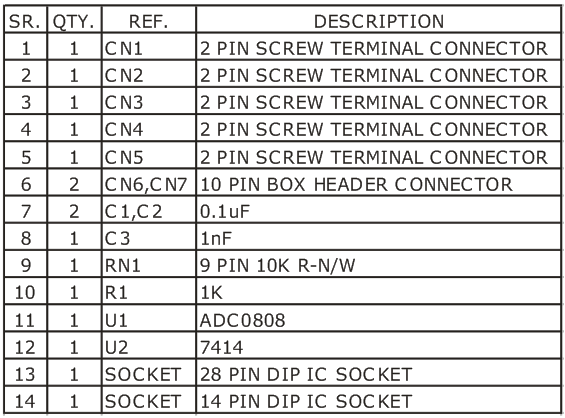

BOM

Photos

A TO D PIC1

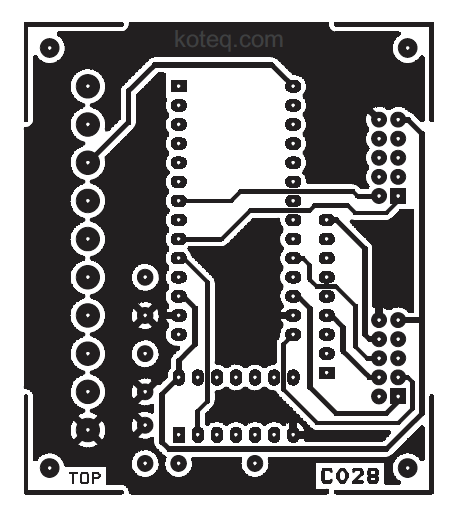

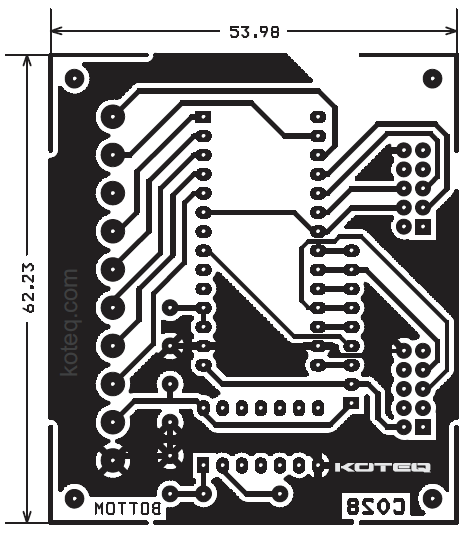

PCB
