Arduino Compatible OLED Board with 4 Channel 16-Bit ADC

  • Rajkumar Sharma
  • 143 Views
  • moderate
  • Tested
  • SKU: EL143653
  • Quote Now

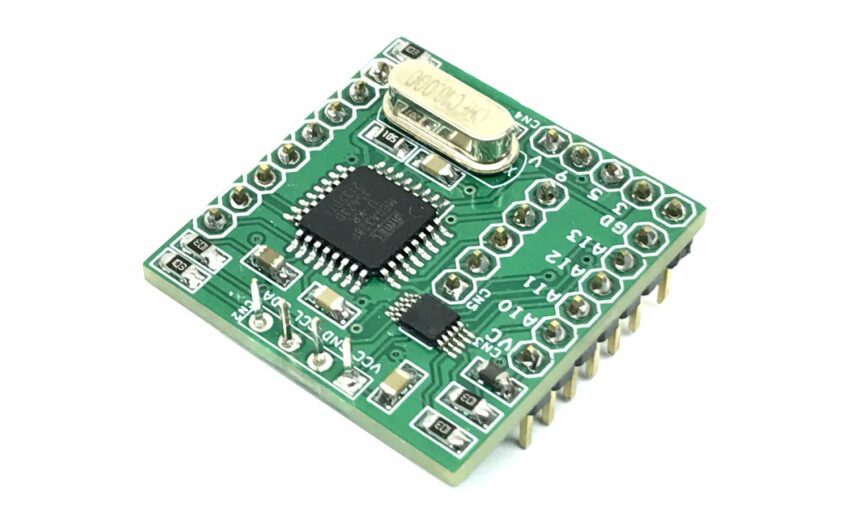

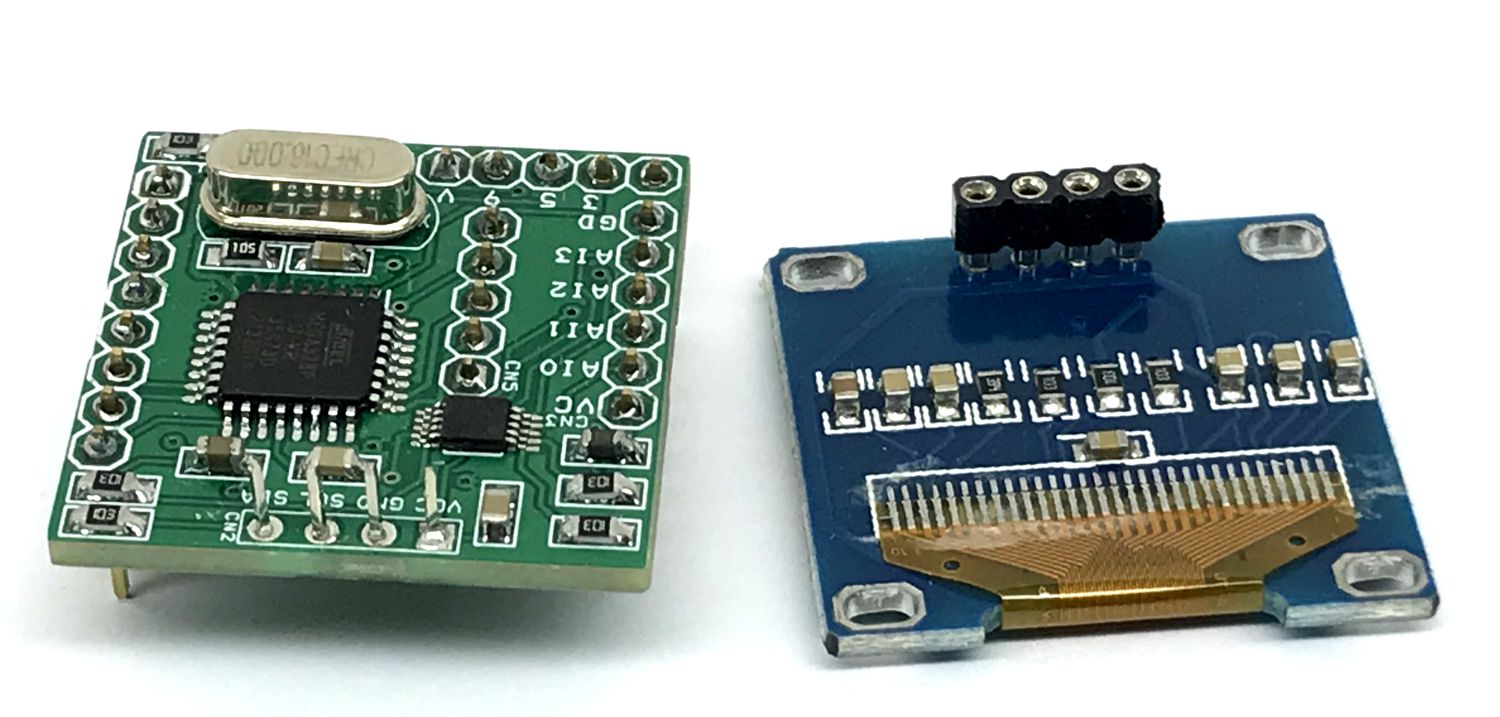

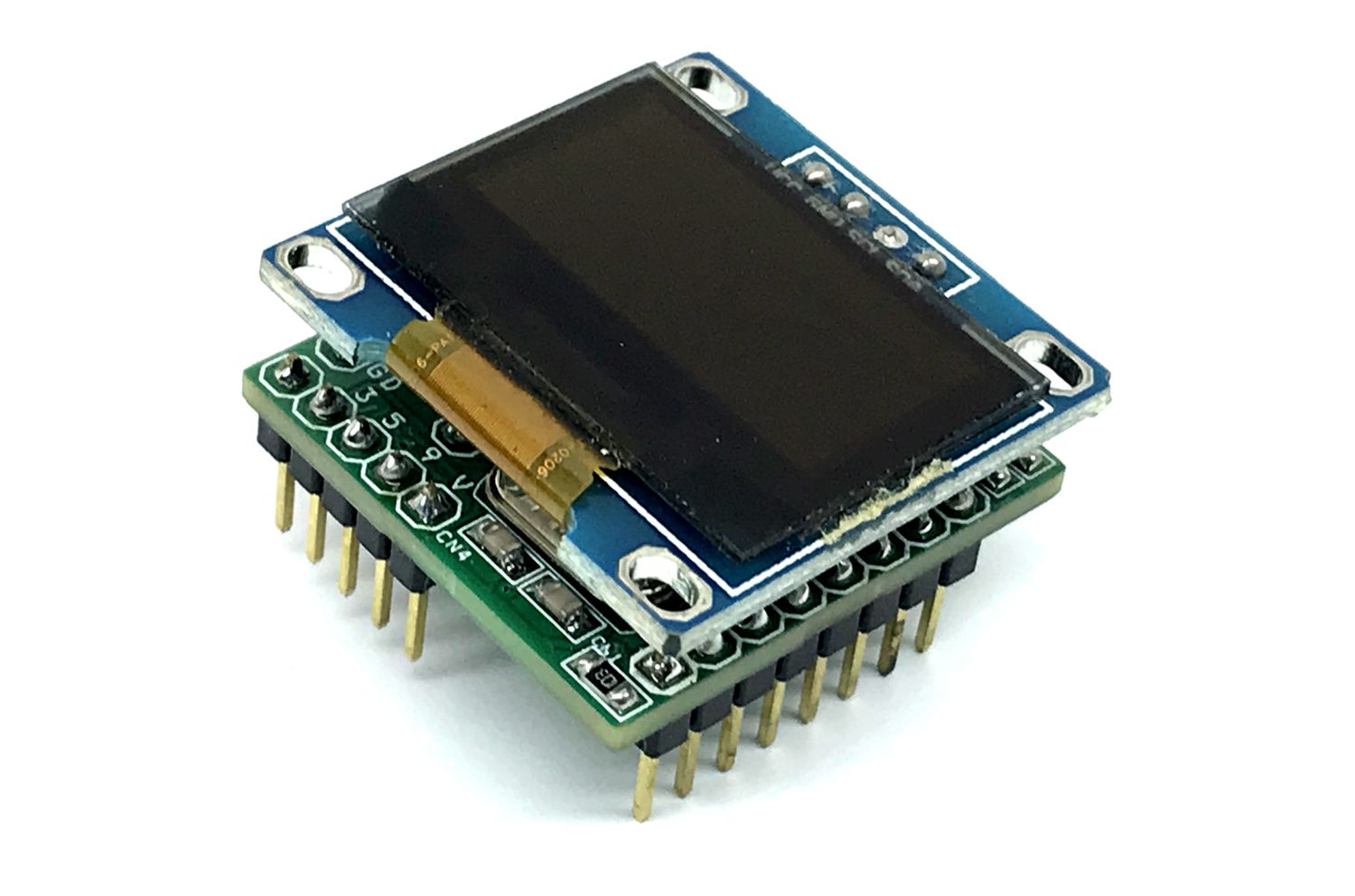

This board consists of Arduino-compatible hardware which includes an OLED display, ADS1115 4-Channel 16Bit ADC, Arduino-compatible Microcontroller ATMEGA328, a connector for Arduino Programming, a connector for 4 Channel Analog input, and a connector for a couple of I/O lines. Operating supply 5V DC.

The ADS1115 device is a precision, low-power, 16-bit, I2C-compatible, analog-to-digital converter (ADCs). It incorporates a low-drift voltage reference and an oscillator. The ADS1115 also incorporates a programmable gain amplifier (PGA) and a digital comparator. These features, along with a wide operating supply range, make the ADS1115 well-suited for power- and space-constrained, sensor measurement applications.

The ADS1115 performs conversions at data rates of up to 860 samples per second (SPS). The PGA offers input ranges from ±256 mV to ±6.144 V, allowing precise large- and small-signal measurements. The ADS1115 features an input multiplexer (MUX) that allows two differential or four single-ended input measurements. Use the digital comparator in ADS1115 for under and overvoltage detection.

The ADS1115 operates in either continuous-conversion mode or single-shot mode. The devices are automatically powered down after one conversion in single-shot mode; therefore, power consumption is significantly reduced during idle periods.

Features

  • Supply 5V DC
  • Supports 0.96Inch OLED Display with I2C
  • 4 Channel ADC (2 Differential Inputs or 4 Single-Ended Inputs
  • Header Connector for Arduino Programming
  • Header Connector for 4 Channel Analog Inputs and Power Supply
  • Header Connector for Extra I/O Lines
  • Compact PCB Same Size as OLED Display
  • PCB Dimensions 27.62 x 26.83 mm

Connections

  • CN1: Pin 1 TX, Pin 2 RX, Pin 3 Reset, Pin 4 GND, Pin 5 VCC, Pin 6 D11, Pin 7 D12, Pin 8 D13
  • CN2: Pin 1 VCC, Pin 2 GND, Pin 3 SLA, Pin 4 SDA (OLED Display)
  • CN3: Pin 1 VCC, Pin 2 Analog Input 0, Pin 3 Analog Input 1, Pin 4 Analog Input 2, Pin 5 Analog Input 3, Pin 6 GND
  • CN4: Pin 1 VCC, Pin 2 D9, Pin 3 D5, Pin 4 D3, Pin 5 GND
  • CN5: Pin 1 VCC, Pin 2 A2, Pin 3 A3, Pin 4 D6 Pin 5 GND

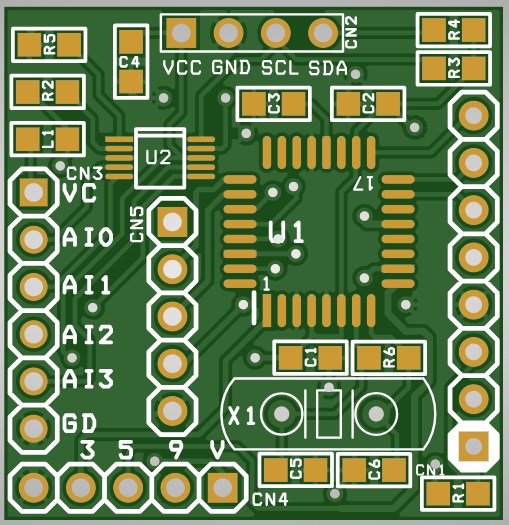

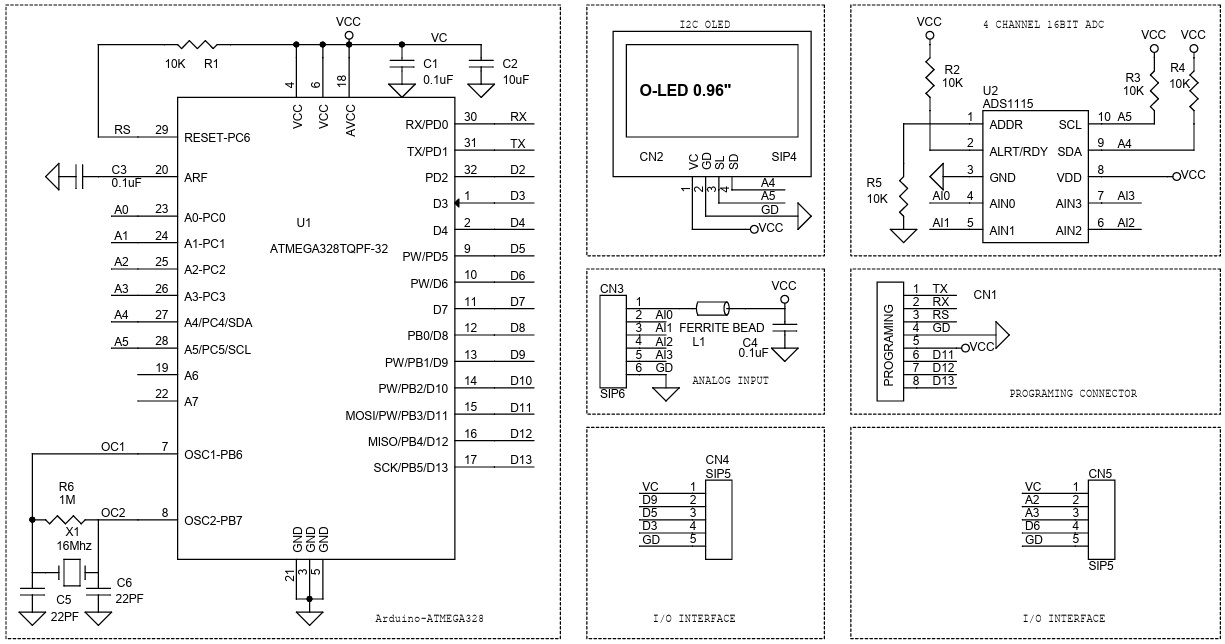

Schematic

Parts List

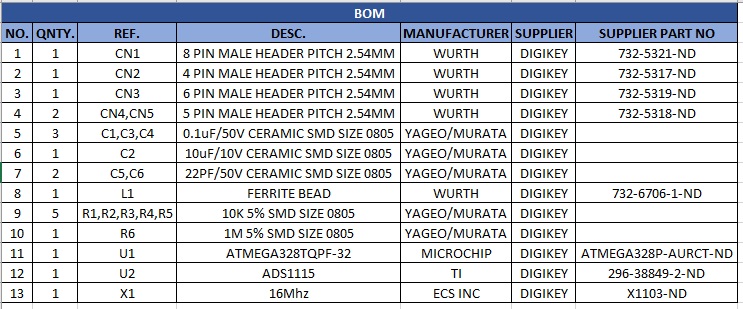

NO.QNTY.REF.DESC.MANUFACTURERSUPPLIERSUPPLIER PART NO
11CN18 PIN MALE HEADER PITCH 2.54MMWURTHDIGIKEY732-5321-ND
21CN24 PIN MALE HEADER PITCH 2.54MMWURTHDIGIKEY732-5317-ND
31CN36 PIN MALE HEADER PITCH 2.54MMWURTHDIGIKEY732-5319-ND
42CN4,CN55 PIN MALE HEADER PITCH 2.54MMWURTHDIGIKEY732-5318-ND
53C1,C3,C40.1uF/50V CERAMIC SMD SIZE 0805YAGEO/MURATADIGIKEY
61C210uF/10V CERAMIC SMD SIZE 0805YAGEO/MURATADIGIKEY
72C5,C622PF/50V CERAMIC SMD SIZE 0805YAGEO/MURATADIGIKEY
81L1FERRITE BEADWURTHDIGIKEY732-6706-1-ND
95R1,R2,R3,R4,R510K 5% SMD SIZE 0805YAGEO/MURATADIGIKEY
101R61M 5% SMD SIZE 0805YAGEO/MURATADIGIKEY
111U1ATMEGA328TQPF-32MICROCHIPDIGIKEYATMEGA328P-AURCT-ND
121U2ADS1115TIDIGIKEY296-38849-2-ND
131X116MhzECS INCDIGIKEYX1103-ND

Connections

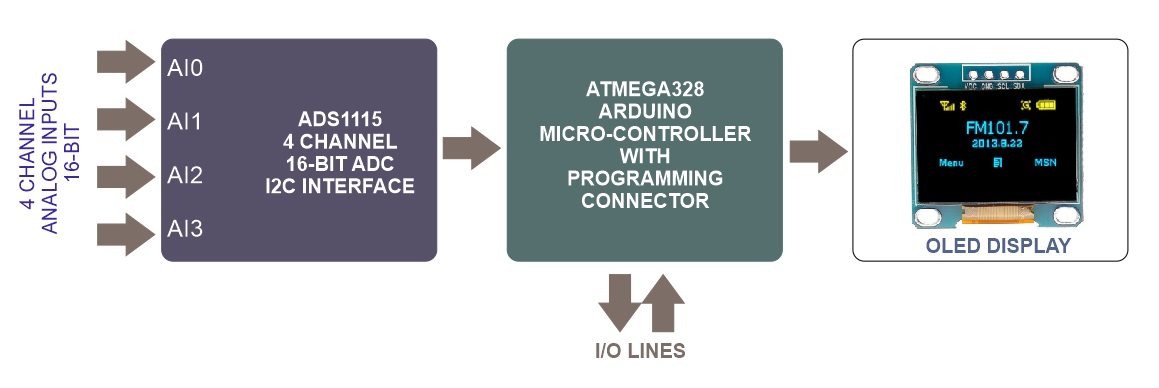

Block Diagram

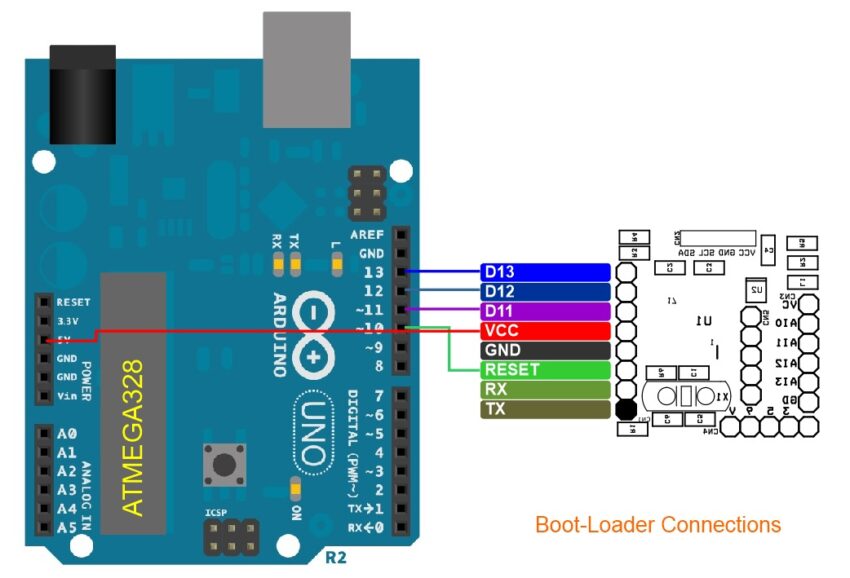

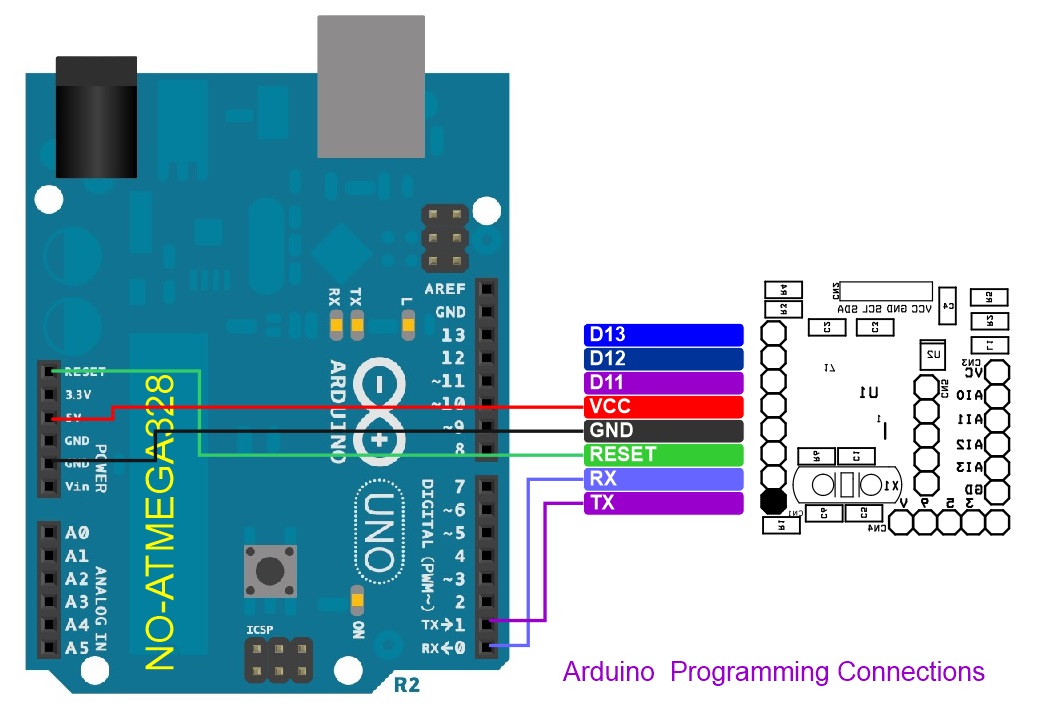

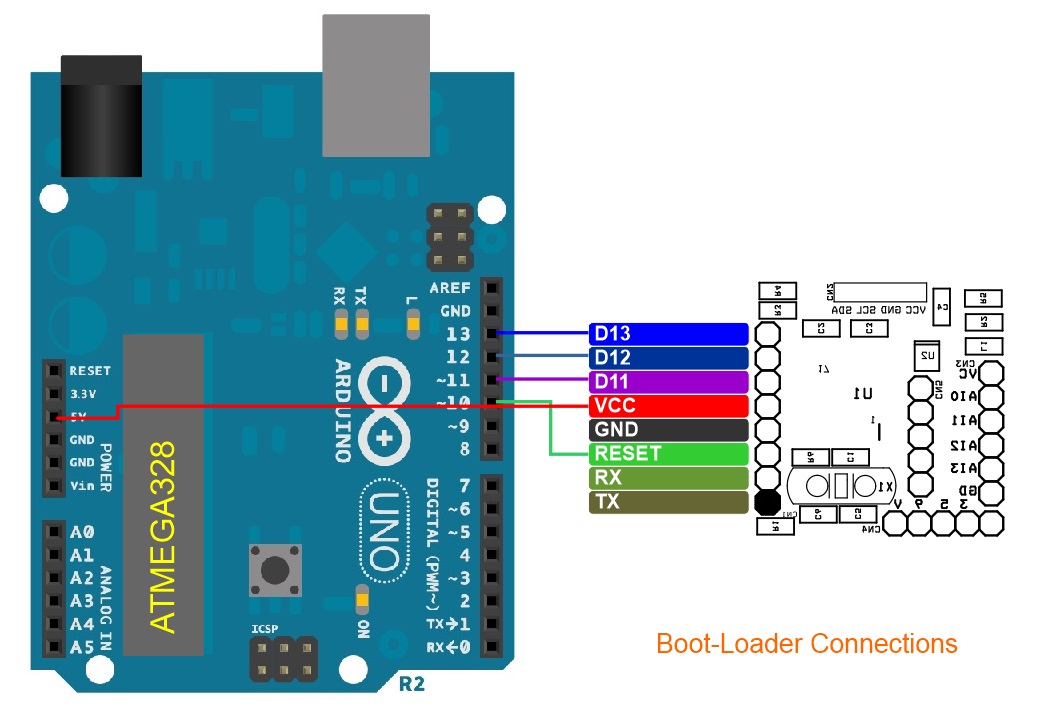

Arduino Programming

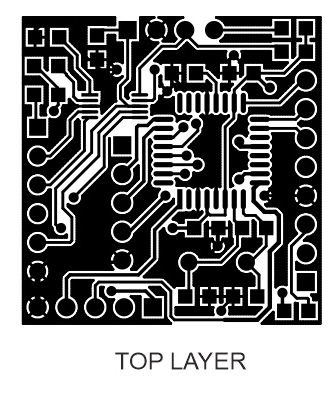

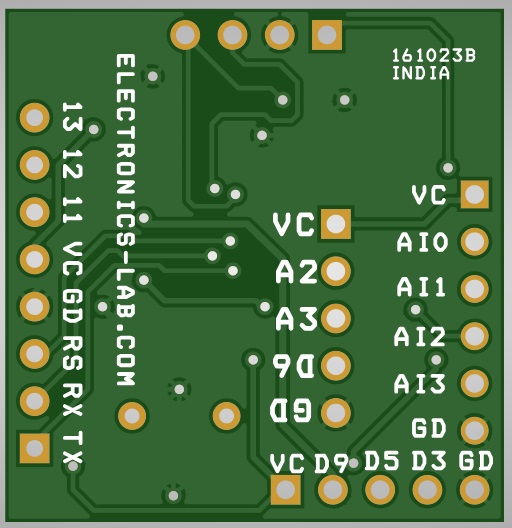

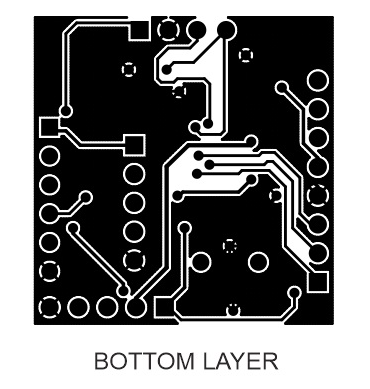

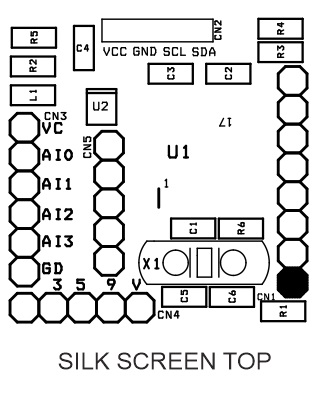

Gerber View

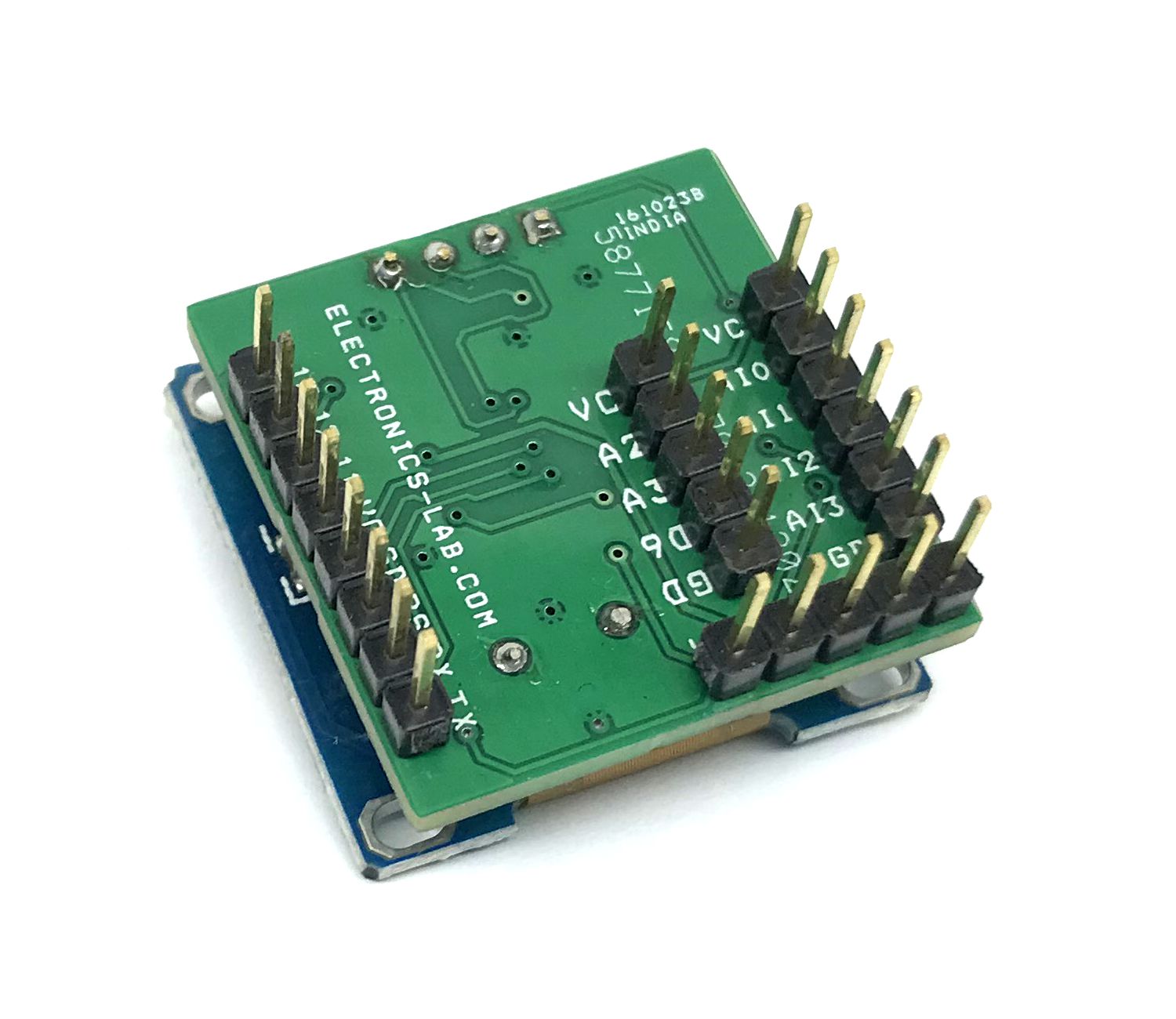

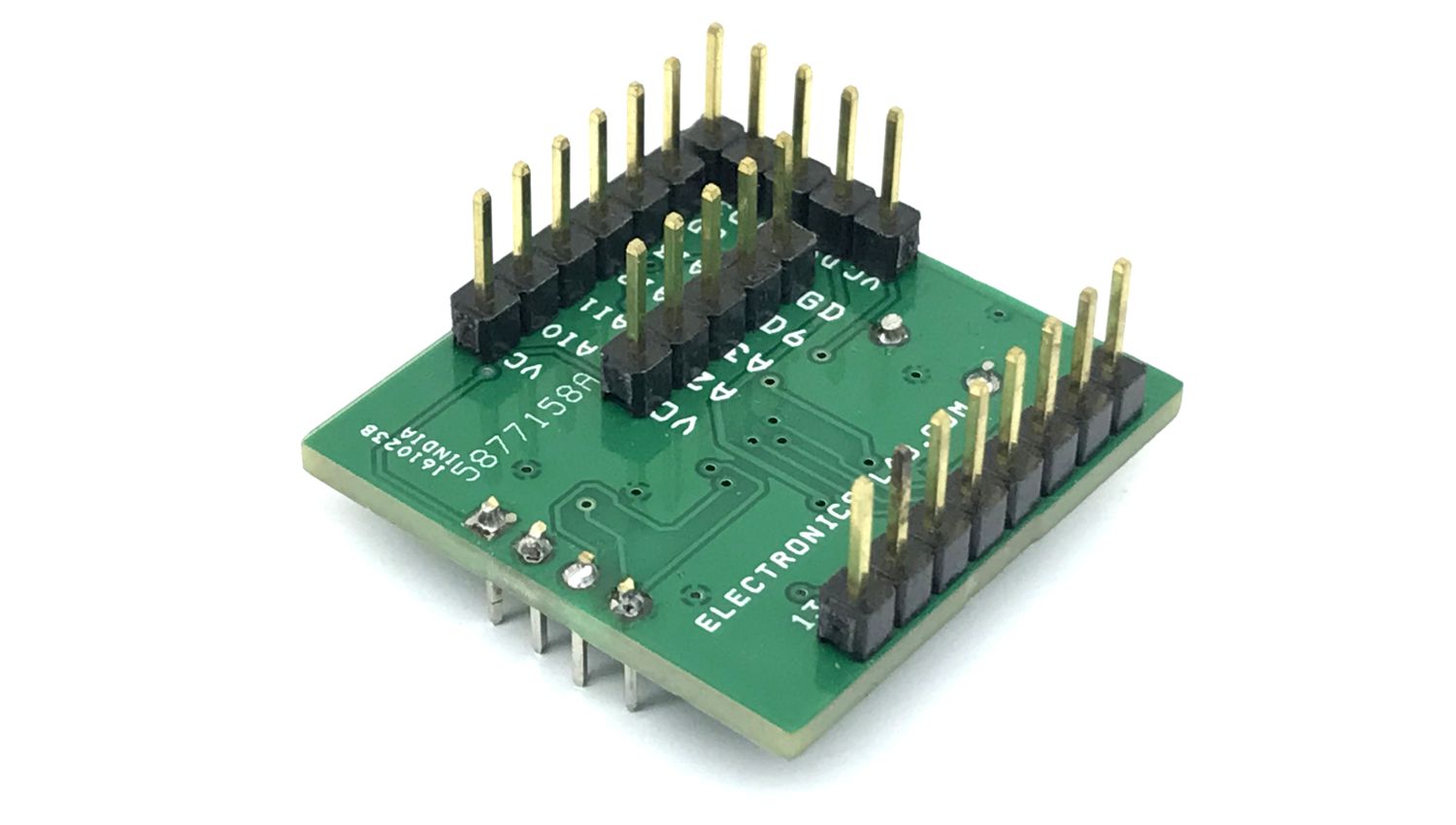

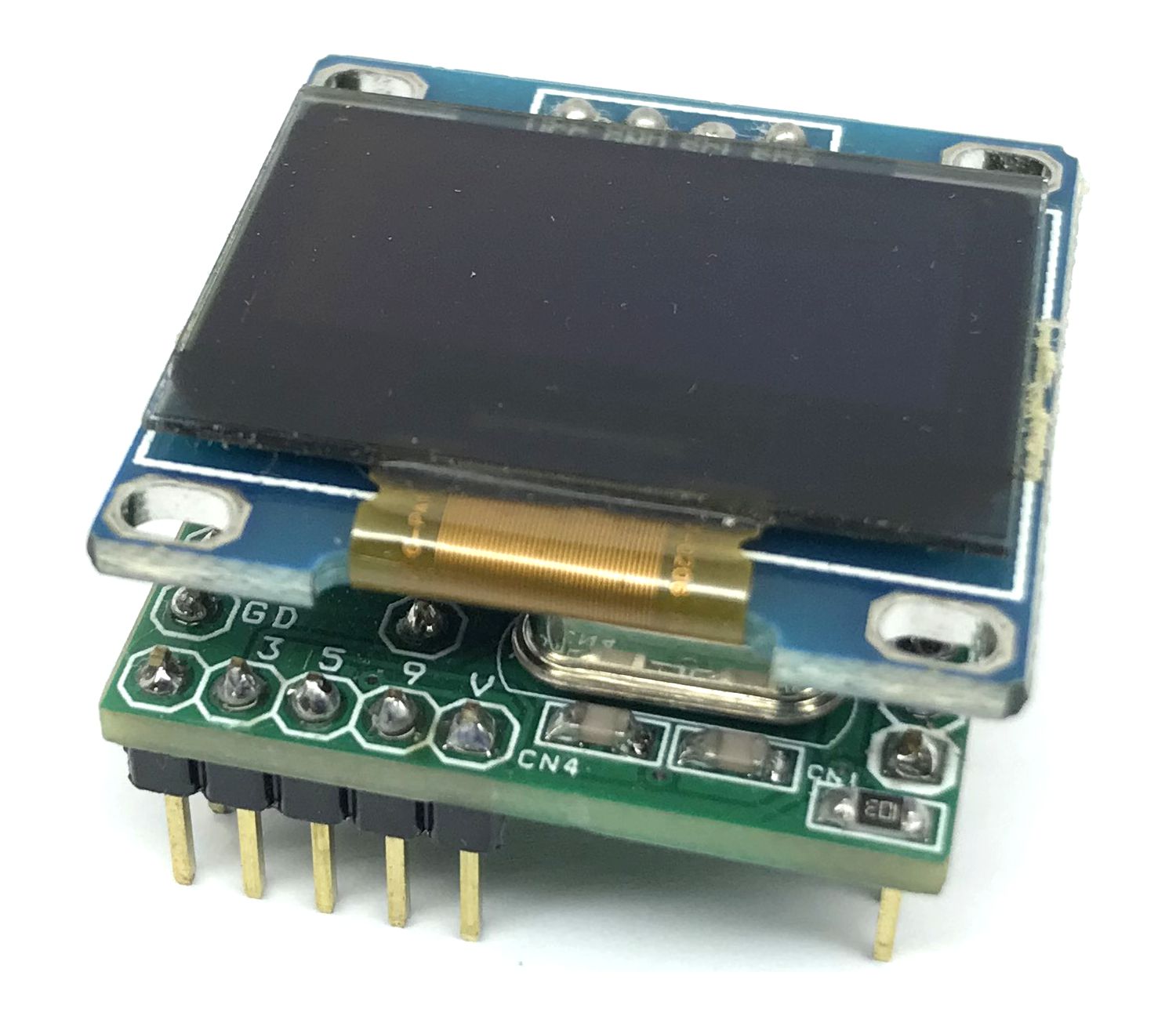

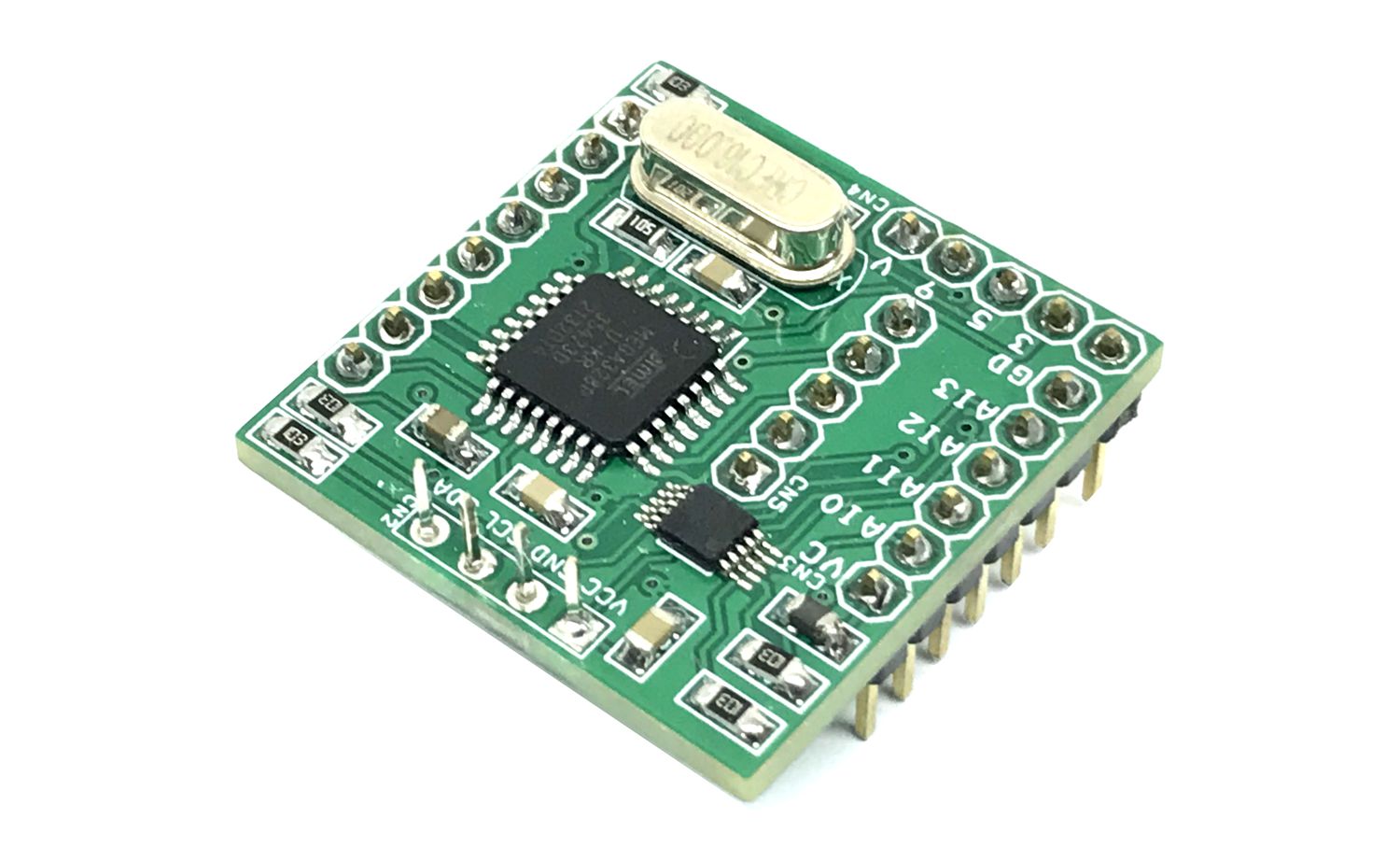

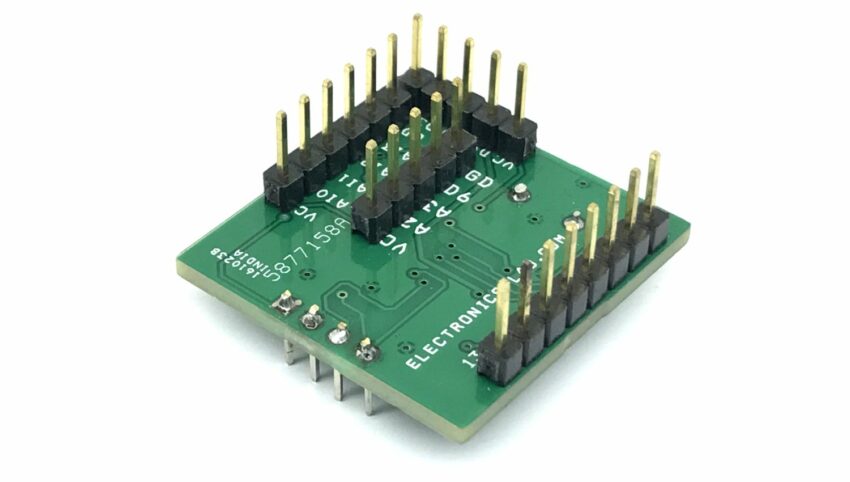

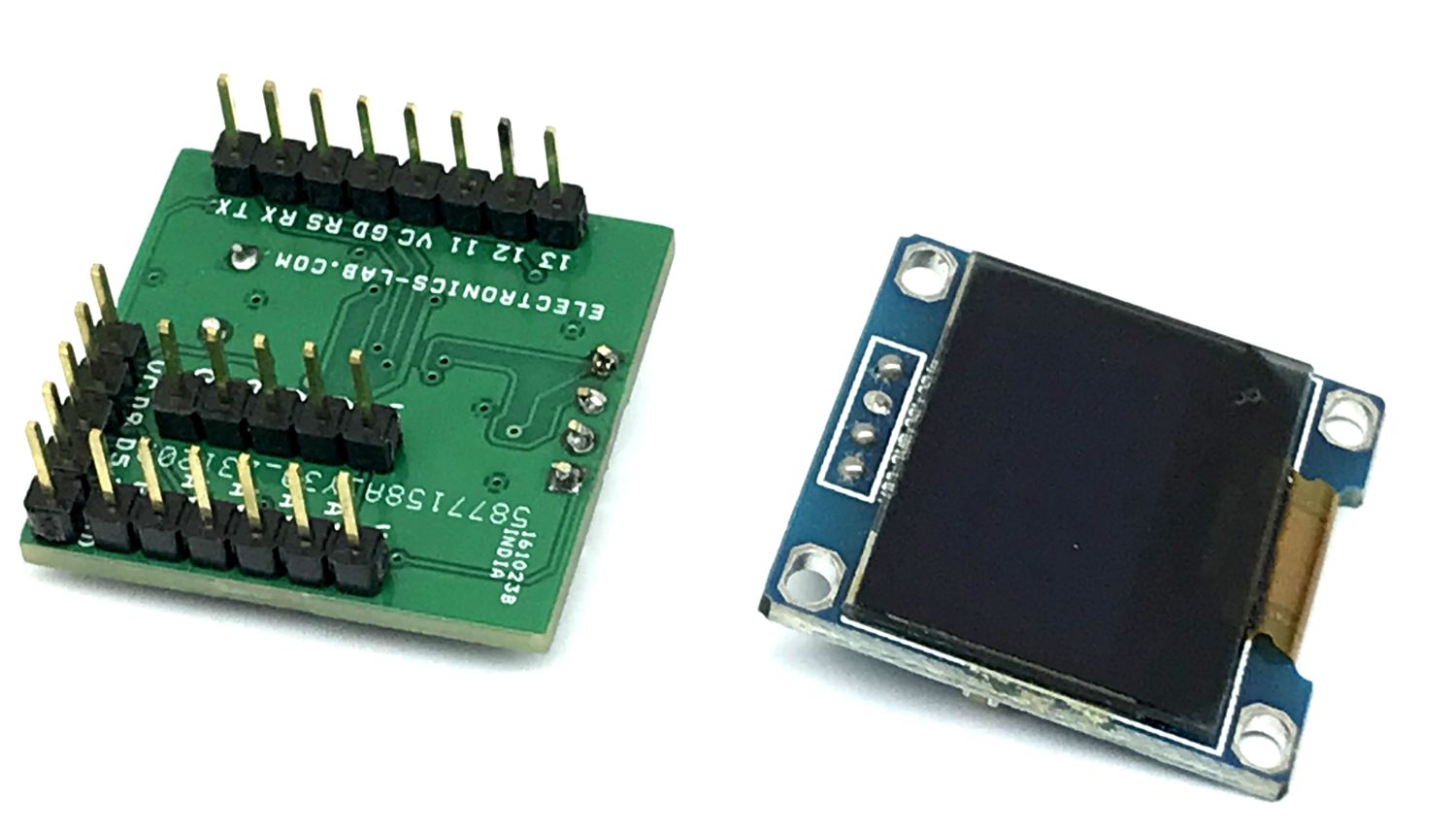

Photos

Video

ADS1115 Datasheet
