Audio Line Driver using DRV135 with Balanced Output

  • Rajkumar Sharma
  • 35 Views
  • easy
  • Tested

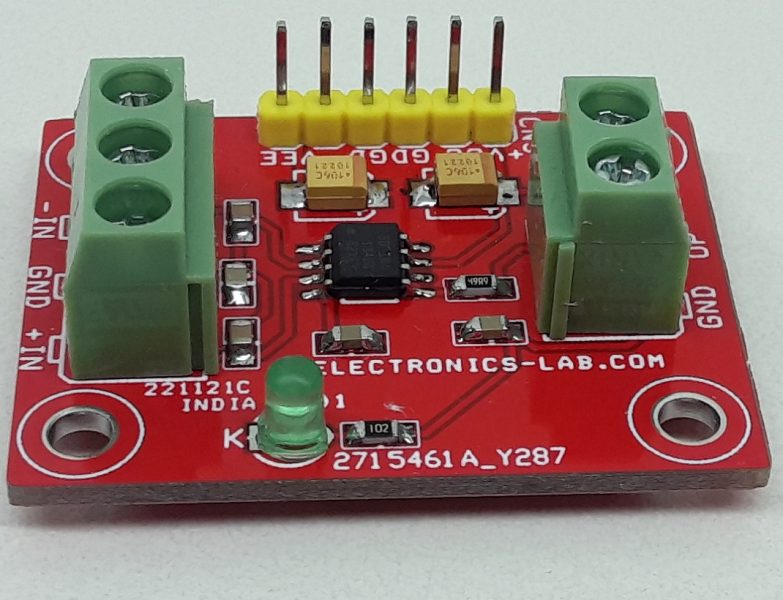

The project presented here is a differential output amplifier that converts a single-ended audio signal input to a balanced output pair. This balanced audio project consists of high-performance OPAMPS with on-chip precision resistors. They are fully specified for high-performance audio applications and have excellent AC specifications, including low distortion (0.0005% at 1 kHz) and high slew rate (15 V/µs). The board is based on DRV135 from Texas Instruments.

The on-chip resistors are laser-trimmed for accurate gain and optimum output common-mode rejection. Wide output voltage swing and high output drive capability allow use in a wide variety of demanding applications. They easily drive the large capacitive loads associated with long audio cables.

This project is used in combination with the Audio Line Receiver using INA134 as the receiver. Together they offer a complete solution for transmitting analog audio signals without degradation over a long distance.

Features

  • Single-Ended Audio Input and Balanced Output
  • Low Distortion: 0.0005% at f = 1 kHz
  • Wide Output Swing: 17Vrms into 600 Ω
  • High Capacitive Load Drive
  • High Slew Rate: 15 V/µs
  • Wide Supply Range: ±4.5 V to ±18 V @ 15mA without Load
  • Low Quiescent Current: ±5.2 mA
  • Companion to Audio Differential Line Receivers: INA134
  • Improved Replacement for SSM2142
  • PCB Dimensions 48.26 x 36.20 mm

Applications

  • Audio Differential Line Drivers
  • Audio Mix Consoles
  • Distribution Amplifier
  • Digital Effects Processors
  • Hi-Fi Equipment’s

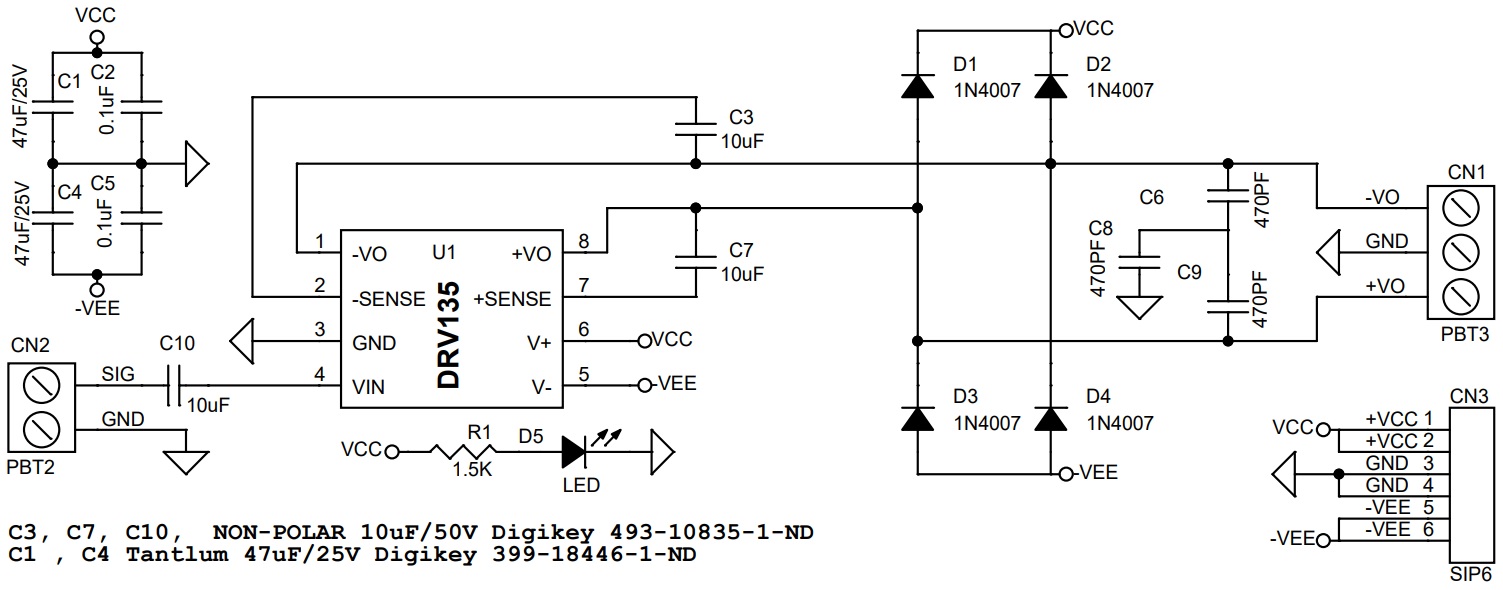

Schematic

Parts List

NO.QNTY.REF.DESC.MANUFACTURINGSUPPLIERPART NO
11CN13 PIN SCREW TERMINAL PITCH 5.08MMPHOENIXDIGIKEY277-1248-ND
21CN23 PIN SCREW TERMINAL PITCH 5.08MMPHOENIXDIGIKEY277-1248-ND
31CN36 PIN MALE HEADER PITCH 2.54MMWURTHDIGIKEY732-5319-ND
42C1,C447uF/25VKEMETDIGIKEY399-18446-1-ND
52C2,C50.1uF SMD SIZE 0805MURATA/YAGEODIGIKEY
63C3,C7,C1010uF/50V NON-POLARNICHICONDIGIKEY493-10835-1-ND
73C6,C8,C9470PF/50V SMD SIZE 0805MURATA/YAGEODIGIKEY
84D1,D2,D3,D41N4007 SMD SMC DIODE SOLUTIONDIGIKEY1655-1N4007FLCT-ND
91D5LED SMD SIZE 0805LITE ON INCDIGIKEY160-1427-1-ND
101R11.5K 5% SMD SIZE 0805MURATA/YAGEODIGIKEY
111U1DRV135 SOIC8TIDIGIKEYDRV135UA-ND

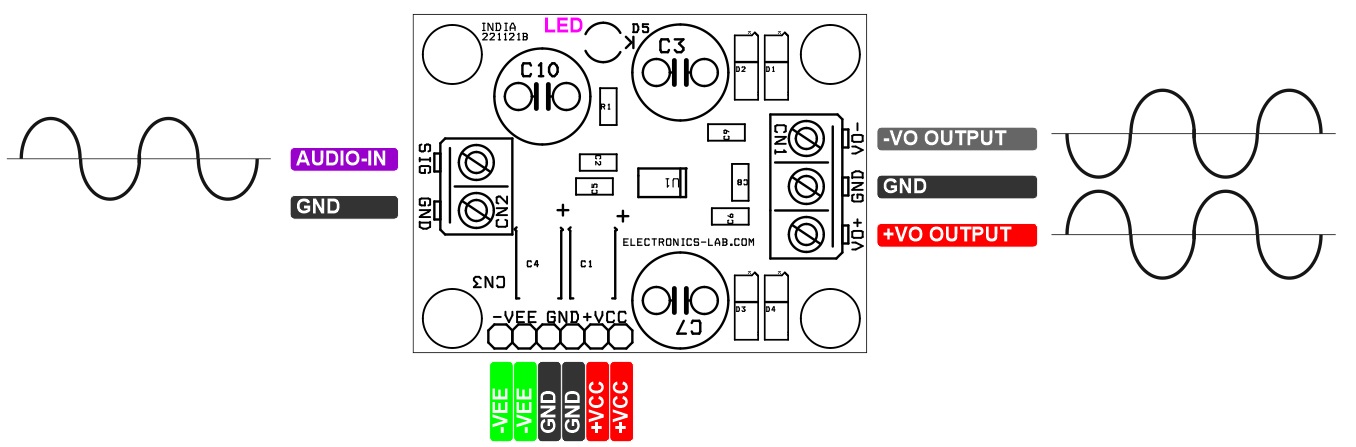

Connections

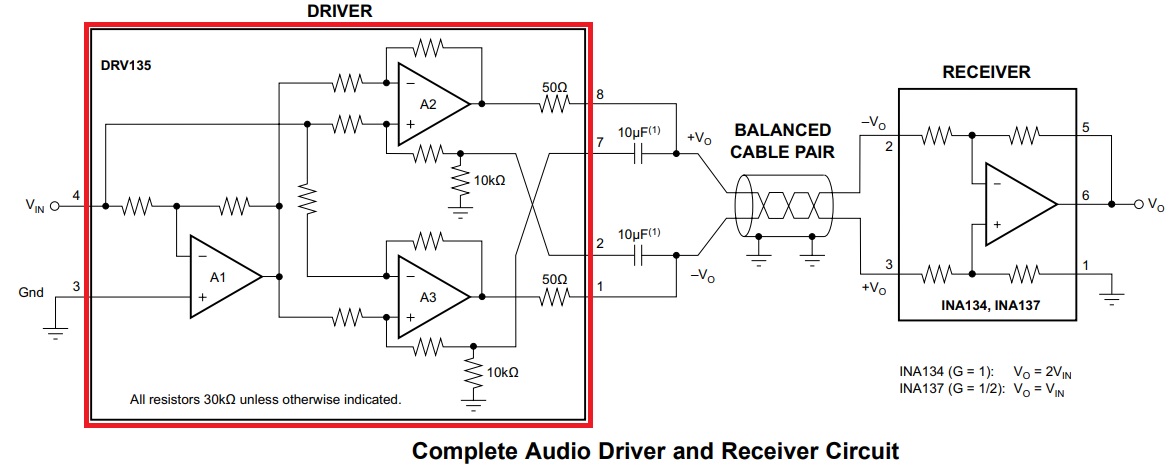

Application Diagram



Transmitter/Receiver Diagram

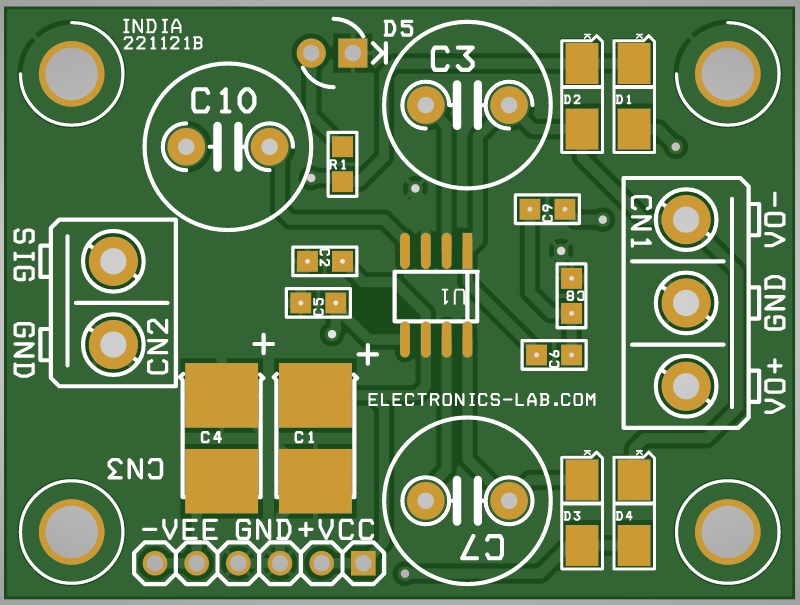

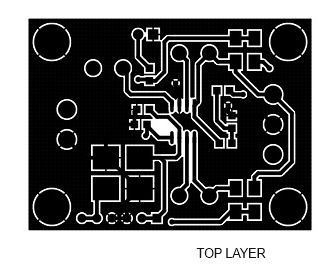

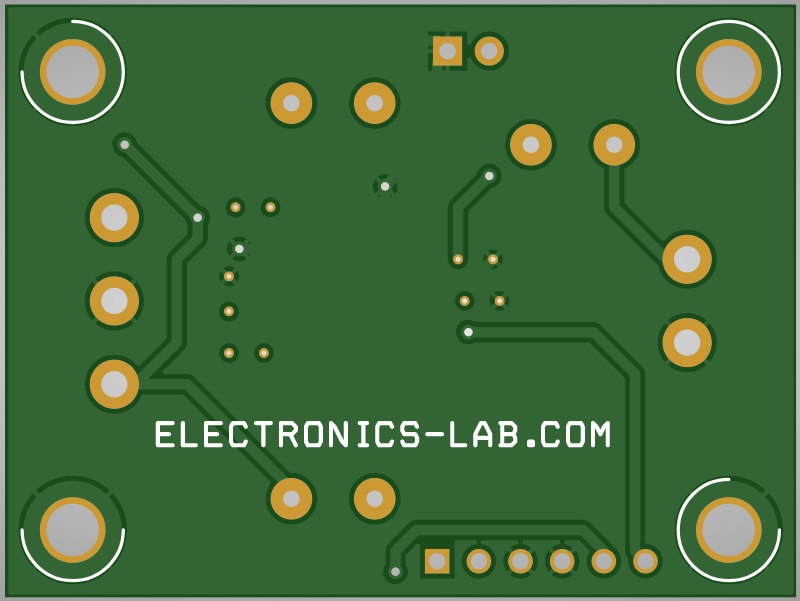

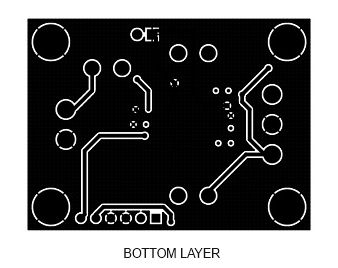

Gerber View

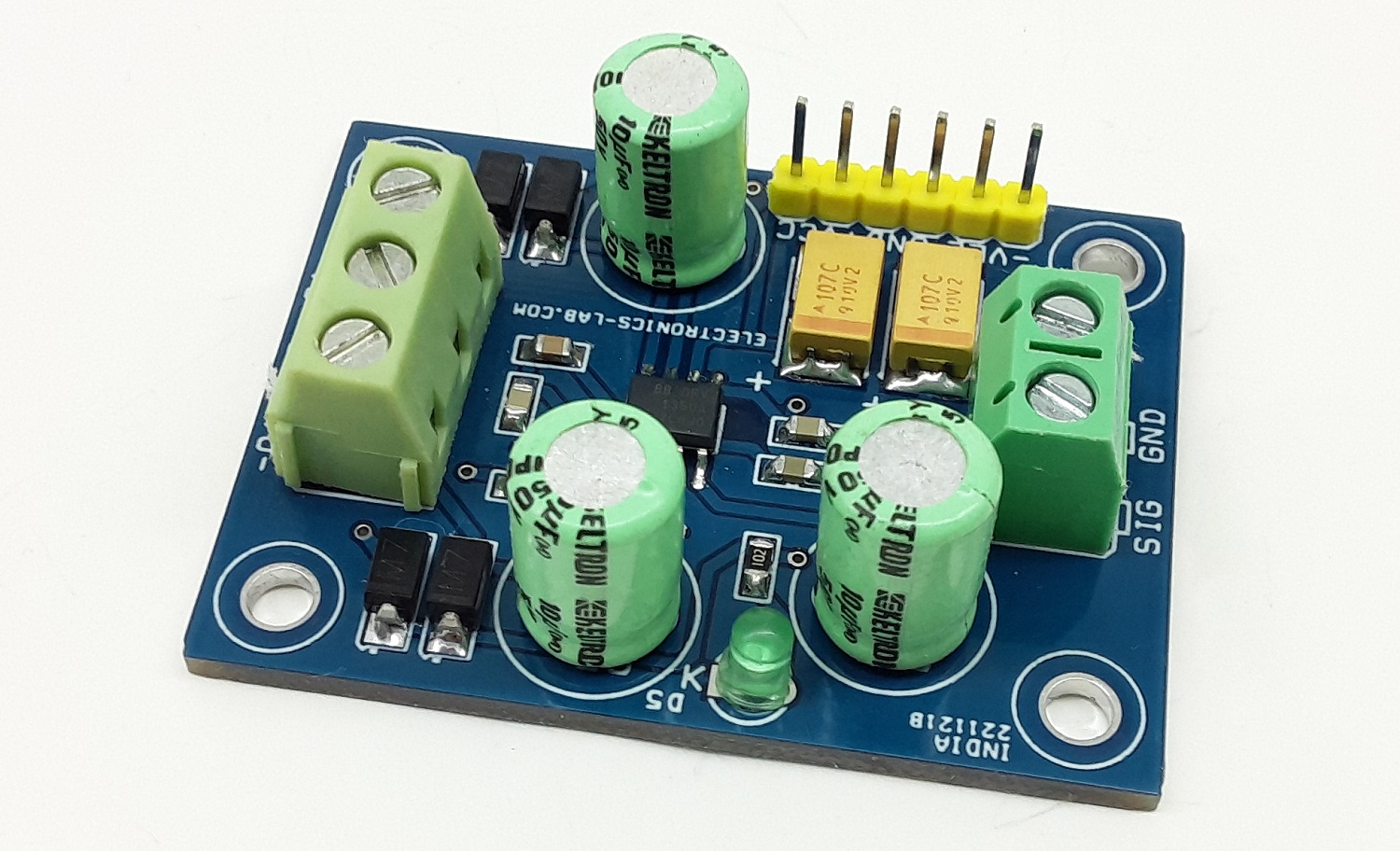

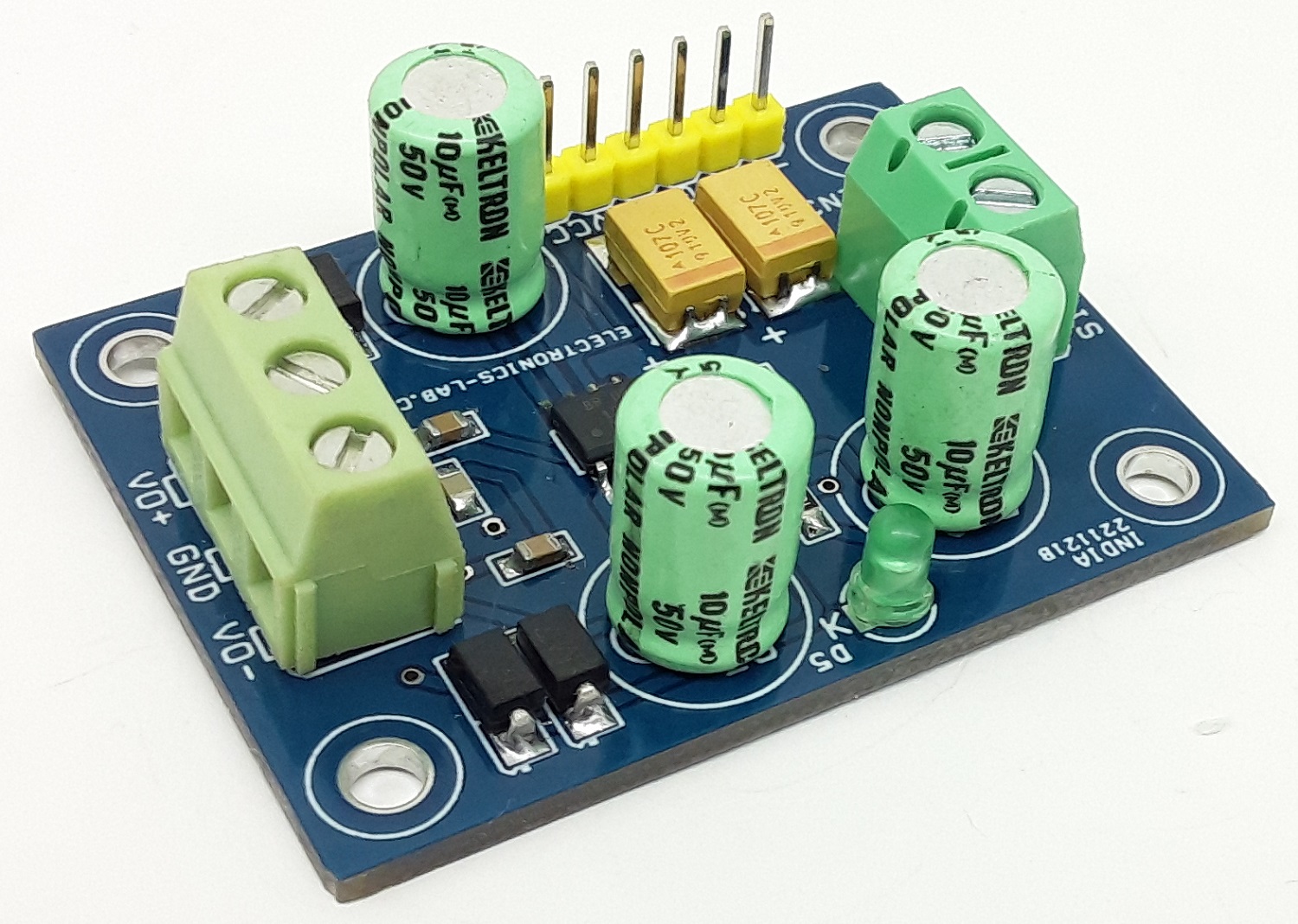

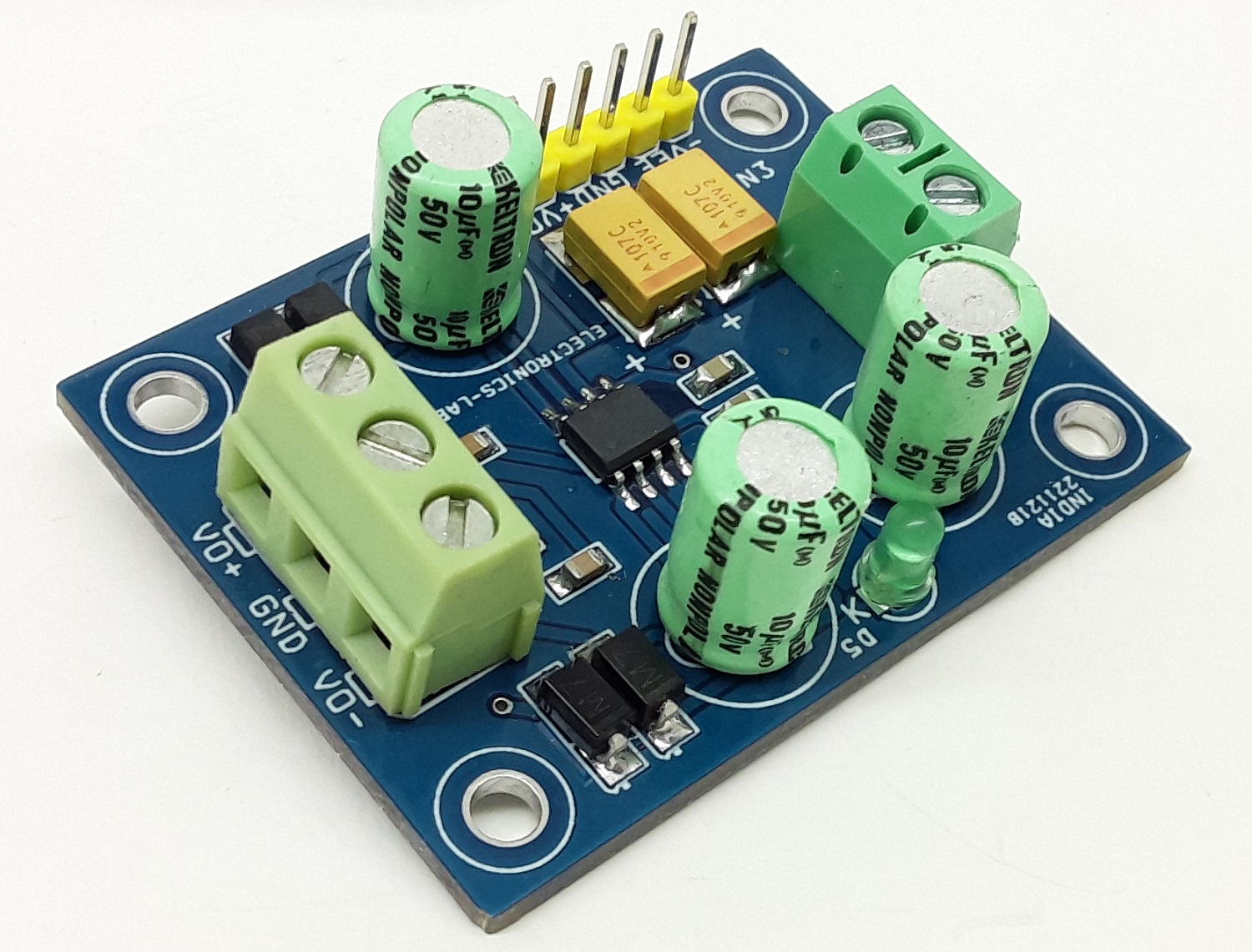

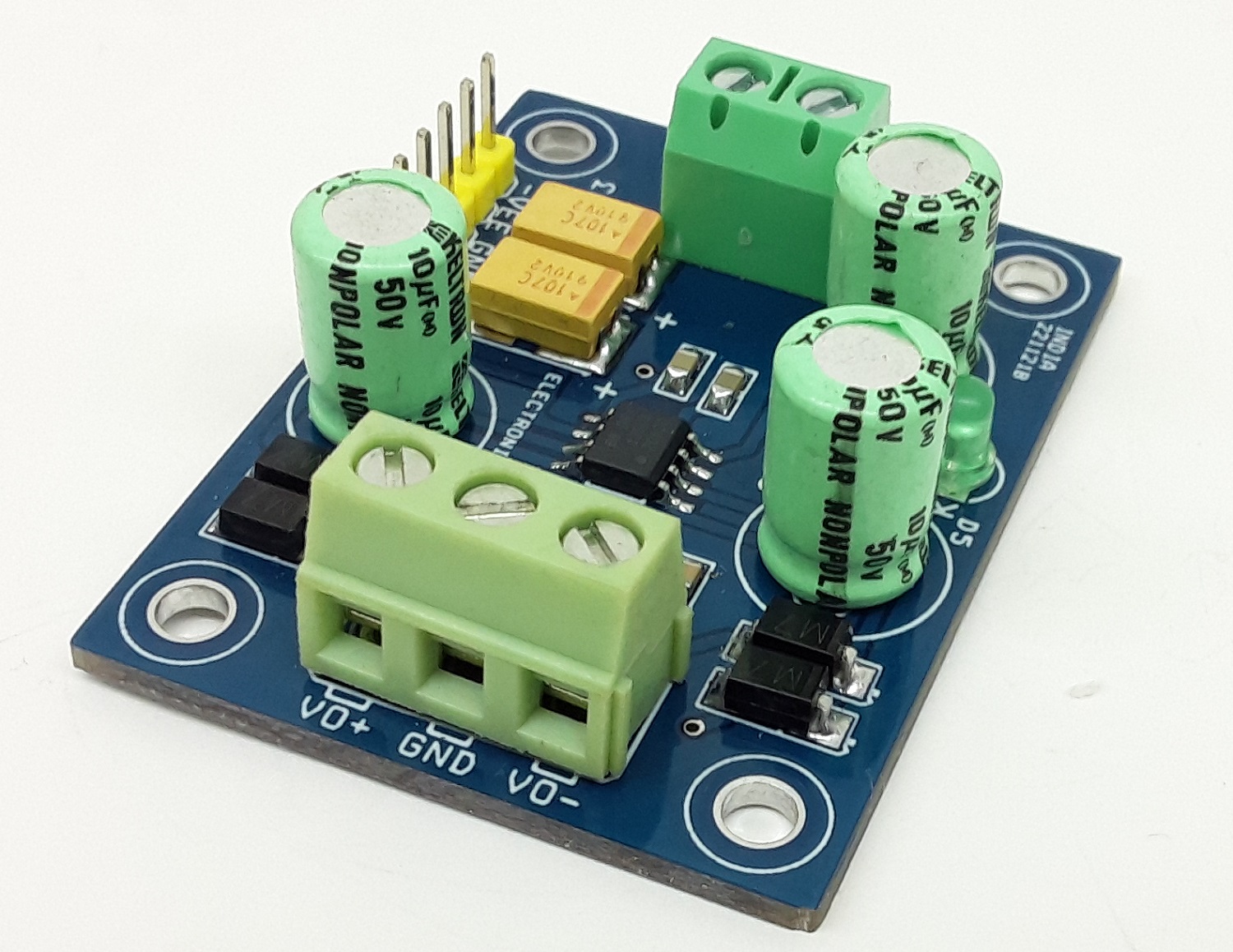

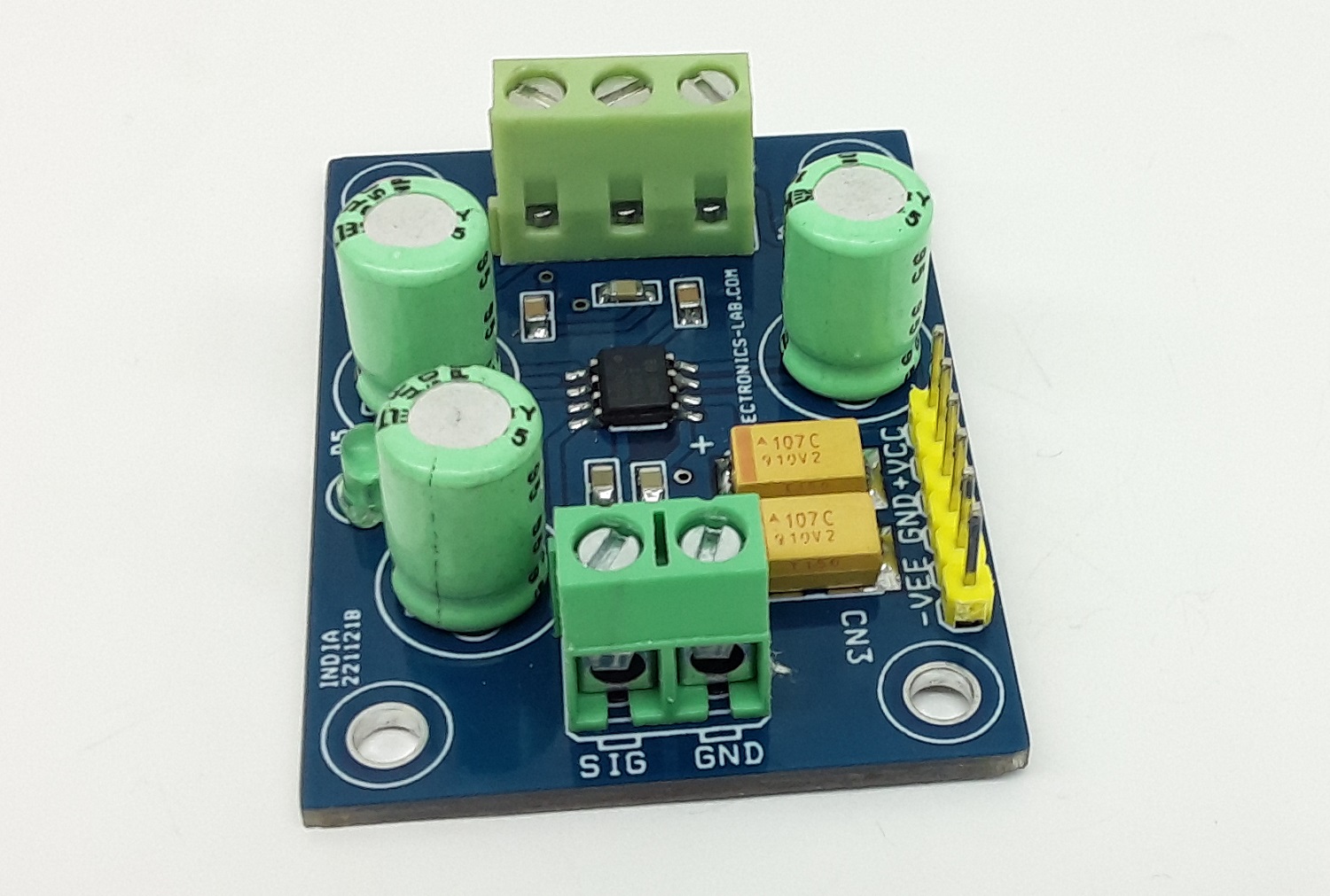

Photos
