Convert your projects in 3D mode

FH16 · February 21, 2006

Matthias Weiber has write a ulp for Eagle to convert PCB's in 3D images or animation.
The ulp create a POV Ray file that can be used in program to create images and animation for your project.
You can download the ulp from Matthias Weiber website http://www.matwei.de/doku.php?id=en:home and POVRay from from the official site www.povray.org for free.

Samples from Eagle 3D
fetch.php?cache=cache&media=images:eagle

gogo2520 · February 22, 2006

Not bad
I dl it and got it running in less then 2 hours.
This is what i got out. It dosn't do push buttons yet.
have gogo

GreekPIC · February 23, 2006

Is there something similar that outputs 3D solids? I'm using Autodesk Inventor and I-DEAS which can import IDF files. Those are 3D representations of the boards (not photorealistic as this, just the basic shapes). You can then use them to model the housing, heatsinks, wire harnesses etc without guestimating.

However Eagle doesn't output IDF. Target does but I'm not so eager to learn a second PCB layout program (I haven't really learned the first yet). So, if there's a way to output *.iges, *.sat, *.step or something like this from Eagle, it would be great.

Nikolas

FH16 · February 23, 2006

Some examples from my projects.

>>>>Animation <<<<

gogo2520 · February 23, 2006

Nice Job GreekPic
What package did you use for the push buttons. I couldn't get mine to work.
I think I loaded the librarys in the wrong directory.
Thanks gogo

February 23, 2006

OK..heres what I done so far..

Form this:

To this..WOW!!!

[img width=680 height=510]

I did it!!

rhonn ;) ;)

GreekPIC · February 23, 2006

Nice Job GreekPic
What package did you use for the push buttons. I couldn't get mine to work.
I think I loaded the librarys in the wrong directory.
Thanks gogo

??? Me? ???

You probably mean FH16...

February 23, 2006

@gogo2520

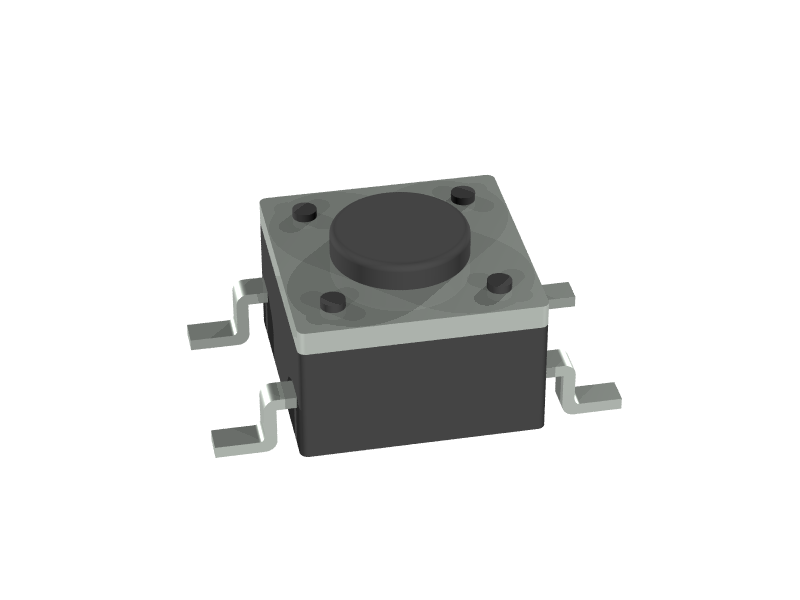

I think it's the SWITCH_PUSH_BUTTON_LSH43

Yet another one..

rhonn ;) ;)

gogo2520 · February 23, 2006

Cool thanks.
Did you dl the librarys and if you did where did you install them.
Also the dc input jack I can't even find that in egale so I dl'd of the site.
gogo

February 24, 2006

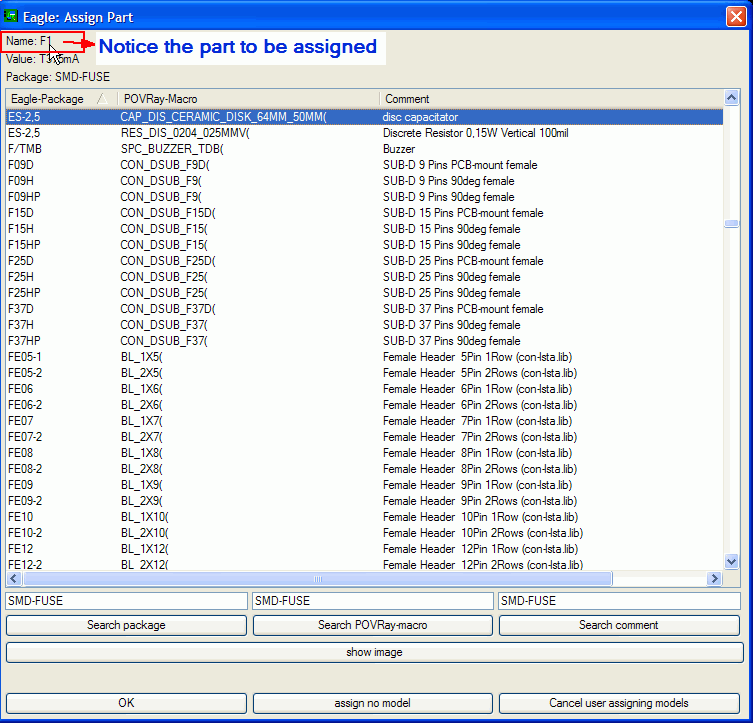

Here's the trick I used..I don't know if this is the proper way of doing it :P

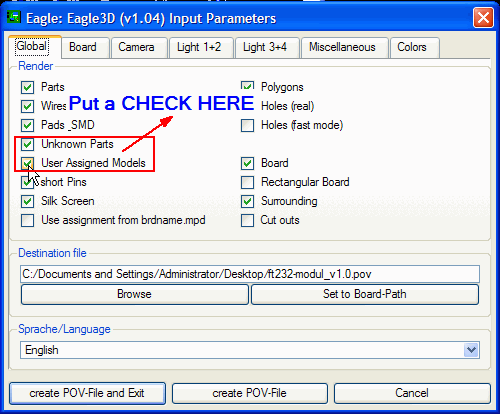

Before creating the POV File check this:

February 24, 2006

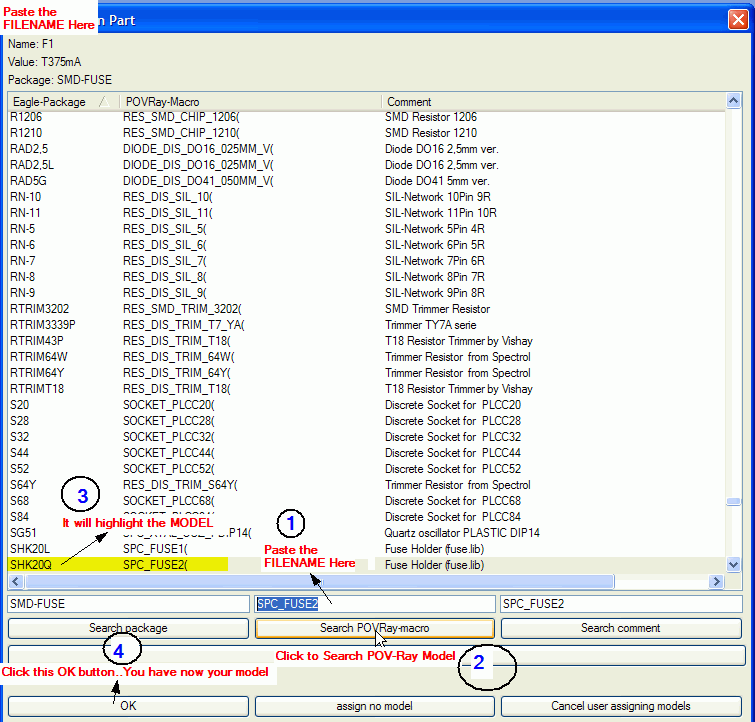

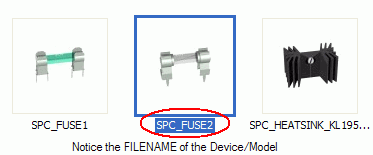

Search for the MODEL in your POV-Ray Gallery..you can extract it anywhere..

February 24, 2006

@gogo2520

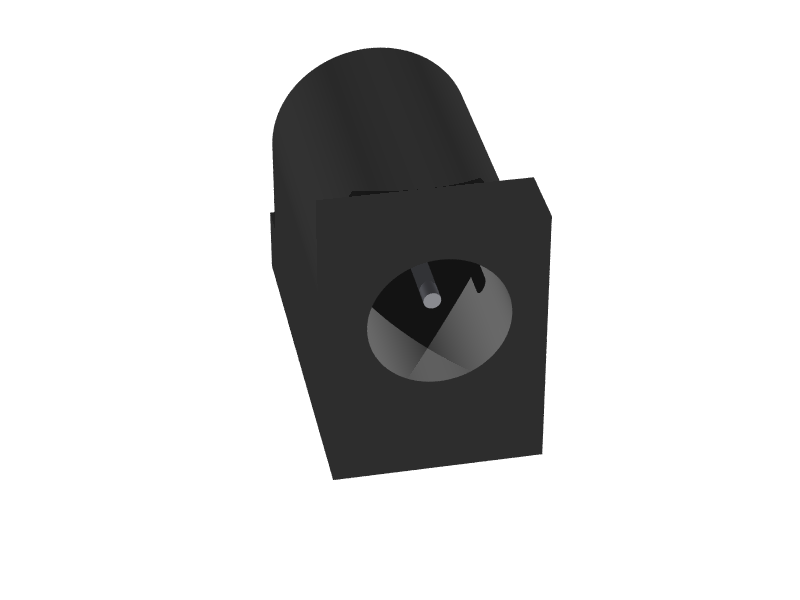

Maybe this is what you mean?

FILENAME: DCPOWERCONNECTOR

logan_dslasher · February 24, 2006

do they come with tutorial? or manuals? i'm interested in learning them..

gogo2520 · February 25, 2006

Hello logan
there is afew hints on there web site, I figured it out in about two hours. How you doing with eagel?
I found the rest of the parts with your help kasamike and GreekPic thanks
have fun gogo

FH16 · February 28, 2006

Nice Job GreekPic
What package did you use for the push buttons. I couldn't get mine to work.
I think I loaded the librarys in the wrong directory.
Thanks gogo

I'm Using
Library: switch-omron
Device: 10-XX
Pacage: B3F-10XX

niceblade · March 3, 2006

Hello. I use this ULP for some time now, althought I couldn't yet figure out how to create the animations of the board. Does anyone knows how to do this? best regards...

Untitled_user · March 5, 2006

Hello! :D

After I saw this topic, I immidiately downloaded and tried this software and I have to say it's absolutely awesome. Realy impressed me.

Bravo! Thank you guys for reference! 8)

FH16 · March 8, 2006

Hello. I use this ULP for some time now, althought I couldn't yet figure out how to create the animations of the board. Does anyone knows how to do this? best regards...

After the creation of POV Ray file from Eagle, open it and find and replase the following:

--- Find ---

//Animation
#declare global_anim = off;

--- Replace ---

//Animation
#declare global_anim = on;

--- Find ---

#if(global_anim=on)
camera
{
	location global_anim_spline_cam_flight(clock)
	#if(global_anim_npoints_cam_view>2)
		look_at global_anim_spline_cam_view(clock)
	#else
		look_at global_anim_spline_cam_flight(clock+0.01)-<0,-0.01,0>
	#end
	angle 45
}
light_source
{
	global_anim_spline_cam_flight(clock)
	color rgb <1,1,1>
	spotlight point_at
	#if(global_anim_npoints_cam_view>2)
		global_anim_spline_cam_view(clock)
	#else
		global_anim_spline_cam_flight(clock+0.01)-<0,-0.01,0>
	#end
	radius 35 falloff  40
}
#else
camera
{
	location <cam_x,cam_y,cam_z>
	look_at <cam_look_x,cam_look_y,cam_look_z>
	angle cam_a
	//translates the camera that <0,0,0> is over the Eagle <0,0>
	//translate<-48.730000,0,-21.585000>
}
#end

--- Replace ---

#if(global_anim=on)
camera {
  angle    45
  location <100.0 , 100.0 ,10.0>
  right    x*image_width/image_height
  look_at  <0 , 0, 0>
  rotate   <0,-360*(clock+0.10),0>
}
light_source
{
	<0,0,0>
	color rgb <1,1,1>
}

}
#else
camera
{
	location <cam_x,cam_y,cam_z>
	look_at <cam_look_x,cam_look_y,cam_look_z>
	angle cam_a
	//translates the camera that <0,0,0> is over the Eagle <0,0>
	//translate<-48.730000,0,-21.585000>
}
#end

Then Create .ini file and add the following: --- Add ---

Initial_Frame = 1
Final_Frame = 500
Initial_Clock = 0
Final_Clock = 0.9
Cyclic_Animation=on

[80x80 Low Resolution]
Width=80
Height=80
Antialias=off
Antialias_Threshold=0

[100x100 Low Resolution]
Width=100
Height=100
Antialias=off
Antialias_Threshold=0

[640x640 Low Resolution]
Width=640
Height=640
Antialias=Off
Antialias_Threshold=0

[800x600 Low Resolution]
Width=640
Height=640
Antialias=Off
Antialias_Threshold=0

[1024x768 Low Resolution]
Width=1024
Height=768
Antialias=Off
Antialias_Threshold=0

[640x640 High Resolution]
Width=640
Height=640
Antialias=On
Antialias_Threshold=0.5

[800x600 High Resolution]
Width=800
Height=600
Antialias=On
Antialias_Threshold=0.5

[1024x768 High Resolution]
Width=1024
Height=768
Antialias=On
Antialias_Threshold=0.5

[640x640 Very high resolution]
Width=640
Height=640
Antialias=On
Antialias_Threshold=1.0

[800x600 Very high resolution]
Width=800
Height=600
Antialias=On
Antialias_Threshold=1.0

[1024x768 Very high resolution]
Width=1024
Height=768
Antialias=On
Antialias_Threshold=1.0

Save file and exit
(Final_Frame = 500 is the numbers of frames)
Press from Pov Ray the INI button and select your ini, press button "Set but don't render"
Select the resolution you want and press "RUN".
Thats all :)

logan_dslasher · March 9, 2006

Hello logan
How you doing with eagel?

Eagle? hmm.. let me see.. frustrating? ehehe.. i can't seem to find a good way to strat learning it.. any suggestions how? what are the basics that is should learn? what exercises can i perform to familiarize myself with eagle?

hmm.. does it need computer upgrades to operate? i have a very low-performance computer.. P3, no video card, no sound card, 13G hard disk.. its still very young..

i really want to learn eagle.. please help.. thanks..

March 9, 2006

Tutorials for Eagle? Of course there is...

Check this out mate

http://www.interq.or.jp/japan/se-inoue/e_eagle.htm

[move]rhonn ;) ;) rhonn ;) ;) rhonn ;) ;) rhonn ;) ;) rhonn ;) ;) rhonn ;) ;)[/move]

logan_dslasher · March 9, 2006

there you gow! thanks! i just wish it has a PDF or somethin'/.. i dont have web access back at home.. anyway, tahnks..

gogo2520 · March 10, 2006

Her you go Logan
Have Fun gogo

Eagle_Tutorial.pdf

eaglehlp_eng.pdf

logan_dslasher · March 10, 2006

waaaa!!!!! there's a PDF file!!! Yipeee!! ehehehe.. ;D

Have fun? i will.. thanks gogo!!

Roomi · September 30, 2006

I am facing a problem with the 3d conversion.When i convert it then a horizontal bar is rendered in place of some of the components. I downloaded all the png files from the mentioned site.Are these library files? If so then where should I place these ?

omer_faruk · May 3, 2007

hi guys
i have eagla 4.13.i downloaded eagle3D and povray.but i cant 3D.
can i help yours?
how do from eagle povray with 3D?
