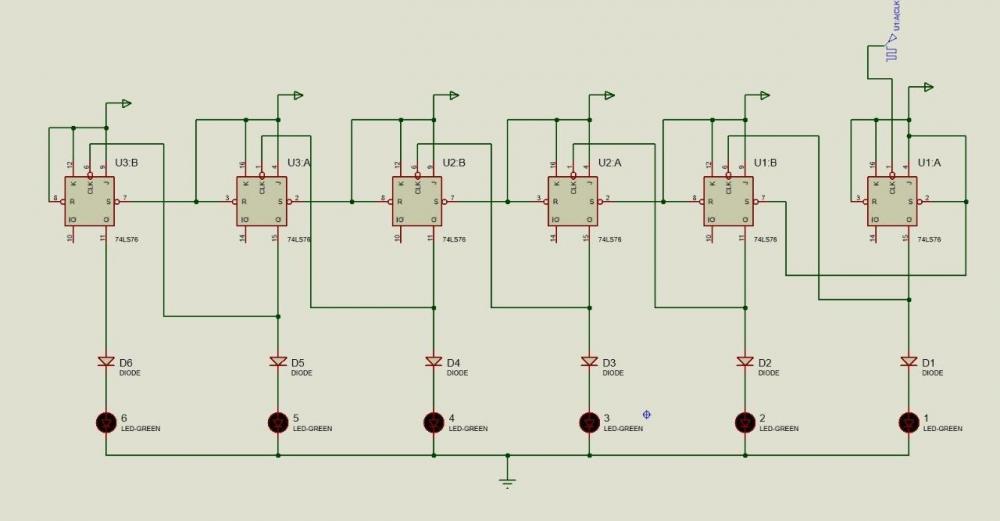

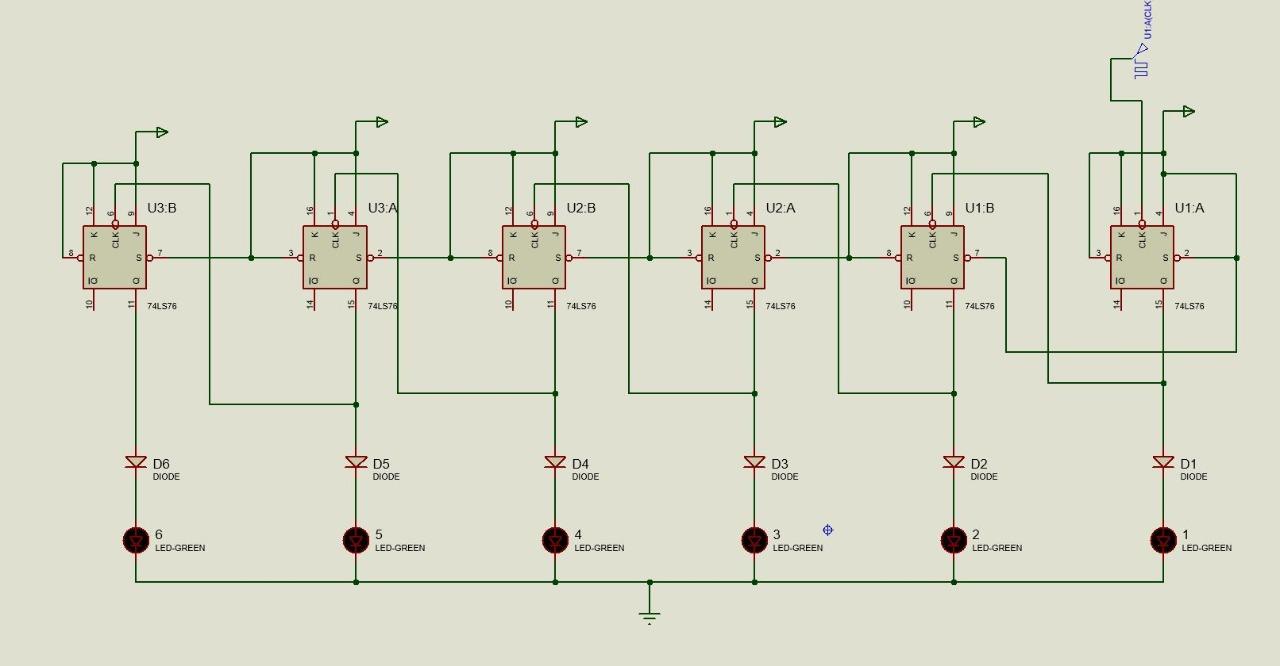

Thatswhatshesaid Posted July 13, 2021 Report Share Posted July 13, 2021 What can I do to turn this design into a Mod-23 counter, i.e. the LEDS will go from 000000 to 010110 and then reset. I am really new at this, as this is my early second year in college. I have tried looking at various circuits online, but I don't understand how to implement a reset NAND to this. Can anyone please help me with a working proteus sample of this? Please and Thank you. Quote Link to comment Share on other sites More sharing options...
HarryA Posted July 13, 2021 Report Share Posted July 13, 2021 The circuit below is similar to what you want to do. Using a 4 input NAND gate you can connect it to the 4 outputs that represent the valve you want. Your NAND gate output would connect to the clr line. Thatswhatshesaid 1 Quote Link to comment Share on other sites More sharing options...
JamesMPhillips Posted October 22, 2021 Report Share Posted October 22, 2021 When I was in school, I am read about NAND, AND gate. A two-input NAND gate is a digital combination logic circuit that performs the logical inverse of an AND gate. If you want to know you can find information about it on google. If you are facing assignment project problem you can take edubirdie legit essay writing services. I also takes there help when I need. Quote Link to comment Share on other sites More sharing options...
Susan Wise Posted December 16, 2022 Report Share Posted December 16, 2022 On 7/13/2021 at 11:45 PM, HarryA said: The circuit below is similar to what you want to do. Using a 4 input NAND gate you can connect it to the 4 outputs that represent the valve you want. Your NAND gate output would connect to the clr line. If you need help, you can pay me to do your homework reviews, I would be happy to help! Can you please tell me where you got this diagram from? Is it a specific textbook? Quote Link to comment Share on other sites More sharing options...
loribennms Posted December 25, 2022 Report Share Posted December 25, 2022 On 7/13/2021 at 6:20 AM, Thatswhatshesaid said: What can I do to turn this design into a Mod-23 counter, i.e. the LEDS will go from 000000 to 010110 and then reset. I am really new at this, as this is my early second year in college. I have tried looking at various circuits online, but I don't understand how to implement a reset NAND to this. Can anyone please help me with a working proteus sample of this? Please and Thank you. Tennis Lessons in Quogue I have to make a digital clock using logic works 5. and i can use 7-seg display, 7447 decoder but i have to make a mod-24 counter(3, 10), mod-60 counter(6, 10) using a flip-flop Anybody can this? Quote Link to comment Share on other sites More sharing options...
