I changed output transistors and it works. I get maximum 24V on output. Is this ok?
If you use a 28VAC or 30VAC transformer at 4.2A then the max output should be higher than 30VDC at 3.5A and the calibration trimpots should reduce the max output to 30VDC at 3.0A.


audioguru2

Apr 6, 2004
12,026
Joined
Apr 6, 2004
Messages
12,026
fikic said:
No, I have 3A version with 24V AC toroid transformer.
Didn't you see the latest parts list?

To have a 30V DC output then the transformer must be 28V AC or 30V AC.
Since your transformer is only 24V AC then the max output will be only 24V DC or 25V DC.

The transformer must have a currenty rating of 4.2A AC for the output of the project to be 3A DC.
Since your transformer is only 3A then the max continuous output current is only 2.1A DC.


fikic

Apr 9, 2009
87
Joined
Apr 9, 2009
Messages
87
My transformer is 250VA, so current isn't the problem. So 24V output is just fine?



audioguru2

Apr 6, 2004
12,026
Joined
Apr 6, 2004
Messages
12,026
My transformer is 250VA, so current isn't the problem. So 24V output is just fine?
Your transformer has an output voltage too low so I don't know if the maximum output voltage from the project at a current of 3A is 24V DC or 25V DC. It might have excellent voltage regulation at 24V DC but produce a lot of hum riding on 25V DC.


fikic

Apr 9, 2009
87
Joined
Apr 9, 2009
Messages
87
With this hum, you mean just noise, or it has impact on quality of output?



audioguru2

Apr 6, 2004
12,026
Joined
Apr 6, 2004
Messages
12,026
With this hum, you mean just noise, or it has impact on quality of output?
When the output of a "regulated" power supply has hum (100Hz in Europe or 120Hz in North America) then it indicates that the output is saturated and is not regulating the voltage.
The voltage changes of the AC input (including noise) and the ripple of the filtered rectifier are simply passed to the output. The output voltage will also change with load current changes.


fikic

Apr 9, 2009
87
Joined
Apr 9, 2009
Messages
87
So, I need at least 28V 120VA transformer? But output with 28V or 30V transformer has also hum at maximum output voltage, yes?



audioguru2

Apr 6, 2004
12,026
Joined
Apr 6, 2004
Messages
12,026
So, I need at least 28V 120VA transformer? But output with 28V or 30V transformer has also hum at maximum output voltage, yes?
No.
When a 28V AC or 30V AC 120VA transformer is used then the output at 30.0V and 3A will be regulated perfectly with no hum.

There is hum when the transformer voltage is too low which causes the output transistors, driver transistor and opamp U2 to be saturated.


iliaskr

Aug 30, 2011
2
Joined
Aug 30, 2011
Messages
2
i had the original pcb from ages ago so i modified it (at least i tried) with audioguru's changes.
however i am having the following problems:

voltage regulation seems to work, but when the current goes over 1 amp, i have oscillation on the 3055s and c7 gets very hot
u1 gets a bit warm
the current limiter works in a weird way, i mean, it limits current up to the middle position of the potentiometer then it allows current again. the led has a constant dim light and when the current limit kicks in it lights fully

now, i should mention that i could not find tle2141 so i used ca3140, the closest i could find here
also, i tried a higher value for c7, it reduced the oscillation, but it's still there
i replaced the d13,d14 with the original 5.6v zener, before, the led burned up

i am suspecting i have done something wrong modifying the old pcb, or the ca3140 is not proper for this i might try this on a stripboard if i have the time..

any suggestions?..



audioguru2

Apr 6, 2004
12,026
Joined
Apr 6, 2004
Messages
12,026
The very old CA3140 is completly different to a modern TLE2141 opamp:
1) Its maximum allowed supply voltage is too low.
2) It is very noisy.
3) Its datasheet talks about it oscillating.



iliaskr

Aug 30, 2011
2
Joined
Aug 30, 2011
Messages
2
ok...i will try to find a tle2141..

funny thing is that in every shop i asked about it they either never heard of it, or thought it was obsolete. especially with the crisis here in Greece it is very hard to find components in stock anymore, maybe online..
i'll get the 2141 somehow and will check again the circuit
thanks



srecenvid

Dec 24, 2011
10
Joined
Dec 24, 2011
Messages
10
hey.

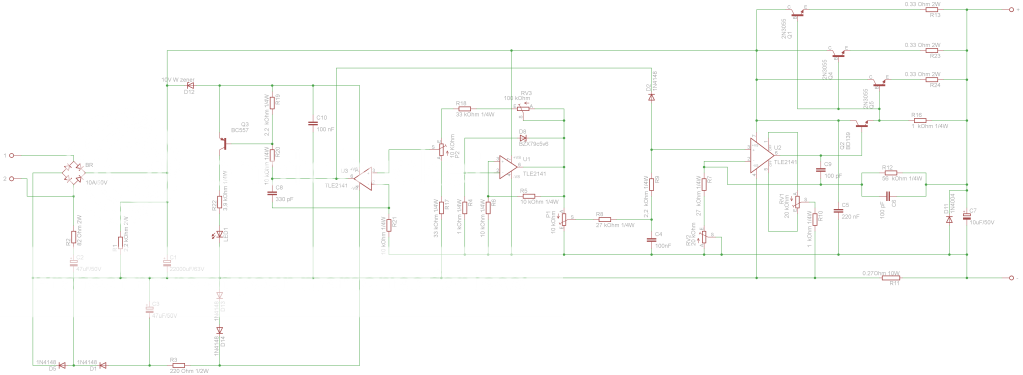

Thanks for fast replay. My 3A supply is working perfect, now i will try 5A. i did scheme for 5a, as u said, can u check scheme and tell if everything is ok?

thanks alot!

P.S. sorry for 2 posts :( did not know which is more active





srecenvid

Dec 24, 2011
10
Joined
Dec 24, 2011
Messages
10
hello. i am new in forum. i checked yesterday almost all 118 pages and i have to admit that you are all amazing. Audioguru you are doing really good job. I already built today 3A version (will upload pictures after testing it). I found also picmaster's Schematic and i am interested to build 5A version also. Can u point me where to find picmaster posts and part list. is there any forum where can i read about 5A project?

thanks alot for answers



audioguru2

Apr 6, 2004
12,026
Joined
Apr 6, 2004
Messages
12,026
Hi Srecenvid,
The 5A version has only a few changes from the 3A version:
1) More powerful transformer, 28VAC/200VA or 30VAC/212VA.
2) Medium size heatsink for the 10A rectifier bridge module.
3) R7 changed to 0.27 ohms/10W.
4) Three output transistors on a huge heatsink with fan and a 0.33 ohm/2W emitter resistor for each output treansistor.

I didn't save the design by PicMaster. I think he changed the calibration trimpot positions and changed all the parts designation numbers which makes talking about it difficult (R7 is now his different number etc).



tjille

Jul 19, 2011
2
Joined
Jul 19, 2011
Messages
2
Hi,

I can't adjust output voltage down to 0V. Instead i get aprox 30 mV. No big issue but it would be nice to fix if possible. Is this something that could be solved by changing trimpot or resistor at offset inputs or is it a leakage i have to live with?

Output goes down to 0 volt when current pot is in its "closed" position.

Regards



fikic

Apr 9, 2009
87
Joined
Apr 9, 2009
Messages
87
Somewhere in this topic, somebody said, that some capacitor must be changed from electrolytic to tantal or something. Try to browse a little.
