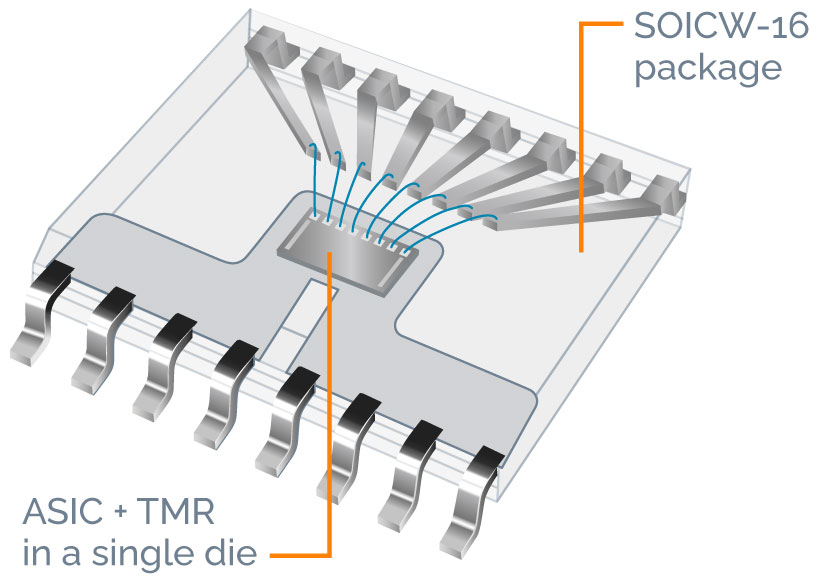

Crocus Technology 0A to 65A Integrated Current Sensors have a 1MHz Bandwidth and better than 1% accuracy. The sensors feature high-speed operation and accurate output to optimize system design for smaller sizes and higher efficiency. The XtremeSense TMR sensor is a design solution that combines high bandwidth response and high accuracy.
Features
- Supports AC and DC
- Resolution (SNR) <10 mARMS
- Common mode field rejection
- 1MHz bandwidth
- High accuracy (up to ±0.5%)
- Up to 5kV isolation
- Over-current detection
more information: https://crocus-technology.com/products/integrated-sensors/
