PWM Solenoid and Valve Driver using DRV103

  • Rajkumar Sharma
  • 22289
    Views
  • easy
  • Tested
  • Buy Now

This tiny module is a PWM Solenoid and Valve driver using the Texas instrument’s DRV103 low-side DMOS power switch, employing a pulse-width modulated (PWM) output. Its rugged design is optimized for driving electromechanical devices such as valves, solenoids, relays, actuators, motors, and positioners. This board is also ideal for driving thermal devices such as heaters, coolers, lamps etc. PWM operation conserves power and reduces heat rise, resulting in higher reliability. In addition, adjustable PWM allows fine control of the power delivered to the load. Output delay time and oscillator frequency are also externally adjustable.

The DRV103 can be set to provide a strong initial closure, automatically switching to a “soft” hold mode for power savings. A resistor, analog voltage, or Digital-to-Analog(D/A) converter can control the duty cycle. An output OK flag indicates when thermal shutdown or over current occurs.

Features

  • Supply 8V to 32V DC
  • Load Capacity 1.5A
  • Trigger Input Voltage 1.5V to 5V DC
  • Thermal and Current Limit Shutdown
  • On-Board Power LED

Applications

  • Solenoids
  • Valves
  • Heaters, Coolers
  • Lamps
  • Relays
  • Power Contactor Coils
  • Hydraulics and Pneumatics Systems
Note: PWM Duty Cycle, Output Delay, Frequency Adjust are adjustable from external resistors
  • Oscillator Frequency range 500Hz to 100Khz, the default set to 5Khz, Frequency can be altered by changing  R4 ( Refer to Datasheet for more details)
  • Delay Output: Default delay set to approx. 100 ms, Delay can be adjusted by changing Capacitor C1
  • Duty Cycle is adjustable 10% to 95% , the default set to 95% can be altered by changing R3 (Refer to Datasheet for more details)

Schematic

Solenoid-and-Valve-Driver-SCH

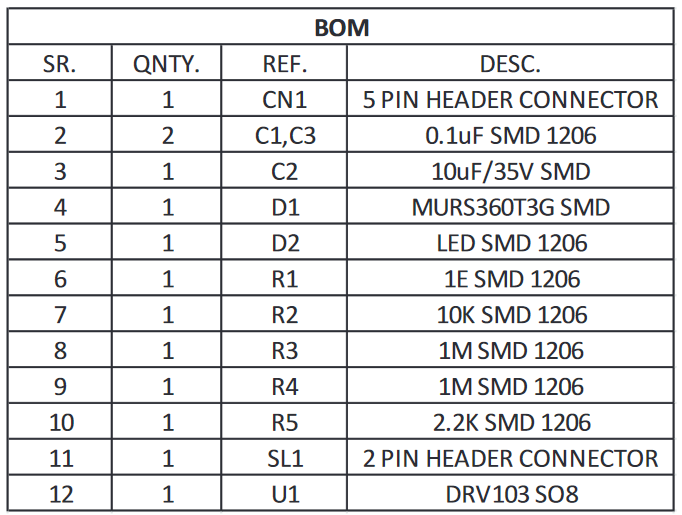

Parts List

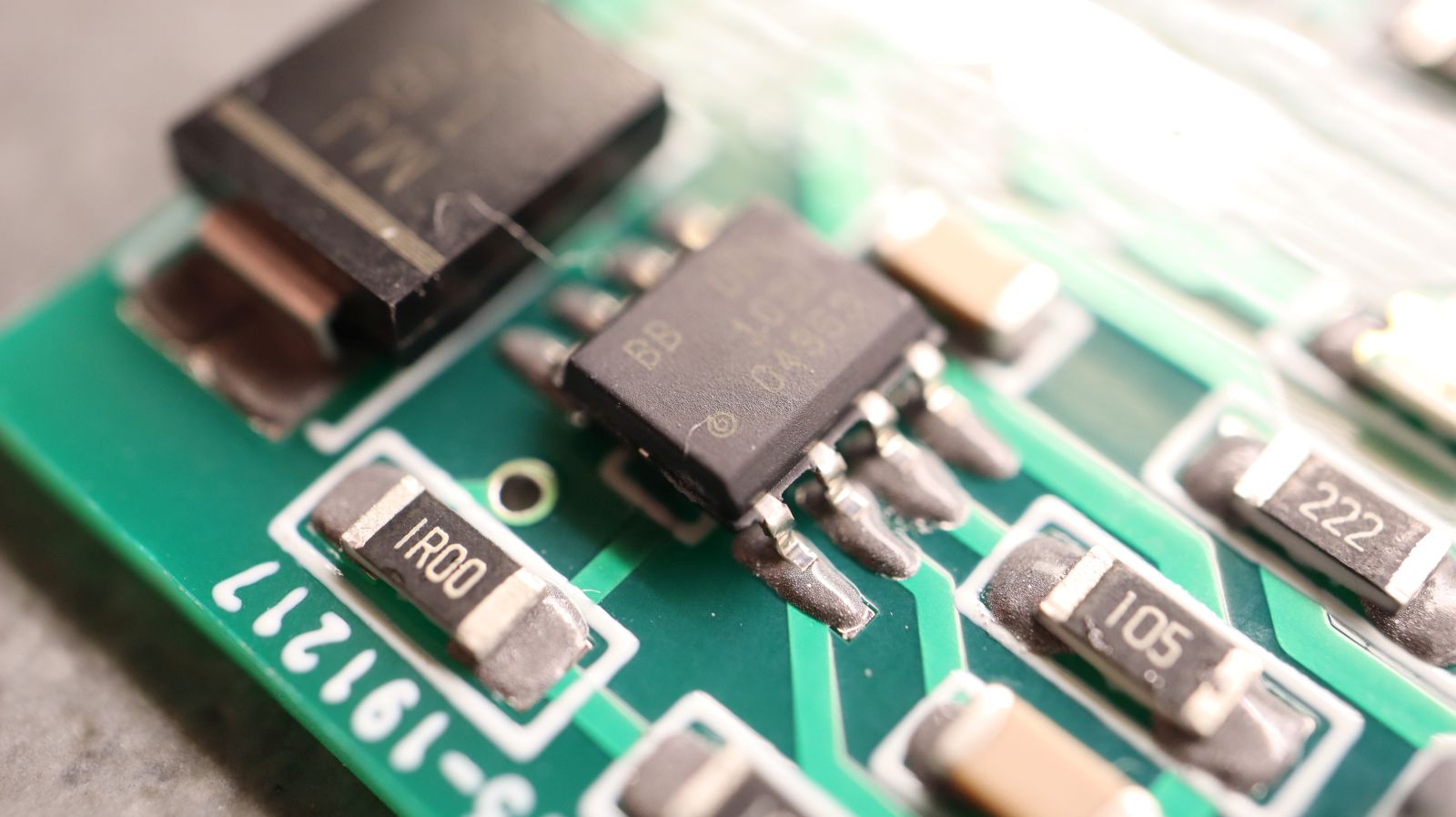

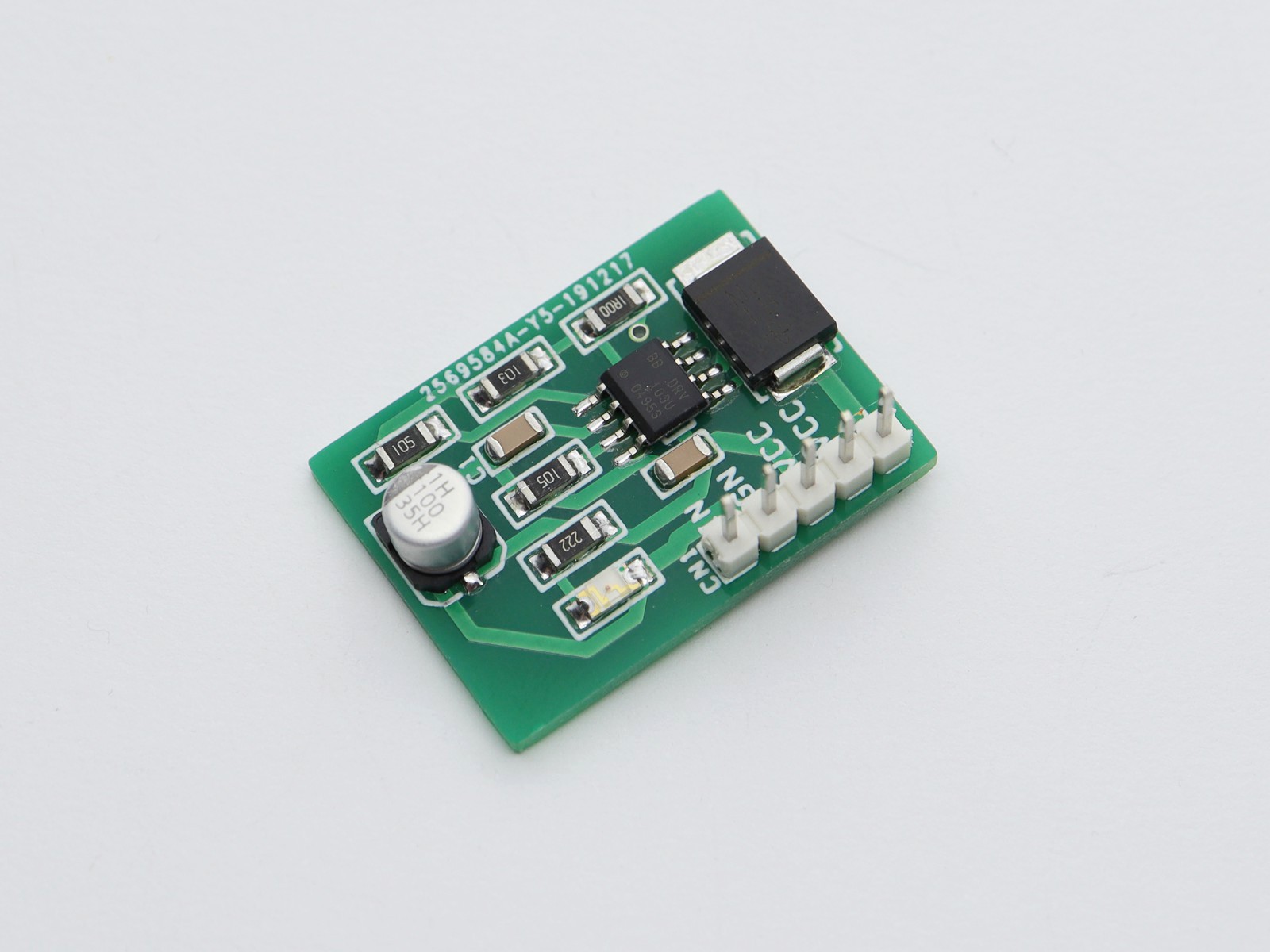

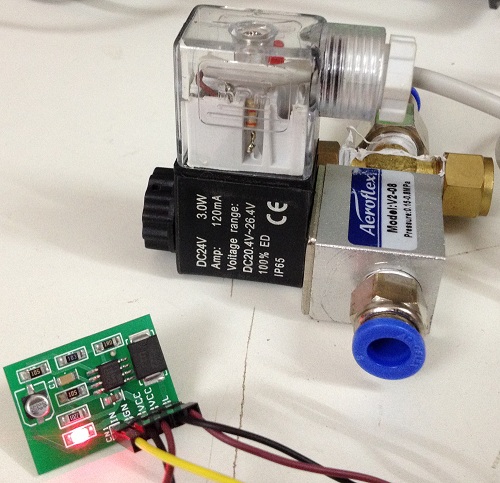

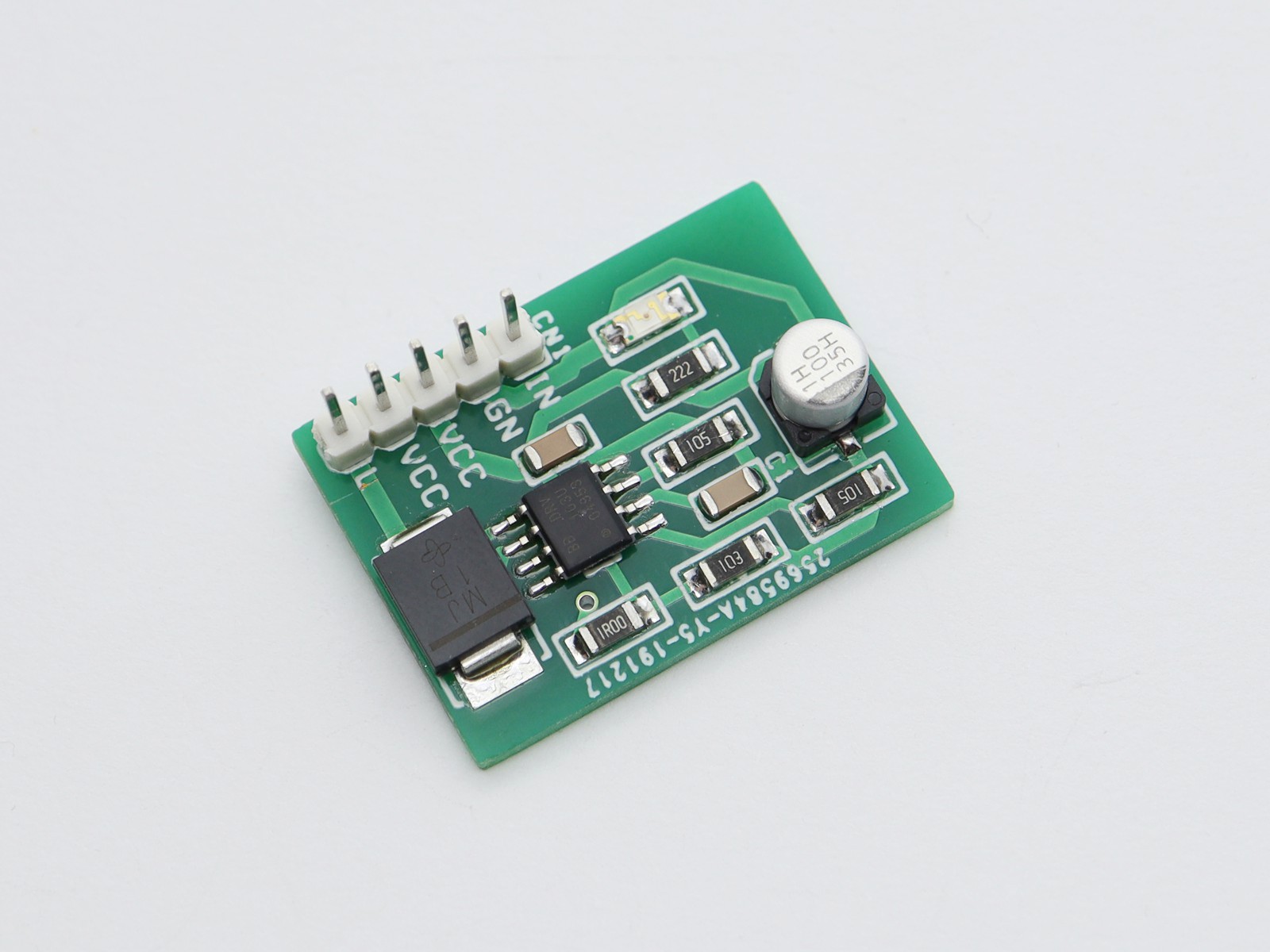

Photos

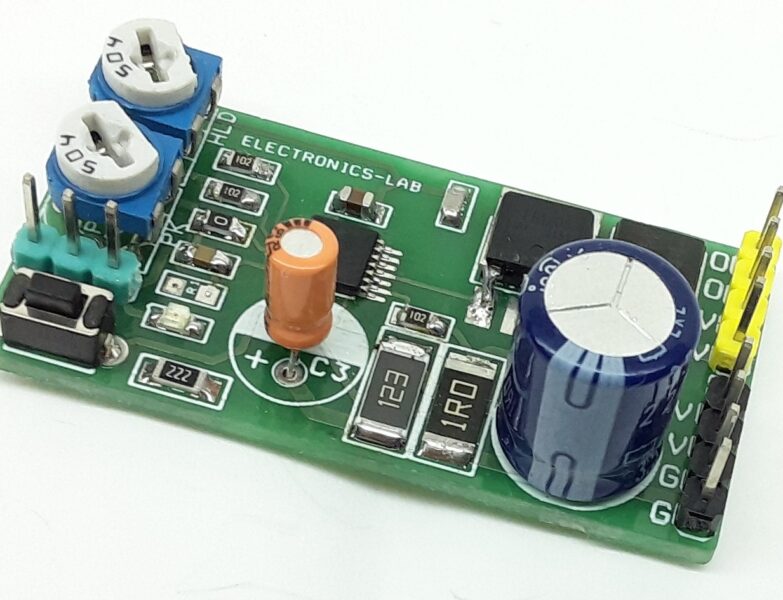

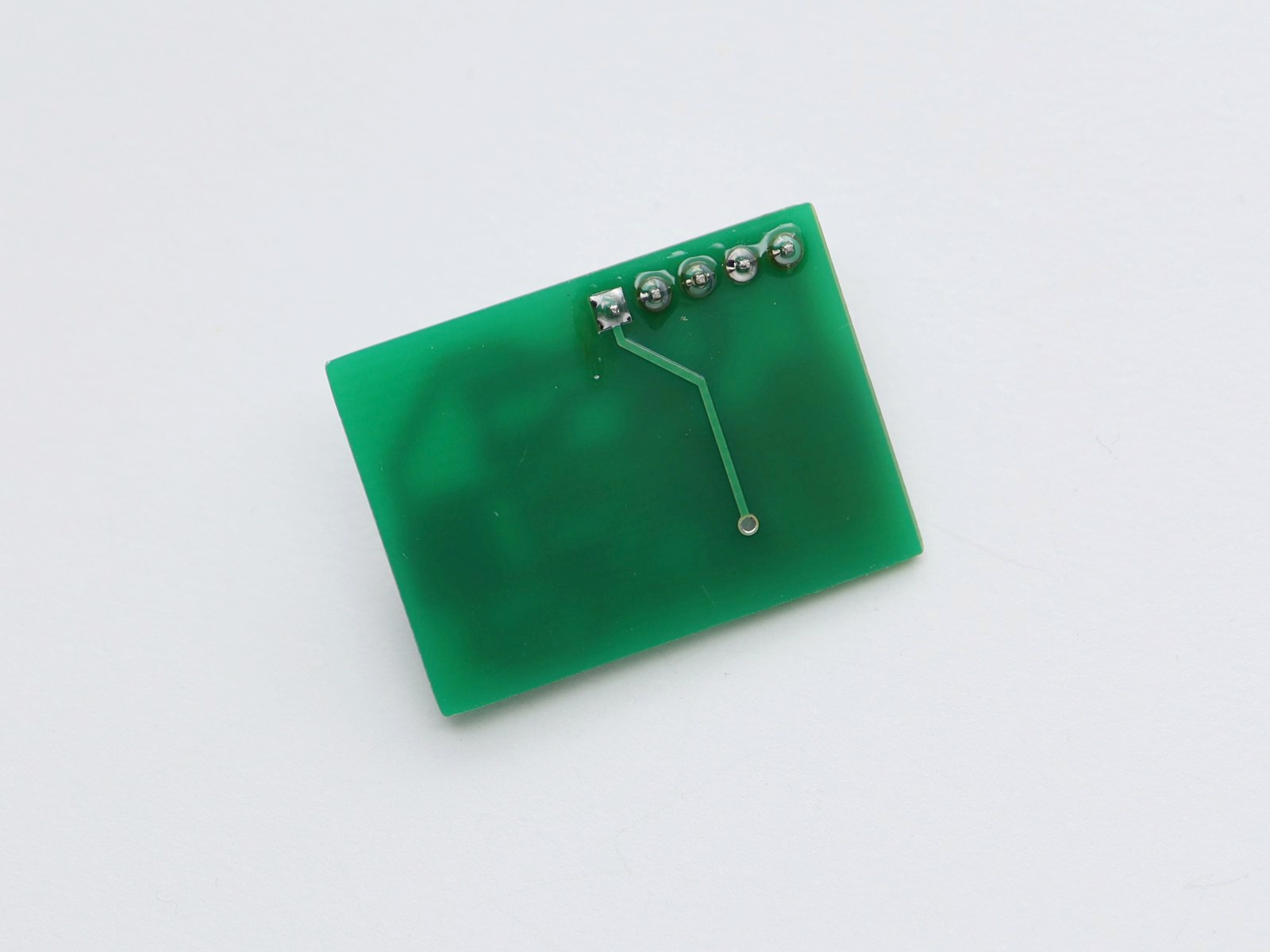

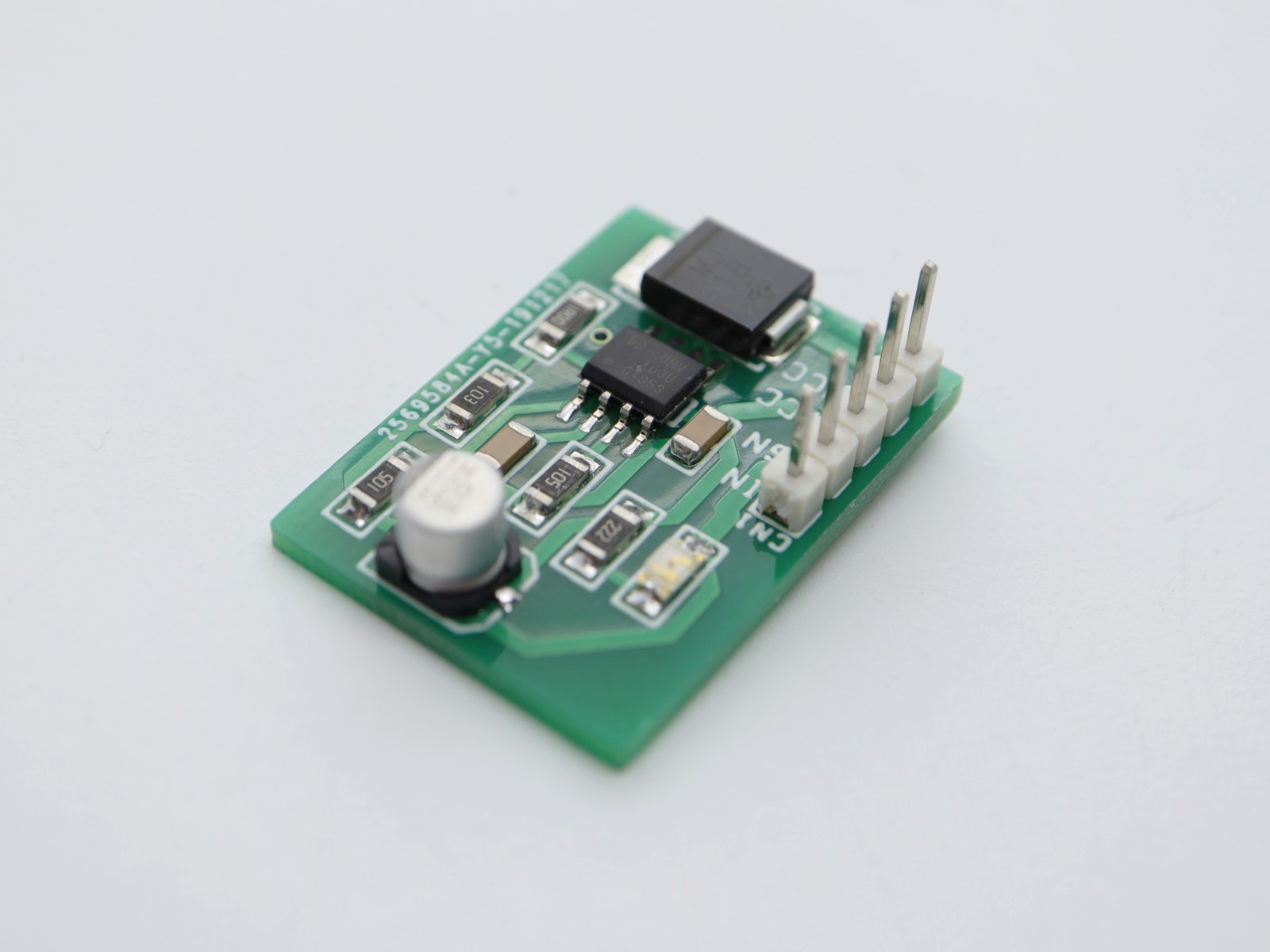

Solenoid-and-Valve-Driver-PIC

Measurements

Vout on the solenoid. We see that goes ON and after some time it starts PWM production to retain the ON state but with lower dissipated power and thermal stress.
CH1: Vout on the solenoid – CH2: INPUT triggering voltage. We can see that after the board is triggered solenoid goes on for about 1 sec and then switches to PWM generation to hold the coil energized with low power consumption.

Manufacturing

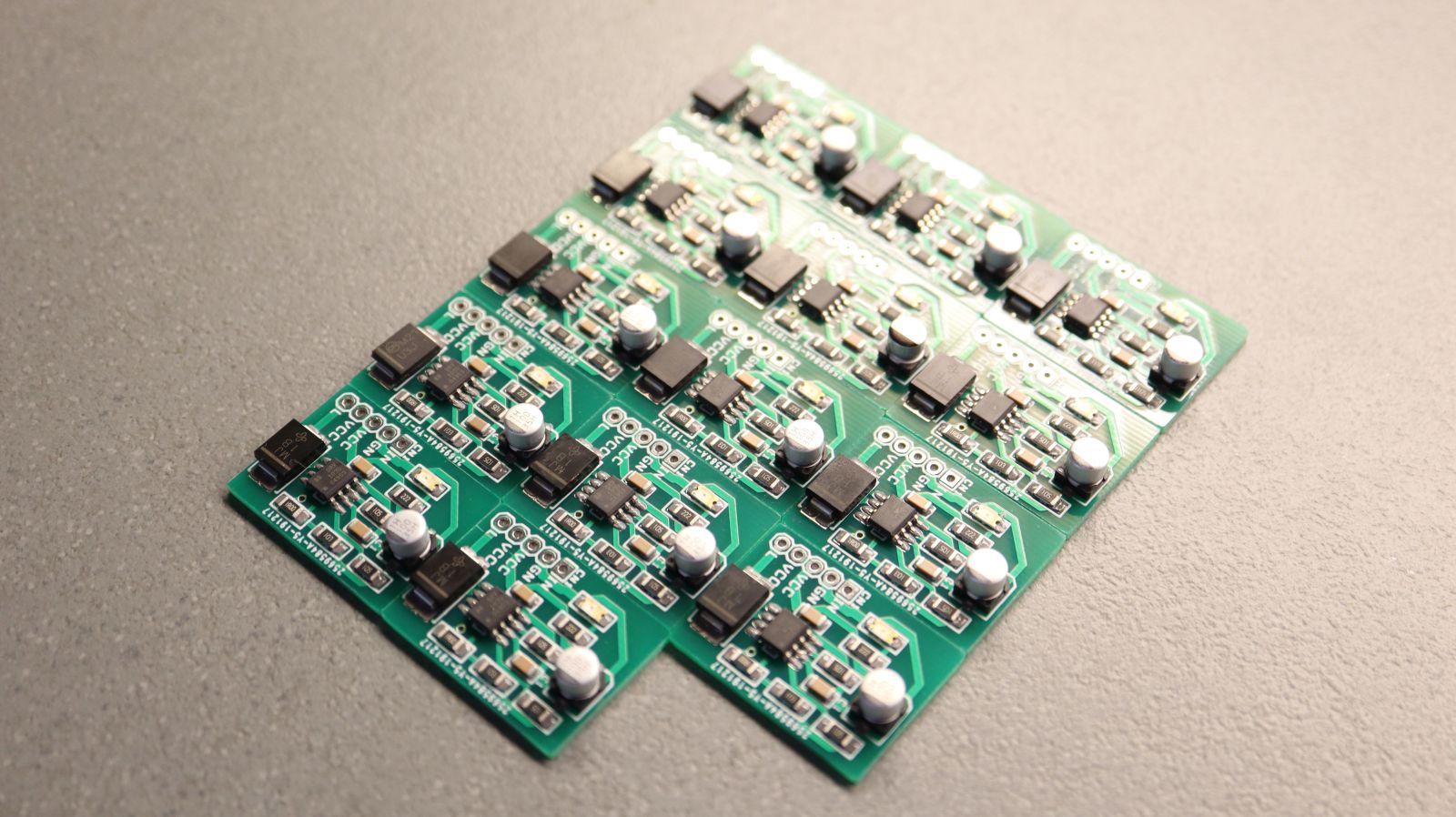

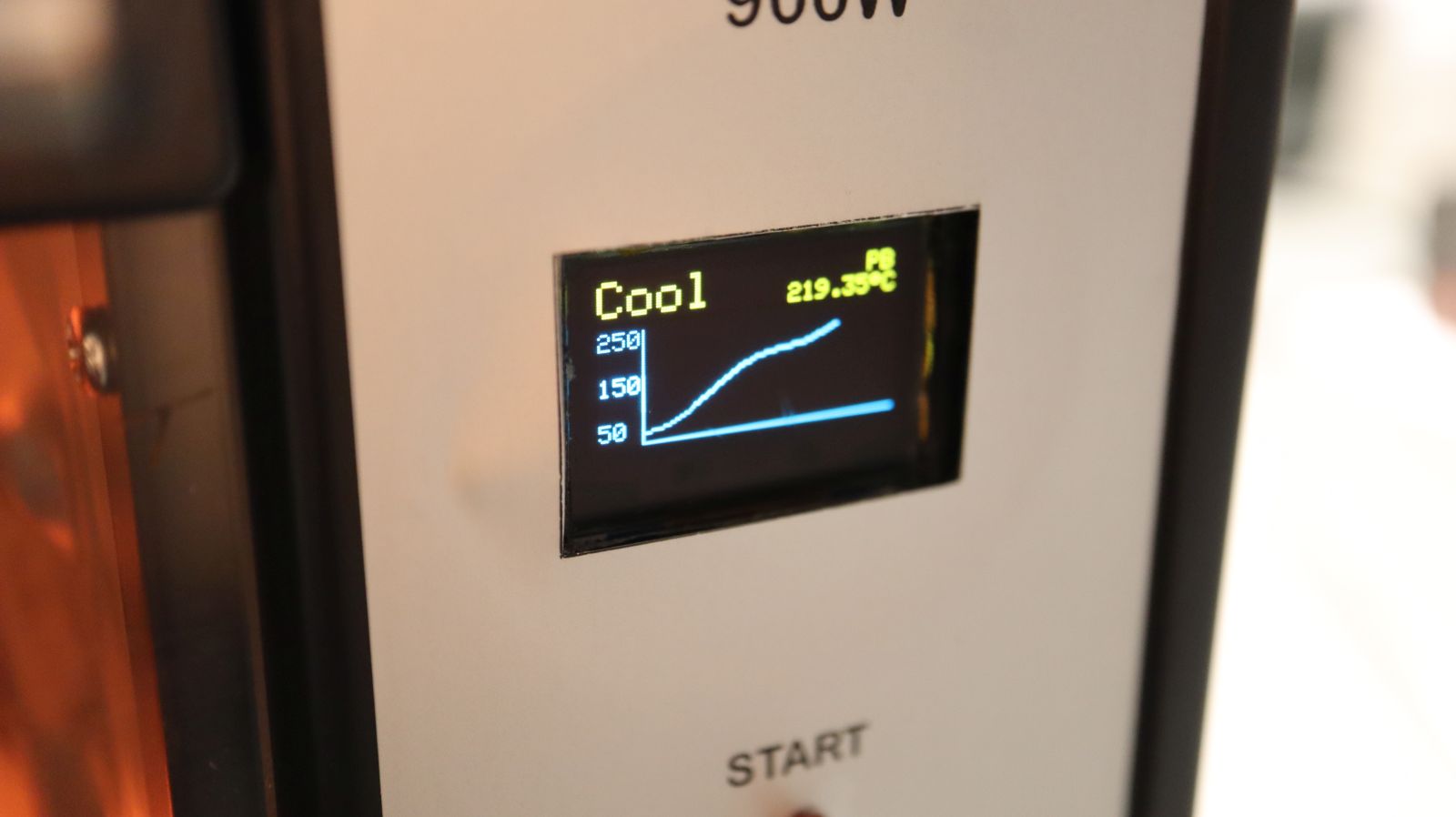

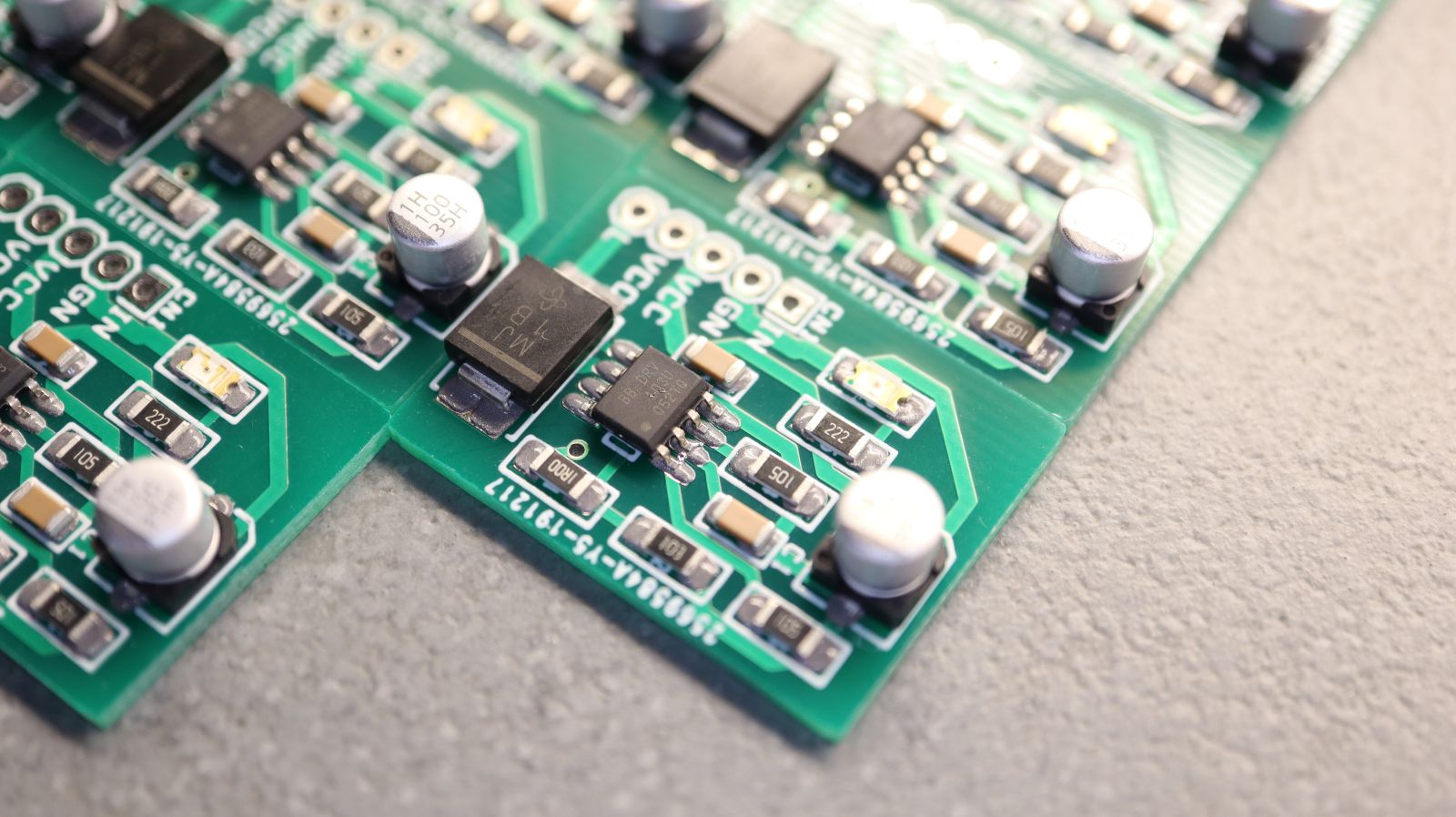

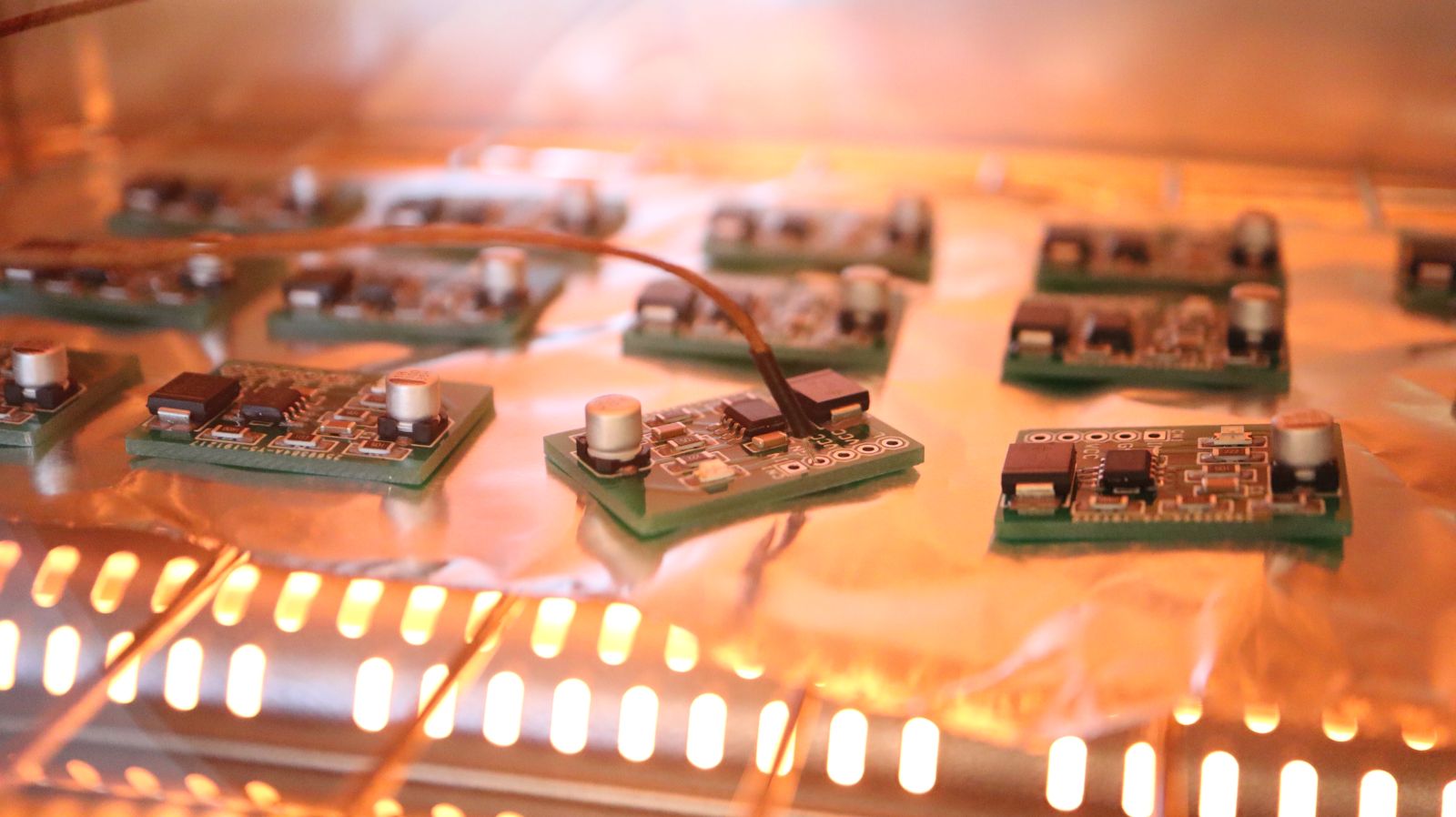

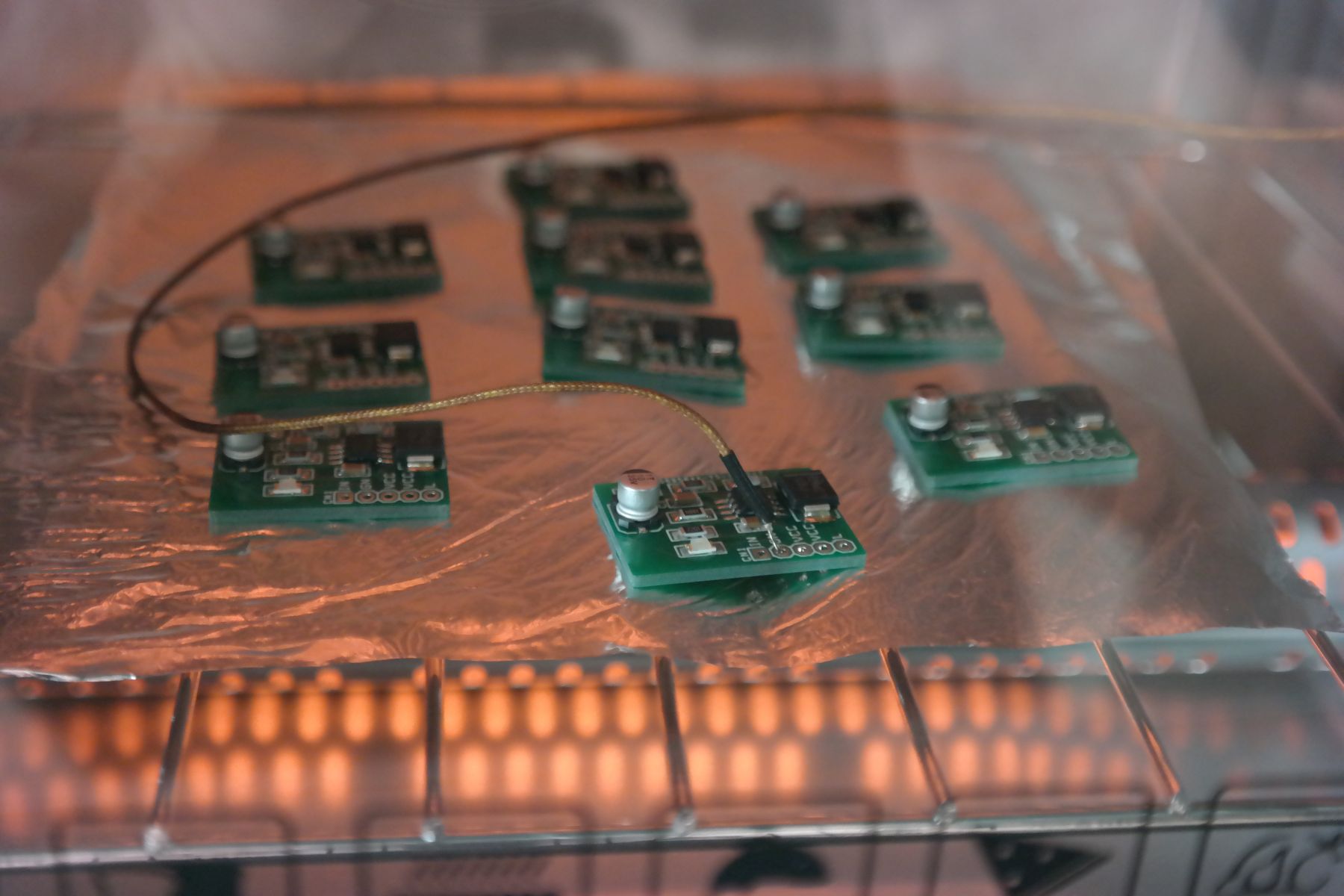

Reflow soldering of 10x PCBs on our DIY reflow oven

Videos

DRV103 Datasheet

drv103

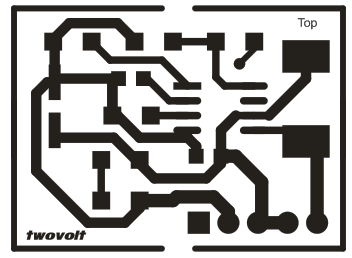

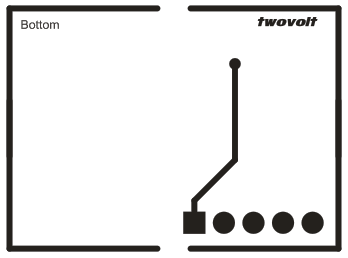

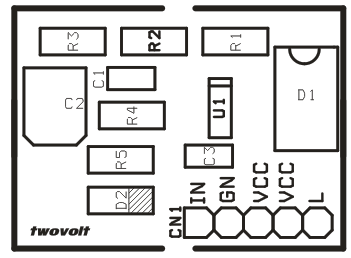

PCB
