4 CHANNEL TRAIC BOARD PIC01

Opto-Isolated 4-Channel Triac Board (R) is used for fast switching applications.  Ideal for switching mains circuits, lights, appliances and small load.  Each circuit is effectively isolated with opto-isolators on each channel, TTL inputs control each channel.

  • Trigger input 2-12 VDC
  • Mains supply input 230 VAC or 110 VAC
  • Output 1 A @ 230 VAC (RMS ON STATE CURREN 4 AMPS EACH CHANNEL)
  • Snubber circuit for inductive load
  • Jumper for common cathode   ground
  • Box Header connector for connection of control signal
  • Screw terminal connector for Load
  • Four mounting holes of 3.2 mm each
  • PCB dimensions 139 mm x 73 mm

Schematic

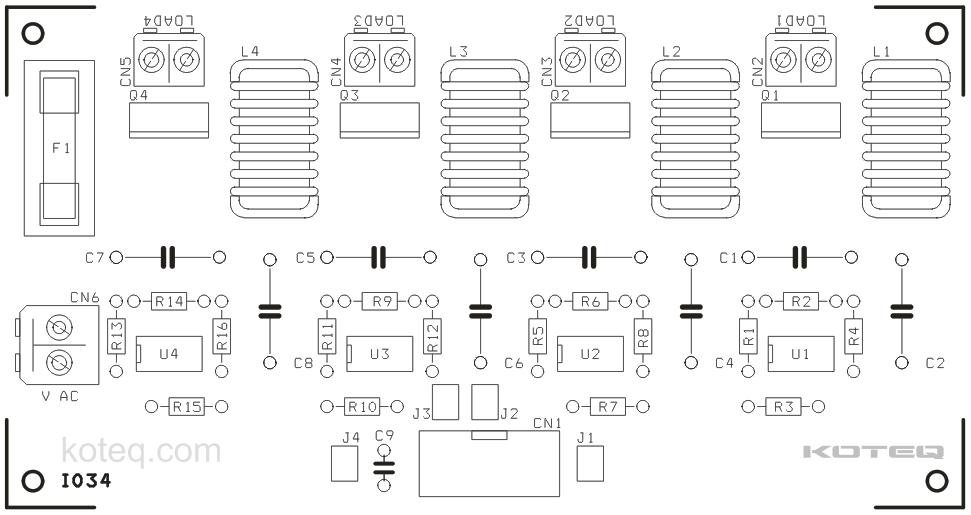

4 CHANNEL TRAIC BOARD SCHEMETIC



Parts List

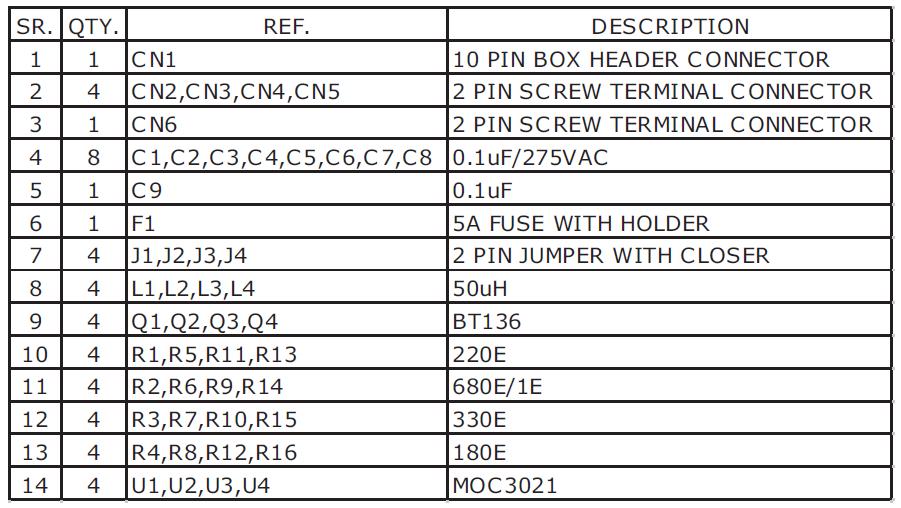

4 CHANNEL TRAIC BOARD BOM

Photos

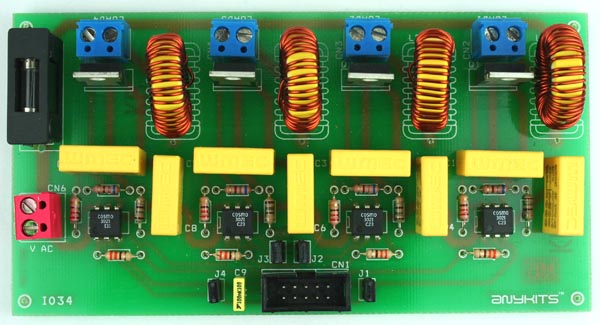

4 CHANNEL TRAIC BOARD PIC 02

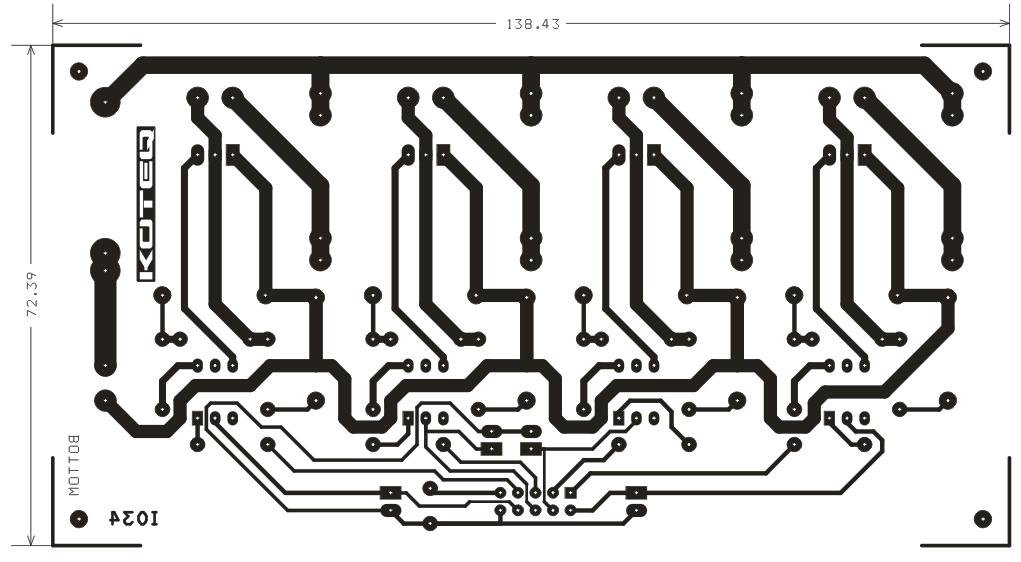

PCB

Comments

  • Hello sir,

    When we are using circuit without inductor with Ceiling fan for dimming it causes noise in fan…
    how can we remove it ?

    4 years ago
    • Electronics Lab

      Inductor is used to filter noise on the mains line, so adding it may eliminate the noise to the fan.
