Attiny85 8-pin Arduino Programming Shield

This Arduino shield transforms your Arduino UNO into an ISP-Programmer for the ATtiny85 microcontroller. The board simplifies the Boot-loader burning on the ATtiny85 chip. It consists of an 8-pin DIP socket to insert the new ATtiny85 chip, C1 decoupling capacitor, and C2 capacitor is provided to avoid the Arduino UNO from being auto-reset when we upload the program to the ATtiny85 chip. The project is a good choice when the user wants to shrink the Arduino project into an 8-pin microcontroller and when the project requires only a few I/O pins.

Few tutorials showing how to program the ATtiny85 from the Arduino IDE with the help of the Arduino Uno are listed below:

• Programming an ATtiny w/ Arduino 1.6 (or 1.0) – http://highlowtech.org/?p=1695
• Programming ATtiny85 with Arduino Uno – https://create.arduino.cc/projecthub/arjun/programming-attiny85-with-arduino-uno-afb829
• Getting Started with ATtiny85 and Arduino – https://medium.com/@siddharth01/getting-started-with-attiny85-and-arduino-d6f4c852d986
• Programming The ATtiny85 – https://diyodemag.com/projects/programming_the_attiny85
• ATTiny85 – Core Programming – https://www.studiopieters.nl/miniaturizing-attiny85/
• How to Flash the Arduino Bootloader and Run A Simple Sketch – https://makersportal.com/blog/2018/5/19/attiny85-arduino-board-how-to-flash-the-arduino-bootloader-and-run-a-simple-sketch
• Programming the ATtiny85 (Using an Arduino Uno) – https://create.arduino.cc/projecthub/ianabcumming/programming-the-attiny85-using-an-arduino-uno-0cb824

Video

Features:

• PCB dimensions: 25 x 51.12 mm

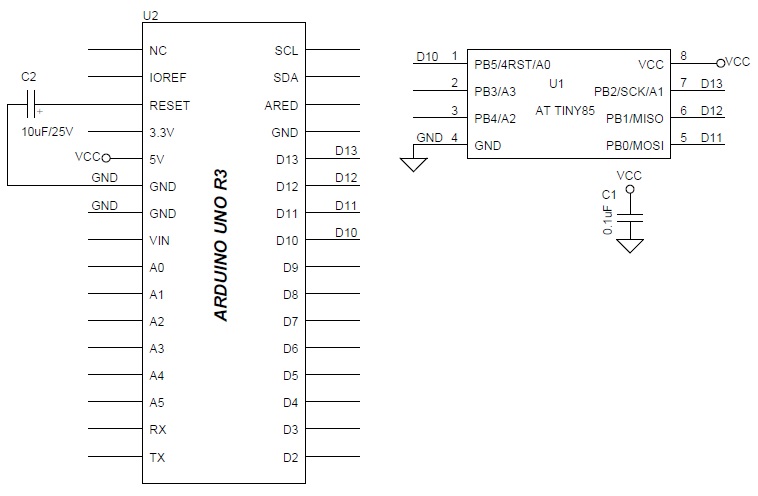

Schematic

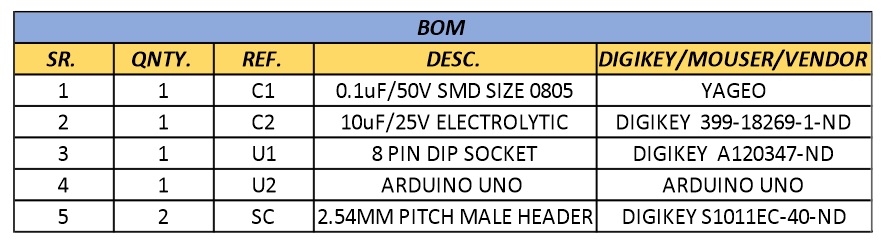

Parts List

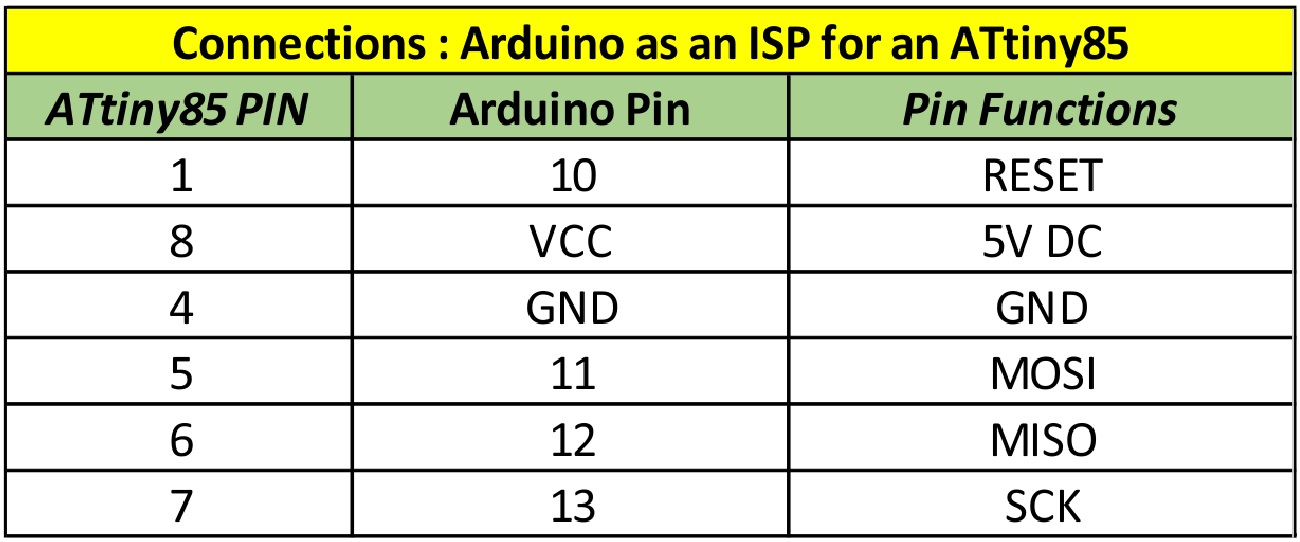

Connection

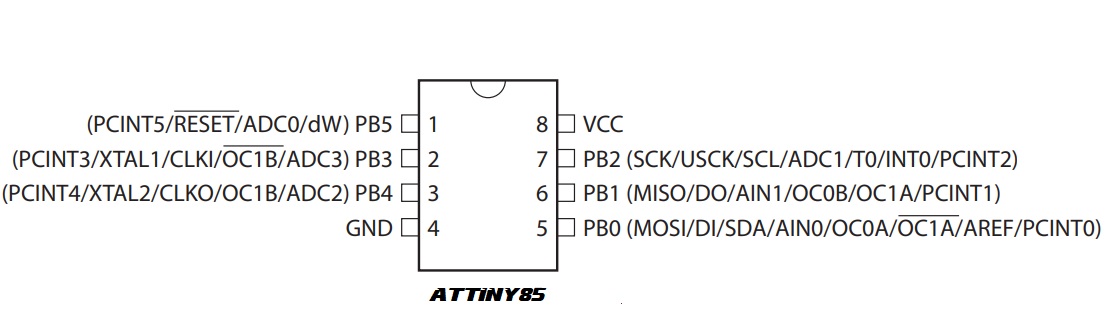

ATtiny85 Pinout

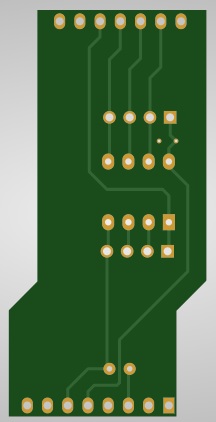

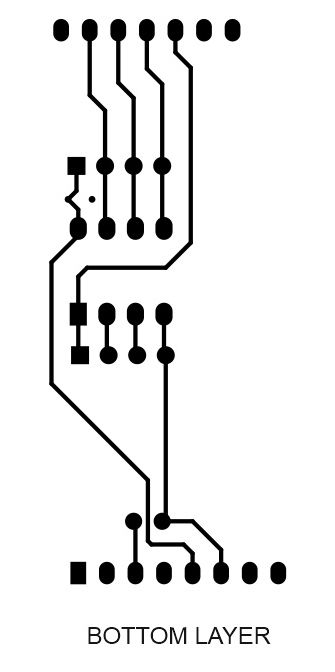

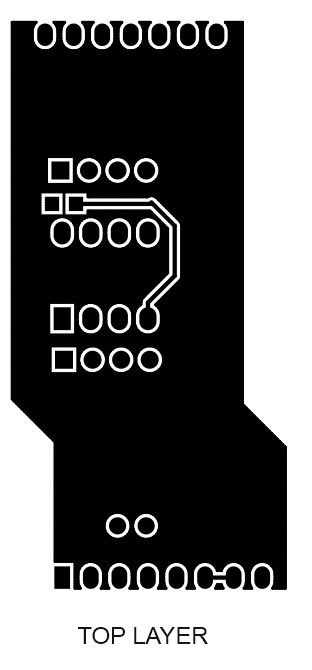

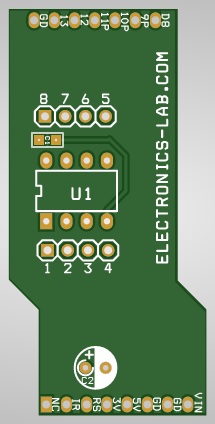

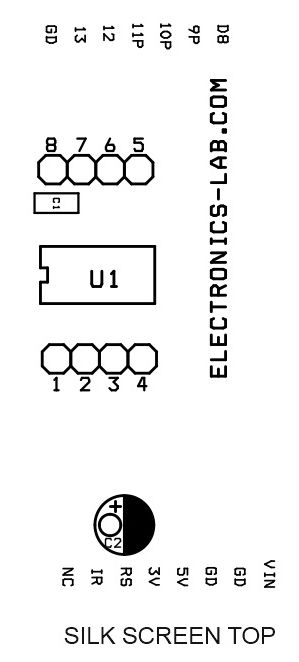

Gerber View

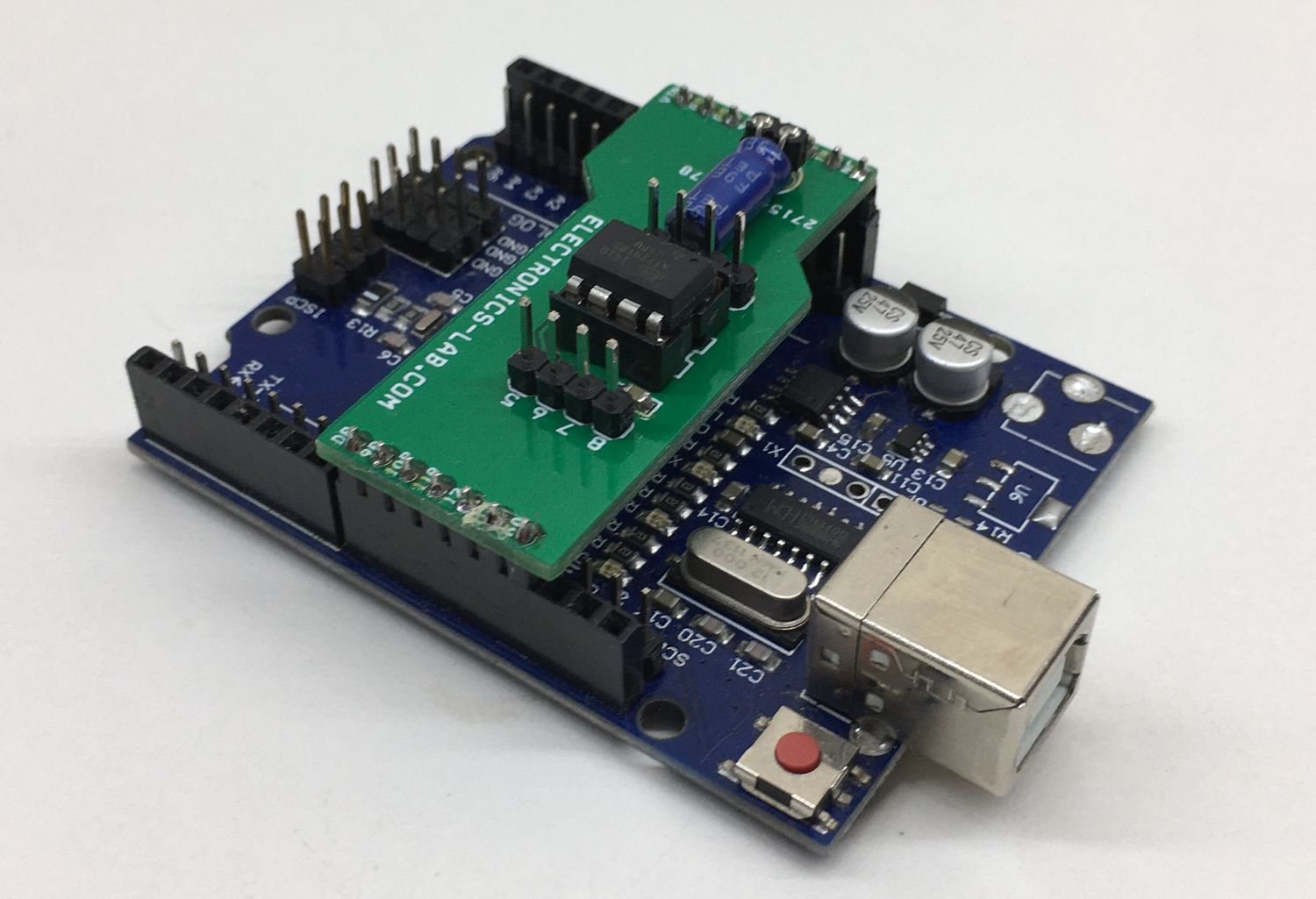

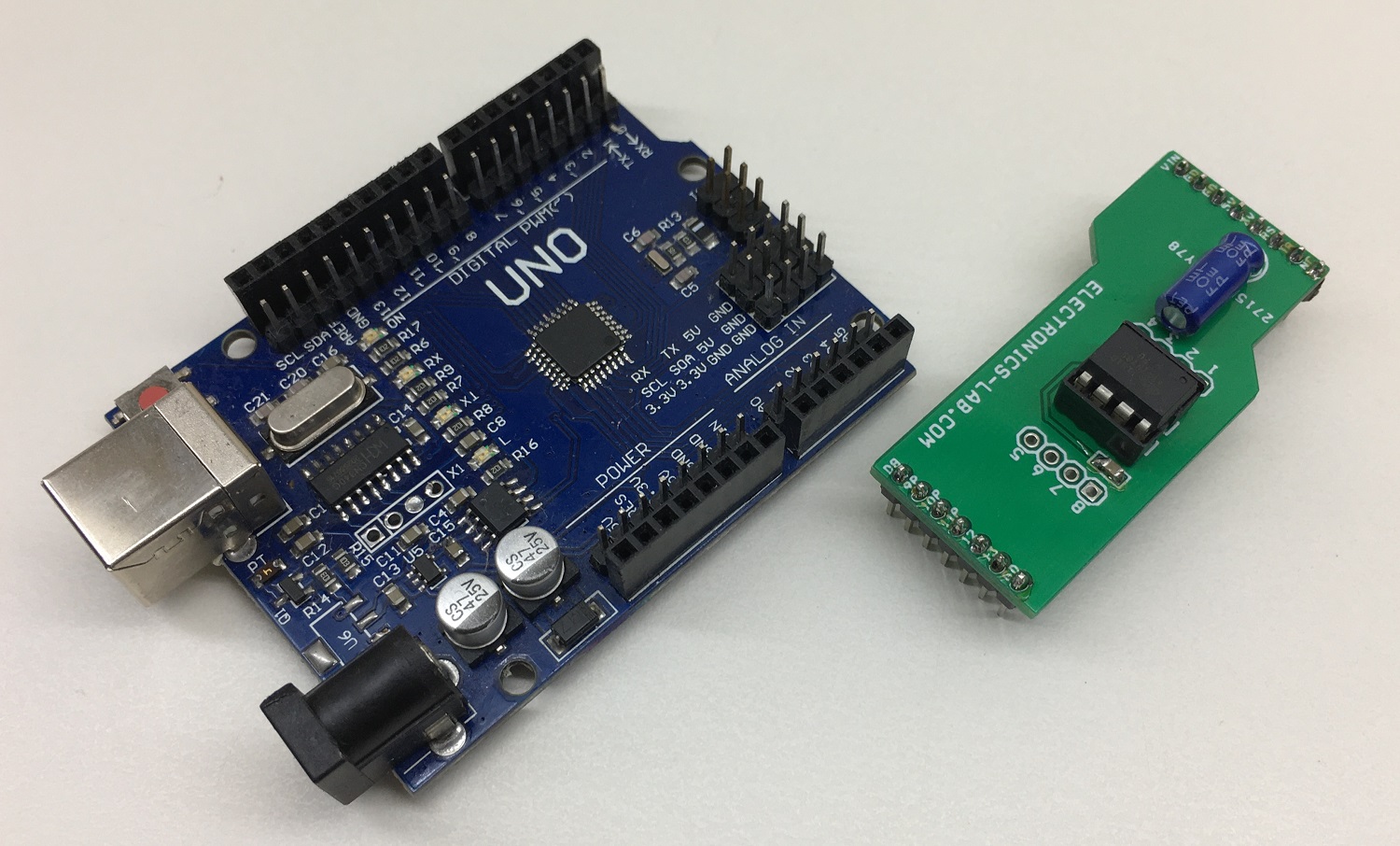

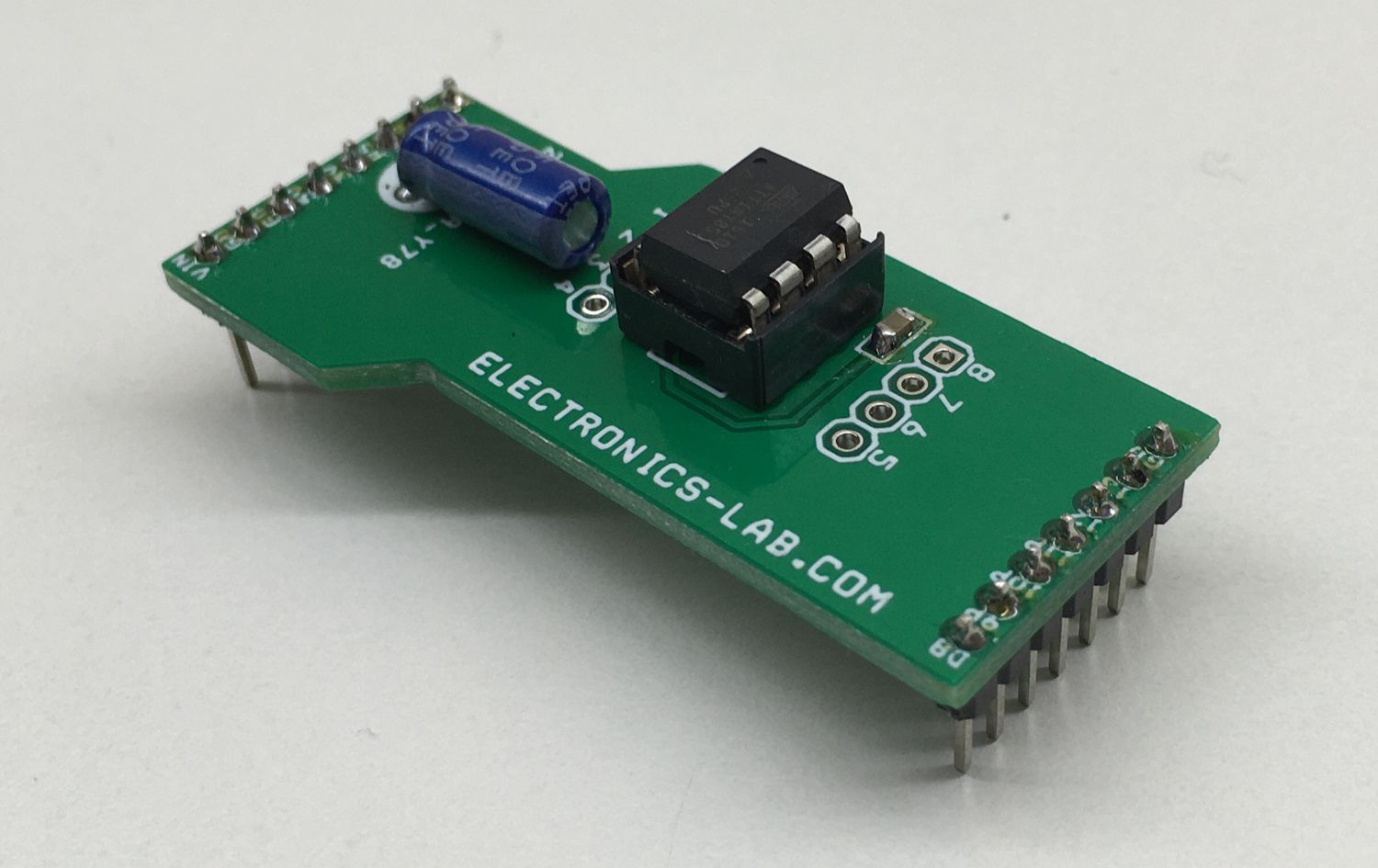

Photos
