DC-HV DC Converter – 200V @ 20mA Output with 12V DC Input

  • Rajkumar Sharma
  • 123 Views
  • moderate
  • Tested

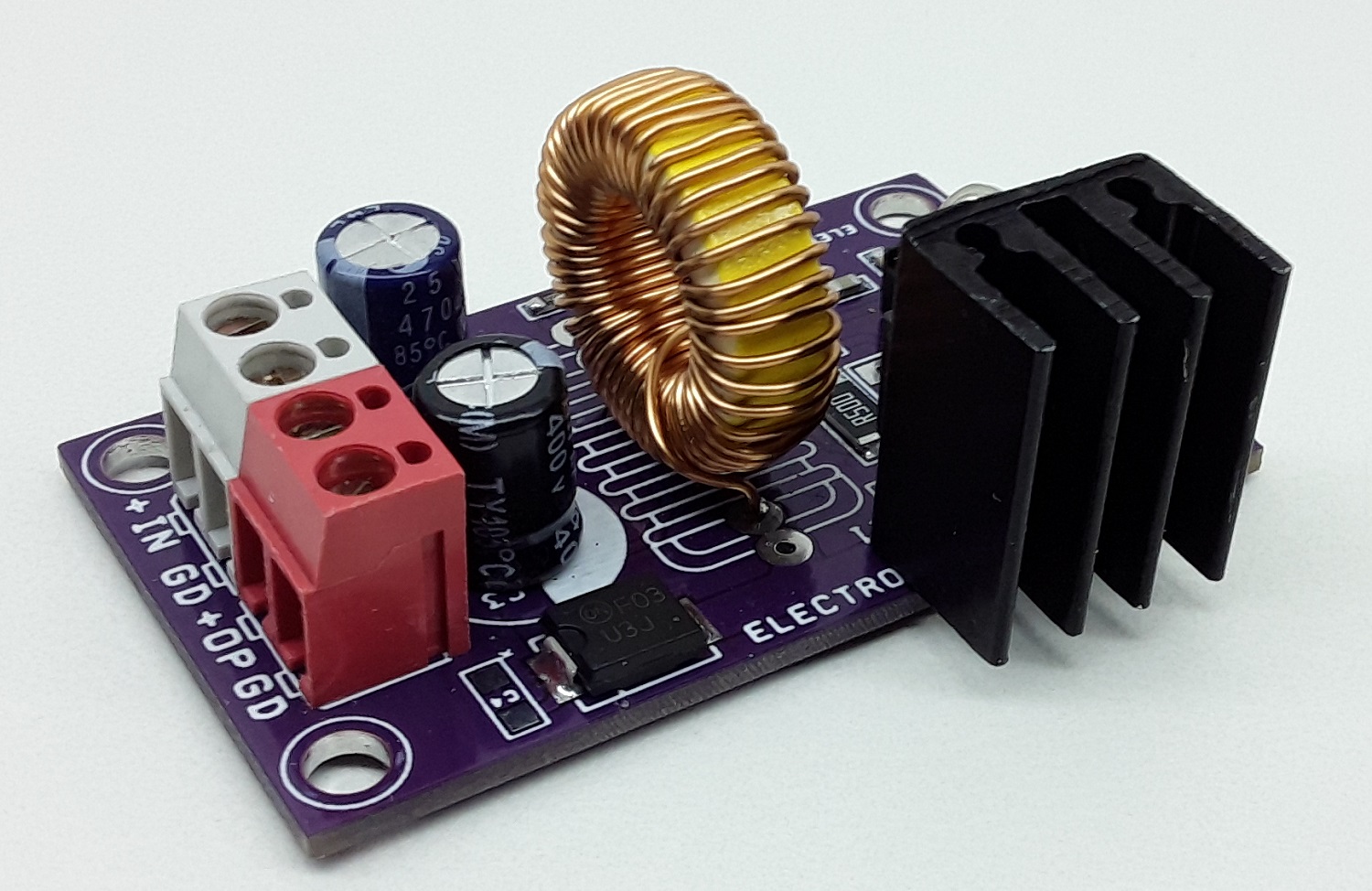

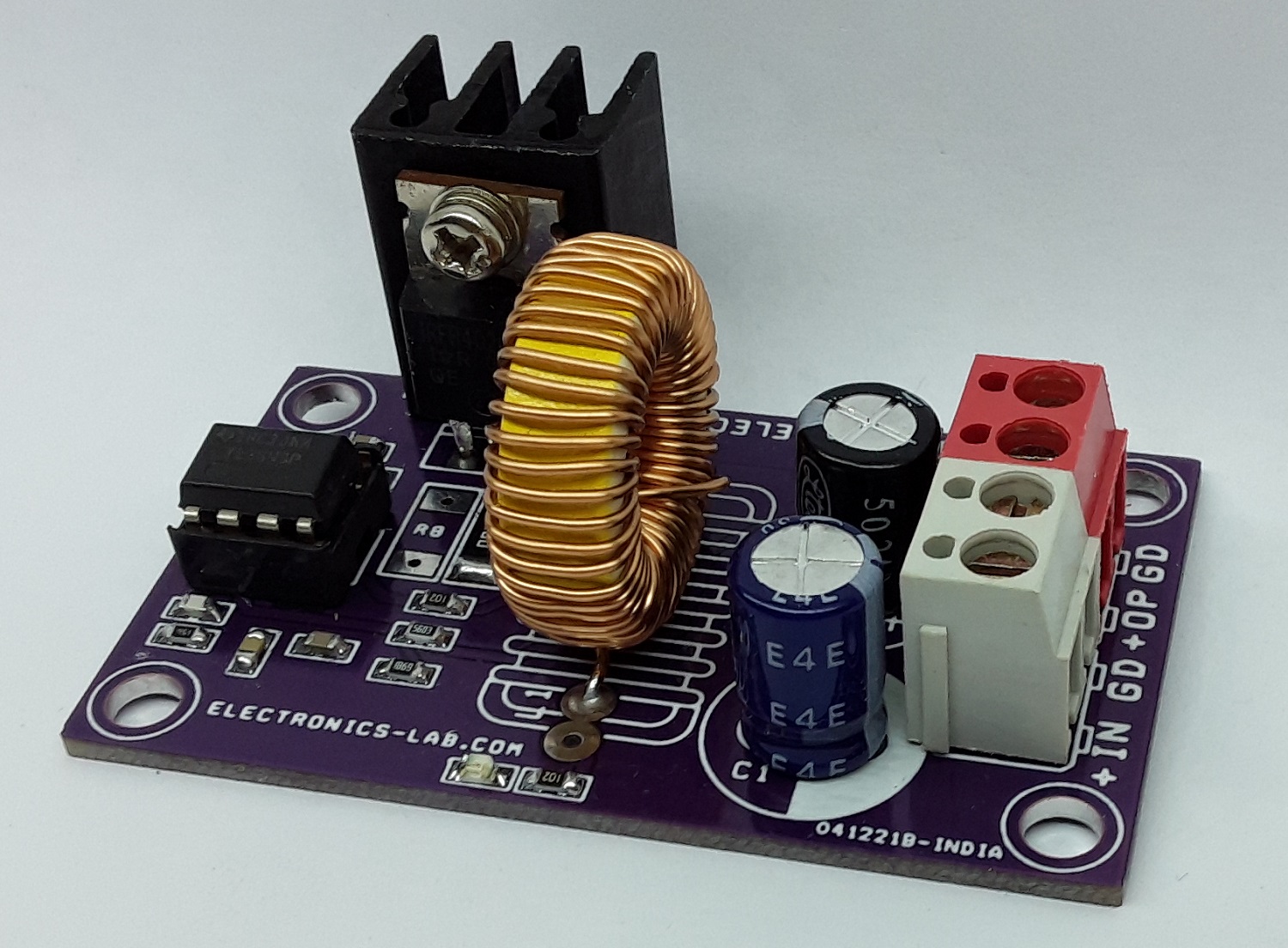

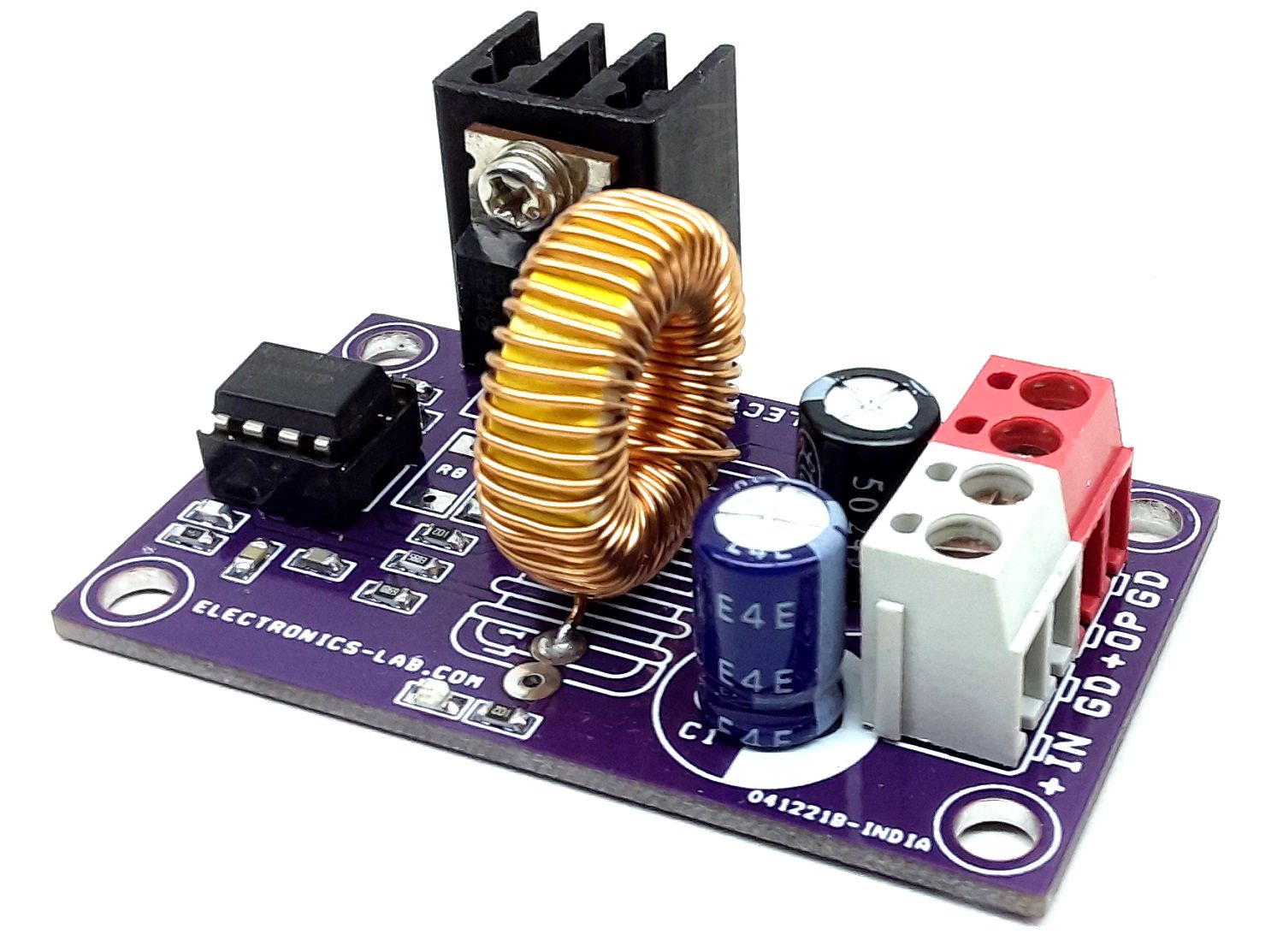

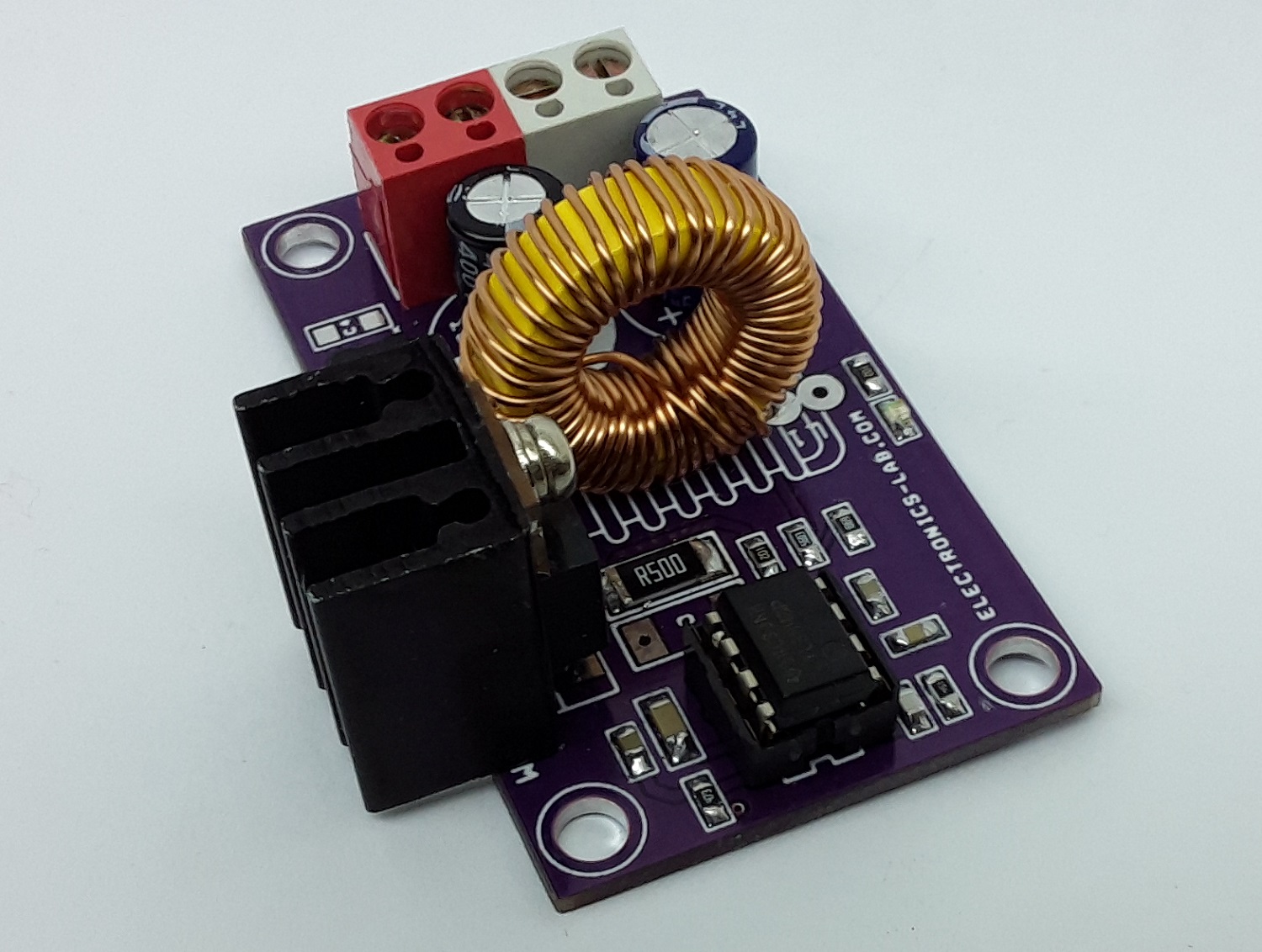

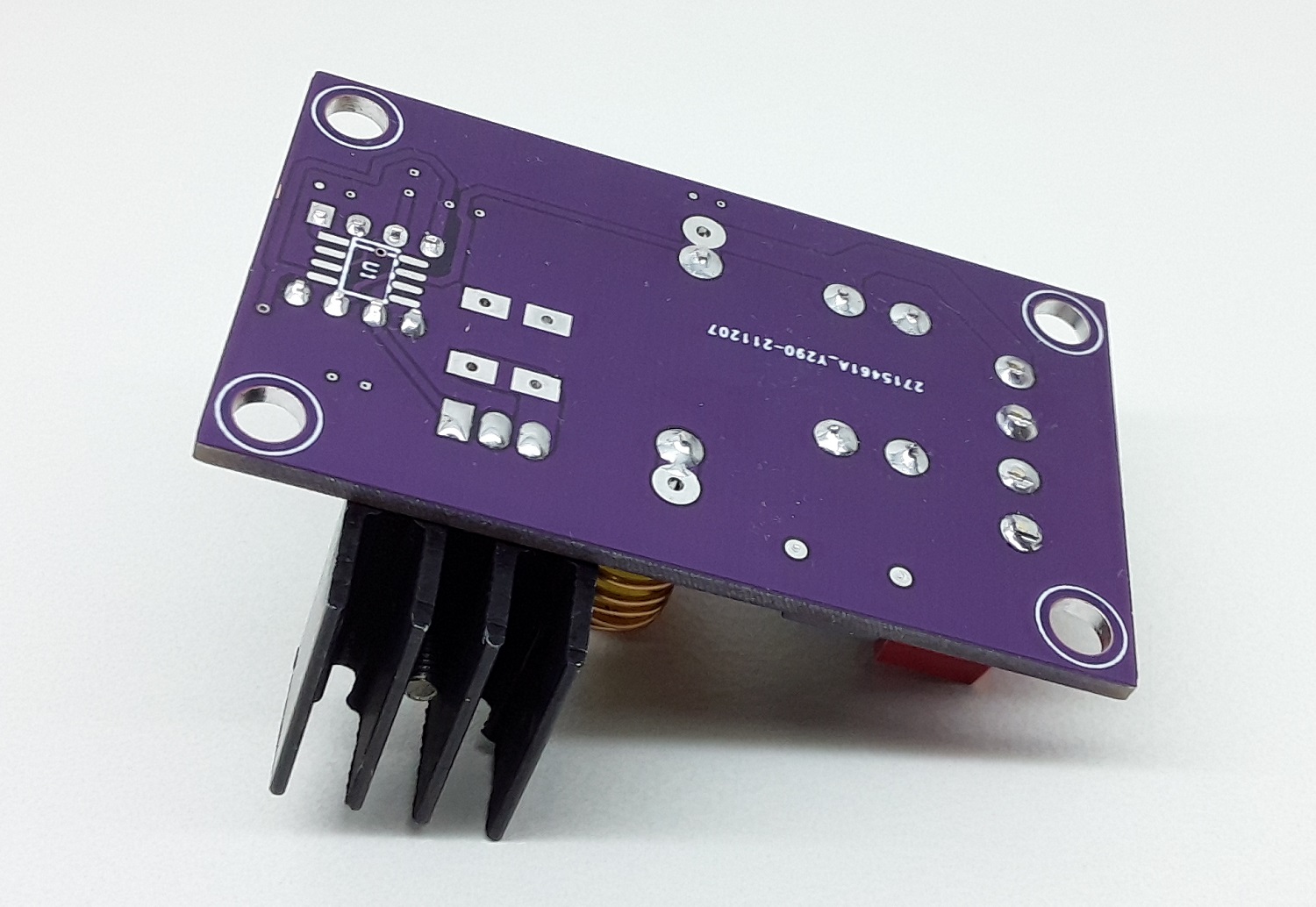

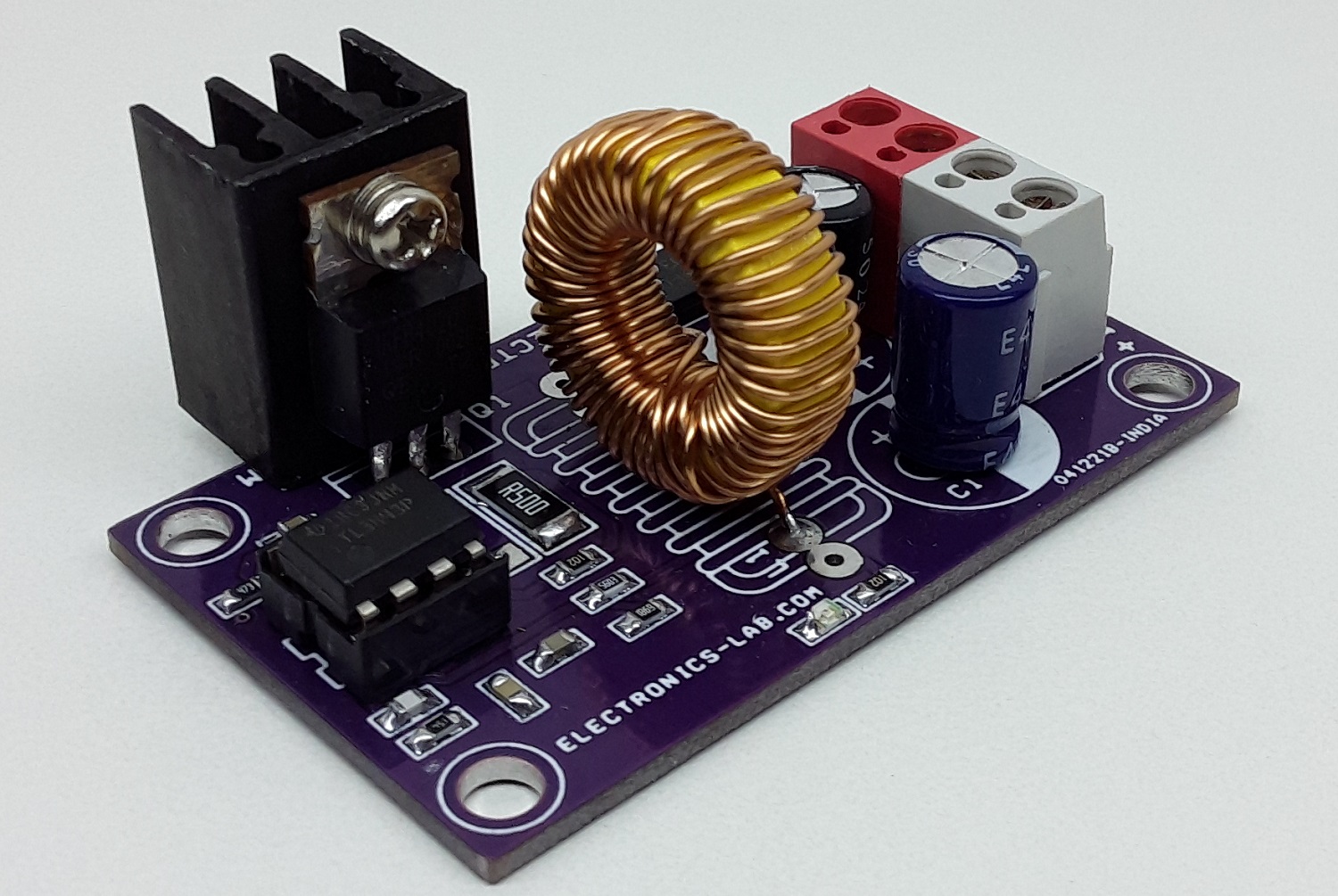

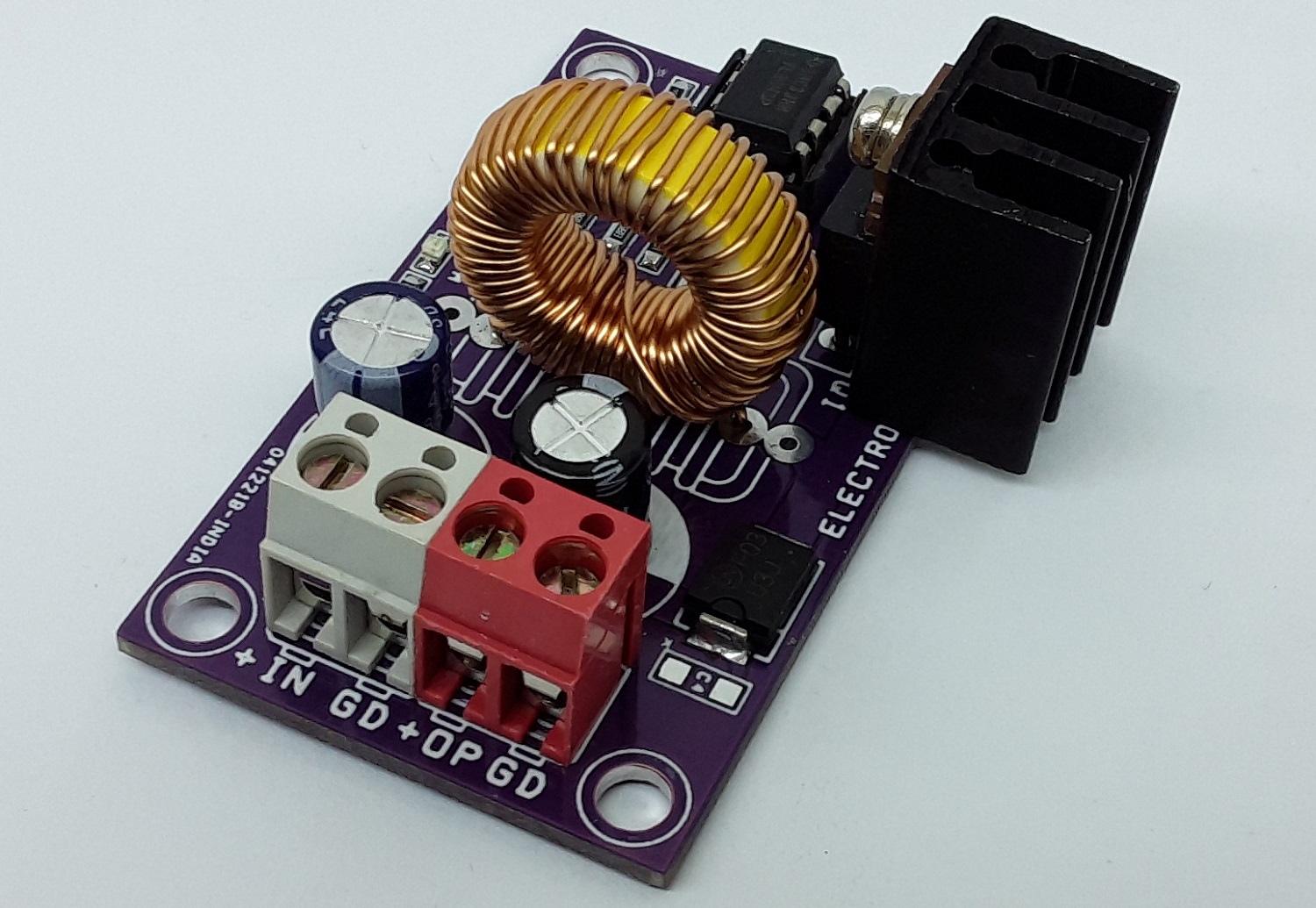

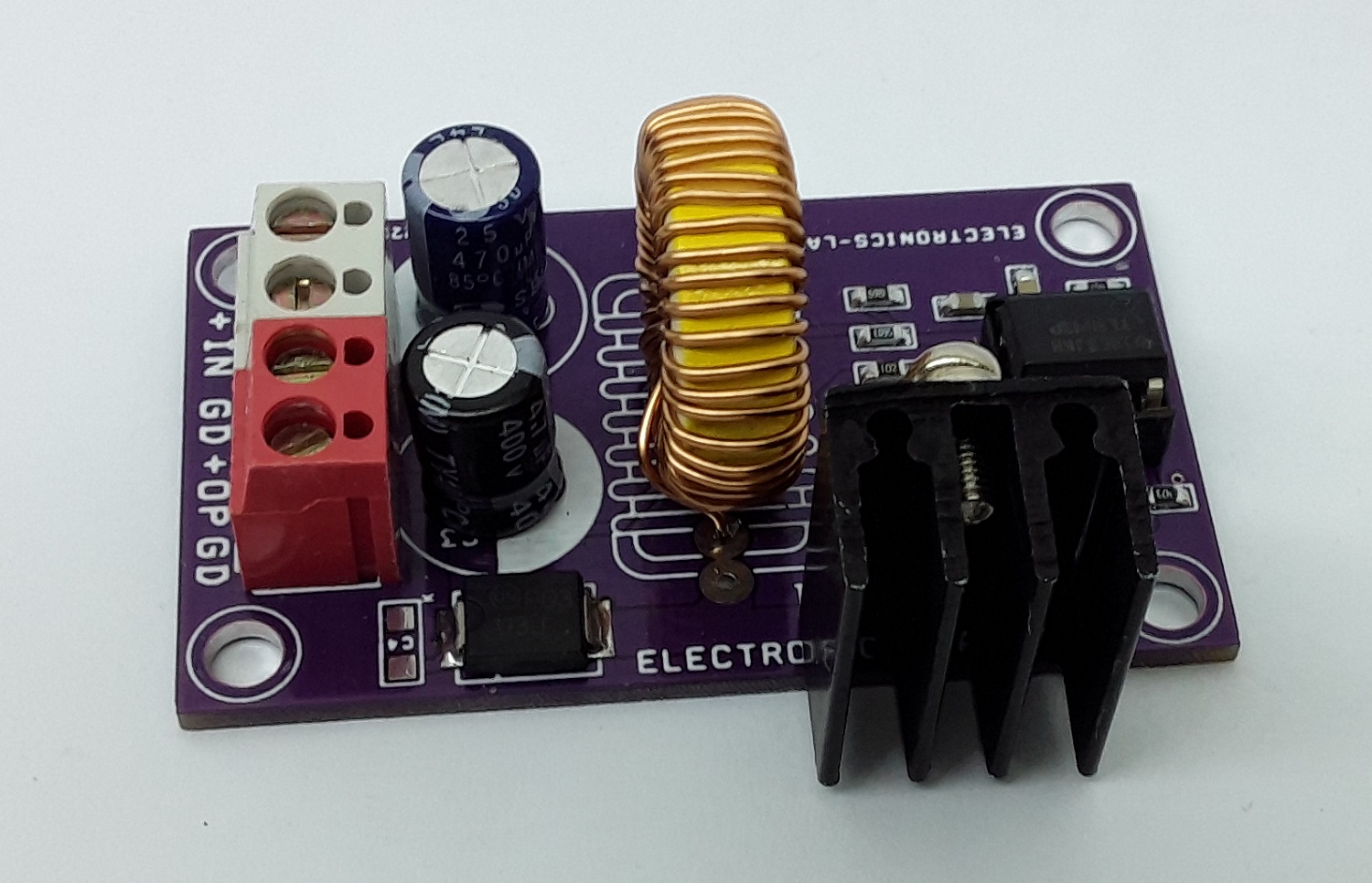

This is a low-cost DC-HV DC converter built using TL3843 Low-Power Current-Mode PWM Controller from TI. Screw terminal connectors are provided for input and output, onboard LED D1 indicates the input supply. The project provides 200V DC @ 20mA output from 12V DC supply input.

Note: Output of this project is 150V @ 50mA DC to 200V @ 20mA DC, this project also can provide lower voltage outputs, read TL3843 data sheet for configuration.
HIGH VOLTAGE: Dangerous voltage exists until power light is off. Wait at least 1 minute after input power is disconnected before touching the board.

Features

  • Operating Power Supply 12V DC @ 1A (Range 10V to 15V DC)
  • Output 150V DC @ 50mA to 200V DC @ 20mA
  • Operating Frequency 40Khz
  • Over Current Protection
  • D1 Power LED
  • Screw Terminal Connectors for Input and Output
  • PCB Dimensions 61.28 x 36.04 mm

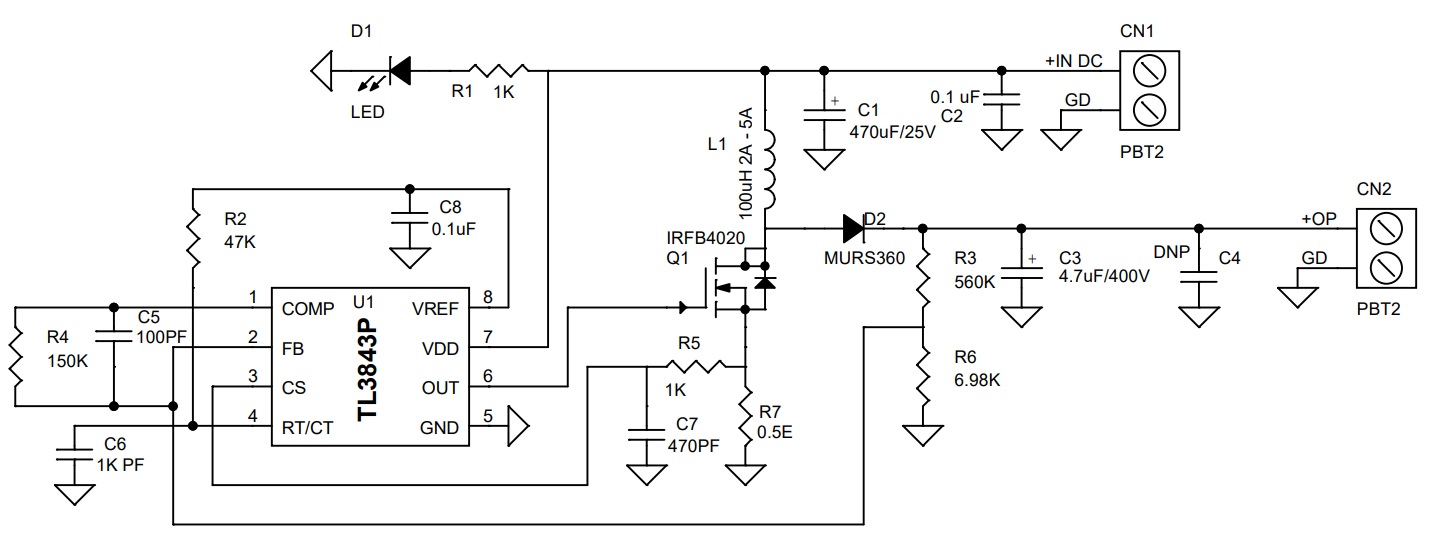

Schematic

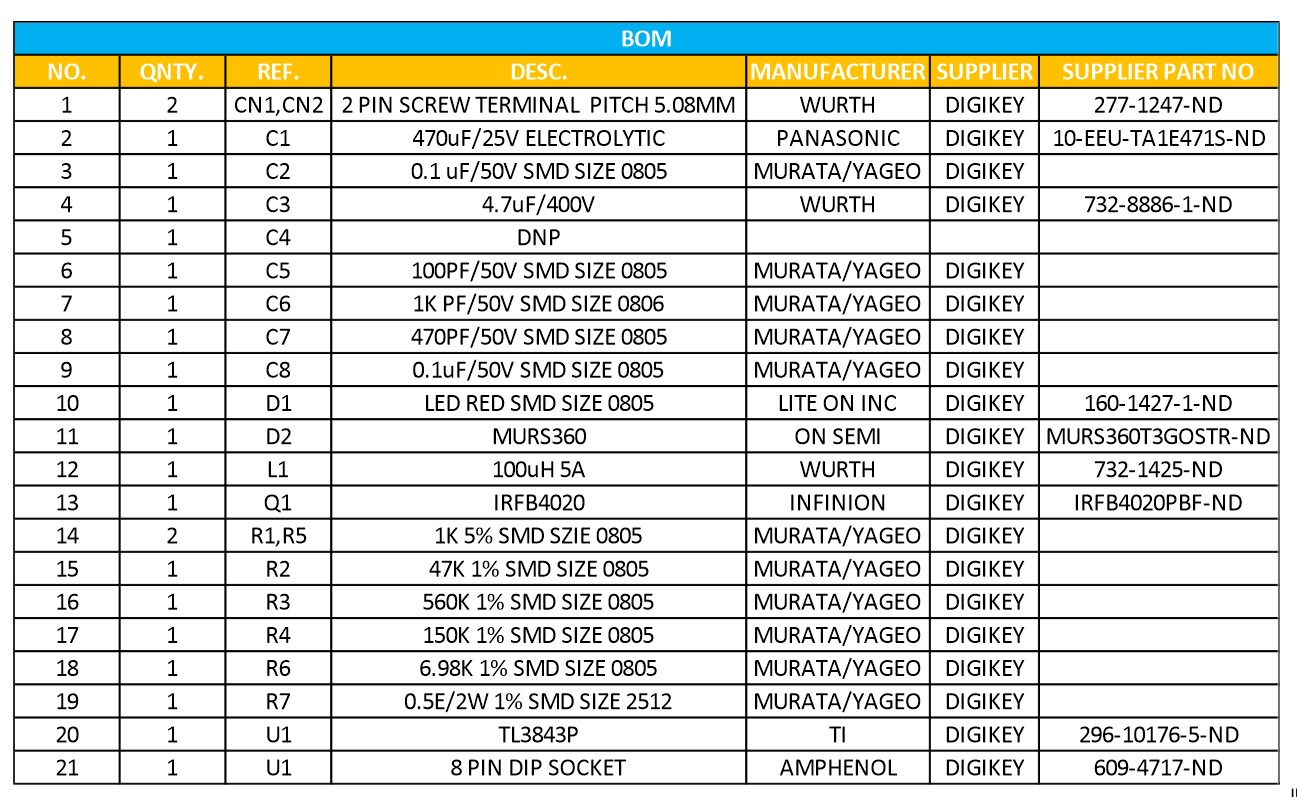

Parts List

NO.QNTY.REF.DESC.MANUFACTURERSUPPLIERPART NO
12CN1,CN22 PIN SCREW TERMINAL PITCH 5.08MMWURTHDIGIKEY277-1247-ND
21C1470uF/25V ELECTROLYTICPANASONICDIGIKEY10-EEU-TA1E471S-ND
31C20.1 uF/50V SMD SIZE 0805MURATA/YAGEODIGIKEY
41C34.7uF/400VWURTHDIGIKEY732-8886-1-ND
51C4DNP
61C5100PF/50V SMD SIZE 0805MURATA/YAGEODIGIKEY
71C61K PF/50V SMD SIZE 0806MURATA/YAGEODIGIKEY
81C7470PF/50V SMD SIZE 0805MURATA/YAGEODIGIKEY
91C80.1uF/50V SMD SIZE 0805MURATA/YAGEODIGIKEY
101D1LED RED SMD SIZE 0805LITE ON INCDIGIKEY160-1427-1-ND
111D2MURS360ON SEMIDIGIKEYMURS360T3GOSTR-ND
121L1100uH 5AWURTHDIGIKEY732-1425-ND
131Q1IRFB4020INFINIONDIGIKEYIRFB4020PBF-ND
142R1,R51K 5% SMD SZIE 0805MURATA/YAGEODIGIKEY
151R247K 1% SMD SIZE 0805MURATA/YAGEODIGIKEY
161R3560K 1% SMD SIZE 0805MURATA/YAGEODIGIKEY
171R4150K 1% SMD SIZE 0805MURATA/YAGEODIGIKEY
181R66.98K 1% SMD SIZE 0805MURATA/YAGEODIGIKEY
191R70.5E/2W 1% SMD SIZE 2512MURATA/YAGEODIGIKEY
201U1TL3843PTIDIGIKEY296-10176-5-ND
211U18 PIN DIP SOCKETAMPHENOLDIGIKEY609-4717-ND

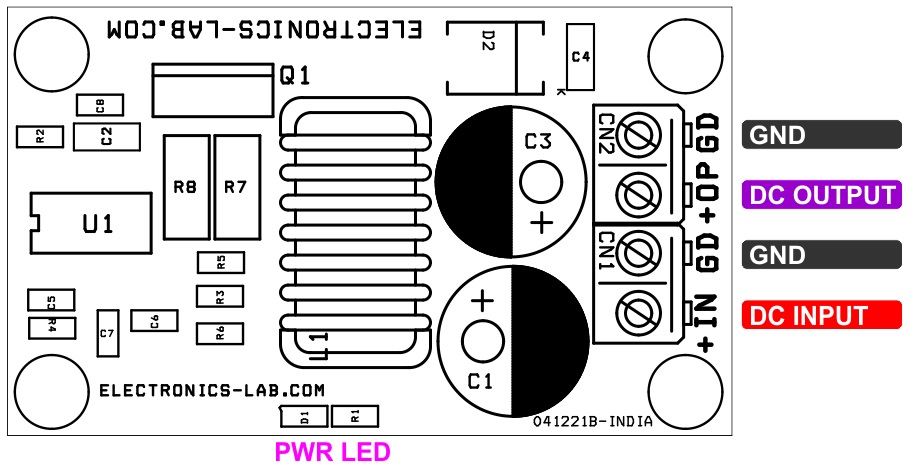

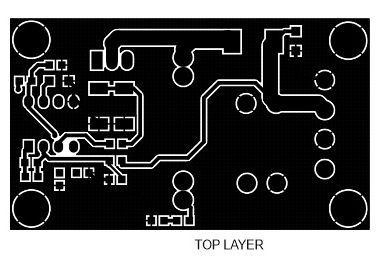

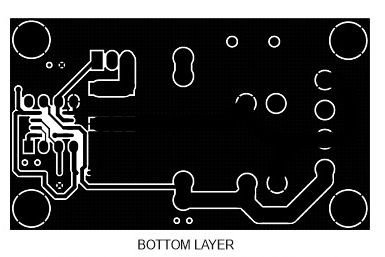

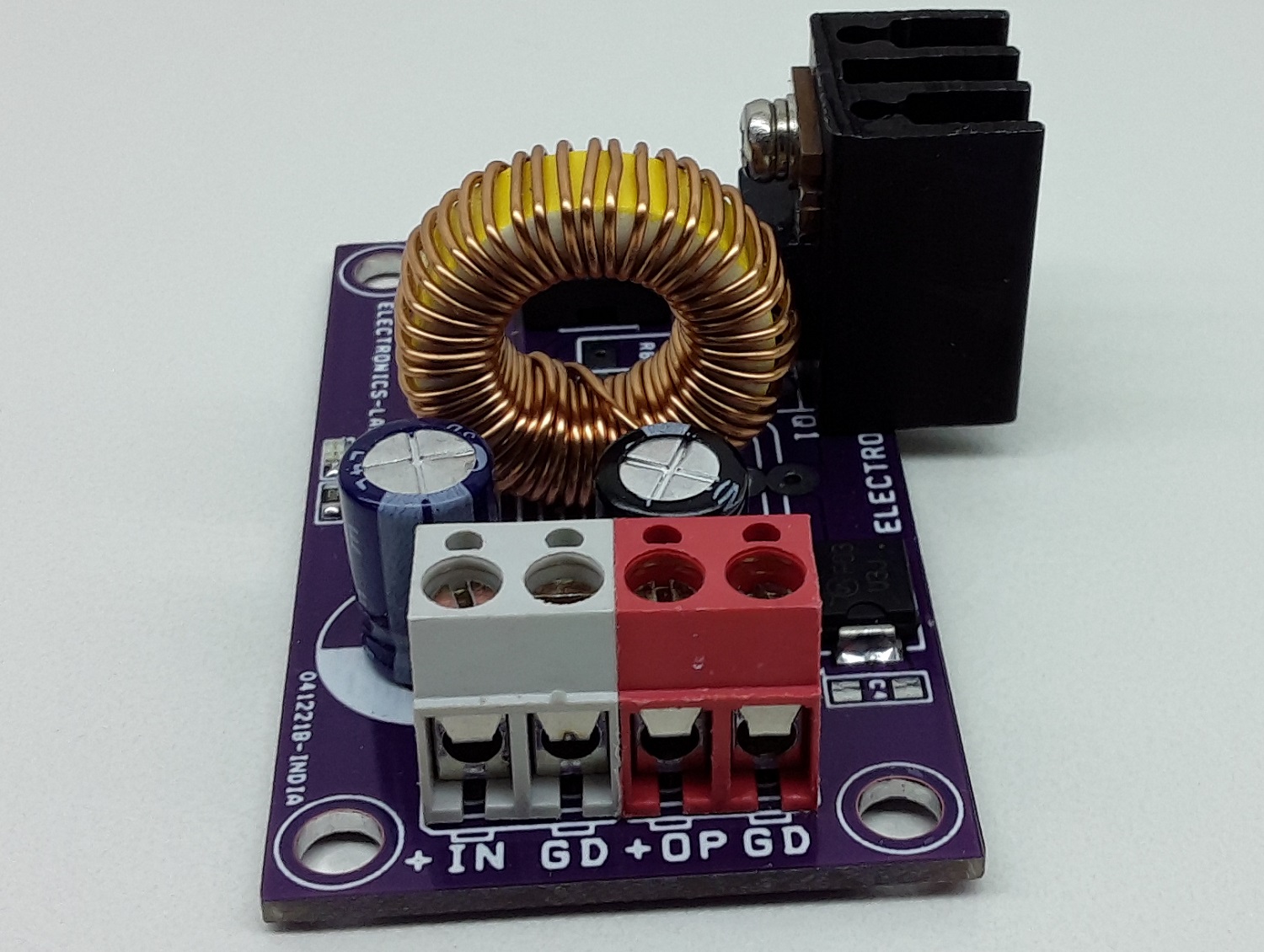

Connections
