Humidity Meter Using OLED Display – Arduino Compatible

  • Rajkumar Sharma
  • 601
    Views
  • moderate
  • Tested

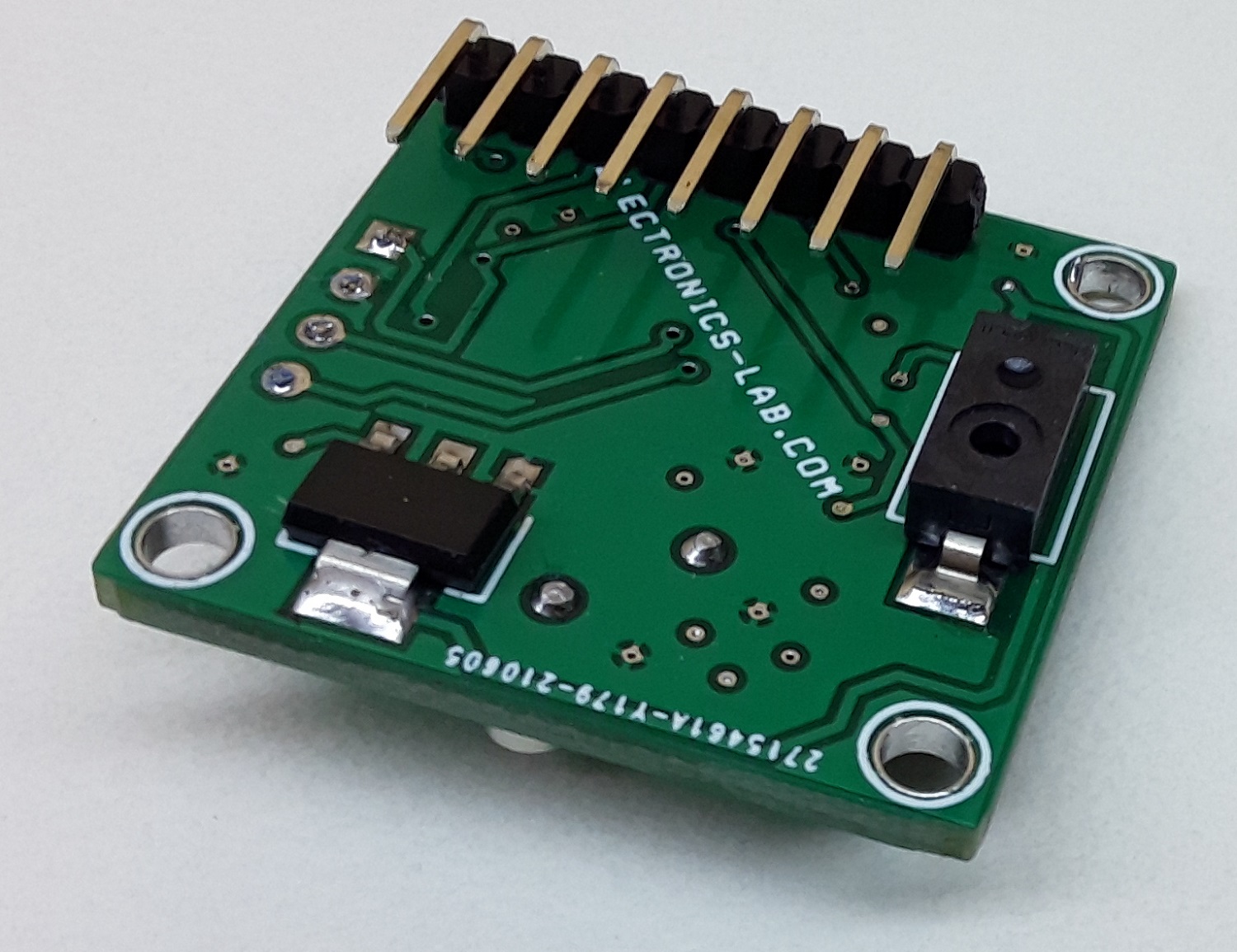

This is an easy to build, very compact, and low profile Arduino compatible platform to build a humidity meter/Gauge using a 0.96Inch OLED display. The project consists of Atmega328 microcontroller, 0.96Inch OLED display, 3.3V regulator, and HIH5030 analog humidity sensor from Honeywell. The HIH5030 sensor provides an analog voltage output, the analog voltage is near linear voltage output vs %RH, the sensor output is connected to A0 (Arduino-ADC pin 0) of the ATmega328 microcontroller. The sensor output is 0.25V to 2.5V vs 0 to 100% RH. Connector CN2 is provided for boot-loader flashing and Arduino programming. Use Pin 4 GND and Pin5 VCC to power the project.

HIH5030 Humidity Sensor

The HIH5030 Low Voltage Humidity Sensors operate down to 2.7 Vdc, often ideal in battery-powered systems where the supply is a nominal 3 Vdc. The HIH5030 complements the existing line of 5 Vdc SMD (Surface Mount Device) humidity sensors. The HIH-5030 Humidity Sensors are designed specifically for high volume OEM (Original Equipment Manufacturer) users. Direct input to a controller or other device is made possible by this sensor near linear voltage output. With a typical current draw of only 200uA, the HIH-5030 is ideally suited for many low drains, battery-operated systems. Tight sensor interchangeability reduces or eliminates OEM production calibration costs.

Arduino Code

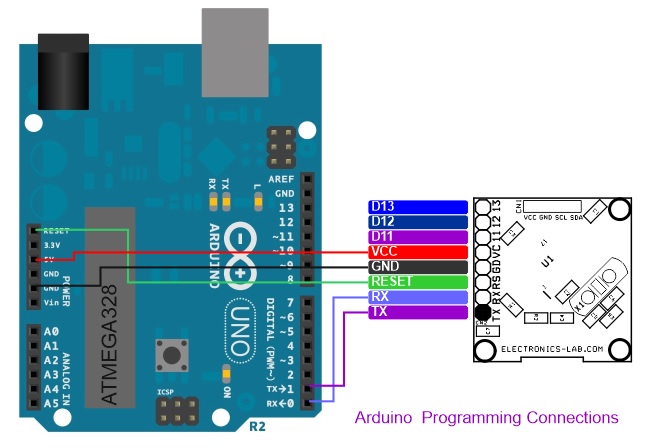

This is Arduino compatible project, a new Atmega328 microcontroller requires flashing the boot-loader and then program the Arduino code. Follow the link below to learn the programming process. Example code is provided as a download to test the project, this code is not accurate required proper calibration and mapping.

From Arduino to a Microcontroller on a Breadboard: https://www.arduino.cc/en/Tutorial/BuiltInExamples/ArduinoToBreadboard

Voltage vs Humidity Diagram

Applications

  • Industrial Air compressors
  • Battery-powered systems
  • Drying equipment HVAC (includes air conditioning, air movement, thermostats, humidifiers, de-humidifiers, humidistats, enthalpy sensing)
  • Office automation equipment
  • Process equipment Refrigeration (includes bulk and transport systems)
  • Telecommunications cabinets
  • Weather stations and meteorology equipment
  • Medical Hospital air compressors
  • Infant incubators
  • Microenvironments
  • Sleep apnea equipment
  • Treadmill stress monitoring equipment

Features

  • Supply 5V DC @ 10mA
  • 0.96″ OLED display
  • Low power humidity sensor
  • Onboard voltage regulator
  • Programming header
  • PCB dimensions: 28.42 x 27.31 mm

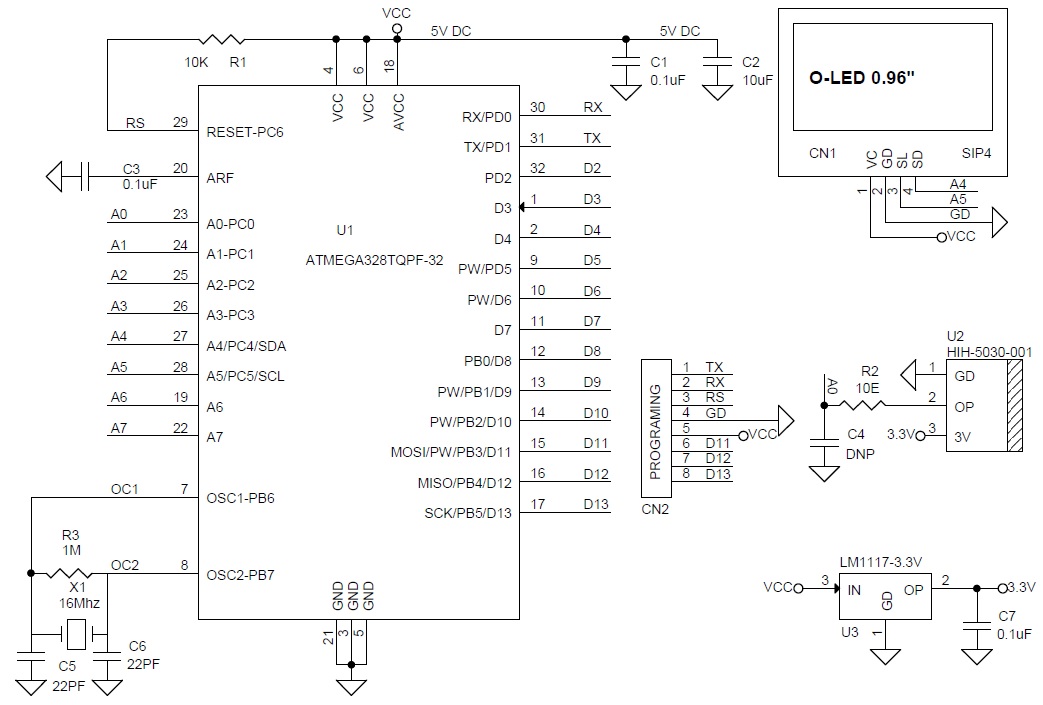

Schematic

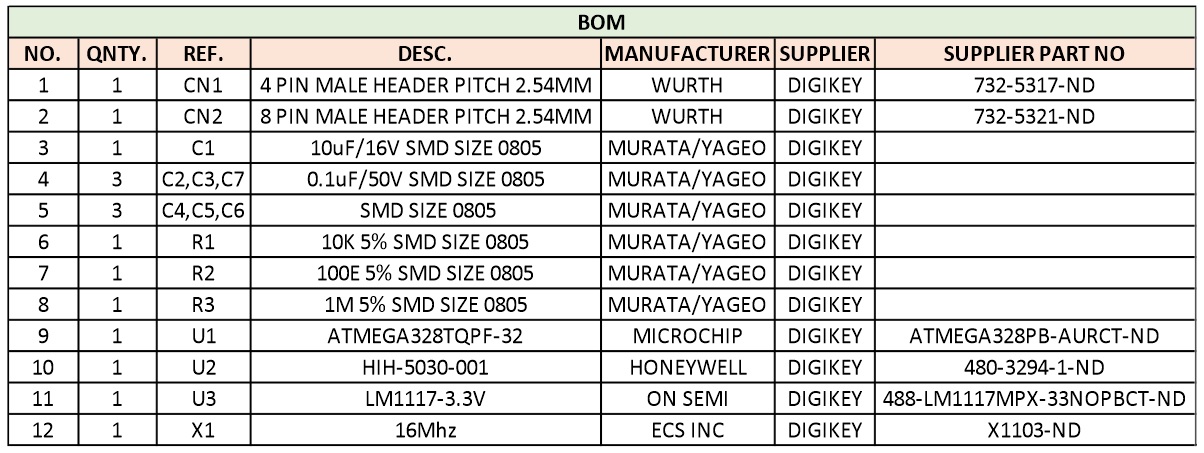

Parts List

NO.QNTY.REF.DESC.MANUFACTURERSUPPLIERSUPPLIER PART NO
11CN14 PIN MALE HEADER PITCH 2.54MMWURTHDIGIKEY732-5317-ND
21CN28 PIN MALE HEADER PITCH 2.54MMWURTHDIGIKEY732-5321-ND
31C110uF/16V SMD SIZE 0805MURATA/YAGEODIGIKEY
43C2,C3,C70.1uF/50V SMD SIZE 0805MURATA/YAGEODIGIKEY
53C4,C5,C6 SMD SIZE 0805MURATA/YAGEODIGIKEY
61R110K 5% SMD SIZE 0805MURATA/YAGEODIGIKEY
71R2100E 5% SMD SIZE 0805MURATA/YAGEODIGIKEY
81R31M 5% SMD SIZE 0805MURATA/YAGEODIGIKEY
91U1ATMEGA328TQPF-32MICROCHIPDIGIKEYATMEGA328PB-AURCT-ND
101U2HIH-5030-001HONEYWELLDIGIKEY480-3294-1-ND
111U3LM1117-3.3VON SEMIDIGIKEY488-LM1117MPX-33NOPBCT-ND
121X116MhzECS INCDIGIKEYX1103-ND

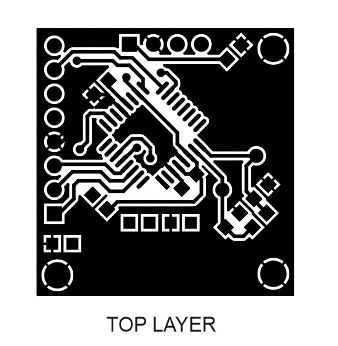

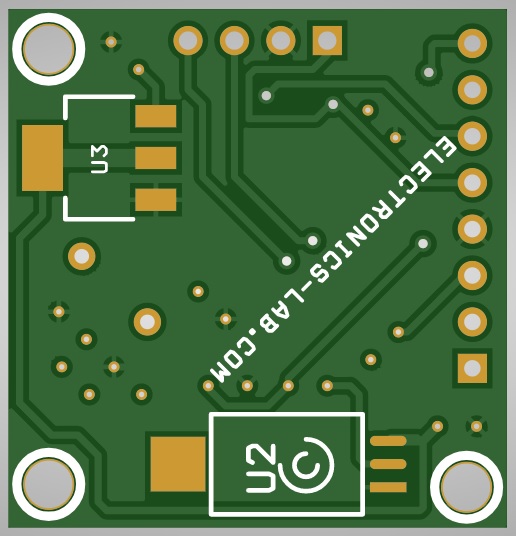

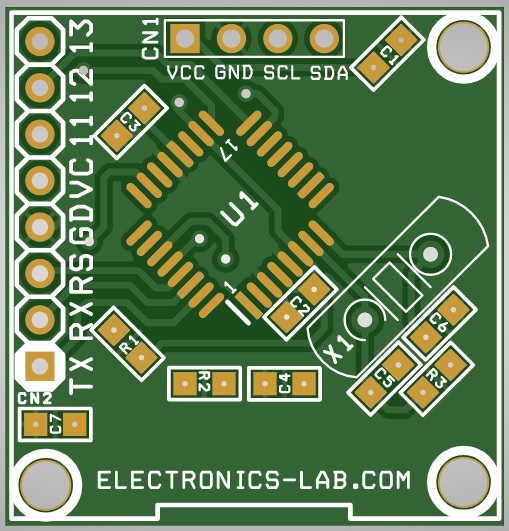

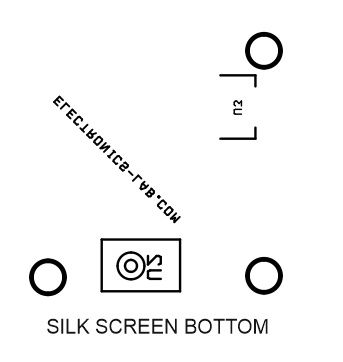

Gerber View

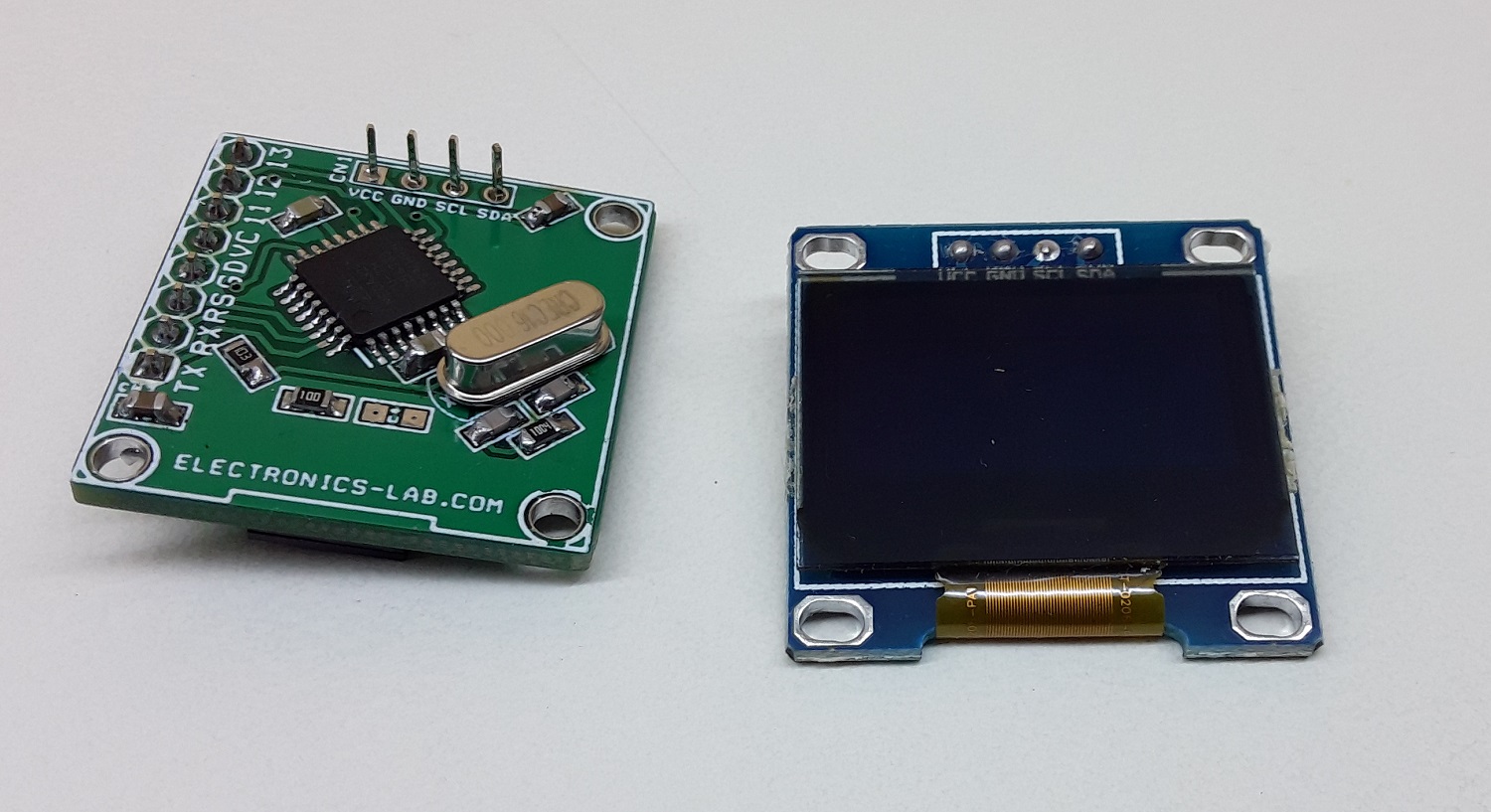

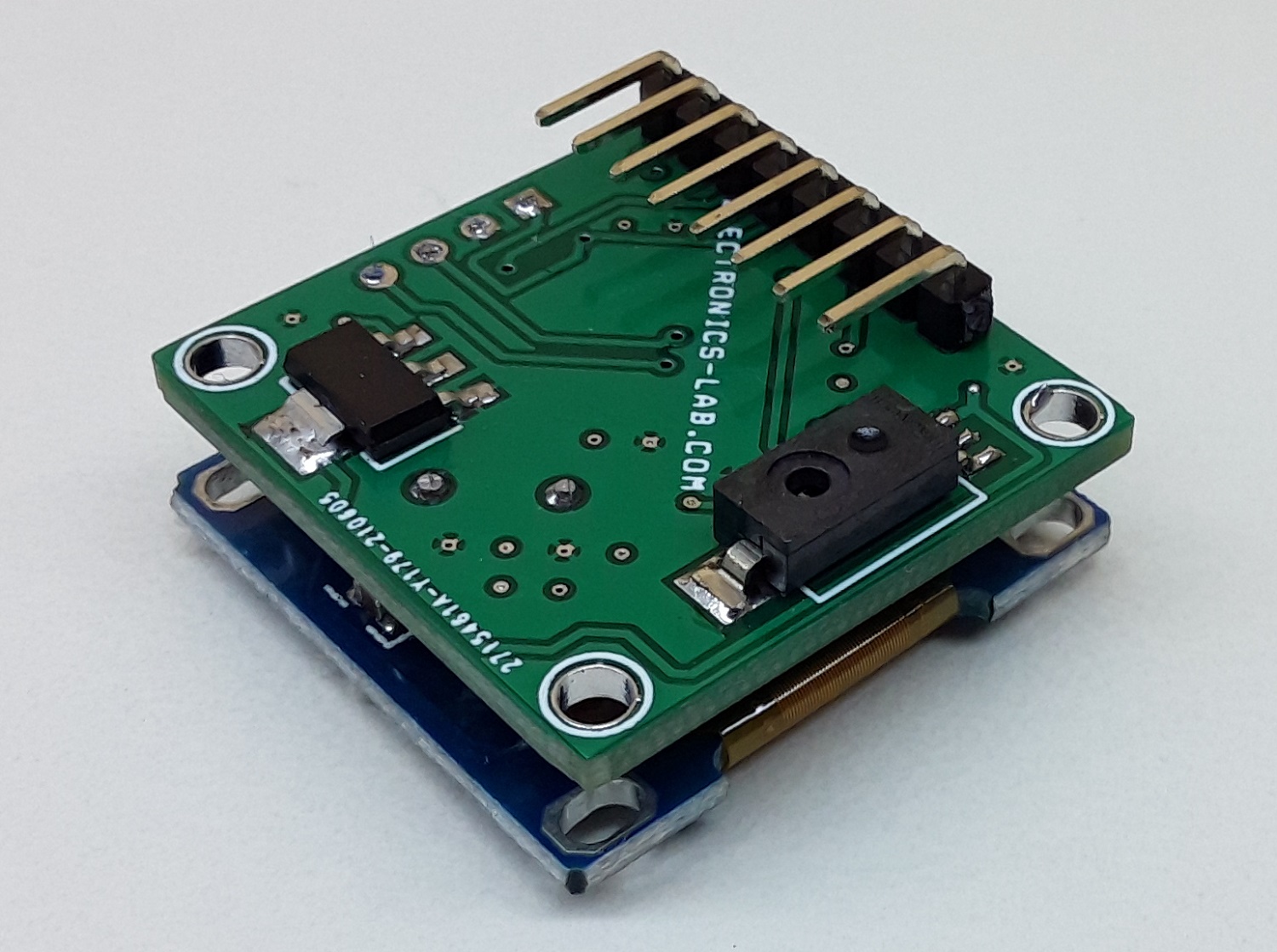

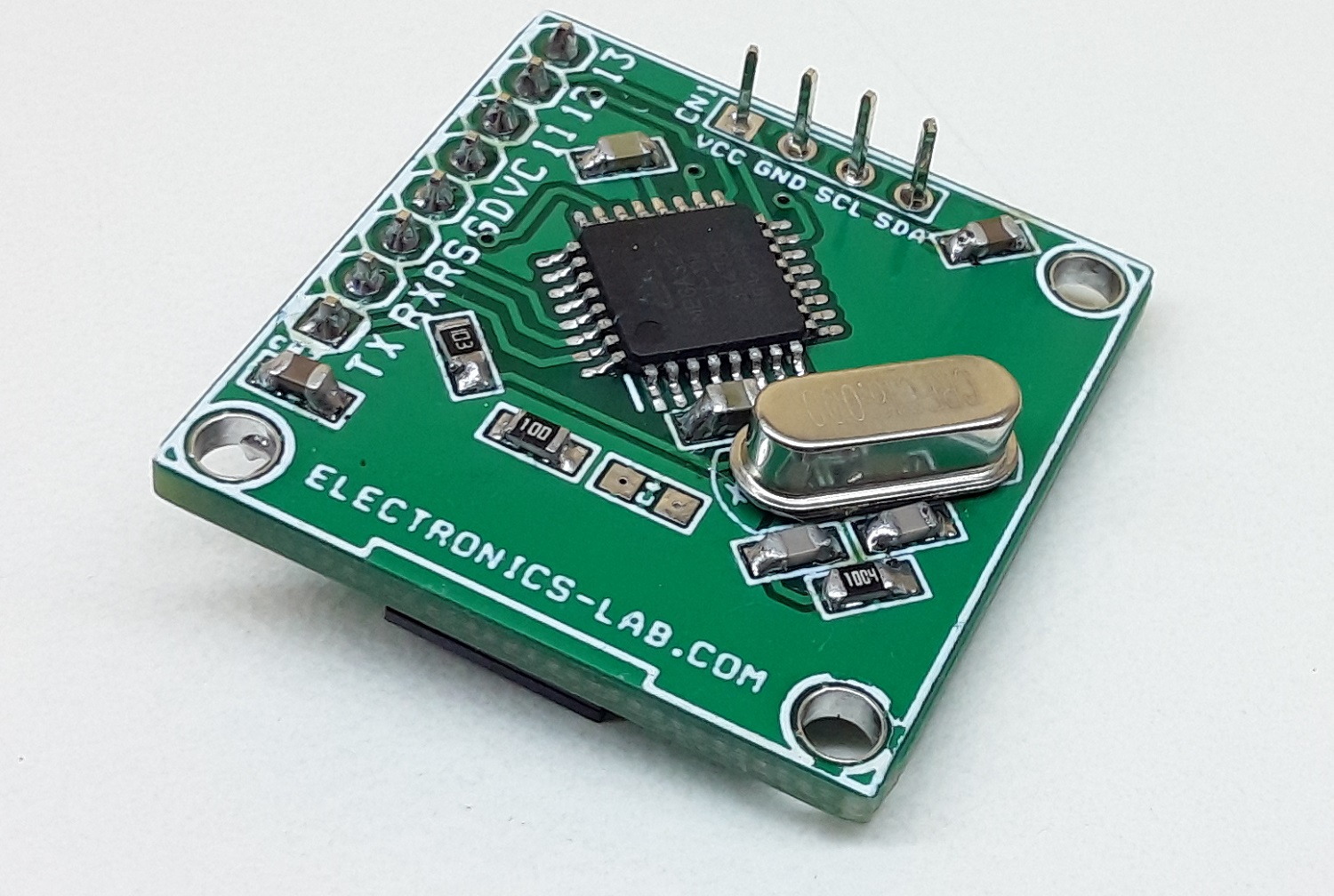

Photos



Video

HIH-5030 Datasheet

honeywell-sensing-hih5030-5031_series-product-shee-1846297

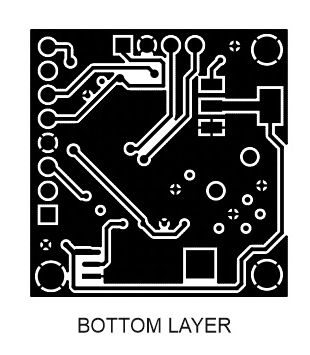

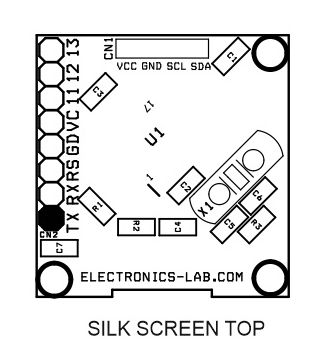

PCB
