Seeed XIAO 1.47-inch IPS Touch Display Packs BLE, IMU and MicroSD

A compact nRF52840 board with a 172 × 320 touchscreen, BLE 5.4, IMU, microphone, MicroSD storage, LiPo support, and physical buttons for portable projects.

Displays IoT RF / Wireless 8 hours ago by Sayantan Nandy

XIAO 1.47-inch IPS Touch Display

Seeed Studio has introduced the XIAO 1.47-inch IPS Touch Display, a compact smart-device development board built around the XIAO nRF52840 Plus. It combines a 1.47-inch 172 × 320 IPS TFT display with capacitive touch, a six-axis IMU, PDM digital microphone, MicroSD card slot, two user buttons, and battery support in a compact form factor.

The board uses Nordic Semiconductor’s nRF52840, a 32-bit ARM Cortex-M4 processor with FPU running at 64 MHz. It provides 256 KB RAM, 1 MB internal Flash, 2 MB onboard Flash, and Bluetooth Low Energy (BLE) 5.4 connectivity. With its combination of display, touch, sensing, audio input, storage, and wireless connectivity, the IPS Touch Display is suitable for portable HMIs, BLE controllers, smart badges, wearable devices, digital pets, and motion-aware gadgets.

We have previously covered several IPS Touch Display modules, including the ESP32 7-inch Display Module, Makerfabs MaTouch ESP32-S3, CrowPanel Advance 5-inch ESP32-P4 HMI Display, and MaTouch ESP32-S3 MaUWB Development Board. Feel free to check out these products if you are interested in exploring more touch-enabled display solutions.

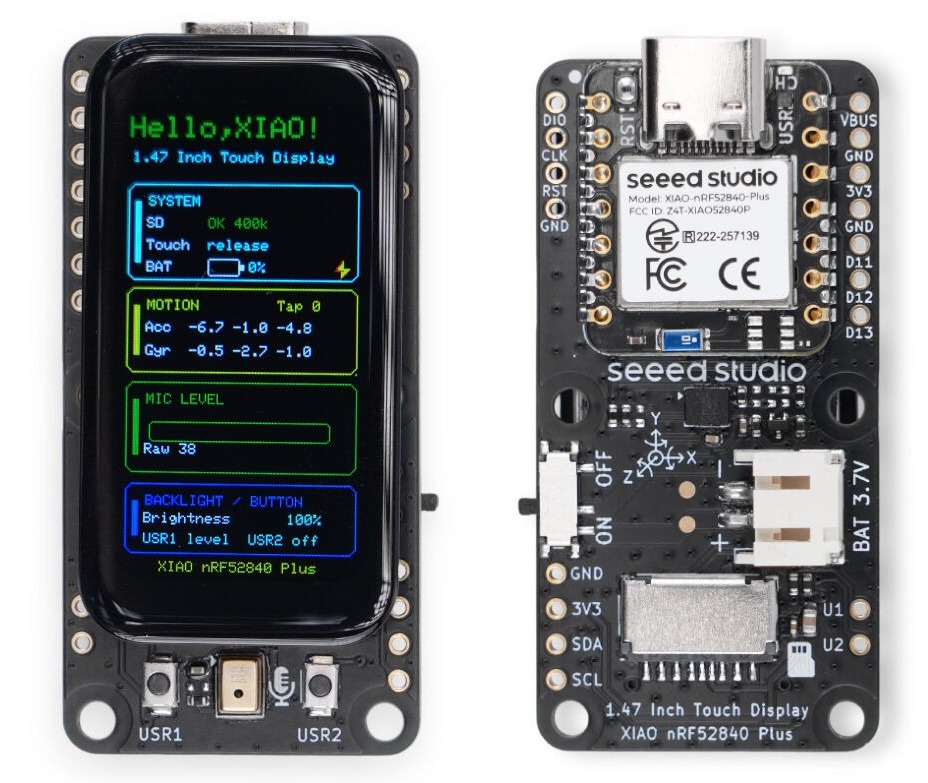

XIAO 1.47-inch touch display top and bottom side

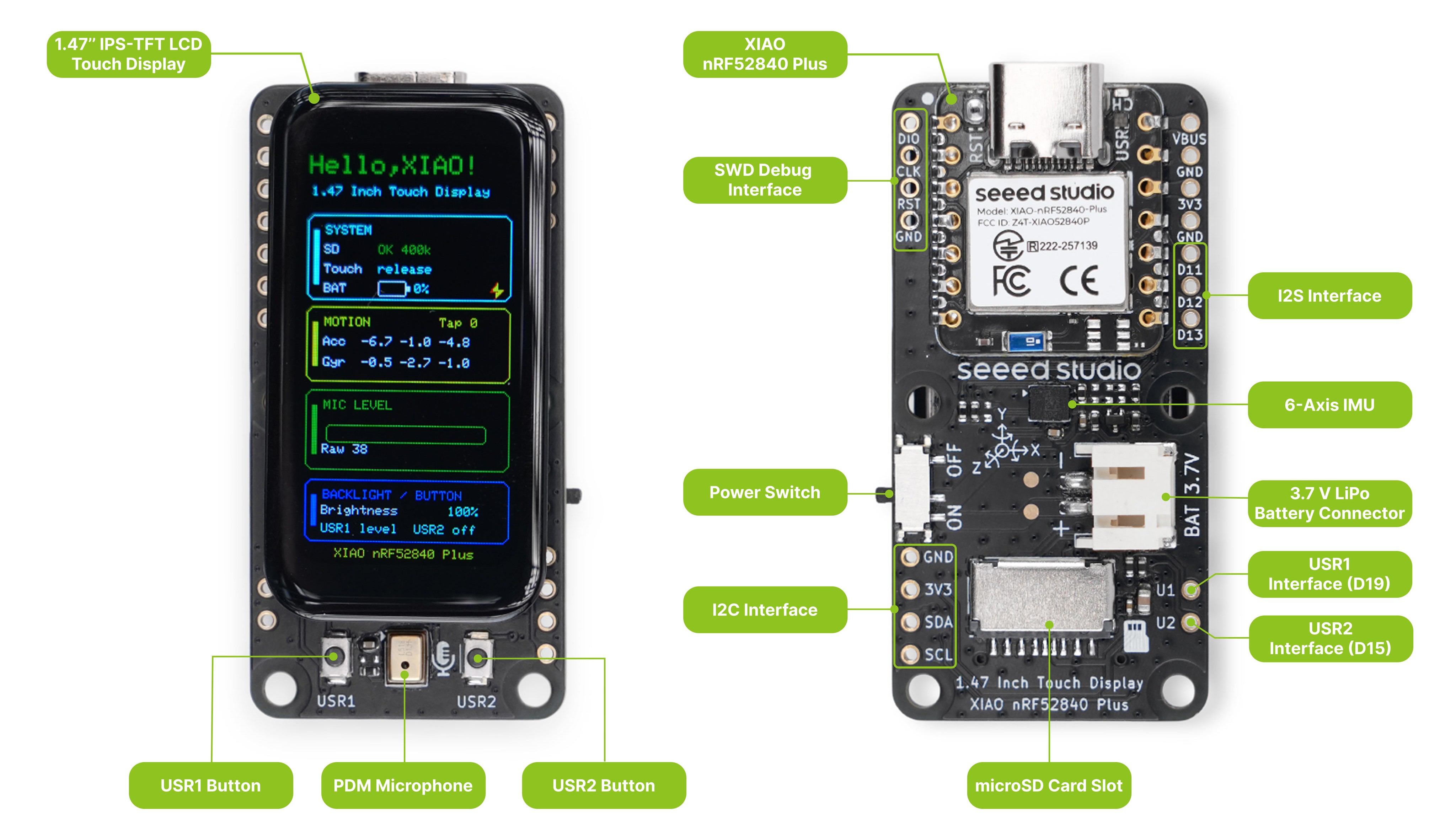

XIAO 1.47-inch IPS Touch Display Specifications:

1.47-inch Touch Display: Features a 172 × 320 IPS TFT LCD with capacitive touch support for interactive menus, controls, dashboards, and compact HMI applications.
XIAO nRF52840 Plus: Integrates Nordic Semiconductor’s nRF52840 32-bit ARM Cortex-M4 processor with FPU, running at 64 MHz, with 256 KB RAM, 1 MB internal Flash, and 2 MB onboard Flash.
Bluetooth Low Energy 5.4: Provides wireless connectivity for BLE controllers, wearable devices, smart badges, and portable IoT applications.
Six-Axis IMU: Includes an LSM6DS3 IMU for detecting motion, orientation, shaking, and other movement-based interactions.
PDM Digital Microphone: Enables sound detection, audio recording, and voice-based interaction in portable projects.
MicroSD Card Storage: Provides local storage for images, audio recordings, sensor data, and other files.
LiPo Battery Support: Includes a 2-pin JST 2.0 connector for a 3.7 V LiPo battery, with battery status and voltage monitoring.
User Buttons: Provides two physical buttons for device controls, menu navigation, and user input.
Expansion Interfaces: Offers I2C, I2S, SPI, SWD, and user-button interfaces for connecting peripherals and debugging.

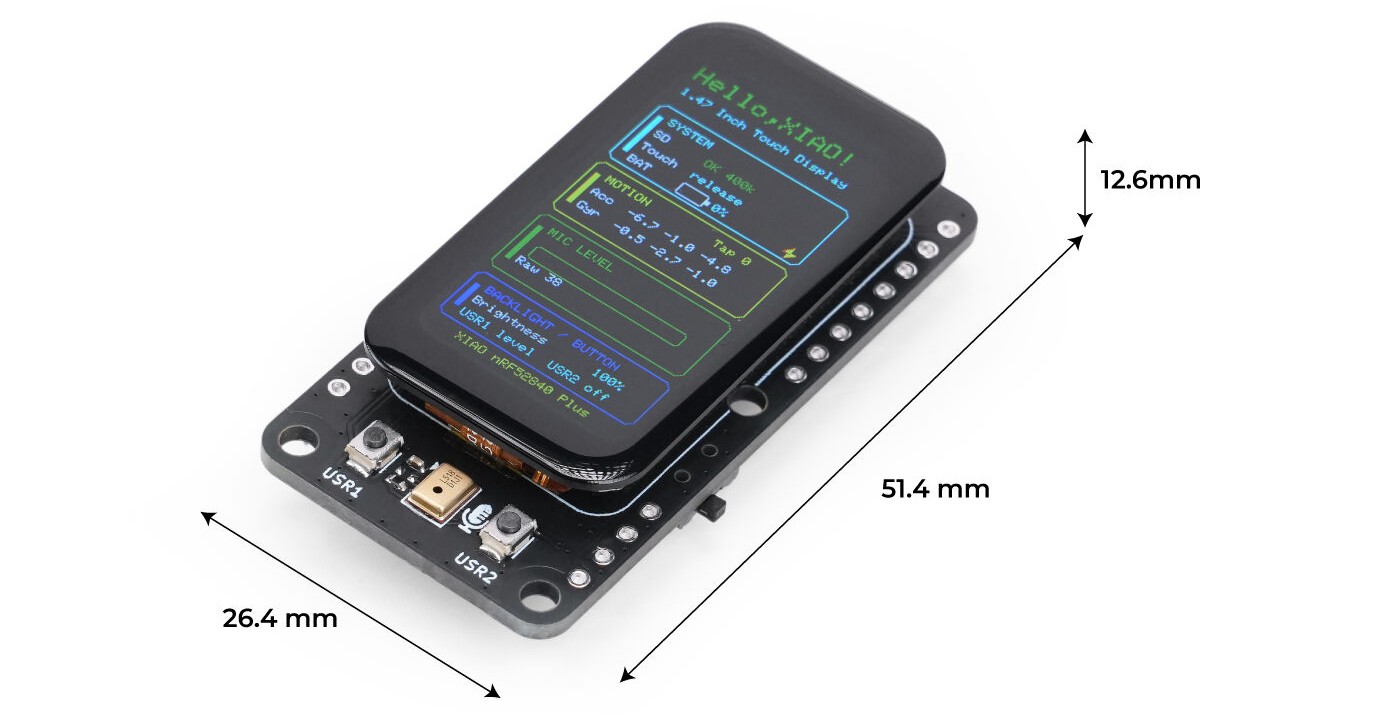

Compact Form Factor: Measures 26.4 × 51.4 × 12.6 mm, making it suitable for portable devices, wearables, and custom enclosures.

Specifications

Developers can program the board using Arduino IDE 1.8 or later with the Seeed nRF52 Boards package. Seeed’s Seeed_GFX2 library provides display support and handles the board and panel configuration, including the JD9853A display, pin mapping, resolution, color order, and orientation. Seeed also provides example programs for the display, touch interface, MicroSD card, microphone, IMU, buttons, and battery monitoring.
