Waveshare RPI-HMI-080D/101D Industrial HMI Touch Displays with Broadcom BCM2712 and Dual 4K HDMI Outputs

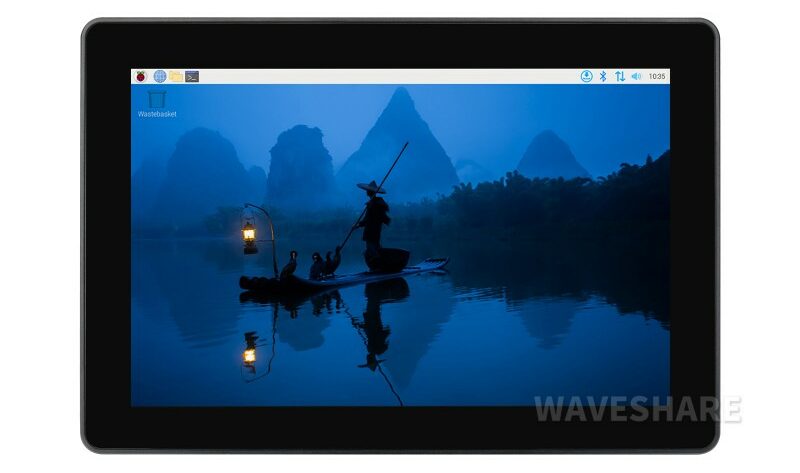

The Waveshare RPI-HMI-080D and RPI-HMI-101D are industrial-grade HMI touch displays designed for Raspberry Pi systems. These displays are available in 8-inch and 10.1-inch sizes and are built for demanding industrial applications. They feature dual 4K HDMI outputs for high-resolution video and a 10-point capacitive touch interface for accurate and responsive input.

The displays incorporate optical bonding technology to enhance screen clarity and reduce reflections, improving visibility in various lighting conditions. The robust aluminum alloy casing provides durability and effective heat dissipation, ensuring reliable operation in harsh environments.

Previously, we explored a variety of HMI touch displays, including the LILYGO T-HMI board, Raspberry Pi touch display, and Waveshare ESP32-S3-Touch-LCD-4.3B, among others. Feel free to check them out if you’re interested in similar products.

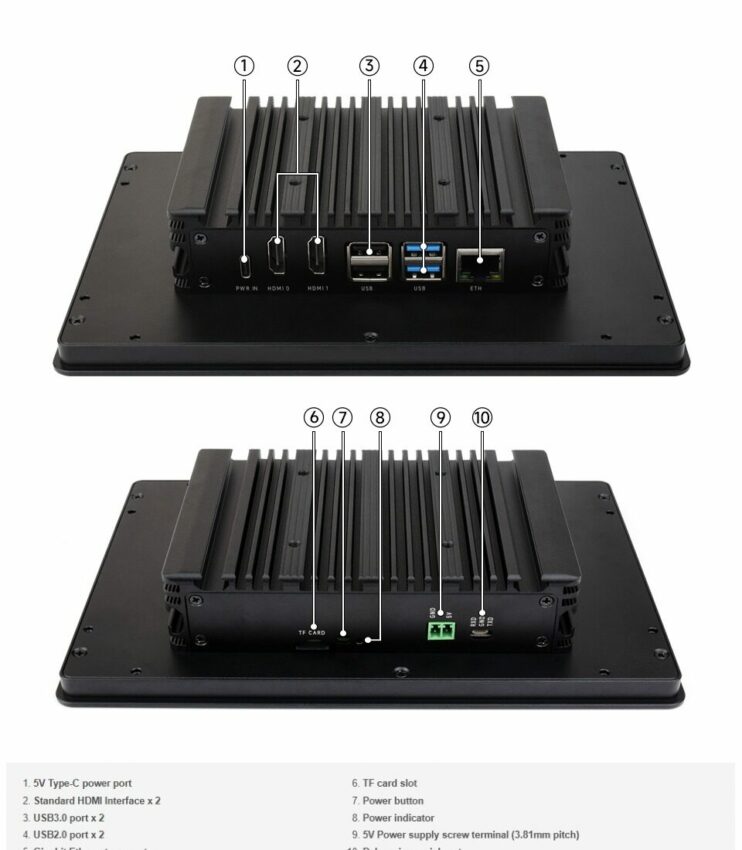

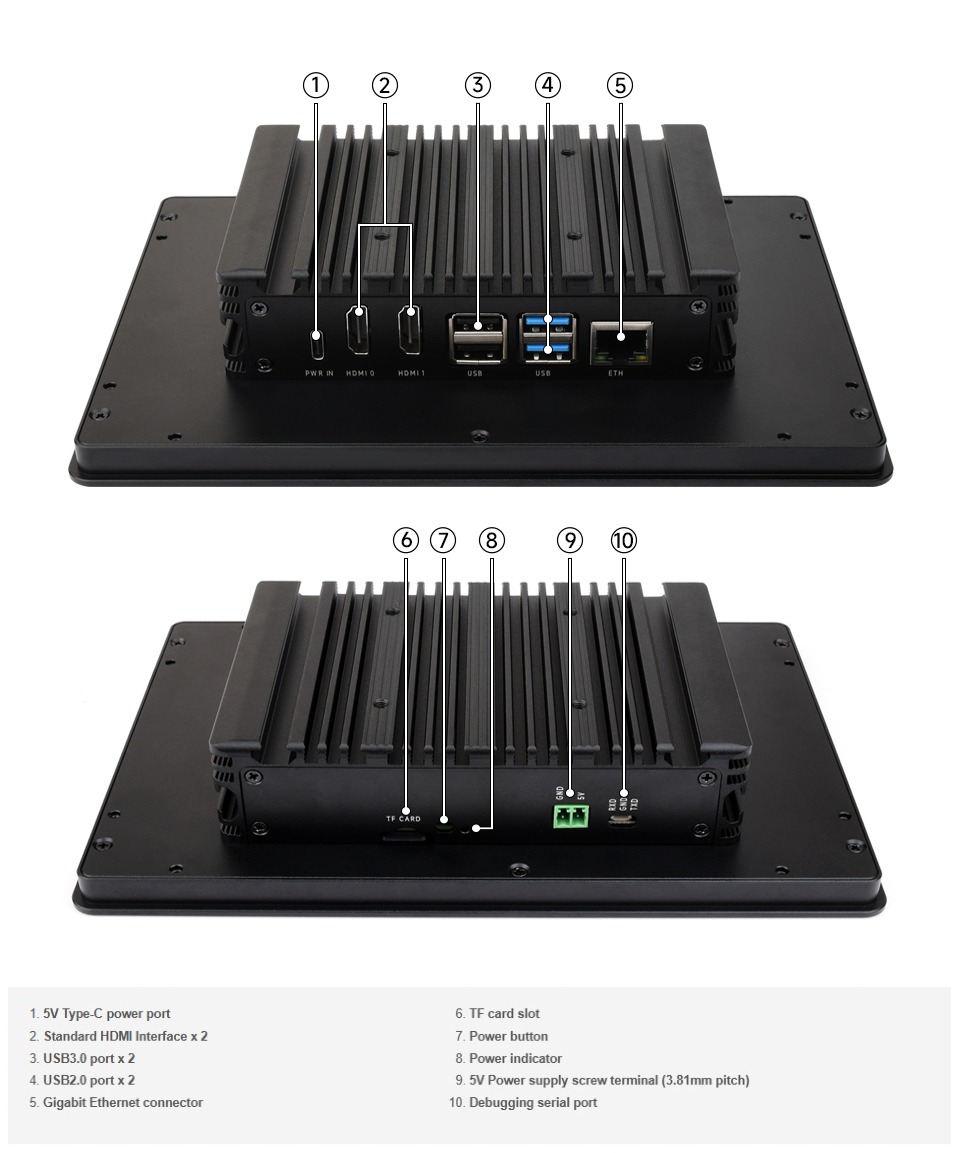

Waveshare RPI-HMI-080D and RPI-HMI-101D HMI touch displays Specifications:

• Processor:
  • CPU: Broadcom BCM2712, quad-core Cortex-A76 (ARM v8), clocked at 2.4GHz
  • GPU: OpenGL ES 3.1 & Vulkan 1.0
• Storage: 1 x TF card slot up to 64 GB
• Display:
  • 8-inch and 10.1-inch DSI touch screen
  • Resolution: 1280×800 (hardware resolution)
  • Touch control: Ten-point capacitive touch
  • Panel type: IPS display with 178° viewing angle
  • Optical bonding process: Enhanced clarity and reduced light reflection
  • Maximum brightness: 300cd/㎡
  • Color gamut: 50% NTSC
  • Backlight adjustment: Software-controlled dimming
• Touch Panel: Toughened glass capacitive touch panel with 6H hardness
• Video: Dual 4Kp60 HDMI outputs
• Camera: 5-megapixel front camera
• Networking:
  • Wi-Fi: Dual-band 802.11ac
  • Bluetooth 5.0
  • 1 x Gigabit Ethernet port
• USB:
  • 2 x USB 3.0 ports (up to 5Gbps)
  • 2 x USB 2.0 ports (up to 480Mbps)
• Miscellaneous:
  • Power button
  • Power indicator
  • M4 VESA mounting hole
• Power supply: 5V Power Supply with Screw Terminal (3.81mm Pitch)
• Dimension:
  • 8-inch version: 205 x 140.5 x 43.5 mm
  • 10.1-inch version: 250 x 169 x 43.5 mm
• Operating temperature: 0°C to 60°C
• Storage temperature: -10°C to 70°C

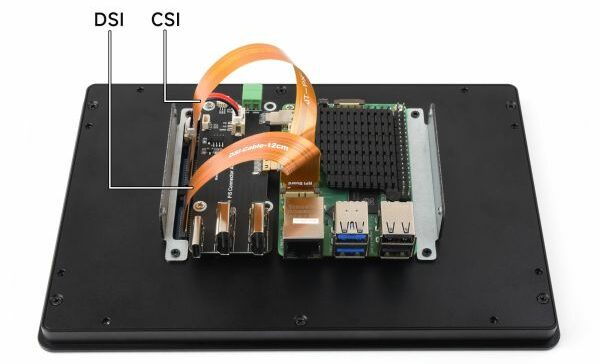

The touch display is designed for Raspberry Pi 5 and Raspberry Pi 4, supporting direct DSI interface connectivity with a refresh rate of up to 60Hz. It is compatible with the Bookworm OS without requiring additional drivers, enabling seamless integration for industrial and embedded applications.

Built with an aluminum alloy enclosure, the display utilizes passive cooling technology to manage heat effectively. The robust metal casing ensures efficient heat dissipation through natural convection, eliminating the need for fans. This design enhances thermal performance, extends the device’s lifespan, and allows for silent operation.

The enclosure supports embedded installations and is compatible with VESA standard brackets, offering versatile mounting options. It is also designed to accommodate various monitor arms, enabling flexible and straightforward installation across different environments.

The industrial HMI touch displays for Raspberry Pi is available on the Waveshare store for $129.99 to $202.99. Additional details are available on the official product page and the wiki page.
