Advanced Industrial ATX Motherboard with 12th Gen Intel Core Processor for AIoT Application – IMB540

Advanced Industrial ATX Motherboard with 12th Gen Intel Core Processor for AIoT Application – IMB540

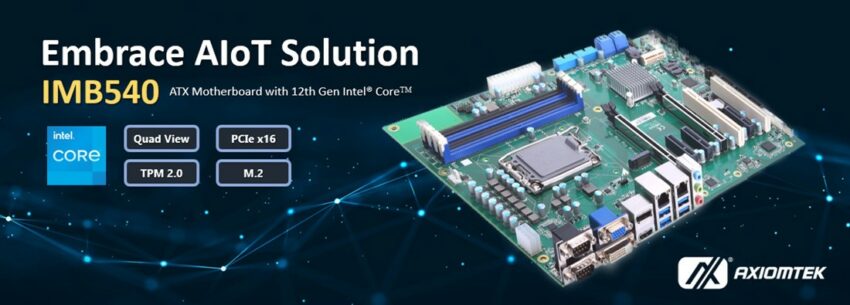

Axiomtek – a world-renowned leader relentlessly devoted to the research, development, and manufacturing of innovative and reliable industrial computer products of high efficiency – is glad to introduce the IMB540, a superior industrial ATX motherboard featuring the LGA1700 socket for the 12th generation Intel® Core™ i9/i7/i5/i3 processors (code name: Alder Lake-S). In addition to providing high computing performance, the IMB540 ATX motherboard features quad displays and dual GPU expansion, delivering intelligent workload optimization and highly scalable graphics for next-gen edge AIoT applications.

The Axiomtek’s IMB540 is built with Intel® R680E chipset and features ranging CPU options with the 12th generation Intel® Core™, Intel® Pentium® and Intel® Celeron® processors. In addition to this, it is equipped with four DDR4-3200 ECC/non-ECC un-buffered Long-DIMM slots with a total capacity of 128GB. This motherboard has a total of five PCIe slots – two PCIe 4.0 x16 slots and three PCIe x4 slots – for GPU, AI acceleration, frame grabber, NIC, and motion control card configurations. The networking interfaces consist of a 2.5GbE LAN port with time-sensitive networking (TSN), a GbE LAN port, as well as a PCIe Mini Card slot with SIM slot for Wi-Fi/Bluetooth/LTE connectivity. Featuring Intel® Iris® Xe Graphics, the IMB540 supports up to four independent displays via HDMI, DVI-D, VGA, and DisplayPort++.

Advanced Features of IMB540:

  • LGA1700 socket 12th gen Intel® Core™ i9/i7/i5/i3, Pentium® or Celeron® processor (Alder Lake-S)
  • Four 288-pin DDR4-3200 ECC/non-ECC un-buffered Long-DIMM, up to 128GB
  • DisplayPort++, VGA, DVI-D and HDMI with quad view supported
  • Dual PCIe 4.0 x16 for GPU acceleration cards
  • One 2.5 GbE LAN (Intel® Ethernet Controller I225-LM) with TSN feature, Intel® AMT with vPro®
  • One M.2 Key M 2280 for NVMe SSD
  • One PCIe Mini slot for wireless connection
  • Four USB 3.2 Gen2 and four USB 3.2 Gen1
  • TPM 2.0 supported (optional)

For storage, there are four SATA 3.0 ports with integrated RAID 0/1/5/10 and additional storage is available via an M.2 Key M 2280 slot with PCIe x4 signal for NVMe SSD. The USB interface support includes four USB 3.2 Gen2, four USB 3.2 Gen1, and five USB 2.0 ports. The board is further equipped with four RS-232, two RS-232/422/485, 8-channel programmable digital I/O, one HD Codec audio, one SMBus, and one PS/2 keyboard and mouse. Likewise, to ensure reliable performance across platforms, the well-designed industrial ATX motherboard can withstand a wide operating temperature range from 0°C to 60°C. It supports onboard Trusted Platform Module 2.0 (TPM) to provide hardware-based data protection. In addition, the IMB540 supports Windows® 10 and Linux operating systems.

“The IMB540 drives excellent AI computing performance and serves with sufficient I/O, high-speed interfaces, the capability of multi-display connection and flexible expansion slots that achieves adequate AI application in practice, such as medical imaging, video surveillance, computer vision, data analysis and so on,” said Kasper Tsai, the product manager of the AIoT Team at Axiomtek. “Moreover, we have the capability to assist with any customer’s industrial integration requirements and achieve fast time to market.”

The IMB540 is available for purchase now. For further product information or customization services, please visit our global website at or contact sales representatives at
