PCB Design
AutoTRAX Design Express
Download

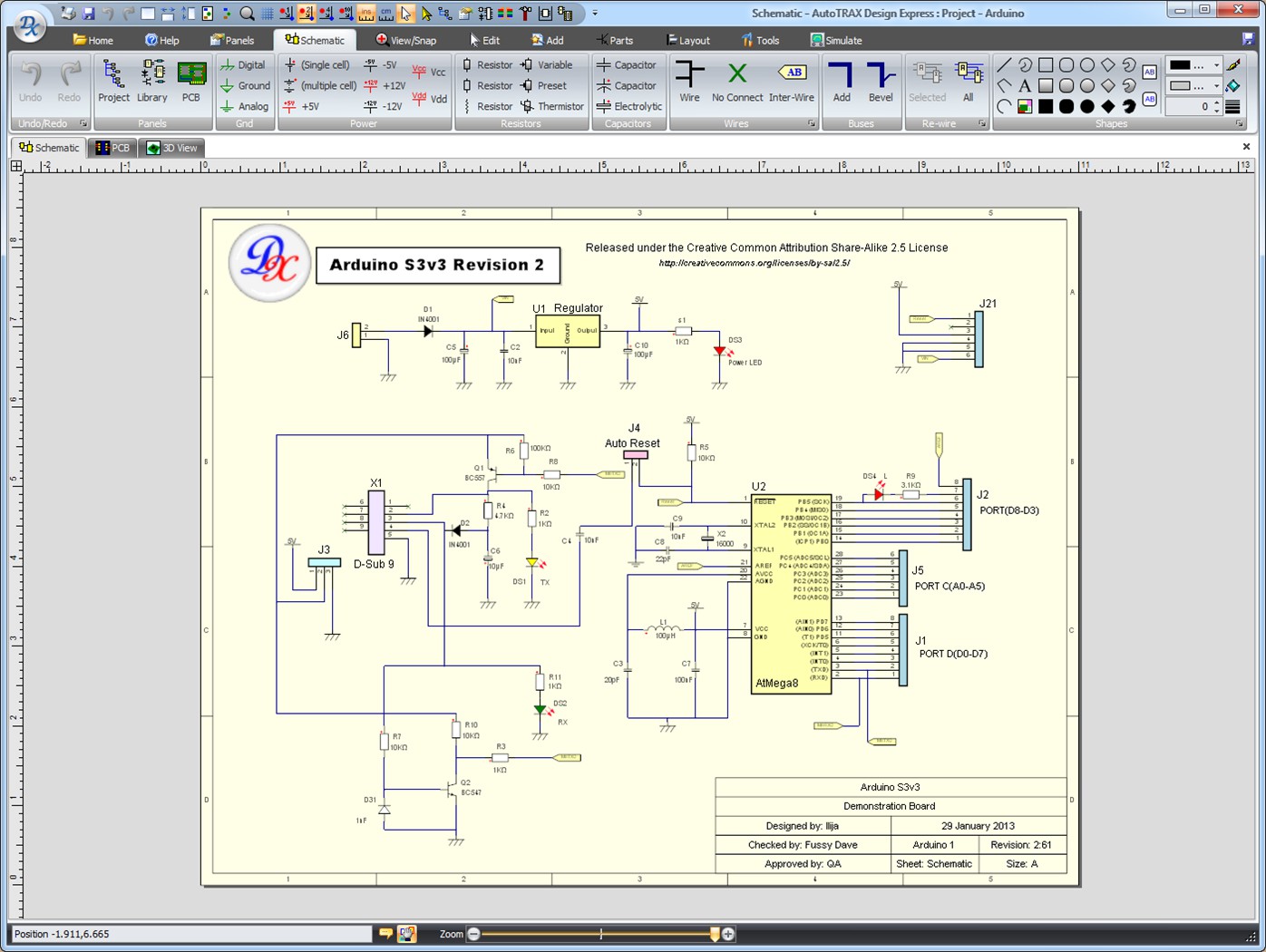

AutoTRAX Design Express (DEX) is a powerful integrated Electronic Design Application for Electronic Engineers. It has all the features you expect and need to rapidly and easily take your design from conception through to production. Its in-built hierarchical project manager lets you perform both top-down and bottom-up design and reuse design components and sub-systems. Schematic capture and pcb layout has never been easier.
Download
Target 3001!
Download

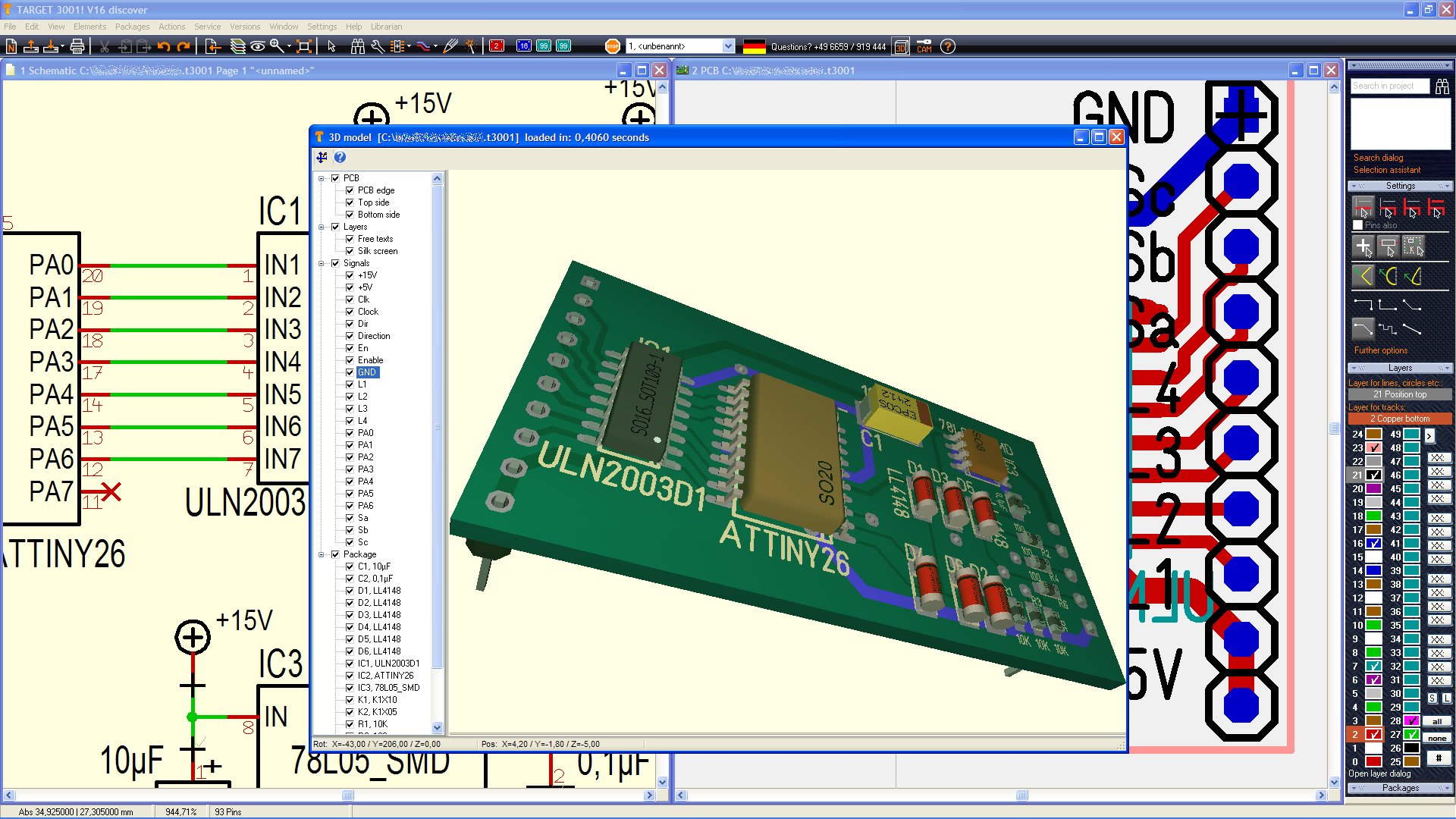

TARGET 3001! is a CAD-/CAE-software for PCB design made in Germany by IBF.
It consists of schematic, simulation, layout, autorouter, 3D view and front panel design within one user interface. There are price calculators including ordering function for PCB and frontpanels.
Author:
Ing.-Buero FRIEDRICH
License Type:
Freeware
Size:
55MB
Hits:
33
Website:
http://ibfriedrich.com
ZofzPCB: 3D Gerber Viewer
Download
ZofzPCB is a FREE 3D Gerber viewer that shows you more than just how your board is going to look. ZofzPCB lets you see inside your board – between the layers – so you can give it a truly thorough inspection. It makes pre-production verification of your PCB designs fast, easy, intuitive and fun.
Download

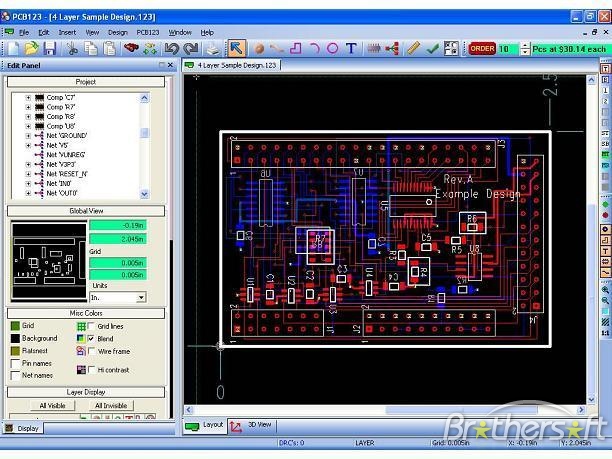

PCB123
Download
Sunstone Circuit’s excellent free CAD design software program provides the solution for all your PCB CAD design software needs. It interactively checks your design against our manufacturing tolerances (DRC), and also quotes your board and components as you design.
Download

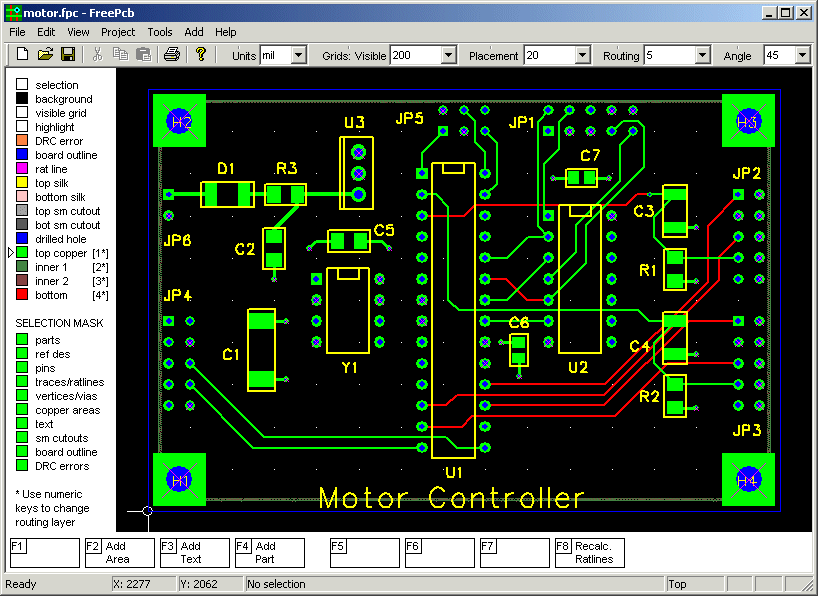

FreePCB
Download
FreePCB is a free, open-source PCB editor for Microsoft Windows, released under the GNU General Public License. It was designed to be easy to learn and easy to use, yet capable of professional-quality work. It does not have a built-in autorouter, but it can use the FreeRoute web-based autorouter at www.freerouting.net.
Download
