Joy-IT PSG9080 DDS Function Generator – Programmable Signal generator

Joy-IT PSG9080 DDS Function Generator – Programmable Signal generator

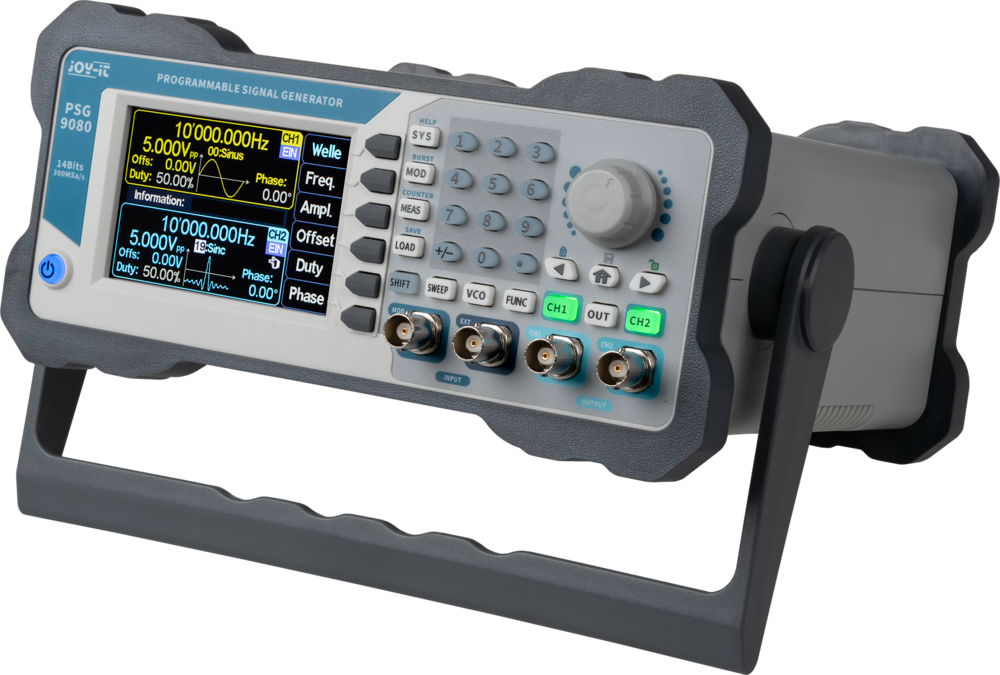

The programmable Signalgenerator PSG9080 can output many different waveforms like f. i. sine, square, triangle, pulse wave, and arbitrary waveforms. It has a generous frequency range from 1nHz to 80 MHz and a sampling rate of 33 MSa/s. The housing is made high-quality workmanship and offers slip-resistant feets to enable a comfortable work.

With this device, different modulation methods like f. i. frequency, phase, amplitude, pulse width modulation, frequency shift keying are no longer a challenge. The integrated measurement function enables you to measure and display the frequency, period and duty cycle of external signals in real-time on screen.

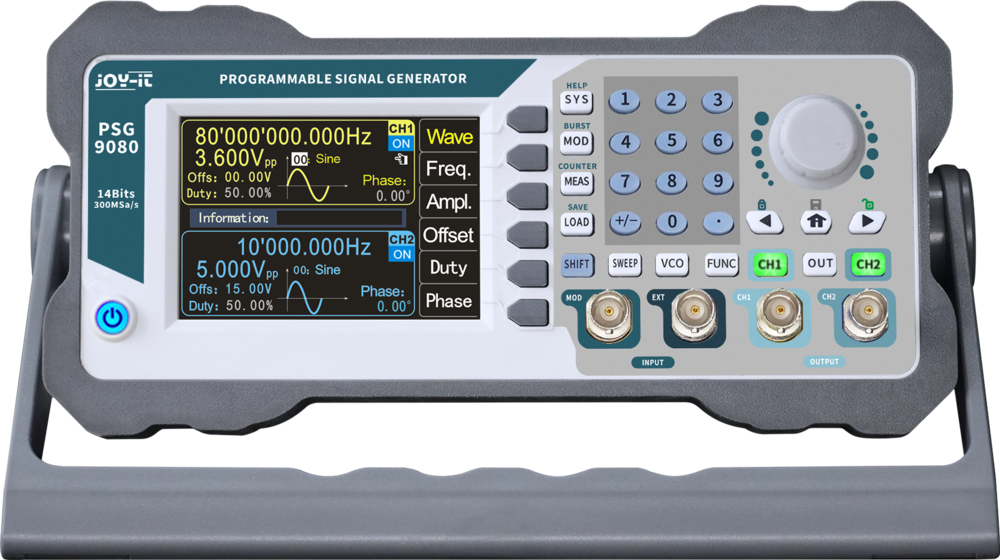

This signal generator is operated very easily with the intuitively keypad layout and the high-resolution 3.5 ” color LCD. Different settings can be saved in groups as well and thus called up very quickly. The menu is available in the languages German, English and French.

Features:

  • Programmable output:The type of waveform output (such as sine wave, square wave, triangle wave, arbitrary wave, etc.), output time, and output sequence can be freely formulated to realize automatic work.
  • Firmware update in real time:Firmware upgrade can be updated at any time to fix bugs, or used for your special customization needs. Press the corresponding soft key to confirm entering the update mode, and perform a one-key firmware upgrade by connecting with the PC software.
  • Voltage-controlled adjustment:The frequency, amplitude and duty cycle of the output can be controlled by an external analog voltage signal to achieve voltage-controlled sweeping frequency, sweeping amplitude and sweeping duty cycle, which are widely used in industrial debugging.
  • Modulation function:The modulated waveforms can be output in single channel or dual channel. Modulation: The process of adding information from a signal source to the carrier to make it suitable for channel transmission. It is the technology that makes the carrier wave change with the signal.
  • High sampling rate :The sampling rate of up to 300MSa/s can obtain more waveform data per unit time, thus making the displayed waveform more accurate.
  • Personal color:In order to meet the personalized needs of customers, four color schemes for the system are provided. You can use the numeric keys and knob to select the desired system color, press the soft key save to save the selected color
  • Equivalent performance dual channel output:The same or different function signals or arbitrary waveform signals can be output simultaneously; all parameters can be adjusted independently, the phase difference between the two channels is continuously adjustable from 0 to 359.9 degrees; the signal frequency can be up to 80MHz, and the output signal can be within 1MHz Up to 25Vpp.
  • Burst function:Sine wave, square wave, saw tooth wave, or arbitrary wave can be used to generate burst signals, the number of periods is continuously adjustable between 1-1,000,000,000
  • The pulse width can be adjusted accurately:The pulse width and the pulse period time of the pulse wave are digitally and accurately adjustable, enabling a wide range of pulse waveforms to be accurately set without jitter output.
  • Can draw arbitrary waveform:PC software and communication protocol are provided for free, arbitrary waveforms can be drawn using the PC software; using the communication protocol can be secondary development programming; all functions of the instrument can be controlled by the PC software (The instrument can be also finished all operations without connecting to the computer.)

The PSG9080 is available on Aliexpress.com and other online distributors. More details on the manufacturing page.
