Pico-EZmate Plus 1 mm-Pitch Connectors

Pico-EZmate Plus 1 mm-Pitch Connectors

1.867
Views
0 Comments

Molex’s connectors are ideal for automated assembly processes in tight-spaced applications

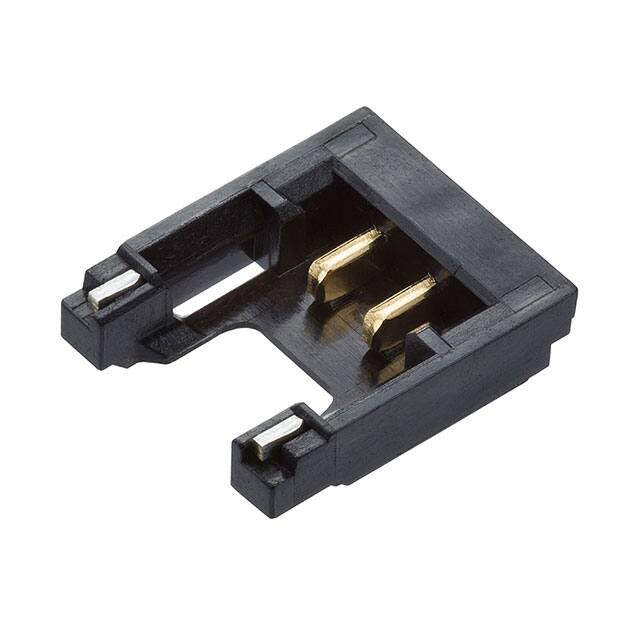

With a current rating of up to 2.8 A and an improved withdrawal force, Molex’s compact Pico-EZmate Plus 1 mm-pitch connector deliver high performance in a low-profile height, making them ideal for automated assembly processes in tight-spaced applications across various industries. Pico-EZmate Plus has thicker housing side walls which improve withdrawal force over the original Pico-EZmate, increasing mating security. This series also provides a low profile to provide space real estate savings in a sleek design, with an open-top receptacle header allowing for easy snap-in mating for speedy assembly processing.

  • Voltage (max.): 50 V
  • Current (max.): 2.8 A (two circuits)
  • Contact resistance (max.):
    • 20 mΩ
    • 5 mΩ (on crimped portion)
  • Dielectric withstanding voltage: 500 VAC insulation
  • Resistance (min.): 100 MΩ
  • Housing: polyamide, UL94V-0
  • AWG size: 28 and 30
  • Contacts: copper alloy
  • Plating: gold
  • Operating temperature range: -45°C to +105°C
  • Contact insertion force (max.): 18 N
  • Contact retention to housing (min.): 3.5 N
  • Durability (min.): 10 cycles

more information: https://www.molex.com/molex/products/part-detail/crimp_housings/2121320002
