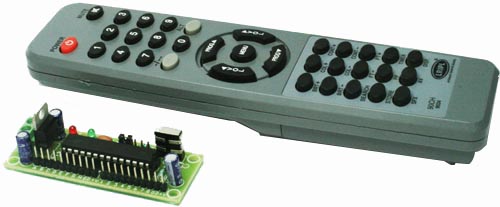

16 Channel Infra-Red remote controller is based on PIC16F73 Microcontroller from Microchip. The receiver part follows RC5 (Philips) Code Format. Tiny receiver provides 16 latch outputs or 8 Latch + 8 Momentary outputs by closing Jumper J1. All outputs are TTL and can drive Relay board or solid state relay. The circuit uses TSOP1738 Infra-Red receiver module which provides high degree of noise immunity against interfering light source.

Features

  • Supply Remote Transmitter RC5 Philips 2XAAA Battery
  • Supply Receiver 7V to 12V DC
  • Modulation 38Khz
  • Philips RC5 Code Format
  • Operating range up to 20 feet
  • 2 Pin Screw Terminals for Supply Input
  • On Board Power LED
  • Onboard VT (Valid Transmission) LED
  • All Outputs TTL Level provided with Header Connector
  • Jumper (J1) for Mode Selection
  • J1 Open 16 Latch Outputs
  • J1 Closed 8Latch + 8 Momentary

Application

  • Robotics
  • Lights
  • Fans
  • Home Appliances
  • Remote Door closer
  • Remote Curtains
  • Security Systems

Schematic

16-Channel-Infra-Red-remote-controller-SCH

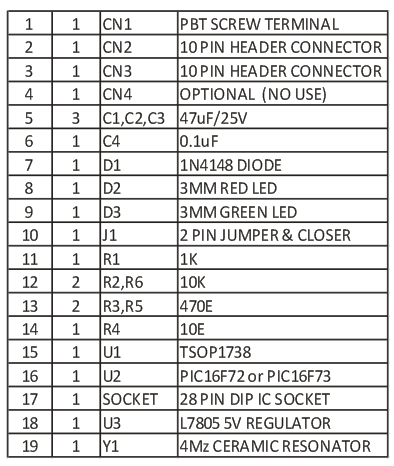

Parts List

16-Channel-Infra-Red-remote-controller-BOM

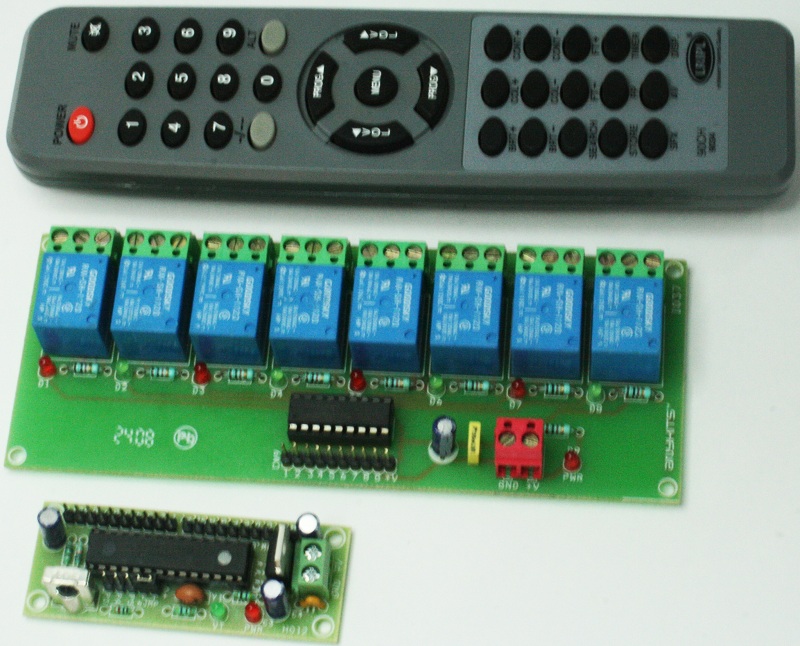

Photos

16-Channel-Infra-Red-remote-controller-001

16-Channel-Infra-Red-remote-controller-002

Video

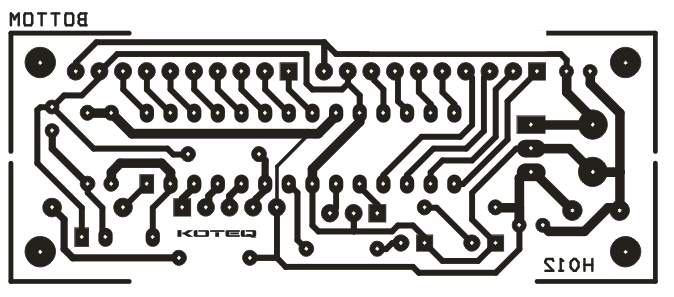

PCB

Comments

  • Pawan SIddheshwar

    I want to purchase

    3 years ago
  • where is c code .

    3 years ago
  • Alexander Ternenge

    Hi,Can you write program for me

    3 years ago
  • Glenn Stroeder

    Where might I be able to buy the programmed boards and the remotes? I am in Canada.

    3 years ago
    • admin

      Please check on koteq.com for kits

      3 years ago
