18 PIN PIC Development Board

  • Rajkumar Sharma
  • 10268
    Views
  • moderate
  • Tested

18PIN PIC Development Board PIC

The PIC 18 PIN (DIP) Development / Evaluations Board demonstrates the capabilities of Microchip’s 8-bit microcontrollers, specifically, 18 Pin PIC16F1847. It can be used as a standalone demonstration board with a programmed part. With this board you can develop and prototype with all Microchip’s 18 PIN PIC microcontrollers. The board has a Reset switch and status LEDs. On board 3.3 V and 5V DC regulators allows using 3V and 5V PICs, This board support both 3.3V low power and normal 5V operation. All I/O Pins out with 2xfemale headers

Development Board Features:

  •     16 I/O Ports
  •     Onboard 5V and 3.3V Supply
  •     3.3V or 5V Supply selection by jumper
  •     Dual line I/O
  •     On board Power Indication
  •     On-board ICSP Port (PICKIT2 Standard Programming Port)
  •     Well labeled legends
  •     All outputs has provision for LEDs for output indication
  •     Replaceable PIC Microcontroller,
  •     Crystal and capacitor mounting under the PCB

PIC16F1847 Micro-Controller Specifications:

  • Enhanced Mid-range Core with 49 Instruction, 16 Stack Levels
  • Flash Program Memory with self read/write capability
  • Internal 32MHz oscillator
  • Integrated Capacitive mTouch Sensing Module
  • Data Signal Modulator Module
  • MI2C, SPI, EUSART w/auto baud
  • 2 ECCP & 2 CCP (Enhanced/Capture Compare PWM)
  • Comparators with selectable Voltage Reference
  • 12 Channel 10b ADC with Voltage Reference
  • 25mA Source/Sink current I/O
  • Four 8-bit Timers (TMR0/TMR2/TMR4/TMR6)
  • One 16-bit Timer (TMR1)
  • Extended Watchdog Timer (EWDT)
  • Enhanced Power-On/Off-Reset
  • Brown-Out Reset (BOR)
  • In Circuit Serial Programming (ICSP)
  • On Board In-Circuit Debug
  • Wide Operating Voltage (1.8V – 5.5V)
  • Low Power PIC16LF182x/4x variants (1.8V – 3.6V)
  • Standby Current (PIC16LF1847): 30 nA @ 1.8V, typical
  • Program Memory Type Flash
  • Program Memory (KB) 14
  • CPU Speed (MIPS) 8
  • RAM Bytes 1,024
  • Data EEPROM (bytes) 256
  • Digital Communication Peripherals 1-UART, 1-A/E/USART, 2-SPI, 2-I2C2-MSSP(SPI/I2C)
  • Capture/Compare/PWM Peripherals 2 CCP, 2 ECCP
  • Timers’ 4 x 8-bit, 1 x 16-bit
  • ADC 12 ch, 10-bit
  • Comparators 2
  • Temperature Range (C) -40 to 125
  • Operating Voltage Range (V)1.8 to 5.5
  • Pin Count 18
  • XLP Yes
  • Cap Touch Channels 12

Schematic

SCHEMATIC1 : PAGE1

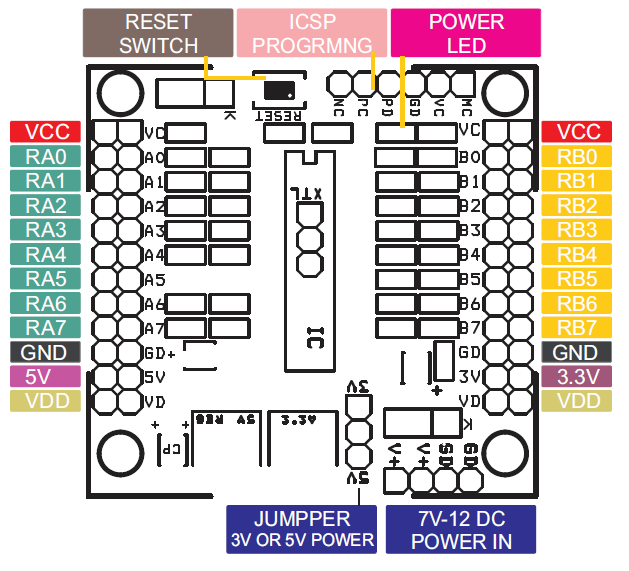

Pinout

pinout

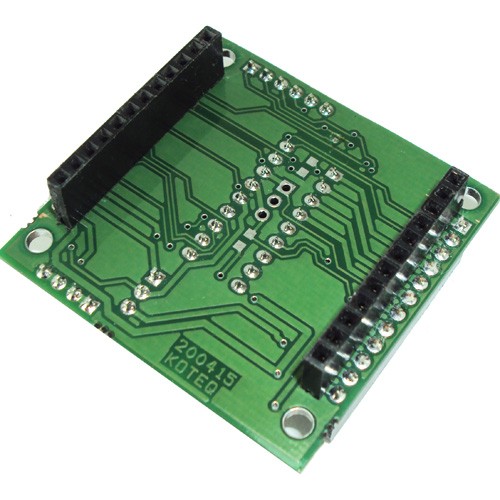

Photos

18PIN PIC Development Board PIC2

18PIN PIC Development Board PIC3

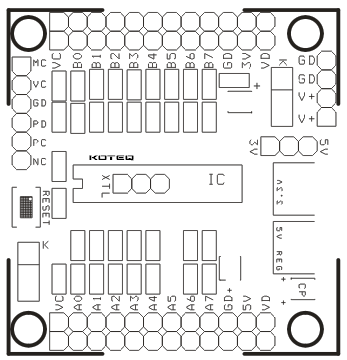

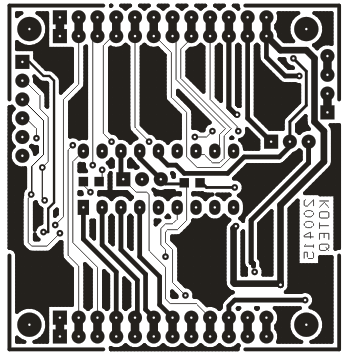

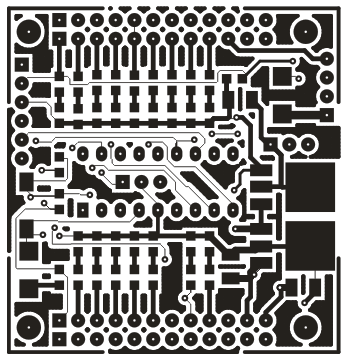

PCB
