4 Tactile Switch Breakout Board

  • Rajkumar Sharma
  • 261
    Views
  • easy
  • Tested

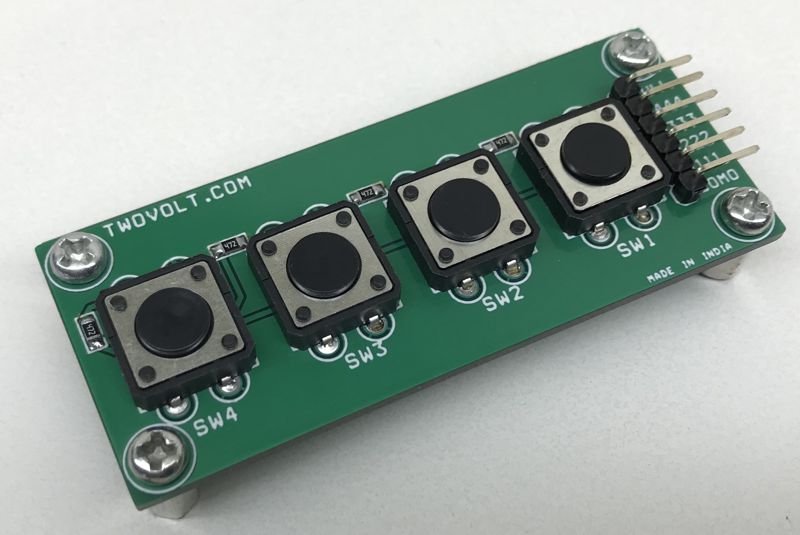

This breadboard-friendly board breaks out all 4 tactile switch signals and includes pullup resistors configured so that the outputs read low or high when configured common VCC or GND.

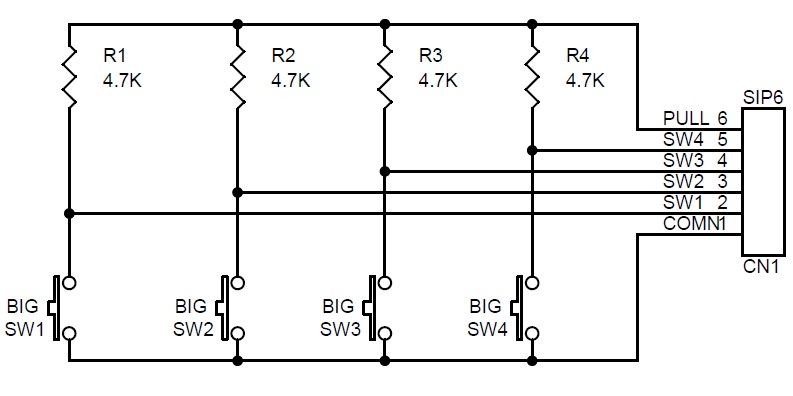

Schematic

Gerber View



Photos

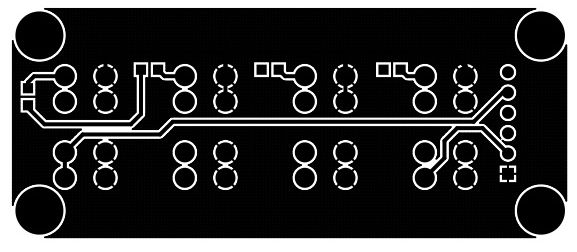

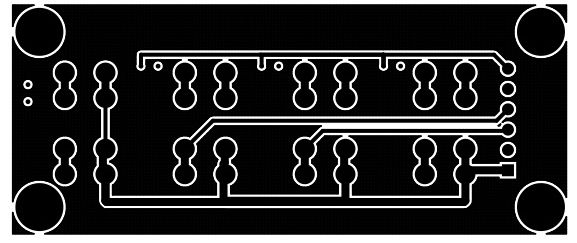

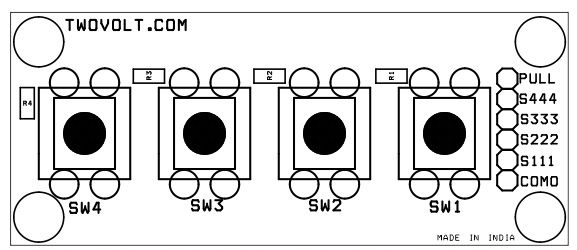

PCB
