5V Symmetrical Regulated Power Supply – 1A

  • Rajkumar Sharma
  • 15383
    Views
  • easy
  • Tested

5V_Power_Supply_G003

This Project provides Positive and Negative (Dual Output) 5 V @ 1 A Regulated Power Supply.

Specifications

  • Input 7-0-7 VAC to 12-0-12 VAC or +/- 9 to 18 VDC
  • Output : Dual output ± 5 V @ 1 A regulated low ripple DC voltage
  • Heat-sink for regulator ICs
  • Onboard bridge rectifier to convert AC to DC
  • LED indication for both the outputs
  • Thermal overload/short circuit protection (provided by IC feature)
  • Screw terminal connector for easy input and output connection
  • Filter capacitors for low ripple DC output
  • Four mounting holes of 3.2 mm each
  • PCB dimensions 46 mm x 60 mm

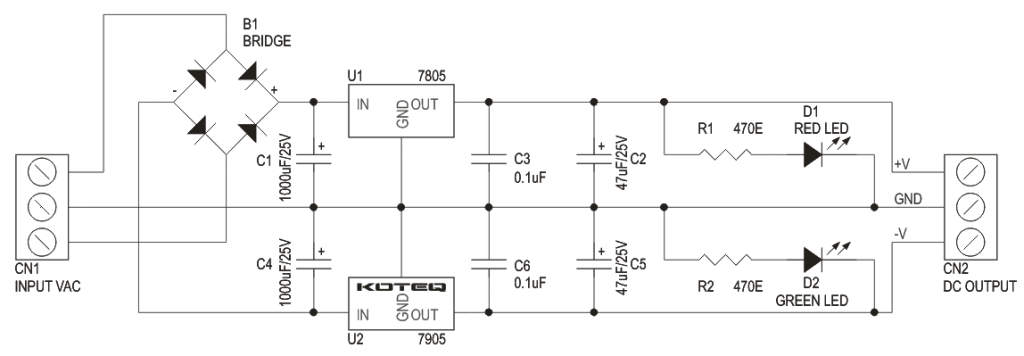

Schematic

5V_Power_Supply_Schematic

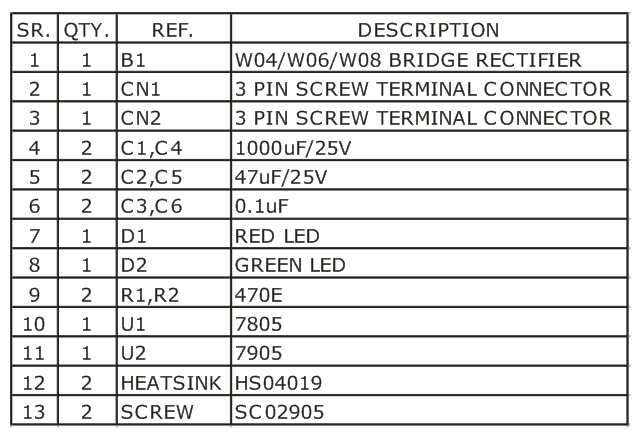

Parts List

5V_Power_Supply_BOM

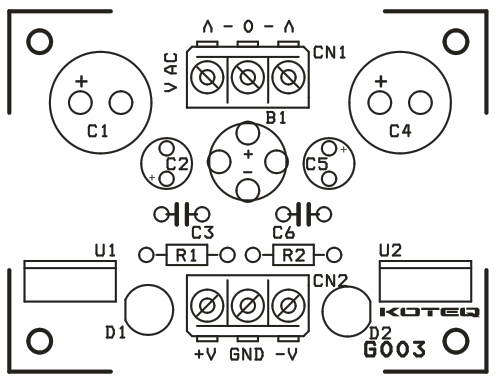

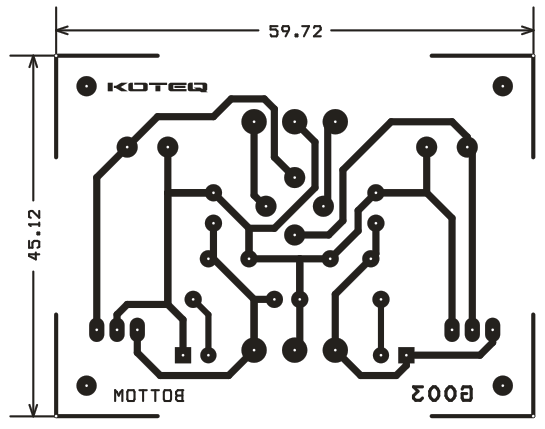

PCB
