AT89C2051 Development Stick

  • Rajkumar Sharma
  • 10387
    Views
  • moderate
  • Tested

AT89C2051_DEV_STICK_PIC

89C2051 Development Stick kit offers an easy way of interfacing 89C2051 compatible MCU’s.

  • Slim design with plug in type approach
  • Voltage regulator on board for stable and regulated supply to the MCU
  • RESET switch for resetting the MCU
  • 0592 MHz Crystal
  • 4K external EEPROM
  • Power-On LED for indicator
  • 20-Pin well marked Berg connector for ease of connection
  • Access to all IO pins & supply pin on the Berg connector
  • 20-Pin IC socket for MCU
  • Four mounting holes of 3.2 mm each
  • PCB dimensions 35 mm x 72 mm

This is a development board made available in form of a SIMM fashion module for your project.  This board accepts all compatible MCUs to the 89C2051 from ATMEL.

This board can be used as a plug-in daughter card in your project with all the IO pins of the MCU coming out.

  1. Power input to the board is applied at Pin #1 and #2
  2. Regulated power is available at Pin# 4 of Connector J1
  3. An Onboard Reset Switch offers a easy way to reset the Microcontroller
  4. LED D1 indicates power on board
  5. Optionally, a 24C04 EEPROM on the module can help you store valuable data on it for your project
  6. If you don’t wish to use the EEPROM you can omit to assemble R4, R5 and U3
  7. If you plan to power this module from your Project PCB then you can omit to assemble U2, C6
  8. Crystal supplied with this kit is 11.0592 MHz. If you intend to use other frequency crystal, please replace Y1, C2 and C3 components as per specification mentioned in the data sheet of the Microcontroller

Shematic

AT89C2051_DEV_STICK_schematic

Parts List

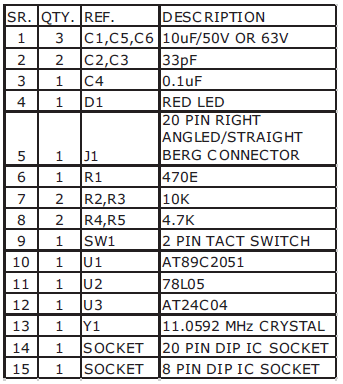

AT89C2051_DEV_STICK_BOM

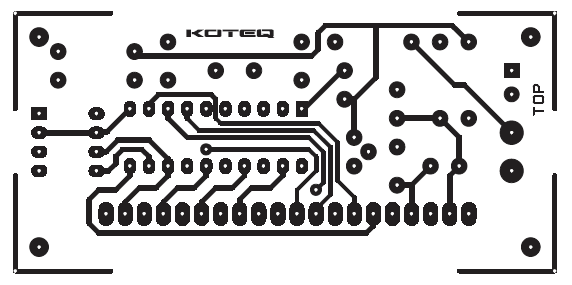

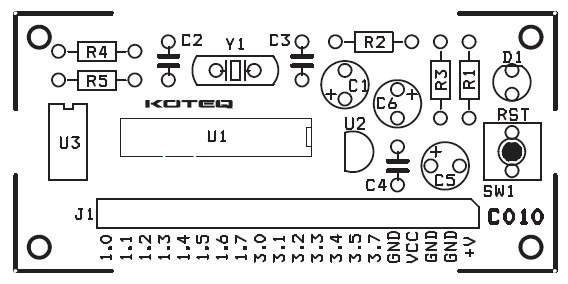

PCB

Comments

  • Chirag

    AT89C2051 development kit required. Where to buy? What is your quote?

    4 years ago
    • Howard S Shubs

      Looks like this page is a full schematic, parts list, and circuit board. You cut the board, get the parts, and assemble it.

      3 years ago
    • admin

      We are sorry, we don’t sell kit or assembled boards. You may build one for your own.

      3 years ago
