DC Servo Motor Driver – Analog Closed Loop Control

  • Rajkumar Sharma
  • 19092
    Views
  • moderate
  • Tested

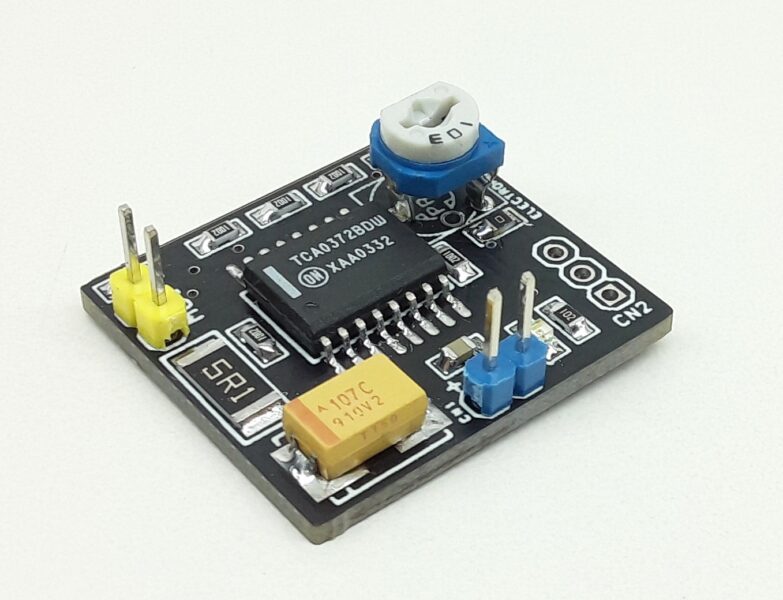

DC_SERVO_PIC

Versatile project has been designed to use in automotive application and industrial servo control application. This project provides all active necessary functions for closed loop servo system using Brushed DC Motor and potentiometer mounted on output shaft of DC Motor Gear. This project is ideally suited for almost any servo positioning application.

Features

  • POWER SUPPLY: 12-30V DC
  • MOTOR LOAD: 800mA MAX
  • P2: Position Potentiometer
  • P1: Fed Back potentiometer couple with DC Gear Motor output shaft
  • CN1: Power Input 12V-30V DC
  • Motor: DC Motor

Applications

  • Car Mirror Pan Tilt
  • Head Light Lamp control
  • Cheap Camera Focus control
  • Antenna Direction

Schematic

DC_SERVO_SCH

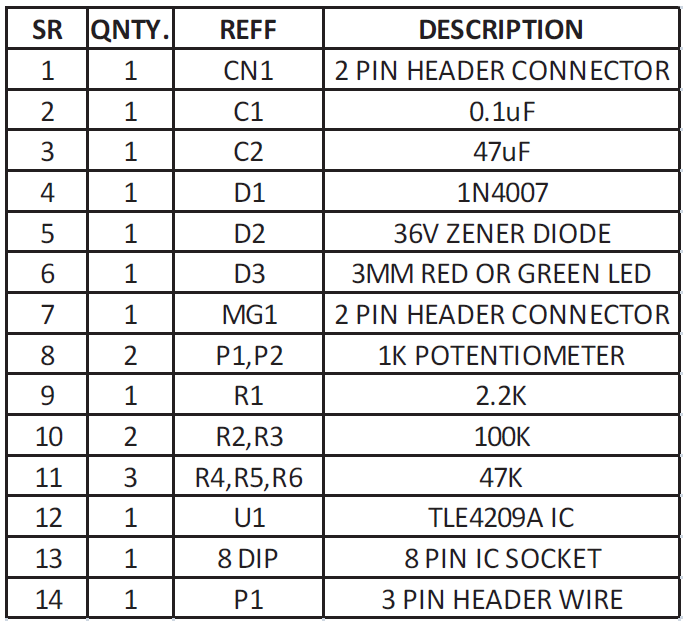

Parts List

DC_SERVO_BOM

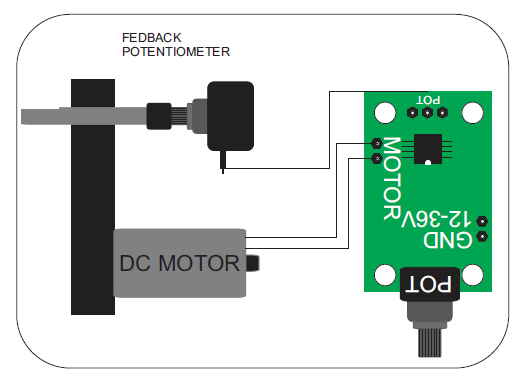

Diagram

servo_motor

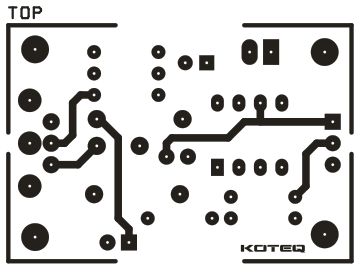

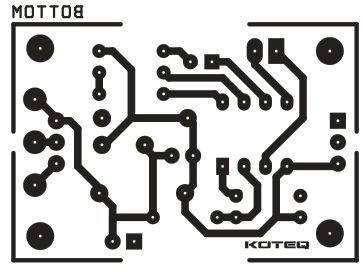

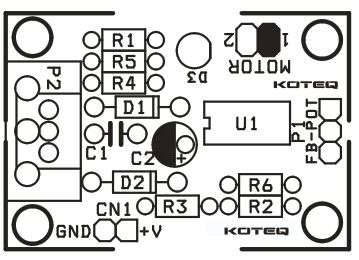

PCB
