Dual Motor L298 H-Bridge Motor Control

  • Rajkumar Sharma
  • 20896
    Views
  • medium
  • Tested


Dual Motor L298 H-Bridge Control project can control two DC motors connected to it.  The circuit has been designed around popular dual H-Bridge L298 from ST. This circuit has current sense resistors for both H-bridges to provide voltage which enables this board to use in stepper motor applications.

Specifications

  • Motor supply : 7 to 46 VDC
  •  Control Logic Supply : Standard TTL logic level
  •  Output DC drive to motor : up to 2 A each
  •  Current Sense Output available
  • Enable and direction control pins available
  •  External diode bridge for protection
  •  Heat-sink for IC
  •  Power-On LED indicator
  •  Screw terminal connector for easy input supply (PWR) / output (Motor) connection
  •  Four mounting holes of 3.2 mm each
  •  PCB dimensions 61 mm x 63 mm

Schematic

SCH

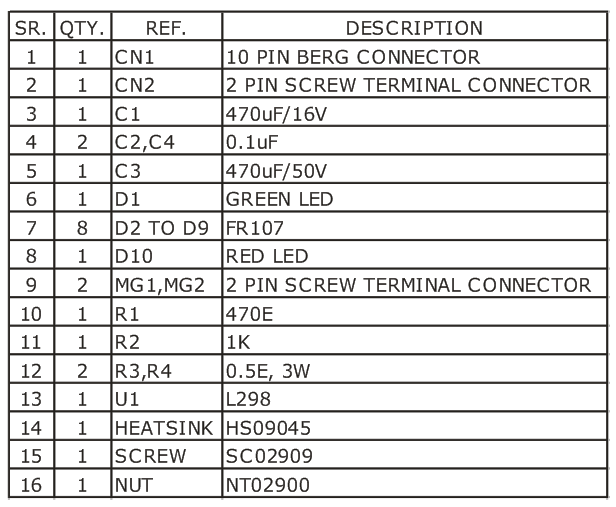

Parts List

BOM

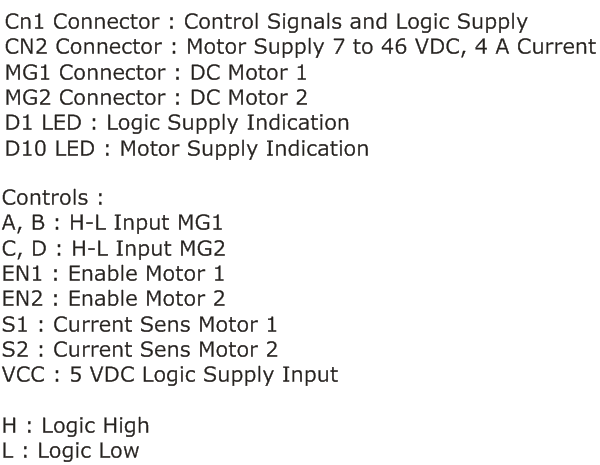

Connections

Connections

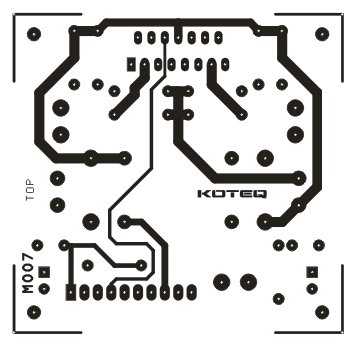

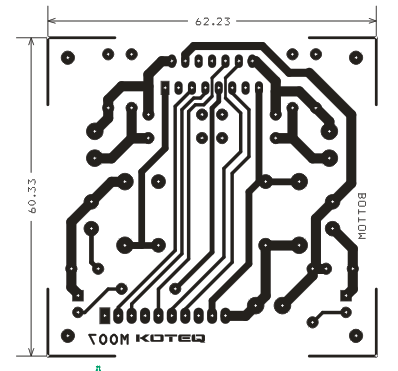

PCB

Comments

  • manu sharma

    Hi Raj,

    I am trying to rebuild this circuit but most of the parts CN1,CN2, heatsink are not a standard part in multisim lib? were you able to get the library from manufacturer or created those parts by defining all the ports?

    Please let me know.

    Best Regards

    Manu

    3 years ago
    • admin

      Please try to use generic parts on multisim if you can’t find the exact ones.

      3 years ago
