Electronic Toggle Switch

  • Rajkumar Sharma
  • 32167
    Views
  • moderate
  • Tested
  • Buy Now

Description

This circuit is based on CMOS CD4013 Flip Flop IC. It has two stable states, ON and OFF. Once it is ON, it remains ON till you press the switch again. A short button press of a tactile switch SW1 latches the circuit ON and another toggles it back OFF.

Relay switch contacts can handle high AC Voltage as well as High DC current, this makes the project suitable for application like ON/OFF Fan, Light, TV, Pump, DC Motor, any electronic project required electronic toggle operations and few other devices work on AC voltage up to 250V AC or DC current up to 5Amps.

Applications: TV, Audio Equipment’s, Radio, Fan, Pump, DC Motor, Electronic Projects ON/OFF

Specifications

  • Supply: 12V DC
  • Current: 60mA
  • D1: Power Indicator
  • D3: Toggle State ON or OFF indicators
  • CN1: Supply Input
  • SW1: Toggle Operation
  • PCB dimensions: 45.72 x 57.79 mm

Schematic

003_Schematic



Parts

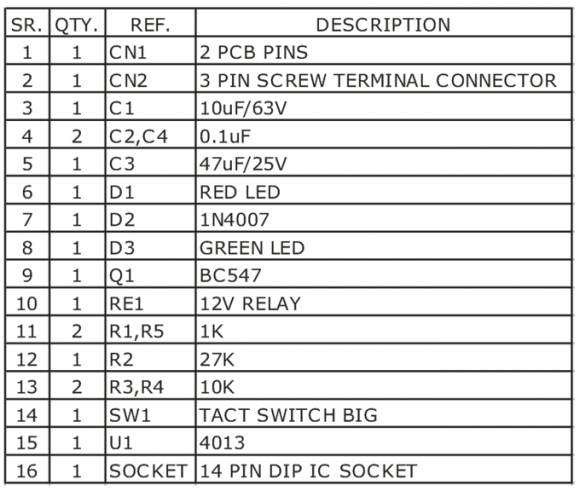

003_Bom_th

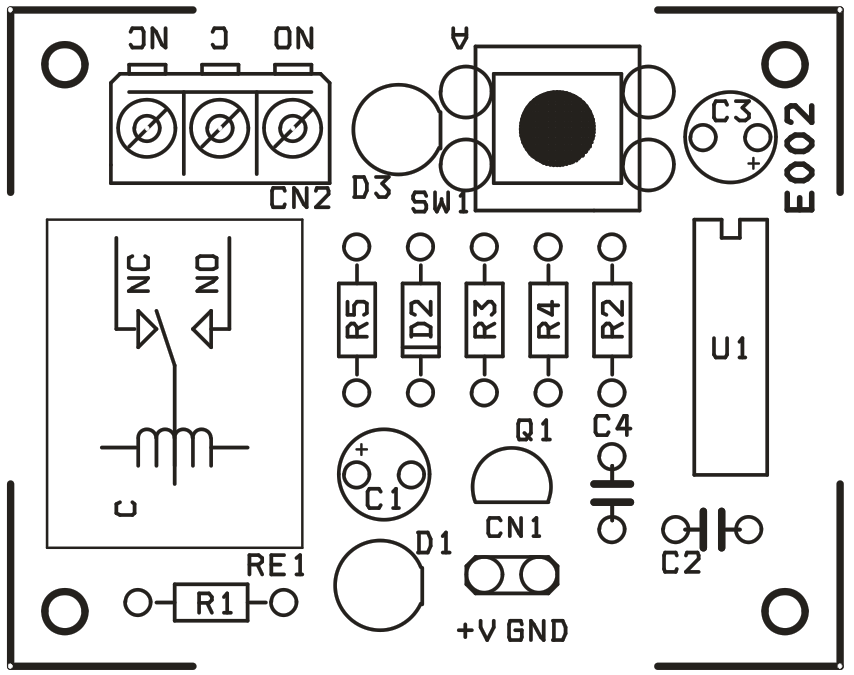

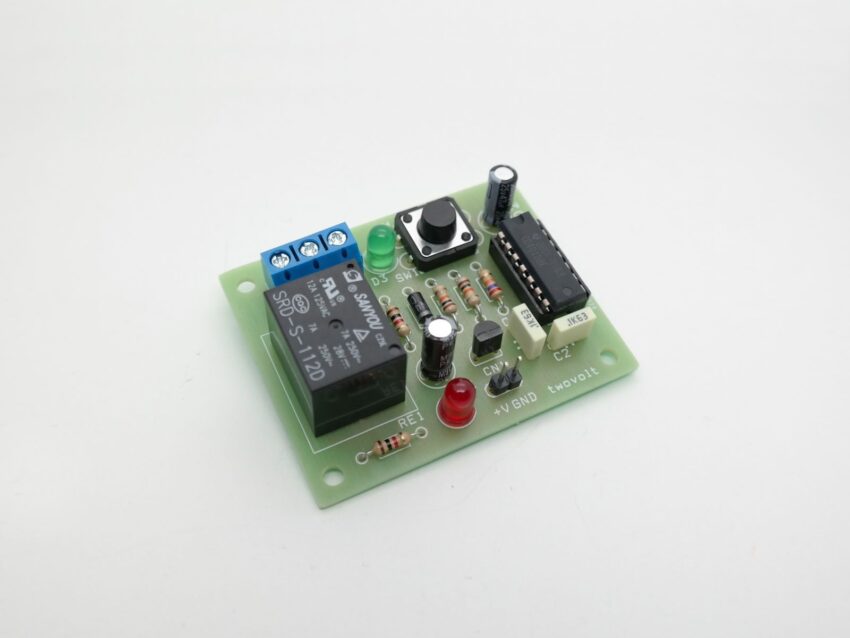

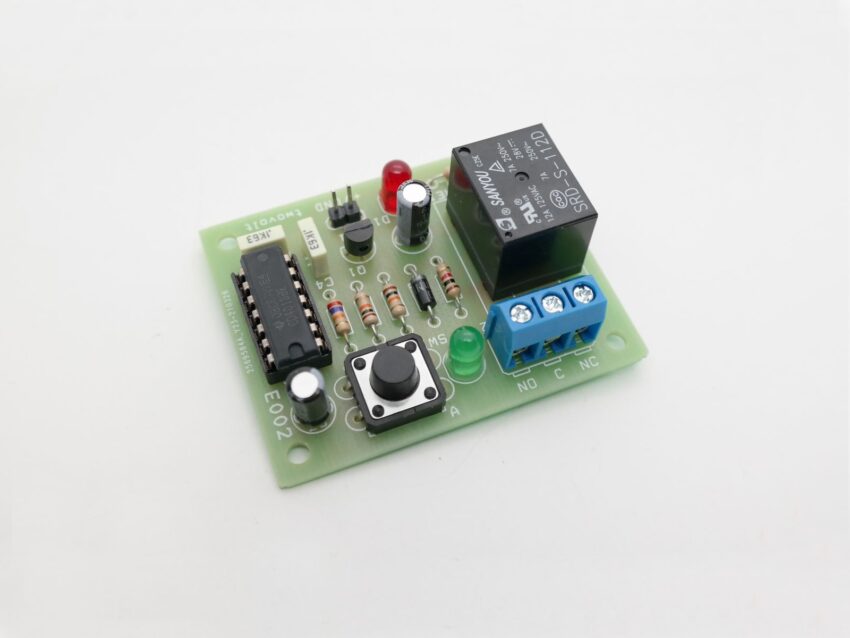

Photos

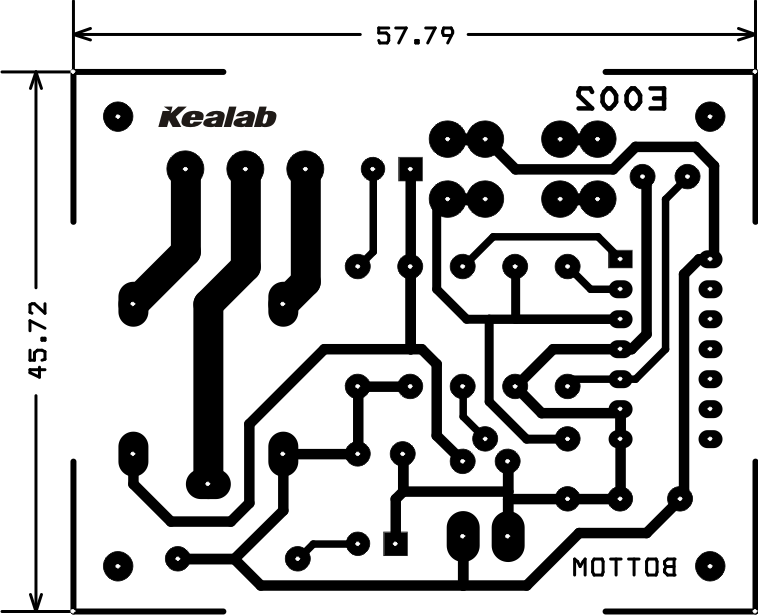

Gerber View

CD4013 Datasheet

cd4013b

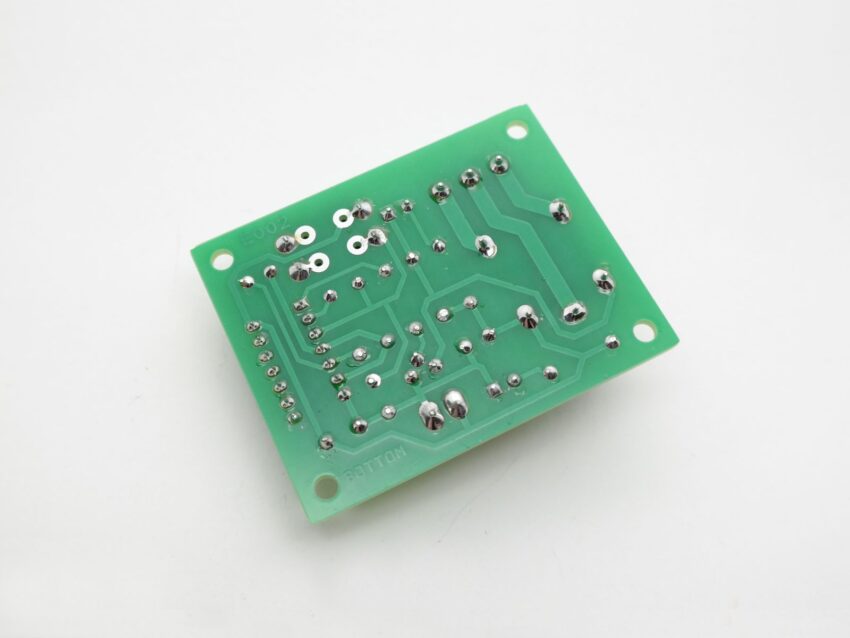

PCB

Subscribe
Notify of
guest
4 Comments
Inline Feedbacks
View all comments
akkermans

can i order this

Senthil

Dear Admin, is this electronic toggle circuit/switch available now? Any way of connecting with you directly for requirement?
