Phase-Shifted Full-Bridge PWM Controller Module – LM5046 Breakout Board
- Rajkumar Sharma
- 761 Views
- easy
- Tested
- SKU: EL114482
- Quote Now

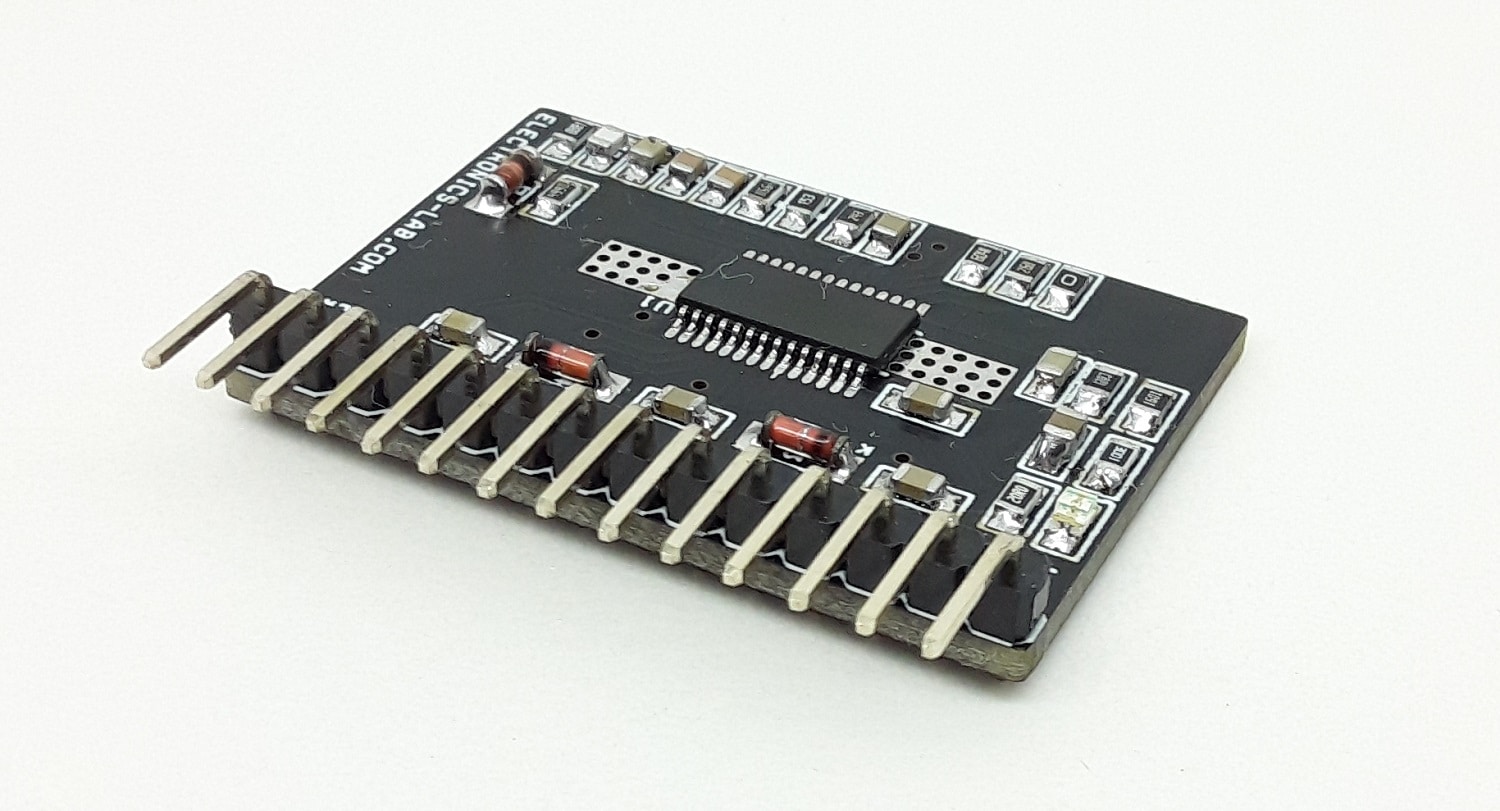

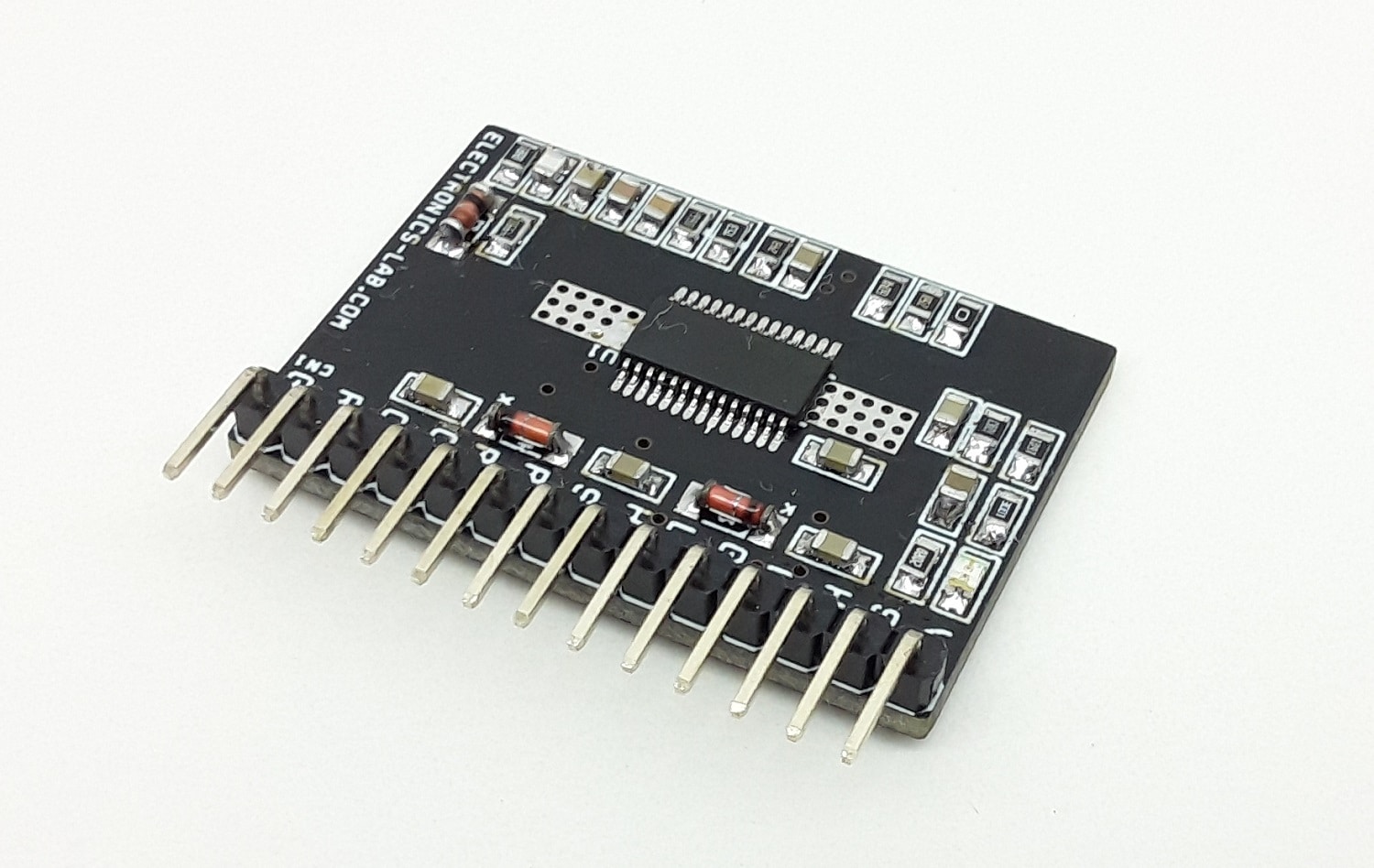

This is a Phase-Shifted Full-Bridge PWM LM5046 carrier board that contains all of the features necessary to implement a phase-shifted full-bridge topology power converter. All inputs and outputs pins are accessible using the header connector. High efficiency DC-DC converter can be created using LM5046 carrier board + External H-Bridge and Transformer. Refer to the datasheet of LM5046 and schematic to configure the frequency, current feedback, delays, etc.
Features
- Operating Power Supply 36V (Range 36V to 75V DC)
- Under Voltage Lockout UVLO (34V/32V ON/OFF)
- Frequency Of Operations 420Khz (Programmable up to 2Mhz- Set Resistor R10)
- Highest Integration Controller for Small
- Form Factor, High-Density Power Converters
- High-Voltage Start-Up Regulator
- Intelligent Sync Rectifier Start-Up Allows
- Linear Turn-on into Pre-biased Loads
- Synchronous Rectifiers Disabled in UVLO Mode and Hiccup Mode
- Two Independent, Programmable Dead-Time
- Adjustments to Enable Zero-Volt Switching
- Four High-Current 2-A Bridge-Gate Drivers
- Wide-Bandwidth Opto-Coupler Interface
- Configurable for Either Current-Mode or Voltage Mode Control
- Dual-Mode Overcurrent Protection
- Resistor Programmed 2-MHz Oscillator
- Programmable Line UVLO and OVP
- PCB Dimensions 36.20 x 25.40 mm

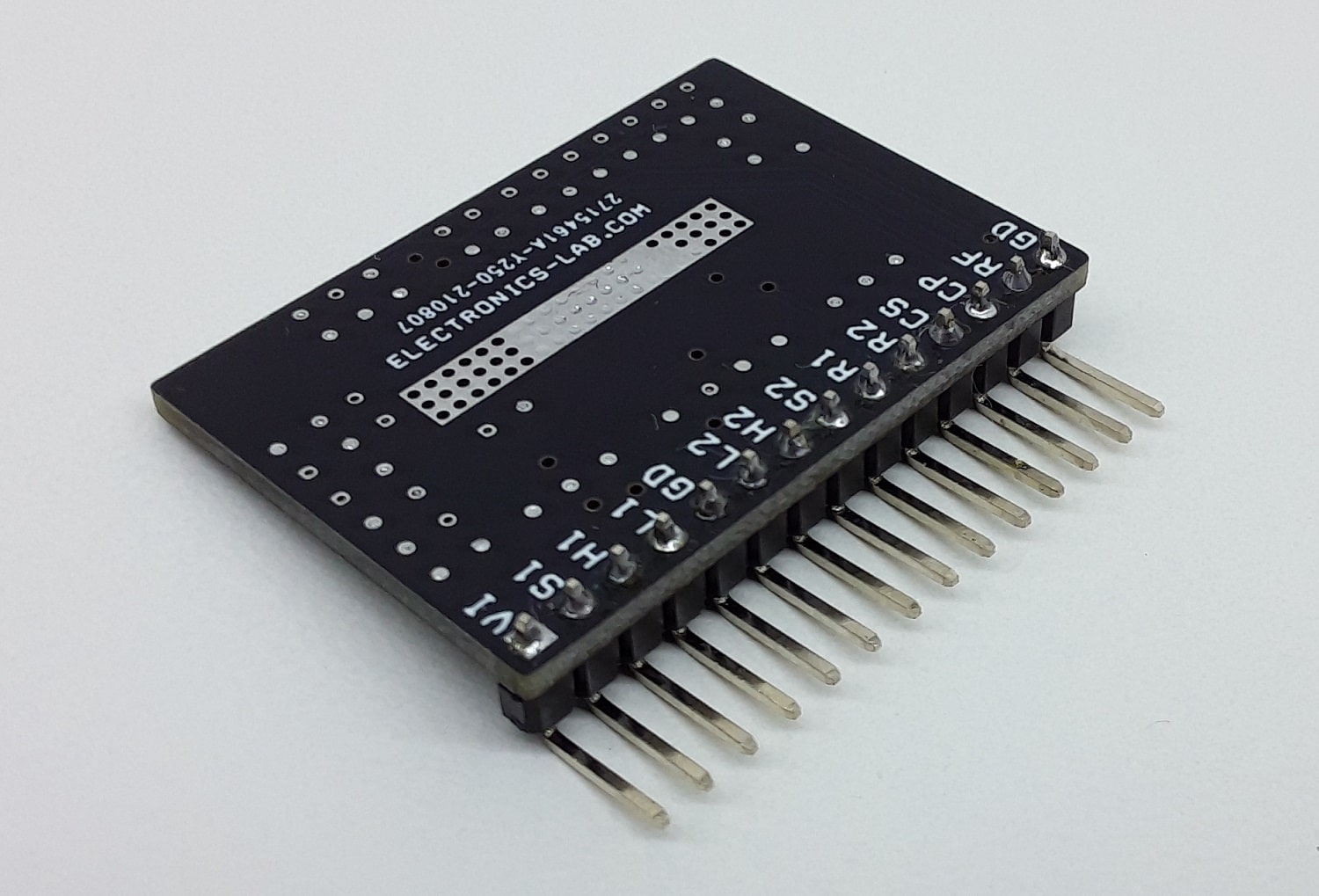

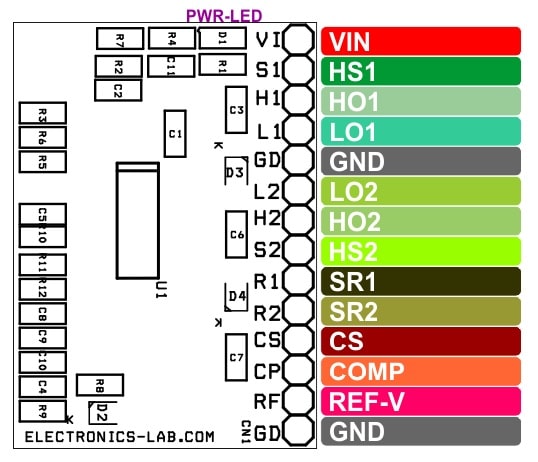

Connector CN1: Connections
- PIN 1 VIN 36V (36V-75V RANGE)
- PIN 2 HS2
- PIN 3 HO1
- PIN 4 LO1
- PIN 5 GND
- PIN 6 LO2
- PIN 7 HO2
- PIN 8 HS2
- PIN 9 SR1
- PIN 10 SR2
- PIN 11 CS-CURRENT SENSE
- PIN 12 COMP
- PIN 13 REF VOLT OUT
- PIN 14 GND
Schematic

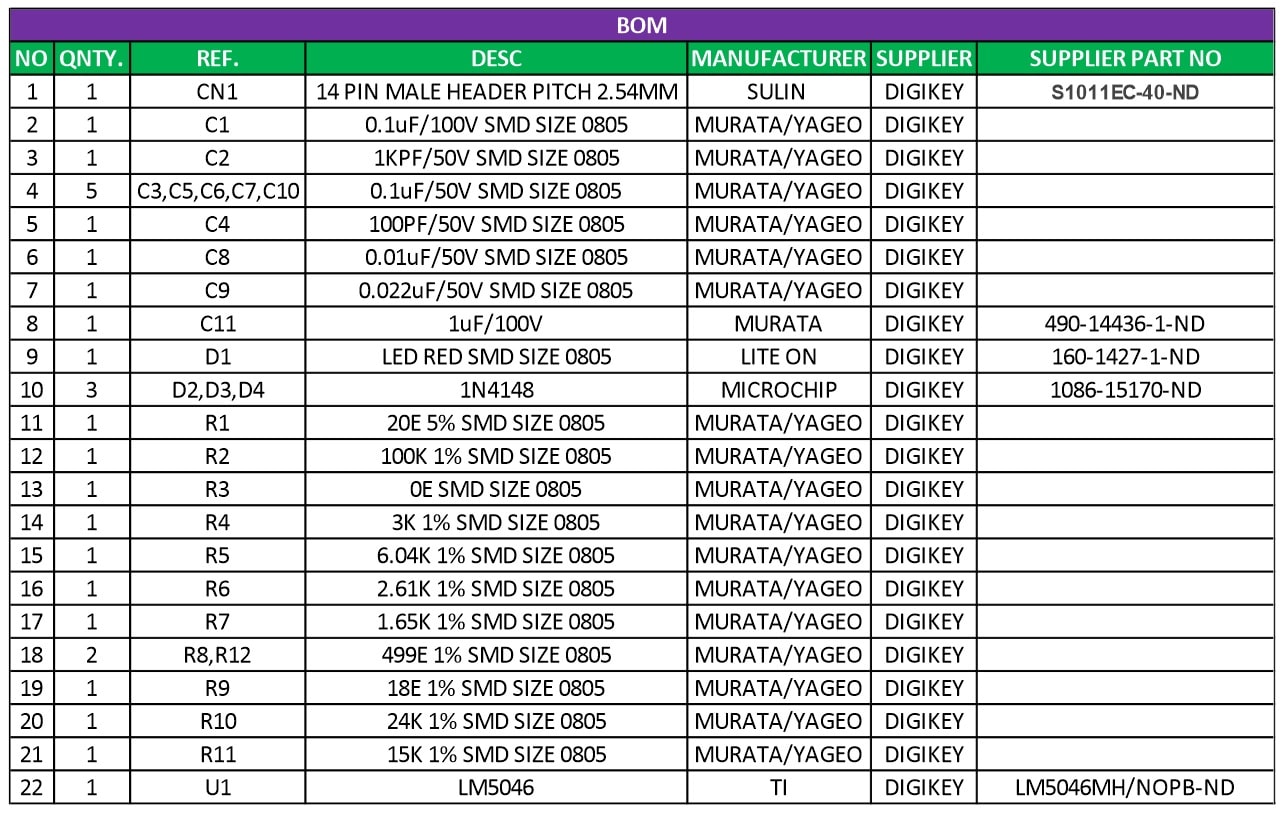

Parts List
NO | QNTY. | REF. | DESC | MANUFACTURER | SUPPLIER | SUPPLIER PART NO |
---|---|---|---|---|---|---|
1 | 1 | CN1 | 14 PIN MALE HEADER PITCH 2.54MM | SULIN | DIGIKEY | S1011EC-40-ND |
2 | 1 | C1 | 0.1uF/100V SMD SIZE 0805 | MURATA/YAGEO | DIGIKEY | |
3 | 1 | C2 | 1KPF/50V SMD SIZE 0805 | MURATA/YAGEO | DIGIKEY | |
4 | 5 | C3,C5,C6,C7,C10 | 0.1uF/50V SMD SIZE 0805 | MURATA/YAGEO | DIGIKEY | |
5 | 1 | C4 | 100PF/50V SMD SIZE 0805 | MURATA/YAGEO | DIGIKEY | |
6 | 1 | C8 | 0.01uF/50V SMD SIZE 0805 | MURATA/YAGEO | DIGIKEY | |
7 | 1 | C9 | 0.022uF/50V SMD SIZE 0805 | MURATA/YAGEO | DIGIKEY | |
8 | 1 | C11 | 1uF/100V | MURATA | DIGIKEY | 490-14436-1-ND |
9 | 1 | D1 | LED RED SMD SIZE 0805 | LITE ON | DIGIKEY | 160-1427-1-ND |
10 | 3 | D2,D3,D4 | 1N4148 | MICROCHIP | DIGIKEY | 1086-15170-ND |
11 | 1 | R1 | 20E 5% SMD SIZE 0805 | MURATA/YAGEO | DIGIKEY | |
12 | 1 | R2 | 100K 1% SMD SIZE 0805 | MURATA/YAGEO | DIGIKEY | |
13 | 1 | R3 | 0E SMD SIZE 0805 | MURATA/YAGEO | DIGIKEY | |
14 | 1 | R4 | 3K 1% SMD SIZE 0805 | MURATA/YAGEO | DIGIKEY | |
15 | 1 | R5 | 6.04K 1% SMD SIZE 0805 | MURATA/YAGEO | DIGIKEY | |
16 | 1 | R6 | 2.61K 1% SMD SIZE 0805 | MURATA/YAGEO | DIGIKEY | |
17 | 1 | R7 | 1.65K 1% SMD SIZE 0805 | MURATA/YAGEO | DIGIKEY | |
18 | 2 | R8,R12 | 499E 1% SMD SIZE 0805 | MURATA/YAGEO | DIGIKEY | |
19 | 1 | R9 | 18E 1% SMD SIZE 0805 | MURATA/YAGEO | DIGIKEY | |
20 | 1 | R10 | 24K 1% SMD SIZE 0805 | MURATA/YAGEO | DIGIKEY | |
21 | 1 | R11 | 15K 1% SMD SIZE 0805 | MURATA/YAGEO | DIGIKEY | |
22 | 1 | U1 | LM5046 | TI | DIGIKEY | LM5046MH/NOPB-ND |
Connections

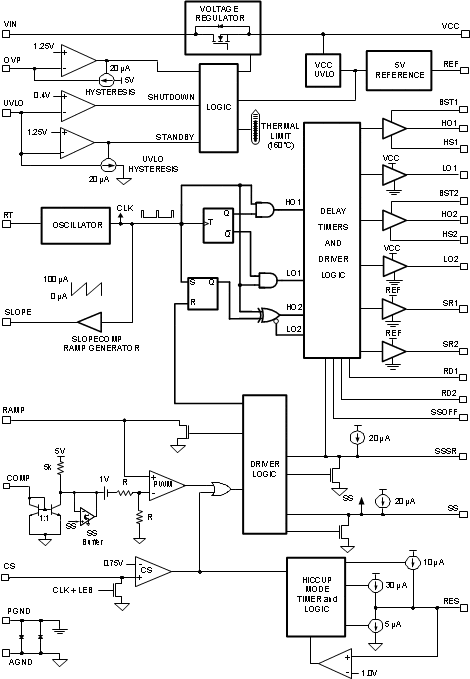

Block Diagram
Functional Diagram

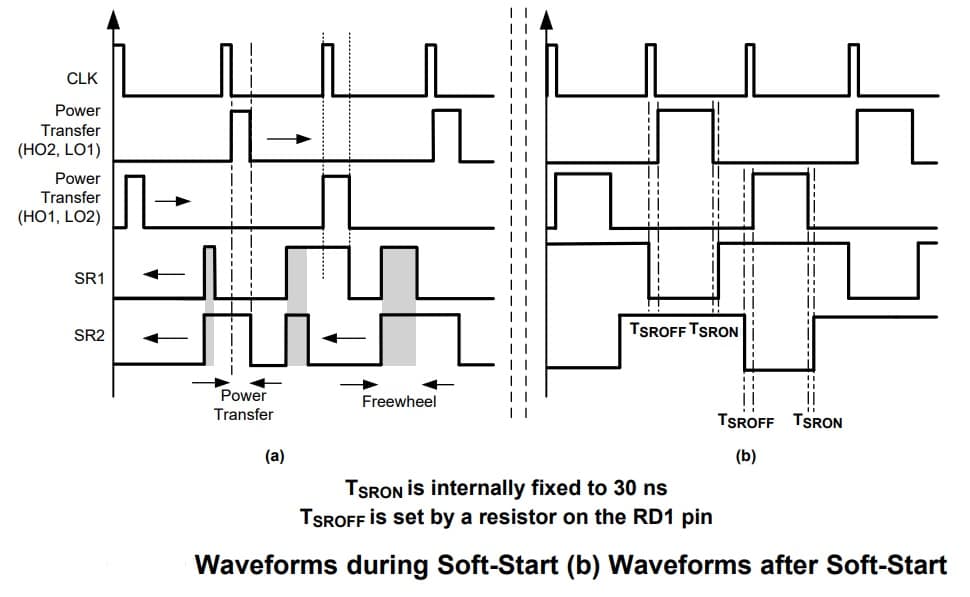

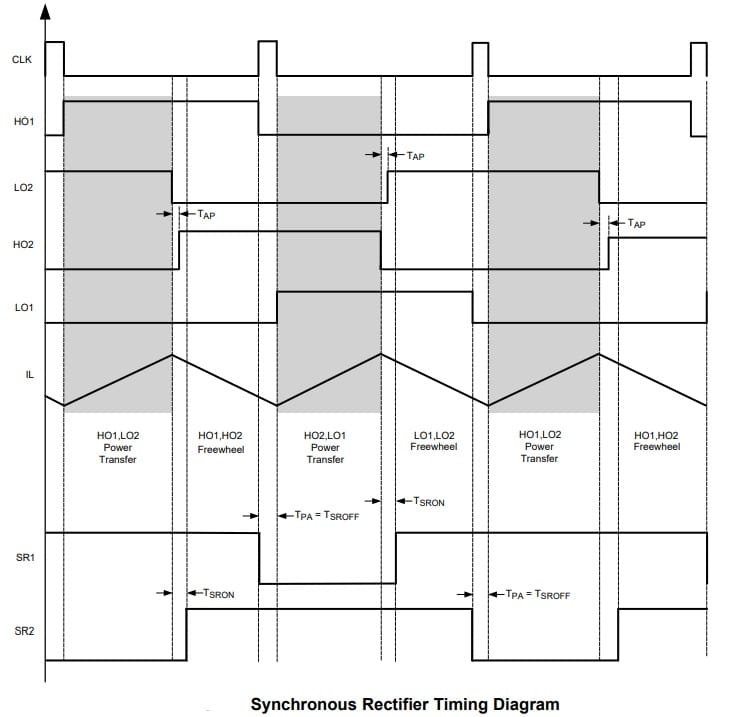

Timing Diagrams

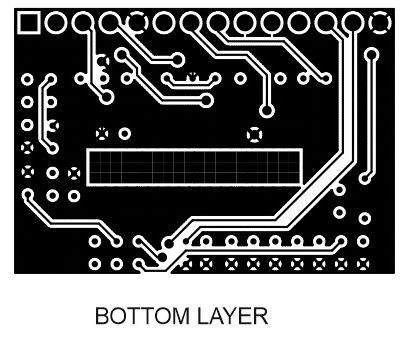

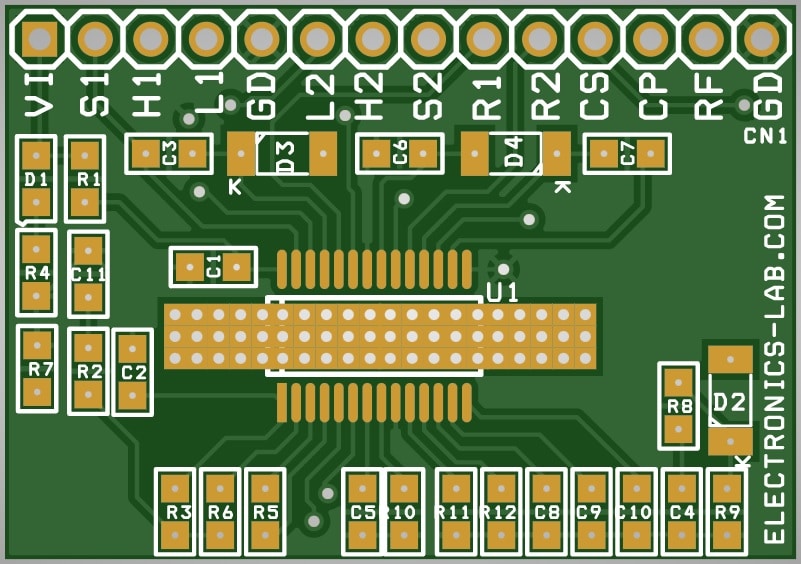

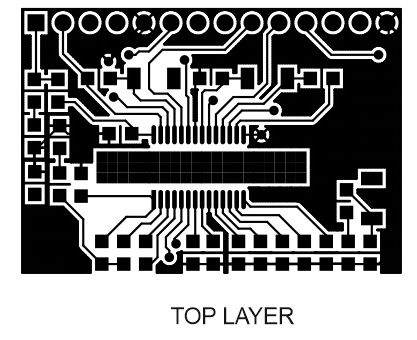

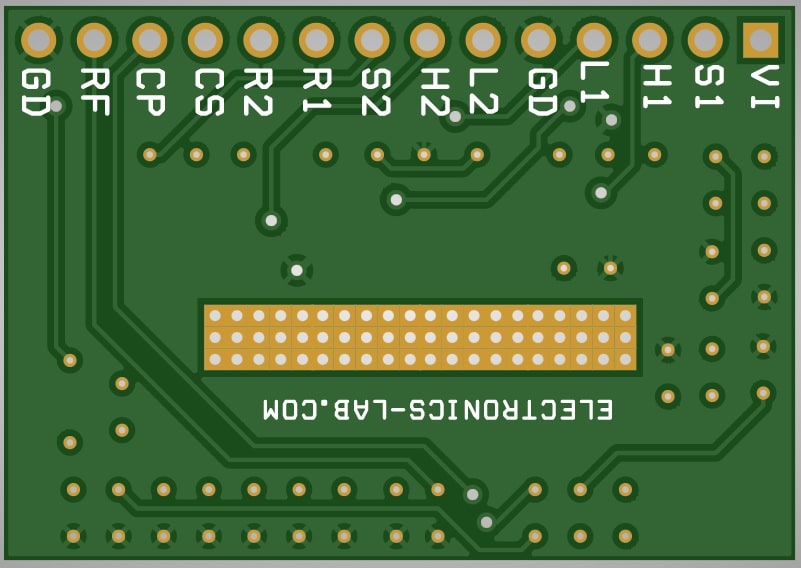

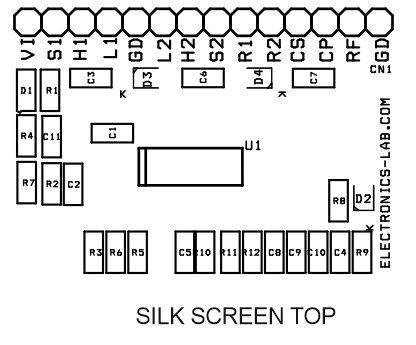

Gerber View

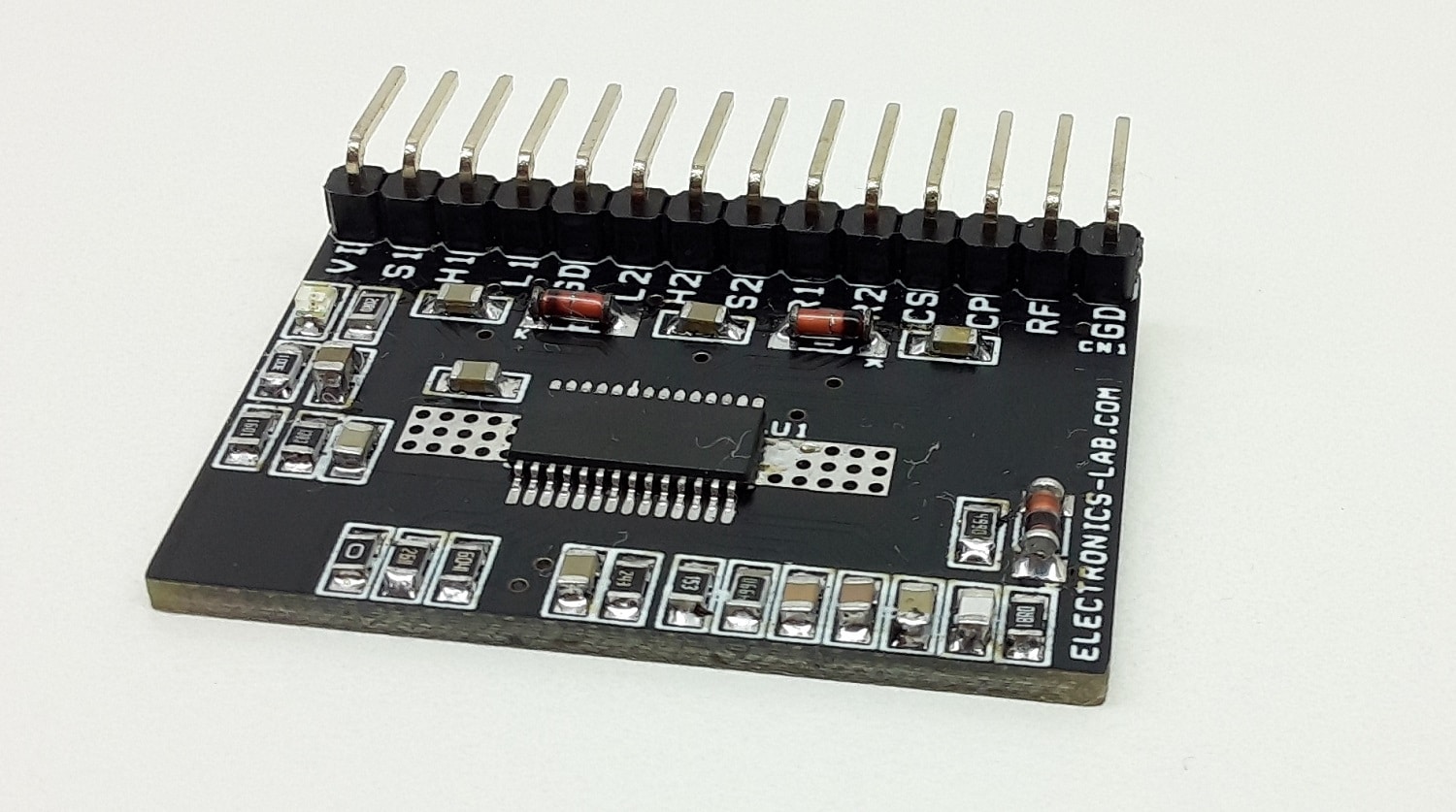

Photos
Video
LM5046 Datasheet
